John Deere 1600 TURBO SERIES III
Wide-Area Mower
The 1600 Turbo TerrainCut Wide-Area Mower has a powerful 60-hp engine and unique deck drive system, allowing effective mowing in adverse conditions.
Product Features:
- Turbocharged Diesel Engine
- B20 Compatible
- Rear-Discharge Decks
- Cutting Widths of 128, 94, or 62 in. (325.1, 238.8, or 157.5 cm)
Features
The 1600 Turbo TerrainCut™ Wide-Area Mower has a powerful 60-hp engine and unique deck drive system, allowing effective mowing in adverse conditions.
Turbocharged Diesel Engine
B20 Compatible
Rear-Discharge Decks
Cutting Widths of 128, 94, or 62 in. (325.1, 238.8, or 157.5 cm)
Benefits
Wide Cut, Easy Transport

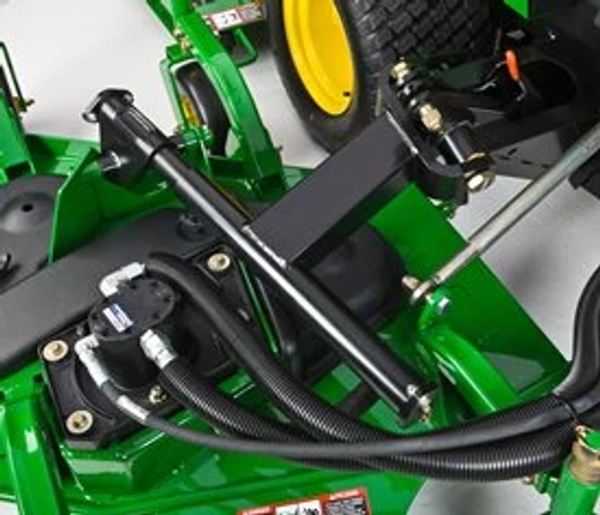

The 1600 Turbo TerrainCut™ WAM delivers up to 128 in. (325.1 cm) of cutting width with foldable wing decks that reduce transport width to 84 in. (213.4 cm). Mow over 75 acres in an 8-hour day. Also features a patented impact-absorbing system and baffling for even clipping dispersal and superior cut quality.

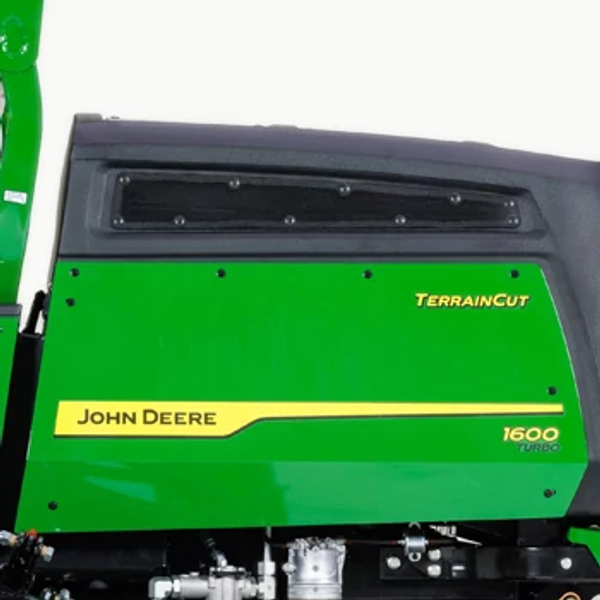

Exclusive Air-Intake System for Consistent Cooling
An innovative, exclusive air-intake system draws clean air from the top of the machine instead of the rear. This keeps the radiator cleaner and prevents the engine from overheating.

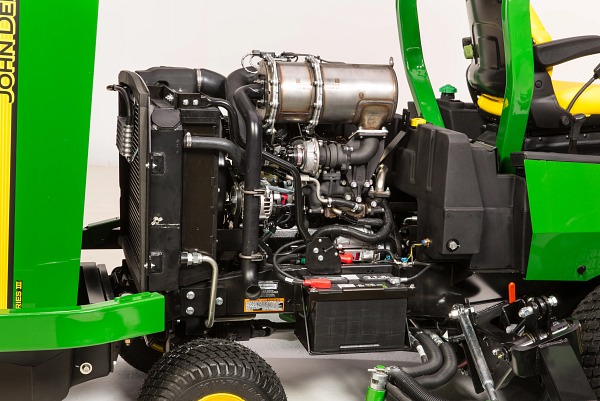

Powerful Turbocharged Diesel Engine
The 1600 Turbo TerrainCut™ WAM runs on a 60-hp (44.7-kW) turbocharged diesel engine delivering 117.3 lb-ft (159 Nm) of torque at 3000 rpm for strong hill-climbing and mowing performance. It features advanced emissions controls, a 22-gal. (83.3-L) fuel tank for all-day use, and a design focused on operator comfort and efficiency.
Specifications
| Transport Lock | Standard |
| Deck Drive Type | Hydraulic, closed loop |
| Deck Circuit | Series |
| Center Deck Cutting Width | 157 cm |
| Wing Deck Float - Up (While Maintaining PTO Engagement) | 45 degree (angle) |
| Spindles | Heat treated, diameter, 2.54 cm |
| Wing Deck Cutting Width | 42 in. |
| Deck Thickness | 7 gauge |
| Energy-Absorbing Wing Decks | Yes |
| Center Deck Cutting Width | 62 in. |
| Discharge | Rear |
| Blade Drive | C-section, V-belt |
| Spindles | Heat treated, diameter, 1 in. |
| Spindle Bearings Greaseable | Yes |
| Wing Deck Cutting Width | 107 cm |
| Deck Thickness | 4.6 mm |
| Wing Deck Float - Down (While Maintaining PTO Engagement) | 20 degree (angle) |
| Deck Construction | Fabricated steel |
| Deck Thickness | 0.18 in. |
| 80 Percent Field Efficiency | 85% field efficiency at 16 km/h |
| 80 Percent Field Efficiency | 85% field efficiency at 10 mph |
| Blade Width | 2.5 in. |
| Blade Thickness | 0.79 cm |
| Blade Width | 6.35 cm |
| Interchangeable Mower Blades Between All Decks | Yes |
| Blade Length | 55.88 cm |
| Blade Length | 22 in. |
| Total Mower Blades | Seven, three center and two each side |
| Blade Tip Speed | 13000 fpm |
| Blade Tip Speed | 3962 m/min |
| Blade Thickness | 0.312 in. |
| Motor | Displacement, axial piston pump, 2 cu in. |
| Motor | Displacement, axial piston pump, 33 cc |
| Steering Relief | 1087 psi |
| Hydraulic Reservoir Capacity | 14 gal. |
| Hydraulic Reservoir Capacity | 53 L |
| Type | Closed loop, hydrostatic |
| Implement Relief | 1600 psi |
| Traction Drive Pump | Displacement, axial piston pump, 3 cu in. |
| Traction Drive Pump | Displacement, axial piston pump, 49 cc |
| Seat | Air-ride suspension seat, adjustable, deluxe, high-backed, back angle adjustment, lumbar adjustment, standard armrests |
| Armrests | Yes, adjustable |
| Safety | Safety interlock and operator presence system |
| Seat Adjustment Positions | Multi |
| Turns Lock-To-Lock | 2.5 |
| Tilt Steering Wheel | Standard |
| Turning Radius | 99 cm |
| Turning Radius | 39 in. |
| Type | Power, hydrostatic |
| Thickness | 11 gauge |
| Thickness | 0.3 cm |
| Thickness | 0.12 in. |
| Frame Type | Welded, tubular steel |
| Max Torque Per SAE J1349 (Net Continuous) | 117.3 lb-ft |
| Displacement | 2091 cc |
| Bore And Stroke | 3.4x3.5 in. |
| Cooling System Capacity | 7.5 L |
| Operating Range - Minimum | 1400 rpm |
| Crankcase Capacity | 5.8 L |
| Horsepower (Gross Intermittent) | 60 hp |
| Lubrication | Pressurized by lobe-style pump |
| Cycle | 4 |
| Air Restriction Indicator | Standard, progressive type |
| Operating Torque (Net Continuous @ 3000 RPM) | 140 Nm |
| Max Torque Per SAE J1349 (Net Continuous) | 159 Nm |
| Cooling System Capacity | 2.5 gal. |
| Engine Model | 4TNV86CT-DJWM (T4) |
| Horsepower (Gross Intermittent) | 3000 rpm |
| Starting Aid | Engine glow plug |
| Cylinders | 4 |
| Compression Ratio | 19:01 |
| Engine Shutoff | Key |
| Radiator Fins | 10 fins per in. |
| Displacement | 127.6 cu in. |
| Bore And Stroke | 86x90 mm |
| Cooling | Liquid-cooled water centrifugal |
| Air Cleaner | Dual element, dry type |
| Horsepower (Gross Intermittent) | 44 kW |
| Radiator Location | Rear mounted |
| Crankcase Capacity | 6.1 qt |
| Oil Filter | Spin-on |
| Injection | Direct |
| Operating Torque (Net Continuous @ 3000 RPM) | 103 lb-ft |
| Rated Engine Speed | 3000 rpm |
| Operating Range - Maximum | 3030 rpm |
| Fuel Neck Opening | 7.6 cm |
| Fuel Filter | Replaceable, spin-on type |
| Fuel Neck Opening | 3 in. |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 83.3 L |
| Fuel Tank Capacity | 22 gal. |
| Cold Start Device | Increased timing for better cold starting |
| Fuel Pump Type | Mechanical |
| Fuel Tank Location | Left side of the machine |
| Water Separator | Replaceable, 100-mesh element |
| Self Bleeding | System is self-bleeding because of the electric fuel transfer pump |
| Fuel Transfer Pump | Electric |
| Throttle | Hand |
| Deck Motor | Displacement, gear motor, 41 cc |
| Power Take-Off (PTO) Engagement - Type | Hydraulic, independent |
| Mower Lift | Three two-function switches |
| Power Take-Off (PTO) Engagement/Disengagement | Electric solenoid |
| Indicator Lights | Engine air heater, oil pressure light, engine temperature light, fuel gauge, hydraulic oil temperature light |
| Circuit | Series |
| Deck Drive Pump | Displacement, axial piston pump, 2.48 cu in. cu in. |
| Deck Motor | Displacement, gear motor, 2.5 cu in. |
| Deck Motor - Type | Hydraulic, open center, closed loop |
| Power Take-Off (PTO) Engagement | Electric solenoid switch |
| Park Brake | Foot pedal/disk |
| Deck Drive Pump | Displacement, axial piston pump, 40.6 cc |
| Forward/Reverse | Two-pedal |
| Four-Wheel Drive (4WD) | On demand or full time |
| Transmission | Hydrostatic |
| Transaxle | Tuff Torque (Kanzaki) |
| Final Drive | Planetary |
| Four-Wheel Drive (4WD) Type | Mechanical rear-wheel drive |
| Differential Lock | Mechanical, foot activated |
| Transaxle Type | Dual range |
| Drive Tires (Front) - Pressure | Front: 30 psi / Rear: 28 psi psi |
| Tread | Multi-trac |
| Steering Tires (Rear) | 18x9.5-8 |
| Ply Rating | 6 PR (both) |
| Drive Tires (Front) - Pressure | Front: 206.8 kPa / Rear: 193.1 kPa |
| Drive Tires (Front) | 26x12-12 |
| With Deck | 94 dBA |
| Without Deck | 89 dBA |
| Front Deck Caster Wheels | Two, 11x4-5, flat-free |
| Wing Deck Caster Wheels | Four, 11x4-5, flat-free |
| Type | Flat-free |
| Starter Size | 1.9 hp |
| Starter Size | 1.4 kW |
| Alternator | 75 amp |
| Battery Voltage | 12 V |
| Charging System | Automotive type |
| Battery Cold Crank Amps | 675 CCA |
| High Forward Speed | 15 mph |
| High Forward Speed | 24 km/h |
| Speed Range - Maximum | 15 mph |
| Speed Range - Maximum | 24 km/h |
| High Reverse Speed | 12 km/h |
| High Reverse Speed | 7.5 mph |
| Low Forward Speed | 14.5 km/h |
| Low Forward Speed | 9 mph |
| Speed Range - Minimum | 0 km/h |
| Speed Range - Minimum | 0 mph |
| Low Reverse Speed | 7.2 km/h |
| Low Reverse Speed | 4.5 mph |
| Tread Width | 52 in. |
| Transport Width | 213 cm |
| Height With Rollover Protective Structure (ROPS) | 249 cm |
| Ground Clearance | 6.5 in. |
| Machine Weight Without The Deck | 3264 lb. |
| Width With Decks Down | 340 cm |
| Wheel Base | 152 cm |
| Length (With Deck) | 132 in. |
| Vehicle Weight | 4173 lb. |
| Tread Width | 131 cm |
| Transport Width | 84 in. |
| Height With Rollover Protective Structure (ROPS) | 98 in. |
| Ground Clearance | 16.5 cm |
| Machine Weight Without The Deck | 1474.2 kg |
| Width With Decks Down | 134 in. |
| Length (With Deck) | 335 cm |
| Wheel Base | 60 in. |
| Vehicle Weight | 1892.8 kg |
| Warranty | 24 months |
| Certification | ANSI B71.4 |
| Date Collected | 2022-07-21T00:00:00 |
| Lift Cylinders | 2 in. |
| Lift Cylinders | 5.08 cm |
| Type | Hydraulic, open center |
| Pump | Gear |
| Full Load | 12.7 L/hr |
| Full Load | 3.33 gph |
| One-Half Load | 7.31 L/hr |
| One-Half Load | 1.93 gph |
| Parking Brakes | Hand brake |
| Steering Brakes | Standard |
| Type | Internal, wet disc |
| Type | Standard two-post folding ROPS meets ISO21299 standard |
