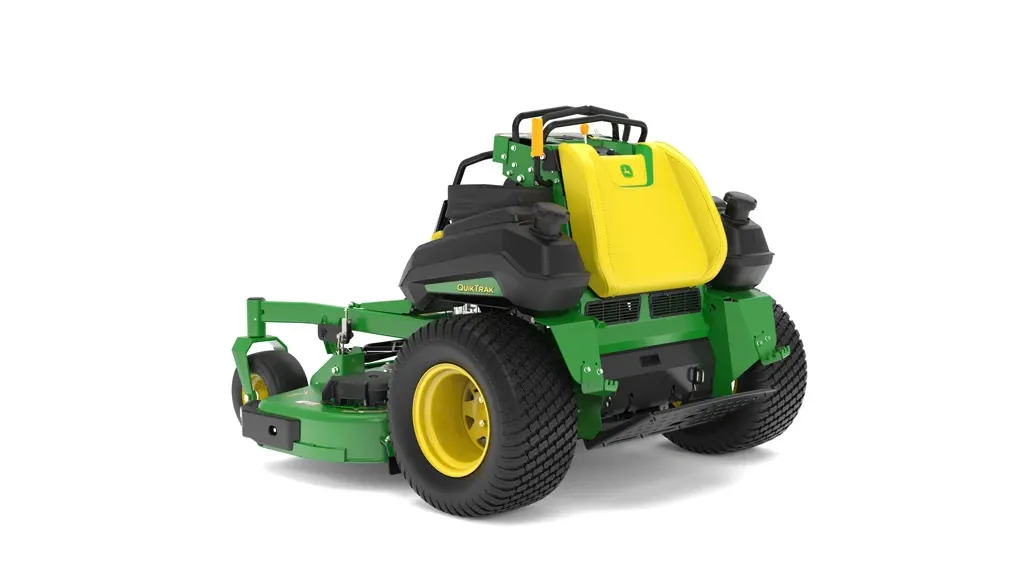

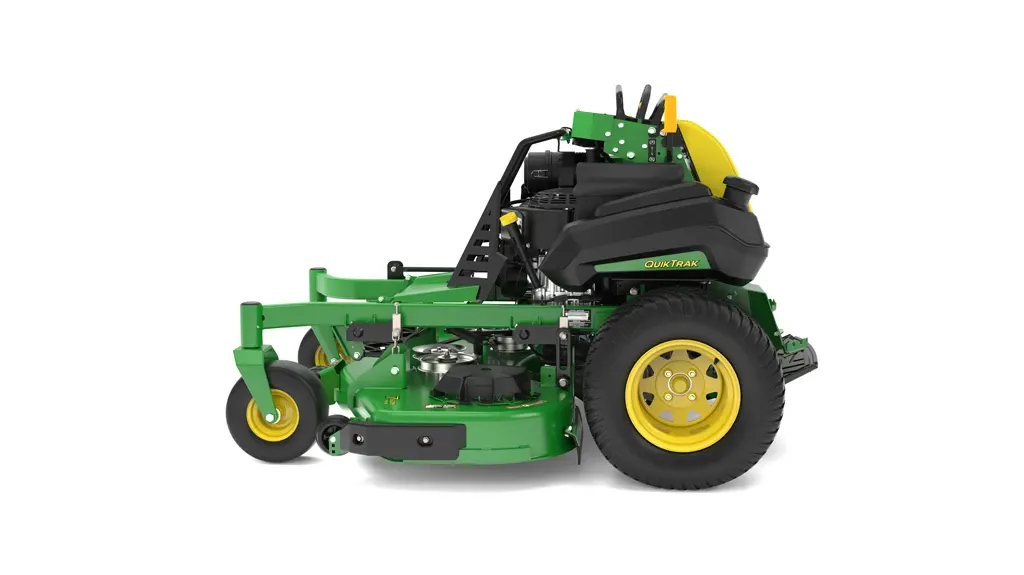

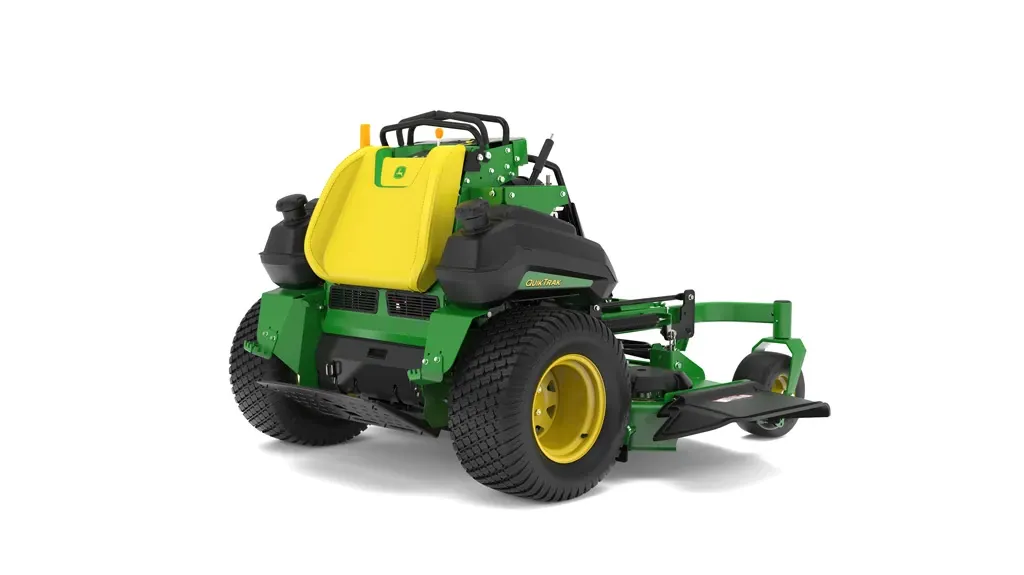

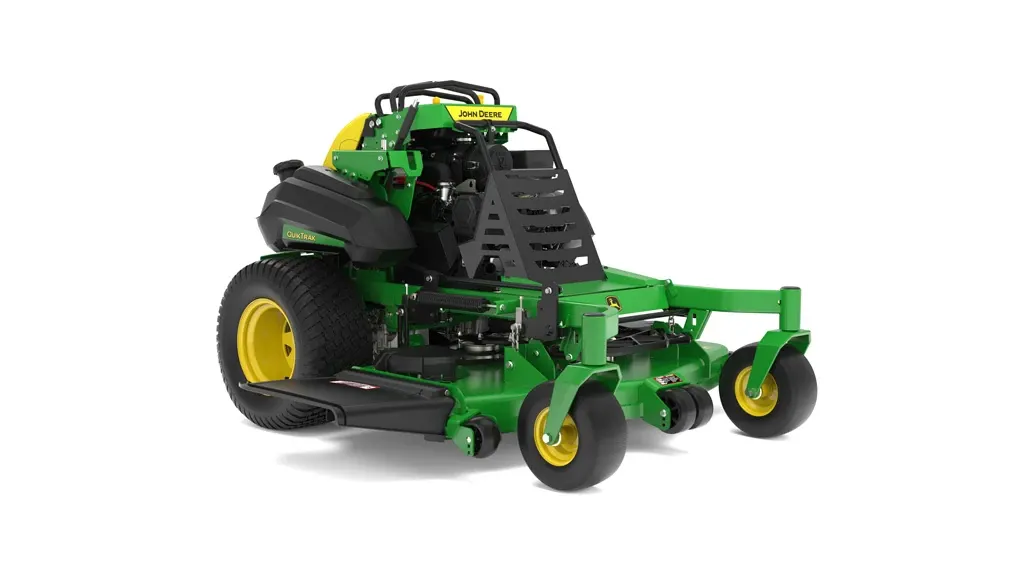

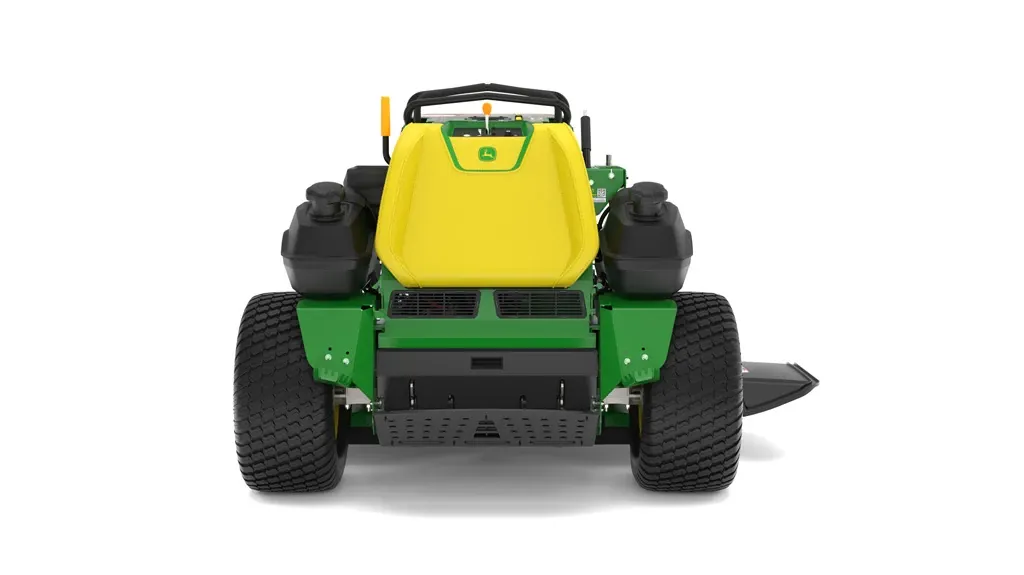

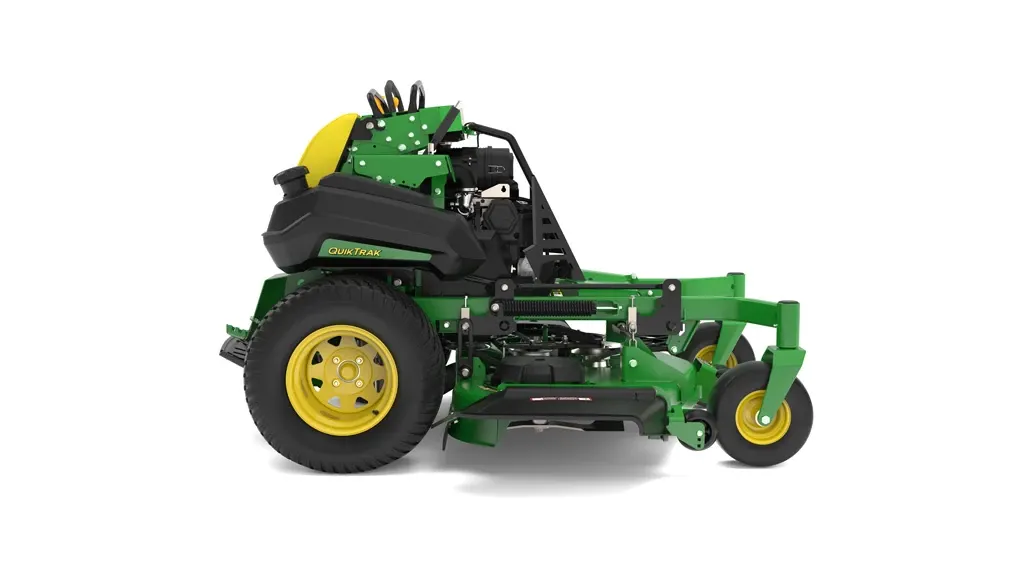

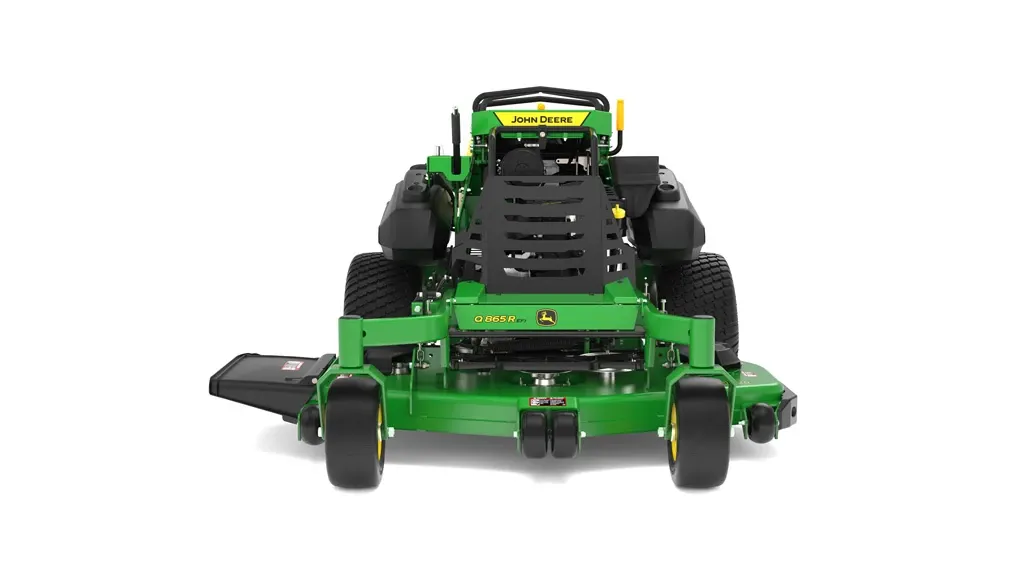

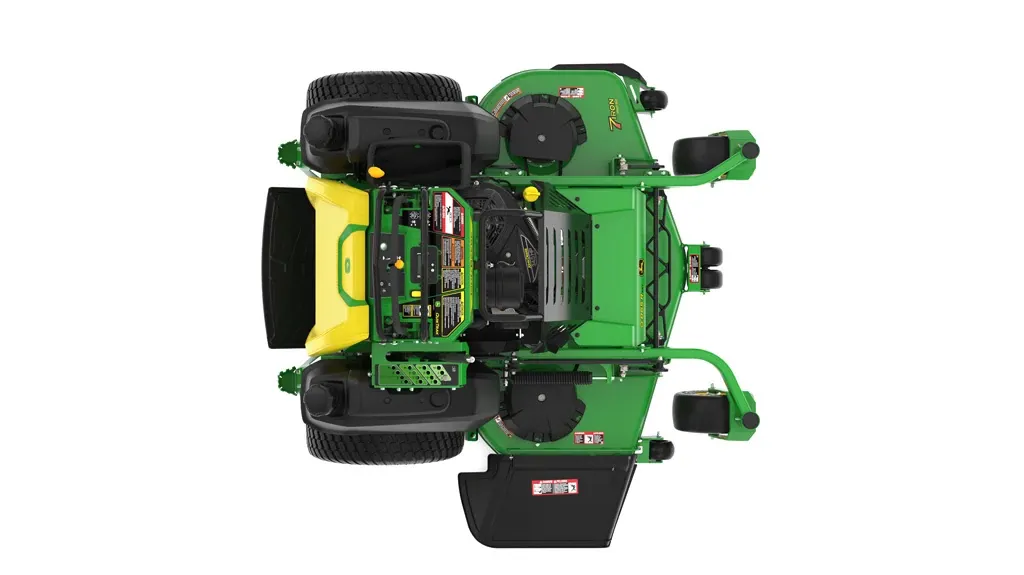

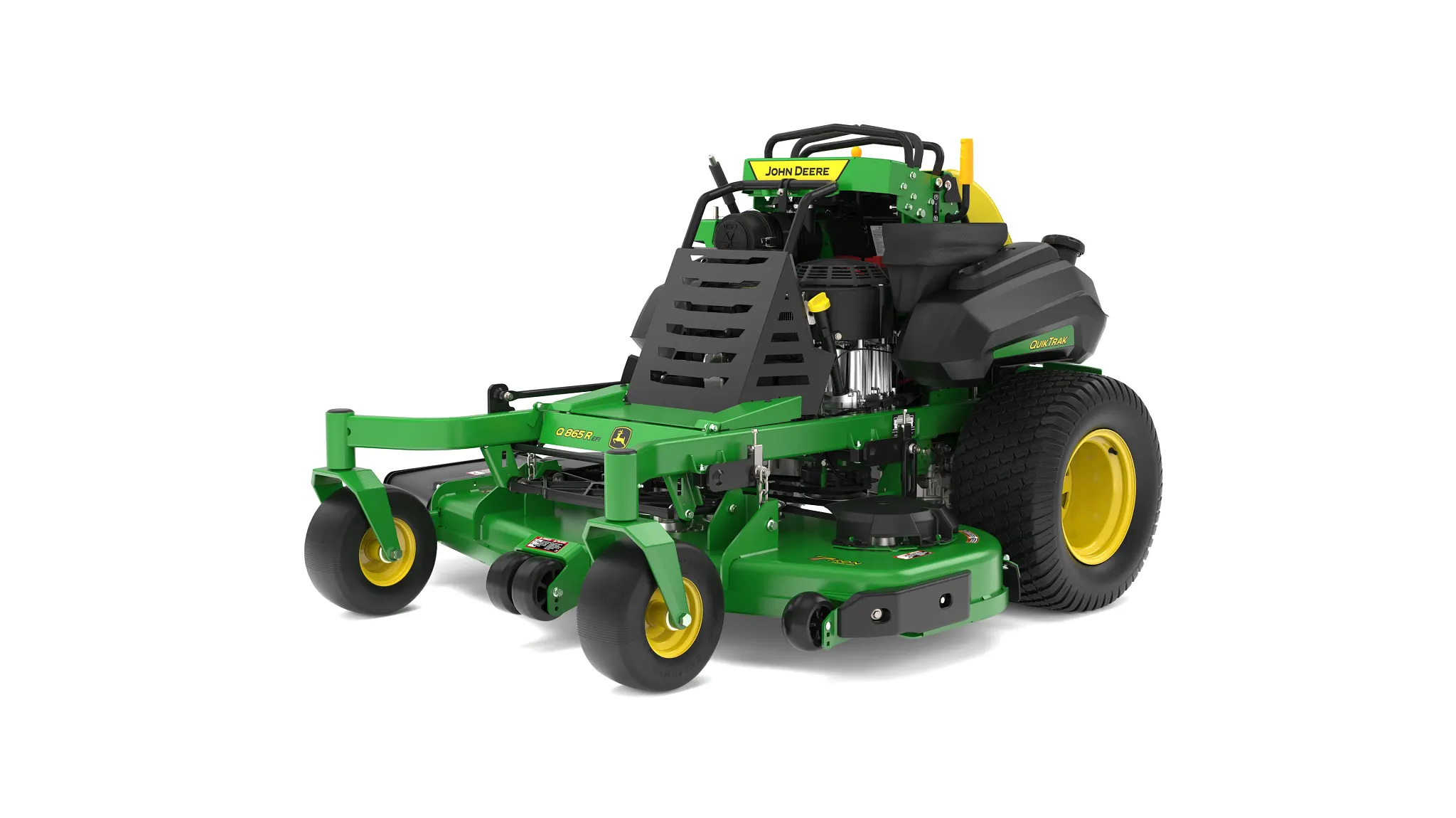

Q865R 60R+ QuikTrak Stand-On Mower Studio Image

John Deere Q865R EFI

QuikTrak™ Stand-On Mower

Power through your biggest jobs with the Q865R EFI QuikTrak. Its 34.5-hp V-twin EFI engine delivers exceptional mowing speed and precision while advanced engineering maximizes fuel efficiency.

Product Features:

34.5-hp (25.7-kW) EFI Engine
60- and 72-in. 7Iron™ PRO Decks, 60-in. FastBack™ PRO Deck
Mow Up to 12 mph
Warranty: 36 Months or 1500 Hours, Which Ever Comes First; First 24 Months, No Hour Limitation ^ⓘ

View Product Broshure

Features

Power through your biggest jobs with the Q865R EFI QuikTrak™. Its 34.5-hp V-twin EFI engine delivers exceptional mowing speed and precision while advanced engineering maximizes fuel efficiency.

34.5-hp (25.7-kW) EFI Engine

60- and 72-in. 7Iron™ PRO Decks, 60-in. FastBack™ PRO Deck

Mow Up to 12 mph

Warranty: 36 Months or 1500 Hours, Which Ever Comes First; First 24 Months, No Hour Limitation

Benefits

Rear view of the lower 3/4ths of a yellow-vested operator mowing a lawn with a Q850R QuikTrak Stand-On mower

Spacious Operator Platform With Room to Move

The R Series QuikTrak™ mowers offer a spacious operator platform, featuring a wide foot platform and fender-mounted foot holds for varied stances. Designed for operator comfort and stability, the spring-loaded platform smooths out bumps and reduces operator fatigue.

Yellow-vested operator mowing grass on an incline in front of a black glass building on a Q850R Stand-on QuikTrak mower with 60-in. 7Iron PRO deck

Durable 7Iron™ PRO Mower Deck

The 7Iron™ PRO Mower Deck is forged from a single piece of 7-gauge steel, offering exceptional strength and durability. With fewer welds and a deep-deck design, it provides excellent airflow and clipping dispersal for a high-quality finish in diverse mowing conditions.

Integrated Transaxles

Tuff Torq® TZT13 integrated transaxles combine commercial-grade hydraulic pump and wheel motor into a single housing for each side. This design reduces potential leak points, providing exceptional cooling and durable performance.

Specifications

Height-Of-Cut Increments	0.25 in.
Height-Of-Cut Increments	0.64 cm
Cutting Width	60 in.
Cutting Width	152 cm
Mower Deck Size	60-in. (152-cm) 7Iron™ PRO side-discharge
Height-Of-Cut Range	3.8-12.7 cm
Height-Of-Cut Range	1.5-5 in.
Deck Thickness	7 gauge / 0.180 in. / 4.6 mm
Discharge	Side
Deck Construction	7-Iron™ PRO: one-piece forged steel

Hydraulic Pumps	0.79 cu in. / 13 cc
Forward Speed	0-19.3 km/h
Speed Direction And Control	Twin hand-controlled levers
Speed Range	0-12 mph
Hydraulic Capacity	6 U.S. qt
Reverse Speed	0-6 mph
Wheel Motors	13 cu in. / 213 cc
Filter	Two internal and replaceable
Forward Speed	0-12 mph
Transmission	Tuff Torq TZT13 IHT
Speed Range	0-19.3 km/h
Hydraulic Capacity	5.7 L
Reverse Speed	0-9.7 km/h
Hydraulic Oil Cooler	Two 8.5 in. (22 cm) fans

Caster Wheels	13x5-6
Caster Wheel Type	Flat free
Front Anti-Scalp Rollers	RH, center, LH

Park Brake	Internal wet disk
Dynamic Braking	Dual hand-controlled levers
Park Brake Actuation	Hand lever

Fuel Type	Gasoline
Fuel Tank Capacity	45.3 L
Fuel Tank Capacity	12 U.S. gal.
Fuel Tank Switch/Shut-Off Valve	No

Displacement	822 cc
Displacement	50.2 cu in.
Cooling	Forced air, with integrated clean out ports and oil cooler
Air Cleaner	Heavy-duty canister type with safety element
Crankcase Capacity	2.1 L
Engine Power	Gross at 3,600 rpm: 34.5 hp / 25.7 kW
Crankcase Capacity	2.2 U.S. qt
Oil Filter	Full flow, replaceable
Lubrication	Full pressure
Cylinders	2
Engine Manufacturer/Model	FX820V EFI

Weight	1165 lb.
Weight	528 kg
Width - With Chute Down	188 cm
Width - With Chute Down	74 in.
Length	Foot platform up, 70 in. / 183 cm Foot platform down, 74.75 in. / 190 cm

Load Rating	4 PR
Drive Wheels	24x12-12 pneumatic / 24x12N12 Tweel

Date Collected	2023-08-28T00:00:00

Number	3
Blade Tip Speed	Approximately 18,000 fpm / 5486 m/min
Thickness	0.25 in. / 0.64 cm

Type	Electro-magnetic with brake, 225 lb-ft / 305 Nm
Drive	V-belt

Operator Presence Starting System	Yes
Battery Voltage	12 V
Hour Meter	Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
Cold Cranking Amp	300 amp
Charge System	30 amp

Warranty	36 months or 1500 hours, whichever comes first. First 24 months, no hour limitation.
