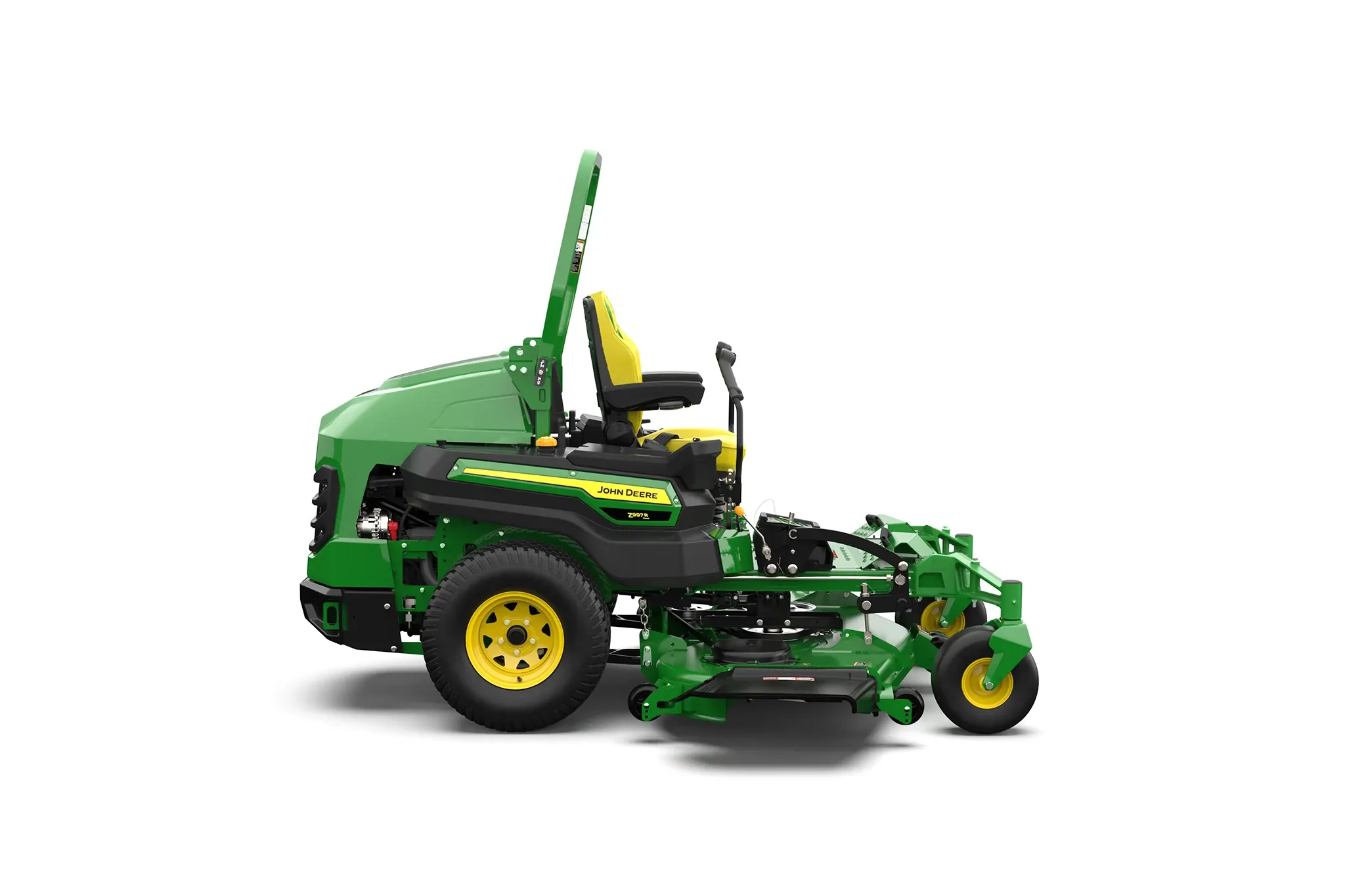

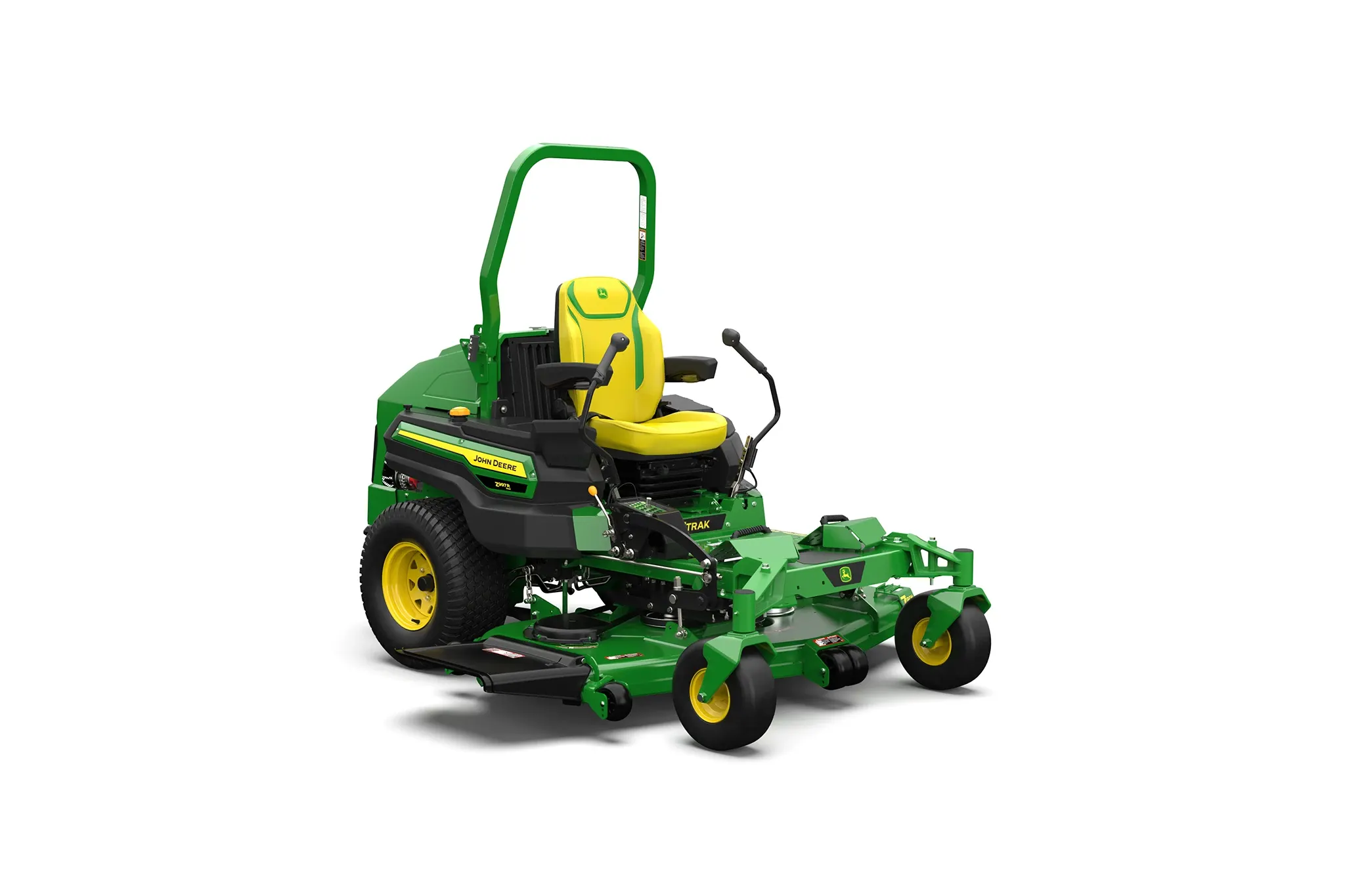

John Deere Z997R

ZTrak™ Zero-Turn Mower

The Z997R Diesel ZTrak Zero-Turn Mower is designed to support reliable performance, efficient operation, and operator confidence, combining practical features and integrated technology to help operators work productively across a wide range of conditions.

Product Features:

37.4 hp (27.5 kW)
Biodiesel (B20) Compatible
Tier 4 Compliant
7-Iron™ Pro Deck

View Product Broshure

Features

The Z997R Diesel ZTrak™ Zero-Turn Mower is designed to support reliable performance, efficient operation, and operator confidence, combining practical features and integrated technology to help operators work productively across a wide range of conditions.

37.4 hp (27.5 kW)

Biodiesel (B20) Compatible

Tier 4 Compliant

7-Iron™ Pro Deck

Benefits

Top‑down view of zero‑turn mower showing the operator area with a yellow seat, control levers, perforated deck surface, and twin mower housings on either side.

Fastback™ PRO Rear-Discharge Mower Deck

The Fastback™ PRO rear-discharge system improves safety and productivity by minimizing debris throw and allowing closer mowing near obstacles. Ideal for public spaces, it ensures a tidy operation with better debris control around the operator.

7-Iron™ PRO Deck

This mower is equipped with a 7-Iron PRO side-discharge deck stamped from 7-gauge steel, offering superior durability and performance. The deck design provides a high-quality cut with excellent material processing and discharge capabilities.

Close-up of mower seat with green accent panels and armrests, mounted on a black equipment frame with visible seat adjustment knob, control levers, and roll bar behind.

ComfortGlide™ Seat System

The ComfortGlide™ seat system features adjustable suspension, allowing operators to transition more smoothly over bumps. It can adjust fore and aft, absorbing impacts for reduced operator fatigue during long hours of operation.

Specifications

Height-Of-Cut Increments	0.25 in.
Height-Of-Cut Increments	0.64 cm
Cutting Width	60/72 in.
Cutting Width	152/183 cm
Mower Deck Size	60-in. (152-cm) 7Iron™ PRO side-discharge; 72-in. (183-cm) 7Iron™ PRO side-discharge; 60-in. (152-cm) FastBack™ PRO rear-discharge; 72-in. (183-cm) FastBack™ PRO rear-discharge
Height-Of-Cut Range	3.8-12.7 cm
Height-Of-Cut Range	1.5-5 in.
Discharge	Side-discharge, Rear-discharge
Deck Construction	7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel; FastBack™ PRO: 7-gauge, 0.179-in. (4.6-mm) fabricated steel

Forward Speed	0-18.5 km/h km/h
Speed Direction And Control	Zero turn
Speed Range	0-11.5 mph mph
Hydraulic Capacity	3.2 U.S. qt
Reverse Speed	0-5 mph mph
Wheel Motors	Parker Ross TG0310, 18.9 cu in. (310 cc)
Filter	Spin-on Type
Forward Speed	0-11.5 mph mph
Transmission	Hydrostatic
Speed Range	0-18.5 km/h km/h
Hydraulic Capacity	12.1 L
Reverse Speed	0-8 km/h km/h
Hydraulic Oil Cooler	Yes

Load Rating	4PR
Rear Tires	26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires
Drive Wheels	26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires

Height - With ROPS Up	216 cm
Height - With ROPS Up	85 in.
Weight	1960 - 2100 lb.
Weight	889 - 953 kg
Width - With Chute Down	188, 218 cm
Width - With Chute Down	74, 86 in.
Length	60-in. (152-cm) side-discharge: 96 in. (244 cm)
Width - Rear Discharge	161.3, 192.5 cm
Width - Rear Discharge	63.5, 75.8 in.
Height - With ROPS Down	48 in.
Height - With ROPS Down	122 cm

Slope Operating Limit	20 degree (angle)
Slope Operating Limit - With Material Collection System	10 degree (angle)
Rollover Protective Structure (ROPS)	Yes

Caster Wheels	15x6-6
Caster Wheel Type	Flat free
Front Anti-Scalp Rollers	LH, RH, Center
Rear Anti-Scalp Rollers	LH, RH, Center

Park Brake	Caliper disc brake
Dynamic Braking	Dual hand controlled levers
Park Brake Actuation	Hand lever

Fuel Type	Diesel or Biodiesel (up to B20)
Fuel Tank Capacity	45.4 L
Fuel Tank Capacity	12 U.S. gal.
Fuel Tank Switch/Shut-Off Valve	Yes

Displacement	1642 cc
Displacement	100.2 cu in.
Cooling	Liquid
Pre-Cleaner	Yes
Air Cleaner	Heavy-duty canister, dry type with safety element and air-restriction indicator
Crankcase Capacity	3.6 L
Engine Power	Gross at 3,000 rpm, PS: 37.4 hp (27.5 kW)
Crankcase Capacity	3.8 U.S. qt
Oil Filter	Full flow, replaceable, spin-on type
Lubrication	Full pressure
Cylinders	3
Engine Manufacturer/Model	3TNV88C

Date Collected	2023-03-15T00:00:00

Number	3
Blade Tip Speed	7Iron PRO: Approximately 18,000 fpm; 60-in. (152-cm) FastBack: Approximately 15,000 fpm; 72-in. (183-cm) FastBack: Approximately 17,000 fpm
Thickness	0.25 (0.64 cm)
Length	Varies by deck size

Type	Hydraulic clutch
Drive	Internal wet disk clutch

Operator Presence Starting System	Standard
Battery Voltage	12 V
Hour Meter	Digital multi-function display
Charge System	75 amp
Cold Cranking Amp At 18 Degrees C	490 amp

Warranty	36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months
