John Deere 310 P
Backhoe

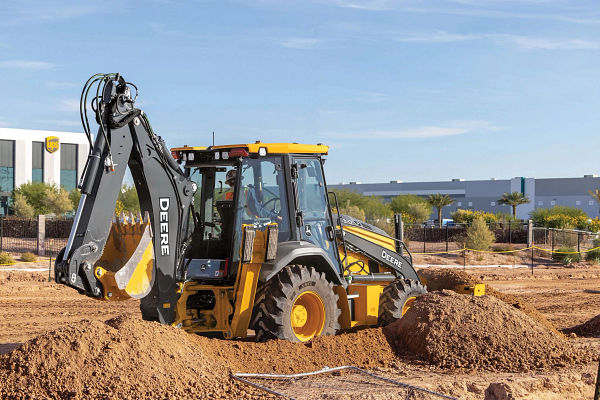

The John Deere 310 P-Tier Backhoe Loader offers superior versatility and efficiency, featuring powerful hydraulic performance and state-of-the-art operator controls, making it the ideal choice for construction and agricultural tasks.
Product Features:
- Net Peak Power: 100 hp (75 kW) at 1,600 rpm
- Max. Standard Dipperstick Digging Depth: 13 ft, 8 in. (4.15 m)
- Operating Weight: 16,217 lb. (7356 kg)
- Enhanced John Deere 4.5L Engine Performance and Reliability
Features
The John Deere 310 P-Tier Backhoe Loader offers superior versatility and efficiency, featuring powerful hydraulic performance and state-of-the-art operator controls, making it the ideal choice for construction and agricultural tasks.
Net Peak Power: 100 hp (75 kW) at 1,600 rpm
Max. Standard Dipperstick Digging Depth: 13 ft, 8 in. (4.15 m)
Operating Weight: 16,217 lb. (7356 kg)
Enhanced John Deere 4.5L Engine Performance and Reliability
Benefits
Powerful, Job‑Ready Performance
With up to 100 hp and strong digging capability, the 310 P‑Tier delivers the power and durability needed for demanding excavation, loading, and utility work across a wide range of jobsites.
Field‑Proven Hydraulic System
A durable, open‑center hydraulic system provides smooth control, excellent multifunctioning, and reliable performance—helping operators dig, load, and place material efficiently with a confident “feel.”
Configurable Powertrain & Operator Choice
Multiple transmission options—including manual and Powershift™—allow customers to tailor the machine to their work style, while intuitive controls support easy direction changes and efficient operation throughout the day.
Specifications
| Backhoe Bucket Coupler | 59 kg |
| Standard With Bumper | 6654 kg |
| Mechanical Front-Wheel Drive With Tires | 167.8 kg |
| Extendable Dipperstick | 190.5 kg |
| Typical With Cab, Extendible Dipperstick, And 405-Lb Counterweight | 15119 lb. |
| Cab | 263.1 kg |
| Front Loader Coupler | 566 lb. |
| Backhoe Bucket Coupler | 130 lb. |
| Standard With Bumper | 14669 lb. |
| Mechanical Front-Wheel Drive With Tires | 370 lb. |
| Extendable Dipperstick | 420 lb. |
| Operator And Standard Equipment With Full Fuel Tank | 16217 lb. |
| Typical With Cab, Extendible Dipperstick, And 204-Kg Counterweight | 6856 kg |
| Cab | 580 lb. |
| Front Loader Coupler | 256.7 kg |
| Hydraulic Capacity Maximum Tines | 60 in. |
| At Ground Line With Maximum Tines | 7061 lb. |
| At Maximum Reach With Maximum Tines | 2529.3 kg |
| Rated Capacity Of Maximum Tines | 3900 kg |
| Below Ground Line With Minimum Tines | 7.3 in. |
| Below Ground Line With Maximum Tines | 7.3 in. |
| At Maximum Reach With Minimum Tines | 2690.5 kg |
| Rated Capacity Of Minimum Tines | 8598 lb. |
| At Ground Line With Minimum Tines | 3392.3 kg |
| At Maximum Height With Minimum Tines | 3772 lb. |
| Hydraulic Capacity Minimum Tines | 48 in. |
| At Maximum Height With Maximum Tines | 3510 lb. |
| Hydraulic Capacity Maximum Tines | 1524 mm |
| At Ground Line With Maximum Tines | 3203 kg |
| Rated Capacity Of Maximum Tines | 8598 lb. |
| At Maximum Reach With Maximum Tines | 5578 lb. |
| Below Ground Line With Minimum Tines | 185.4 mm |
| Below Ground Line With Maximum Tines | 185.4 mm |
| At Maximum Reach With Minimum Tines | 5931 lb. |
| Rated Capacity Of Minimum Tines | 3900 kg |
| At Ground Line With Minimum Tines | 7480 lb. |
| At Maximum Height With Minimum Tines | 1711.4 kg |
| Hydraulic Capacity Minimum Tines | 1219.2 mm |
| At Maximum Height With Maximum Tines | 1592.6 kg |
| Engine Oil Cooler Type | Oil-to-water |
| Hydraulic Cooler Type | Oil-to-air |
| Engine Coolant Rating | -40 °F |
| Engine Coolant Rating | -40 ℃ |
| Engine Radiator (Fins Per In.) | 10 |
| Fan Type | Electronically controlled, variable rate, suction type cooling fan, Standard |
| Transmission Cooler Type | oil-to-water |
| Maximum Steer Angle, Non-Powered Front Axle | 55 degree (angle) |
| Front Axle, Sae J43 Rating | 11000 lb. |
| Maximum Axle Torque | 20913.91 kg |
| Torque Converter Type | Single stage, dual phase with 2.63:1 stall ratio |
| Brakes | Conform to ISO 3450 |
| Rear Axle, Ultimate Rating | 41518.58 kg |
| Service Brakes | Power assisted, hydraulic wet disc, mounted inboard, self adjusting and self equalizing |
| Rear Axle, Dynamic Rating | 22000 lb. |
| Axle Oscillation Stop To Stop, Front Axle | 22 degree (angle) |
| Gear 3, Forward Maximum Speed | 12.6 mph |
| Steering Pressure | 3625 psi |
| Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 3.43 m |
| Gear 2, Reverse Maximum Speed | 7.8 mph |
| Rear Differential Lock Pressure | 2102.72 kPa |
| Rear Axle Total Ratio | 19.911:1 |
| Bucket Clearance Circle, Without Brakes, With MFWD Axle | 10.62 m |
| Mechanical Front Wheel Drive Axle Differential Type | Open - standard; automatic, limited-slip traction control – custom or optional |
| Bucket Clearance Circle, With Brakes, With MFWD Axle | 32, 4 ft, in. |
| Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 3.91 m |
| Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 9.8 m |
| Gear 2, Forward Maximum Speed | 6.2 mph |
| Rear Axle, Static Rating | 26496.91 kg |
| Curb-Turning Radius, With Brakes, With MFWD Axle | 3.45 m |
| Front Axle, Ultimate Rating | 91500 lb. |
| Number Of Gears Reverse | 2 |
| Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 34, 5 ft, in. |
| Front Axle, Static Rating | 54000 lb. |
| Front Axle, Dynamic Rating | 19800 lb. |
| MFWD Axle Total Ratio | 12.574:1 (14.759:1 optional with 12.5/80-18 front tires) |
| Service Brakes Friction Disc Area Per Side | 141900 mmByMm |
| Gear 3, Forward Maximum Speed | 20.29 km/h |
| Gear 1, Forward Maximum Speed | 5.47 km/h |
| Torque Converter | 11 in. |
| Gear 1, Reverse Maximum Speed | 6.76 km/h |
| Number Of Gears Forward | 4 |
| Gear 2, Reverse Maximum Speed | 12.55 km/h |
| Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 11, 3 ft, in. |
| Bucket Clearance Circle, Without Brakes, With MFWD Axle | 34, 10 ft, in. |
| Number Of Steering Wheel Turns (Lock To Lock) With Non-Powered Front Axle | 3.2 |
| Gear 4, Forward Maximum Speed | 22.7 mph |
| Front Axle, Sae J43 Rating | 4989.52 kg |
| Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 12, 10 ft, in. |
| Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 32, 2 ft, in. |
| Curb-Turning Radius, Without Brakes, With MFWD Axle | 3.96 m |
| Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle | 2.7 |
| Shift Control Type | Electric forward-neutral-reverse control lever with neutral start interlock |
| Rear Axle, Ultimate Rating | 91500 lb. |
| Gear 2, Forward Maximum Speed | 9.98 km/h |
| Transmission Type | 4 speed, helical cut gears, full power-shifted transmission with hydraulic reverser standard; Electric clutch cutoff on loader lever |
| MFWD Axle Final Drives And Gears | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
| Rear Axle, SAE J43 Rating | 13200 lb. |
| Rear Axle, Dynamic Rating | 9979.03 kg |
| Front Axle, Ultimate Rating | 41518.58 kg |
| Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 10.49 m |
| Steering Pressure | 24987.5 kPa |
| Curb-Turning Radius, Without Brakes, With MFWD Axle | 13, 0 ft, in. |
| Conditions For Measuring Travel Speeds | Power-Shift, Standard Transmission with Tire Size 19.5L-24 Rear Tires |
| Rear Differential Lock Pressure | 305 psi |
| Front Axle, Static Rating | 24493.52 kg |
| Front Axle, Dynamic Rating | 8981.45 kg |
| Rear Axle Final Drives And Gears | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
| Rear Axle, SAE J43 Rating | 5987.39 kg |
| Rear Axle Differential Type | Foot actuated, hydraulically engaged 100% mechanical lock |
| Steering Type | Hydrostatic Power Steering and Emergency Steering (ISO 5010) |
| Bucket Clearance Circle, With Brakes, With MFWD Axle | 9.86 m |
| Maximum Steer Angle, Mechanical Front-Wheel Drive (MFWD) Axle | 52 degree (angle) |
| Gear 1, Forward Maximum Speed | 3.4 mph |
| Gear 1, Reverse Maximum Speed | 4.2 mph |
| Torque Converter | 279.4 mm |
| Maximum Axle Torque | 46100 lb. |
| Rear Axle, Static Rating | 58400 lb. |
| Gear 4, Forward Maximum Speed | 36.53 km/h |
| Curb-Turning Radius, With Brakes, With MFWD Axle | 11, 4 ft, in. |
| Battery Capacity (1 Battery) | 950 CCA |
| Number Of Batteries | 1 |
| Reserve Capacity (1 Battery) | 175 min. |
| Alternator Rating | 145 amp |
| Lighting Options | 10 halogen: 4 front, 4 rear, and 2 side docking (32,500 candlepower each); turn signals and flashers: 2 front and 2 rear; stop and taillights; and 2 rear reflectors; factory installed option for 2 LED spot lights and 8 LED flood lights in lieu of the standard halogen light package |
| Voltage | 12 V |
| Engine Rpm | Digital |
| Torque Converter Oil Temp | Indicator light, Audible, Gauge, Digital |
| Fuel Level | Audible, Gauge, Digital |
| Machine Information And Configuration | Digital |
| Hydraulics Enabled | Indicator light |
| Hourmeter | Digital |
| Diesel-Exhaust Fluid (DEF) Level | Indicator light, Audible, Digital |
| Stop Indicator | Indicator light, Audible |
| Service Code Indicator | Indicator light |
| System Voltage | Digital |
| Sight Gauges | Hydraulic Reservoir |
| Aftertreatment Temperature High | Indicator light |
| Engine Preheat | Indicator light, Digital |
| Engine Coolant Temperature | Indicator light, Audible, Gauge |
| Job Timer | Digital |
| MFWD Active | Indicator light |
| Engine Air Filter Restriction | Indicator light, Audible, Digital |
| Park Brake On/Off | Indicator light |
| Seat Belt Reminder | Indicator light |
| Hydraulic Oil Filter Restriction | Audible warning, Digital |
| Engine Oil Pressure | Indicator light, Audible |
| Alternator, Low Voltage | Indicator light, Audible |
| Loader Controls | Single-lever control with electric clutch cutoff switch standard; single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MFWD (momentary), and transmission quick-shift optional |
| Loader System Relief Pressure | 3200 psi |
| Loader System Relief Pressure | 22063 kPa |
| Rated Rpm | 2200 rpm |
| Backhoe Pump Flow | 105.99 L/min |
| Backhoe Pump Flow | 28 gpm |
| Loader Pump Flow | 28 gpm |
| Loader Pump Flow | 105.99 L/min |
| Backhoe System Relief Pressure | 3625 psi |
| Backhoe System Relief Pressure | 24987.5 kPa |
| Backhoe Controls | 2-lever mechanical standard, pilot control with pattern select and manual and/or electric auxiliary functions optional |
| Hydraulics System Type | Open center system, single gear pump |
| Refill Capacity Cooling System (Cab) | 29.1 qt |
| Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 6.53 L |
| Refill Capacity Torque Converter And Transmission | 16 qt |
| Refill Capacity Hydraulic Reservoir | 45.06 L |
| Refill Capacity Diesel-Exhaust Fluid (DEF) Tank | 3.6 gal. |
| Refill Capacity Cooling System (Canopy) | 27.2 qt |
| Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 0.95 L |
| Refill Capacity Hydraulic System | 33.5 gal. |
| Refill Capacity Fuel Tank | 34 gal. |
| Refill Capacity Engine Oil | 12.97 L |
| Refill Capacity Rear Axle Differential Housing | 19 qt |
| Diagnostics | In-Cab Monitor Information |
| Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 6.9 qt |
| Refill Capacity Cooling System (Cab) | 27.54 L |
| Refill Capacity Torque Converter And Transmission | 15.14 L |
| Refill Capacity Hydraulic Reservoir | 11.9 gal. |
| Refill Capacity Diesel-Exhaust Fluid (DEF) Tank | 13.63 L |
| Refill Capacity Cooling System (Canopy) | 25.74 L |
| Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 1 qt |
| Refill Capacity Hydraulic System | 126.87 L |
| Refill Capacity Fuel Tank | 128.7 L |
| Refill Capacity Engine Oil | 13.7 qt |
| Refill Capacity Rear Axle Differential Housing | 17.98 L |
| Net Power At Rated Speed (ISO9249) | 70.08 kW |
| Net Torque Rise | 51 % |
| Net Peak Power At Peak Power Speed (ISO9249) | 74.57 kW |
| Displacement | 4.52 L |
| Bore and Stroke | 4.19 x 5.00 in. |
| Fuel System | Level 34 electronic fuel system with Denso high pressure common rail |
| Oil Specification | JD Torq-Gard or equivalent |
| Lubrication | Pressure system with spin-on filter and cooler |
| Gross Peak Power At Peak Power Speed | 102 hp |
| Manufacturer | John Deere |
| Rated Speed | 2200 rpm |
| Net Power At Rated Speed (ISO9249) | 94 hp |
| Net Peak Torque At Peak Torque Speed (ISO9249) | 338 lb-ft |
| Gross Power At Rated Speed | 96 hp |
| Model | PowerTech™ EWL 4.5L turbocharged |
| Peak Torque Speed | 1500 rpm |
| Peak Power Speed | 1600 rpm |
| Gross Peak Torque At Peak Torque Speed | 344 lb-ft |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage IV |
| Net Peak Torque At Peak Torque Speed (ISO9249) | 458.47 Nm |
| Gross Power At Rated Speed | 71.58 kW |
| Cylinders | 4 |
| Gross Peak Torque At Peak Torque Speed | 466.55 Nm |
| Displacement | 276 cu in. |
| Bore and Stroke | 106.43 x 127.00 mm |
| Air Cleaner | Dual stage dry type with safety element and evacuator valve |
| Valves Per Cylinder | 2 |
| Gross Peak Power At Peak Power Speed | 76.08 kW |
| Operator Station Type | Canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof; optional quarter cab (front glass only) and fully enclosed cab |
Offers
Modal title
...
0% APR for 36 months
on select new John Deere Equipment
Offer Available: 01 March, 2026 through 31 October, 2026
Quick Equipment Search
Equipment Filter
Equipment Search
