John Deere 710 P
Backhoe
The John Deere 710 P-Tier Backhoe Loader combines power and versatility with advanced technology features to deliver performance, efficiency, and productivity on the toughest job sites.
Product Features:
- Net Peak Power: 148 hp (110 kW) at 2,240 rpm
- Max. Standard Dipperstick Digging Depth: 17 ft, 3 in. (5.27 m)
- Operating Weight: 26,422 lb. (11,985 kg)
- Overall Length, Transport 27 ft, 8 in. (8.42 m)
Features
The John Deere 710 P-Tier Backhoe Loader combines power and versatility with advanced technology features to deliver performance, efficiency, and productivity on the toughest job sites.
Net Peak Power: 148 hp (110 kW) at 2,240 rpm
Max. Standard Dipperstick Digging Depth: 17 ft, 3 in. (5.27 m)
Operating Weight: 26,422 lb. (11,985 kg)
Overall Length, Transport 27 ft, 8 in. (8.42 m)
Benefits

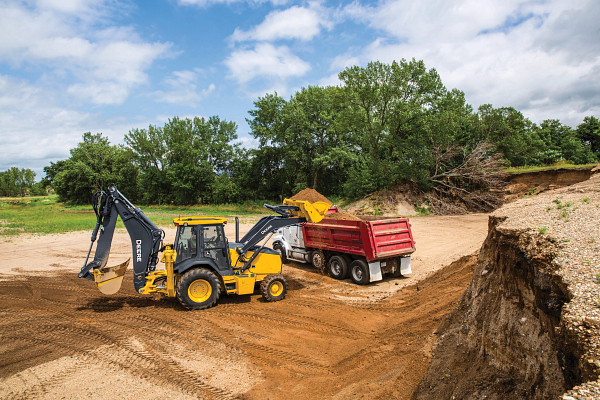

High‑Output 4.5L PowerTech™ Engine
Delivering up to 148 hp, the 710 P‑Tier is powered by a John Deere PowerTech™ Plus engine with series turbochargers, providing exceptional torque, strong load response, and reliable performance for the most demanding excavation and material‑handling jobs.

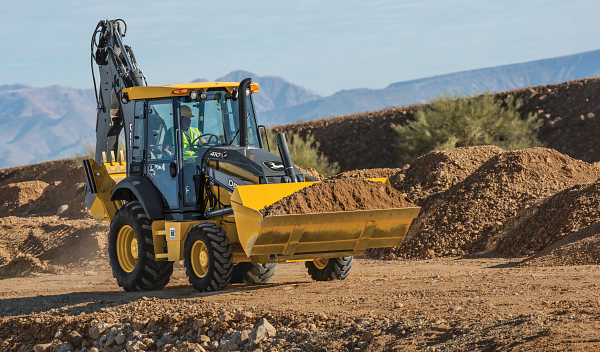

Advanced Load‑Sensing Hydraulic Performance
Pressure‑compensated, load‑sensing (PCLS) hydraulics provide smooth, precise control with excellent multifunctioning and up to 15 percent greater craning capacity, when Lift Mode is engaged, allowing operators to work efficiently at lower engine speeds while maintaining productivity.
Increased Reach and Heavy‑Duty Capability
Maximum Reach and Heavy‑Duty Capability With over 17 ft (5.18 m) of digging depth and a heavy‑duty design built for high‑capacity lifting and trenching, the 710 P‑Tier is ideal for large‑scale construction, utility, and infrastructure projects that demand maximum strength and stability.
Specifications
| Typical With Cab, Extendible Dipperstick, And 680-Kg Counterweight | 12264.3 kg |
| Typical With Cab, Extendible Dipperstick, And 1500-Lb Counterweight | 27033 lb. |
| Mechanical Front-Wheel Drive With Tires | 822 lb. |
| Mechanical Front-Wheel Drive With Tires | 372.9 kg |
| Extendable Dipperstick | 700 lb. |
| Extendable Dipperstick | 317.5 kg |
| Operator And Standard Equipment With Full Fuel Tank | 25588 lb. |
| Operator And Standard Equipment With Full Fuel Tank | 11607.2 kg |
| Cab | 645 lb. |
| Cab | 292.6 kg |
| Front Loader Coupler | 362.9 kg |
| Front Loader Coupler | 800 lb. |
| Below Ground Line With Minimum Tines | 139.7 mm |
| Below Ground Line With Minimum Tines | 5.5 in. |
| At Maximum Reach With Minimum Tines | 4377.3 kg |
| At Maximum Reach With Minimum Tines | 9651 lb. |
| At Ground Line With Minimum Tines | 13353 lb. |
| At Ground Line With Minimum Tines | 6057.3 kg |
| At Maximum Height With Minimum Tines | 2632.7 kg |
| At Maximum Height With Minimum Tines | 5803 lb. |
| Hydraulic Capacity Minimum Tines | 1219.2 mm |
| Hydraulic Capacity Minimum Tines | 48 in. |
| Engine Oil Cooler Type | Oil-to-water |
| Hydraulic Cooler Type | Oil-to-air |
| Engine Coolant Rating | -40 °F |
| Engine Coolant Rating | -40 ℃ |
| Engine Radiator (Fins Per In.) | 10 |
| Fan Type | Electronically controlled, variable rate, suction type cooling fan, Standard |
| Transmission Cooler Type | Oil-to-air |
| Maximum Steer Angle, Non-Powered Front Axle | 55 degree (angle) |
| Front Axle, Sae J43 Rating | 19800 lb. |
| Maximum Axle Torque | 26082 kg |
| Torque Converter Type | Single stage, dual phase with 1.92:1 stall ratio |
| Brakes | Conform to ISO 3450 |
| Rear Axle, Ultimate Rating | 44999 kg |
| Service Brakes | Full power, hydraulic wet disc, mounted inboard, self adjusting and self equalizing |
| Rear Axle, Dynamic Rating | 30900 lb. |
| Axle Oscillation Stop To Stop, Front Axle | 18 degree (angle) |
| Gear 3, Forward Maximum Speed | 15.3 mph |
| Steering Pressure | 3625 psi |
| Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 3.99 m |
| Gear 2, Reverse Maximum Speed | 7 mph |
| Rear Differential Lock Pressure | 1999 kPa |
| Rear Axle Total Ratio | 20.945:1 |
| Bucket Clearance Circle, Without Brakes, With MFWD Axle | 12.29 m |
| Mechanical Front Wheel Drive Axle Differential Type | Automatic, Limited-Slip Traction Control |
| Bucket Clearance Circle, With Brakes, With MFWD Axle | 37, 6 ft, in. |
| Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 4.57 m |
| Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 11.43 m |
| Gear 2, Forward Maximum Speed | 6.2 mph |
| Rear Axle, Static Rating | 30987 kg |
| Curb-Turning Radius, With Brakes, With MFWD Axle | 3.99 m |
| Front Axle, Ultimate Rating | 99200 lb. |
| Number Of Gears Reverse | 3 |
| Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 40, 5 ft, in. |
| Front Axle, Static Rating | 67200 lb. |
| Front Axle, Dynamic Rating | 27600 lb. |
| MFWD Axle Total Ratio | 14.308:1 |
| Service Brakes Friction Disc Area Per Side | 287700 mmByMm |
| Gear 3, Forward Maximum Speed | 24.6 km/h |
| Gear 3, Reverse Maximum Speed | 27.4 km/h |
| Gear 1, Forward Maximum Speed | 6 km/h |
| Torque Converter | 11 in. |
| Gear 1, Reverse Maximum Speed | 6.8 km/h |
| Number Of Gears Forward | 4 |
| Gear 2, Reverse Maximum Speed | 11.3 km/h |
| Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 13, 1 ft, in. |
| Bucket Clearance Circle, Without Brakes, With MFWD Axle | 40, 4 ft, in. |
| Number Of Steering Wheel Turns (Lock To Lock) With Non-Powered Front Axle | 4.7 |
| Gear 4, Forward Maximum Speed | 22.9 mph |
| Front Axle, Sae J43 Rating | 8981 kg |
| Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 15, 0 ft, in. |
| Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 37, 6 ft, in. |
| Curb-Turning Radius, Without Brakes, With MFWD Axle | 4.57 m |
| Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle | 4.4 |
| Shift Control Type | Electric forward-neutral-reverse control lever with neutral start interlock |
| Rear Axle, Ultimate Rating | 99200 lb. |
| Gear 2, Forward Maximum Speed | 10 km/h |
| Transmission Type | 4 speed, helical cut gears, full power-shifted transmission with hydraulic reverser standard; Electric clutch cutoff on loader lever; AutoShift transmission optional |
| MFWD Axle Final Drives And Gears | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
| Rear Axle, SAE J43 Rating | 25400 lb. |
| Rear Axle, Dynamic Rating | 14016 kg |
| Front Axle, Ultimate Rating | 44999 kg |
| Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 12.32 m |
| Steering Pressure | 24991.25 kPa |
| Curb-Turning Radius, Without Brakes, With MFWD Axle | 15, 0 ft, in. |
| Conditions For Measuring Travel Speeds | Power-Shift, Standard Transmission with Tire Size 21L-28 Rear Tires |
| Rear Differential Lock Pressure | 290 psi |
| Front Axle, Static Rating | 30484 kg |
| Front Axle, Dynamic Rating | 12519 kg |
| Rear Axle Final Drives And Gears | Heavy duty, inboard planetary final drives distribute shock loads over 3 gears |
| Rear Axle, SAE J43 Rating | 11521 kg |
| Rear Axle Differential Type | Foot actuated, hydraulically engaged mechanical lock |
| Steering Type | Hydrostatic Power Steering and Emergency Steering (ISO5010) |
| Bucket Clearance Circle, With Brakes, With MFWD Axle | 11.43 m |
| Maximum Steer Angle, Mechanical Front-Wheel Drive (MFWD) Axle | 52 degree (angle) |
| Gear 3, Reverse Maximum Speed | 17 mph |
| Gear 1, Forward Maximum Speed | 3.7 mph |
| Gear 1, Reverse Maximum Speed | 4.2 mph |
| Torque Converter | 279.4 mm |
| Maximum Axle Torque | 57500 lb. |
| Rear Axle, Static Rating | 68300 lb. |
| Gear 4, Forward Maximum Speed | 36.9 km/h |
| Curb-Turning Radius, With Brakes, With MFWD Axle | 13, 1 ft, in. |
| Reserve Capacity (2 Batteries) | 350 min. |
| Number Of Batteries | 2 |
| Battery Capacity (2 Batteries) | 1900 CCA |
| Alternator Rating | 160 amp |
| Lighting Options | 10 halogen: 4 front, 4 rear, and 2 side docking (32,500 candlepower each); turn signals and flashers: 2 front and 2 rear; stop and taillights; and 2 rear reflectors; factory installed option for 2 LED spot lights and 8 LED flood lights in lieu of the standard halogen light package |
| Voltage | 12 V |
| Engine Rpm | Digital |
| Torque Converter Oil Temp | Indicator light, Audible, Gauge |
| Fuel Level | Indicator light, Audible, Gauge |
| Machine Information And Configuration | Digital |
| Hydraulics Enabled | Indicator light |
| Hourmeter | Digital |
| Diesel-Exhaust Fluid (DEF) Level | Indicator light, Audible, Digital |
| Stop Indicator | Indicator light, Audible |
| Service Code Indicator | Indicator light, Audible |
| System Voltage | Digital |
| Sight Gauges | Hydraulic Reservoir |
| Aftertreatment Temperature High | Indicator light |
| Hydraulics Temperature | Indicator light, Audible, Digital |
| Engine Preheat | Indicator light, Digital |
| Engine Coolant Temperature | Indicator light, Audible, Gauge |
| Job Timer | Digital |
| MFWD Active | Indicator light |
| Engine Air Filter Restriction | Indicator light, Audible |
| Park Brake On/Off | Indicator light |
| Seat Belt Reminder | Indicator light, Digital |
| Hydraulic Oil Filter Restriction | Audible, Digital |
| Engine Oil Pressure | Indicator light, Audible |
| Alternator, Low Voltage | Indicator light, Audible |
| Loader Controls | Single-lever control with electric clutch cutoff switch and MFWD (momentary) standard; single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MFWD (momentary), and transmission quick-shift optional |
| Loader System Relief Pressure | 3625 psi |
| Rated Rpm | 2200 rpm |
| Backhoe Pump Flow | 52.3 gpm |
| Loader Pump Flow | 197.9 L/min |
| Backhoe Lift Mode System Relief Pressure | 3900 psi |
| Backhoe System Relief Pressure | 24991.25 kPa |
| Backhoe Controls | Pilot controls with pattern select standard; electrohydraulic (EH) auxiliary functions optional |
| Loader System Relief Pressure | 24991.25 kPa |
| Backhoe Pump Flow | 197.9 L/min |
| Loader Pump Flow | 52.3 gpm |
| Backhoe Lift Mode System Relief Pressure | 26887.5 kPa |
| Backhoe System Relief Pressure | 3625 psi |
| Hydraulics System Type | Pressure compensated load sensing (PCLS), axial piston pump |
| Refill Capacity Cooling System (Cab) | 30 qt |
| Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 15.05 L |
| Refill Capacity Torque Converter And Transmission | 16 qt |
| Refill Capacity Hydraulic Reservoir | 49.97 L |
| Refill Capacity Diesel-Exhaust Fluid (DEF) Tank | 3.6 gal. |
| Refill Capacity Cooling System (Canopy) | 27.9 qt |
| Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 2.18 L |
| Refill Capacity Hydraulic System | 46 gal. |
| Refill Capacity Fuel Tank | 46 gal. |
| Refill Capacity Engine Oil | 12.97 L |
| Refill Capacity Rear Axle Differential Housing | 26.4 qt |
| Diagnostics | In-Cab Monitor Information |
| Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 15.9 qt |
| Refill Capacity Cooling System (Cab) | 28.39 L |
| Refill Capacity Torque Converter And Transmission | 15.14 L |
| Refill Capacity Hydraulic Reservoir | 13.2 gal. |
| Refill Capacity Diesel-Exhaust Fluid (DEF) Tank | 13.63 L |
| Refill Capacity Cooling System (Canopy) | 26.4 L |
| Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 2.3 qt |
| Refill Capacity Hydraulic System | 174.13 L |
| Refill Capacity Fuel Tank | 174.13 L |
| Refill Capacity Engine Oil | 13.7 qt |
| Refill Capacity Rear Axle Differential Housing | 24.98 L |
| Net Power At Rated Speed (ISO9249) | 109.6 kW |
| Net Torque Rise | 20 % |
| Net Peak Power At Peak Power Speed (ISO9249) | 110.3 kW |
| Displacement | 4.52 L |
| Bore and Stroke | 4.19 x 5.00 in. |
| Fuel System | Level 34 Electronic Fuel System with Denso High Pressure Common Rail |
| Oil Specification | JD Torq-Gard or equivalent |
| Lubrication | Pressure system with spin-on filter and cooler |
| Gross Peak Power At Peak Power Speed | 150 hp |
| Manufacturer | John Deere |
| Rated Speed | 2200 rpm |
| Net Power At Rated Speed (ISO9249) | 147 hp |
| Net Peak Torque At Peak Torque Speed (ISO9249) | 420 lb-ft |
| Gross Power At Rated Speed | 149 hp |
| Model | PowerTech™ Plus series turbocharged |
| Peak Torque Speed | 1400 rpm |
| Peak Power Speed | 2240 rpm |
| Gross Peak Torque At Peak Torque Speed | 426 lb-ft |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage IV |
| Net Peak Torque At Peak Torque Speed (ISO9249) | 569 Nm |
| Gross Power At Rated Speed | 111.1 kW |
| Cylinders | 4 |
| Gross Peak Torque At Peak Torque Speed | 577.8 Nm |
| Displacement | 276 cu in. |
| Bore and Stroke | 106.4 x 127.0 mm |
| Air Cleaner | Dual stage dry type with safety element and evacuator valve |
| Valves Per Cylinder | 4 |
| Gross Peak Power At Peak Power Speed | 111.9 kW |
| Operator Station Type | Fully enclosed cab, isolation mounted, ROPS/FOPS, left/right access, with molded roof; optional canopy |
