John Deere 325 P
Compact Track Loader
The John Deere 325 P-Tier Compact Track Loader delivers 70 net hp, excellent visibility, all-day cab comfort, easy serviceability, and strong versatility with a wide range of attachments for demanding construction jobs.
Product Features:
- Gross Power: 54.9 kW (74 hp)
- Net Power: 52.5 kW (70 hp)
- Rated Operating Capacity: 1176 kg (2,590 lb.)
- Operating Weight: 4313 kg (9,500 lb.)
Features
The John Deere 325 P-Tier Compact Track Loader delivers 70 net hp, excellent visibility, all-day cab comfort, easy serviceability, and strong versatility with a wide range of attachments for demanding construction jobs.
Gross Power: 54.9 kW (74 hp)
Net Power: 52.5 kW (70 hp)
Rated Operating Capacity: 1176 kg (2,590 lb.)
Operating Weight: 4313 kg (9,500 lb.)
Benefits
Additional Attachment Offerings for Optimal Pairing
Availability of over 100 John Deere attachments allows the 331 P‑Tier to move seamlessly between tasks such as grading, material handling, and site preparation. Advanced electrohydraulic controls make attachment operation smooth and responsive, while optional technology features—including grade‑management readiness—help operators work more efficiently and precisely as jobsite demands change.
Excellent Visibility for Increased Situational and Jobsite Awareness

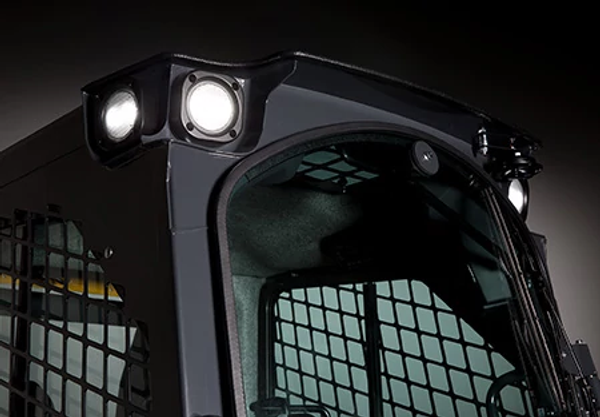

Enhanced visibility features enable the operator to view the jobsite to be as precise and productive as possible while also increasing jobsite awareness. Equipped with optional deluxe LED lights and a rearview camera, operators benefit from increased visibility, especially in low light conditions. Clear sight lines improve safety and precision on the jobsite.
Maximize Uptime With Easy Service Access
Easy serviceability minimizes downtime: the hood and side panels provide quick ground-level access to daily checks, and the cab swings up in under 5 minutes for major drivetrain access. JDLink™ alerts also help catch issues early.
Specifications
| Length with foundry bucket (ft in.) | 11, 4 ft, in. |
| Front turn radius, foundry bucket (m) | 2.03 m |
| Length without bucket (m) | 2.85 m |
| Ground clearance (in.) | 9.3 in. |
| Ground clearance (m) | 0.24 m |
| Width without bucket with 400-mm tracks (m) | 1.9 m |
| Dump reach, foundry bucket (ft in.) | 2, 6 ft, in. |
| Dump angle (full lift height) degree | 41 degree (angle) |
| Height to top of rollover protective structure (ROPS) (m) | 2.06 m |
| Angle of departure degree | 30.5 degree (angle) |
| Dump reach, foundry bucket (m) | 0.75 m |
| Width without bucket with 12.6-in. tracks (in.) | 71.5 in. |
| Dump height, foundry bucket (m) | 2.59 m |
| Dump reach, construction bucket, no edge (ft in.) | 3, 1 ft, in. |
| Length without bucket (in.) | 112.3 in. |
| Height to top of rollover protective structure (ROPS) (in.) | 81.1 in. |
| Dump reach, construction bucket, no edge (m) | 0.94 m |
| Length with foundry bucket (in.) | 136.3 in. |
| Width without bucket with 15.8-in. tracks (ft in.) | 6, 3 ft, in. |
| Width without bucket with 15.8-in. tracks (in.) | 74.7 in. |
| Front turn radius, foundry bucket (ft in.) | 6, 8 ft, in. |
| Dump height, foundry bucket (ft in.) | 8, 6 ft, in. |
| Front turn radius, foundry bucket (in.) | 80 in. |
| Height to hinge pin (in.) | 126.1 in. |
| Length without bucket (ft in.) | 9, 4 ft, in. |
| Dump height, foundry bucket (in.) | 102.1 in. |
| Height to hinge pin (ft in.) | 10, 6 ft, in. |
| Dump reach, construction bucket, no edge (in.) | 37 in. |
| Bucket rollback (ground level) degree | 34 degree (angle) |
| Length with foundry bucket (m) | 3.46 m |
| Width without bucket with 320-mm tracks (m) | 1.82 m |
| Width without bucket with 12.6-in. tracks (ft in.) | 6, 0 ft, in. |
| Height to hinge pin (m) | 3.2 m |
| Height to top of rollover protective structure (ROPS) (ft in.) | 6, 9 ft, in. |
| Dump reach, foundry bucket (in.) | 29.7 in. |
| High flow option total pump flow (L/min) | 121.1 L/min |
| Hydraulic horsepower high flow (calculated) (hp) | 63.6 hp |
| System pressure at couplers (kPa) | 23787 kPa |
| Hydraulic horsepower standard flow (calculated) (kW) | 31.1 kW |
| Standard pump flow (L/min) | 79.5 L/min |
| Standard pump flow (gpm) | 21 gpm |
| System pressure at couplers (psi) | 3450 psiPerMin |
| High flow option total pump flow (gpm) | 32 gpm |
| Hydraulic horsepower standard flow (calculated) (hp) | 41.7 hp |
| Hydraulic horsepower high flow (calculated) (kW) | 47.4 kW |
| Parking brake type | Integral, automatic, spring-applied, hydraulically-released, wet-disk brake |
| Single speed (mph) | 5.8 mph |
| Travel speed low (mph) | 5.2 mph |
| Travel speed high (mph) | 8.2 mph |
| Single speed (km/h) | 9.34 km/h |
| Travel speed low (km/h) | 8.37 km/h |
| Pump type | Axial-piston hydrostatic pump |
| Controls type | Electrohydraulic |
| Travel speed high (km/h) | 13.2 km/h |
| Peak torque at 1800 rpm (Nm) | 280.7 Nm |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Air cleaner type | Dry dual element |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (kW) | 52.2 kW |
| Engine cylinders | 4 |
| Rated gross power (ISO 14396) at 2500 rpm (kW) | 55.2 kW |
| Rated gross power (ISO 14396) at 2500 rpm (hp) | 74 hp |
| Torque rise percent at 1800 rpm (%) | 34 % |
| Rated gross power (ISO 14396) at 2600 rpm (hp) | 74 hp |
| Peak torque at 1800 rpm (lb-ft) | 207 lb-ft |
| Rated engine speed (rpm) | 2500 rpm |
| Rated gross power (ISO 14396) at 2600 rpm (kW) | 54.9 kW |
| Aspiration | Turbocharged |
| Displacement (cu in.) | 203 cu in. |
| Displacement (L) | 3.33 L |
| Model | 4TNV98CT |
| Manufacturer | Yanmar® |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (hp) | 70 hp |
| Fuel tank (L) | 79.5 L |
| Cooling system (L) | 12.5 L |
| Cooling system (qt) | 13.2 qt |
| Engine oil capacity with filter (L) | 12.5 L |
| Engine oil capacity with filter (qt) | 13.2 qt |
| Hydraulic planetary gearbox (gal.) | 0.84 gal. |
| Hydraulic planetary gearbox (L) | 3.18 L |
| Hydraulic reservoir (gal.) | 7 gal. |
| Fuel tank (gal.) | 21 gal. |
| Hydraulic reservoir (L) | 26.5 L |
| Ground pressure standard track (kPa) | 39.3 kPa |
| Bearings/seals (rollers/idlers) type | Heavy-duty journal bearings and metal face seals |
| Standard track width (in.) | 12.6 in. |
| Tractive effort (kgf) | 3855.5 kgf |
| Rubber tracks construction | New-generation, smooth-ride, long-life rubber with steel inserts |
| Tractive effort (lbf) | 8500 lbf |
| Optional track width (mm) | 401.3 mm |
| Ground pressure standard track (psi) | 5.7 psi |
| Track idlers (per side) | Two double-flange, smooth-ride, all-steel rollers |
| Optional track width (in.) | 15.8 in. |
| Track rollers (per side) | Four triple-flange, smooth-ride, all-steel rollers |
| Standard track width (mm) | 320 mm |
| Ground pressure optional track (psi) | 4.7 psi |
| Ground pressure optional track (kPa) | 32.4 kPa |
| Boom breakout force with foundry bucket (kg) | 2381.4 kg |
| Bucket breakout force with foundry bucket (kg) | 3968.3 kg |
| Bucket breakout force with heavy-duty construction bucket (kg) | 2721.6 kg |
| Bucket breakout force with heavy-duty construction bucket (lb) | 6000 lb. |
| SAE rated operating capacity at 35% tipping load (construction bucket) (lb) | 2590 lb. |
| Bucket breakout force with foundry bucket (lb) | 8750 lb. |
| Boom breakout force with foundry bucket (lb) | 5250 lb. |
| Boom breakout force with construction bucket (lb) | 4750 lb. |
| Boom breakout force with construction bucket (kg) | 2154.2 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (kg) | 1678.3 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (kg) | 1175.6 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (lb) | 3700 lb. |
| Hydraulic oil temperature | Indicator light, audible warning, digital |
| Engine air filter restriction indicator | Indicator light |
| Park brake engaged | Indicator light |
| Hourmeter | Digital |
| Battery voltage | Digital |
| Fuel gauge | Gauge |
| Hi-flow indicator | Indicator light |
| Auxiliary hydraulics | Digital |
| Diagnostics | Digital |
| Engine coolant temperature | Indicator light, audible warning, gauge, digital |
| Seat belt reminder | Indicator light |
| Hydraulic oil filter restriction | Indicator light |
| Engine rpm indicator | Digital |
| Warm-up indicator | Digital |
| Engine oil pressure | Indicator light, audible warning |
| Alternator, low voltage | Indicator light |
| Cylinders type | John Deere, heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Standard track (lb) | 9500 lb. |
| Optional track (kg) | 4377.2 kg |
| Optional track (lb) | 9650 lb. |
| Standard track (kg) | 4309.1 kg |
| Voltage (V) | 12 V |
| Battery Capacity (CCA) | 750 standard / 925 optional CCA |
| Alternator rating with A/C (amp) | 75 amp |
| Lighting options | Halogen (two front and one rear) |
| Structure | Rollover protective structure (ISO 3471) / falling object protective structure (ISO 3449) with quick-pivot standard |
| Fan drive type | Variable-speed hydraulic drive standard / reversing fan drive optional |
