John Deere 331 P
Compact Track Loader
The John Deere 331 P-Tier Compact Track Loader delivers powerful lifting performance, a premium operator environment, and exceptional attachment versatility, built for contractors who need bigmachine capability in a compact, trackdriven package.
Product Features:
- Gross Rated Power: 98.0 hp (73.0 kW)
- Net Peak Power: 95.0 hp (70.8 kW)
- Rated Operating Capacity: 3,150 lb. (1430 kg)
- Operating Weight: 5409 kg (11,914 lb.)
Features
The John Deere 331 P‑Tier Compact Track Loader delivers powerful lifting performance, a premium operator environment, and exceptional attachment versatility, built for contractors who need big‑machine capability in a compact, track‑driven package.
Gross Rated Power: 98.0 hp (73.0 kW)
Net Peak Power: 95.0 hp (70.8 kW)
Rated Operating Capacity: 3,150 lb. (1430 kg)
Operating Weight: 5409 kg (11,914 lb.)
Benefits

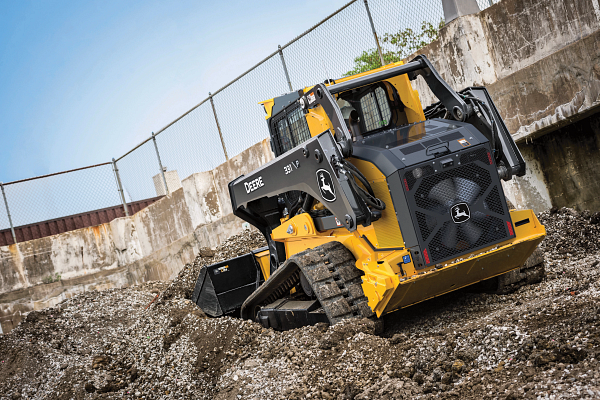

Powerful Vertical‑Lift Performance in a Compact Footprint
The 331 P‑Tier combines a vertical‑lift boom design with strong breakout force and a high rated operating capacity, enabling precise material placement and efficient truck loading. Its compact track platform delivers excellent traction and stability, helping operators work confidently on soft ground while maintaining the performance expected from a larger machine.

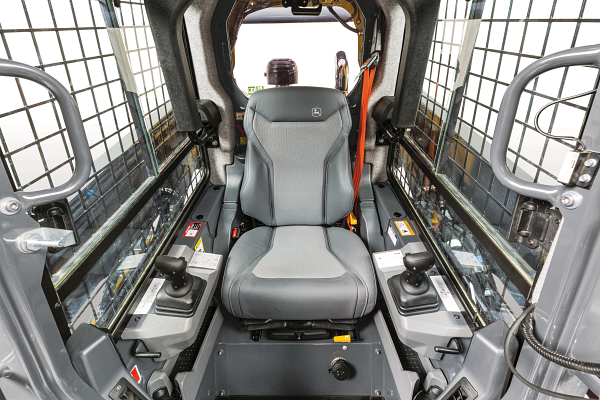

Premium Cab Designed for Long Workdays
A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable work environment. Increased glass area improves visibility, while ergonomically positioned joysticks, a redesigned switch module, and available heated and ventilated seating help reduce fatigue and keep operators productive throughout long shifts.

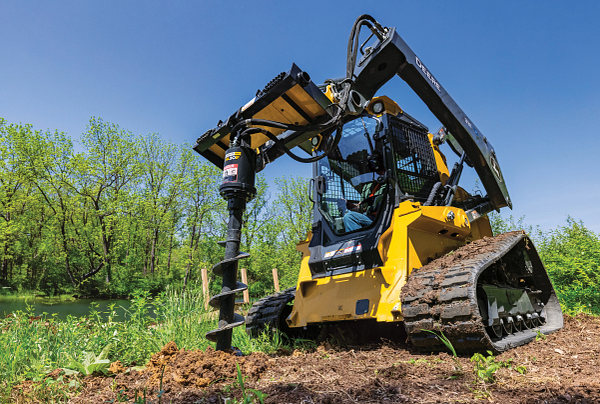

Additional Attachment Offerings for Optimal Pairing
Availability of over 100 John Deere attachments allows the 331 P‑Tier to move seamlessly between tasks such as grading, material handling, and site preparation. Advanced electrohydraulic controls make attachment operation smooth and responsive, while optional technology features—including grade‑management readiness—help operators work more efficiently and precisely as jobsite demands change.
Specifications
| Length with foundry bucket (ft in.) | 12, 7 ft, in. |
| Front turn radius, foundry bucket (m) | 2.18 m |
| Length without bucket (m) | 3.18 m |
| Ground clearance (in.) | 9.75 in. |
| Ground clearance (m) | 0.25 m |
| Width without bucket with 400-mm tracks (m) | 2 m |
| Dump reach, foundry bucket (ft in.) | 2, 5 ft, in. |
| Dump angle (full lift height) degree | 48 degree (angle) |
| Height to top of rollover protective structure (ROPS) (m) | 2.22 m |
| Angle of departure degree | 30 degree (angle) |
| Dump reach, foundry bucket (m) | 0.74 m |
| Dump height, foundry bucket (m) | 2.69 m |
| Dump reach, construction bucket, no edge (ft in.) | 3, 0 ft, in. |
| Length without bucket (in.) | 125 in. |
| Width without bucket with 17.7-in. tracks (in.) | 80.7 in. |
| Height to top of rollover protective structure (ROPS) (in.) | 87.4 in. |
| Dump reach, construction bucket, no edge (m) | 0.92 m |
| Length with foundry bucket (in.) | 151.2 in. |
| Width without bucket with 15.8-in. tracks (ft in.) | 6, 7 ft, in. |
| Width without bucket with 15.8-in. tracks (in.) | 78.86 in. |
| Width without bucket with 450-mm tracks (m) | 2.05 m |
| Front turn radius, foundry bucket (ft in.) | 7, 2 ft, in. |
| Dump height, foundry bucket (ft in.) | 8, 10 ft, in. |
| Front turn radius, foundry bucket (in.) | 86 in. |
| Height to hinge pin (in.) | 132 in. |
| Length without bucket (ft in.) | 10, 5 ft, in. |
| Dump height, foundry bucket (in.) | 106.08 in. |
| Height to hinge pin (ft in.) | 11, 0 ft, in. |
| Dump reach, construction bucket, no edge (in.) | 36.2 in. |
| Bucket rollback (ground level) degree | 35 degree (angle) |
| Length with foundry bucket (m) | 3.84 m |
| Width without bucket with 17.7-in. tracks (ft in.) | 6, 9 ft, in. |
| Height to hinge pin (m) | 3.35 m |
| Height to top of rollover protective structure (ROPS) (ft in.) | 7, 3 ft, in. |
| Dump reach, foundry bucket (in.) | 29 in. |
| High flow option total pump flow (L/min) | 147.6 L/min |
| Hydraulic horsepower high flow (calculated) (hp) | 78.5 hp |
| System pressure at couplers (kPa) | 23779.5 kPa |
| Hydraulic horsepower standard flow (calculated) (kW) | 37.5 kW |
| Standard pump flow (L/min) | 94.6 L/min |
| Standard pump flow (gpm) | 25 gpm |
| System pressure at couplers (psi) | 3450 psiPerMin |
| High flow option total pump flow (gpm) | 39 gpm |
| Hydraulic horsepower standard flow (calculated) (hp) | 50.32 hp |
| Hydraulic horsepower high flow (calculated) (kW) | 58.5 kW |
| Parking brake type | Integral, automatic, spring applied, hydraulically released wet-disk brake |
| Travel speed low (mph) | 5.5 mph |
| Travel speed high (mph) | 8.5 mph |
| Travel speed low (km/h) | 8.85 km/h |
| Pump type | Axial piston hydrostatic pump |
| Controls type | Electrohydraulic |
| Travel speed high (km/h) | 13.68 km/h |
| Ground pressure standard track (kPa) | 35.2 kPa |
| Bearings/seals (rollers/idlers) type | Not specified |
| Standard track width (in.) | 15.8 in. |
| Tractive effort (kgf) | 5216.4 kgf |
| Rubber tracks construction | New-generation smooth-ride long-life rubber with steel inserts |
| Tractive effort (lbf) | 11500 lbf |
| Optional track width (mm) | 449.6 mm |
| Ground pressure standard track (psi) | 5.1 psi |
| Track idlers (per side) | 2 double-flange smooth-ride, all-steel rollers |
| Optional track width (in.) | 17.7 in. |
| Track rollers (per side) | 5 triple-flange smooth-ride, all-steel rollers |
| Standard track width (mm) | 401.3 mm |
| Ground pressure optional track (psi) | 4.6 psi |
| Ground pressure optional track (kPa) | 31.7 kPa |
| Hydraulic oil temperature | Indicator light, Gauge, Digital |
| Engine air filter restriction indicator | Indicator light |
| Park brake engaged | Indicator light |
| Diesel exhaust fluid (DEF) level indicator | Audible warning, Gauge |
| Hourmeter | Digital |
| Battery voltage | Indicator light, Digital |
| Fuel gauge | Gauge |
| Hi-flow indicator | Indicator light |
| Auxiliary hydraulics | Indicator light |
| Diagnostics | Digital |
| Engine coolant temperature | Indicator light, Gauge, Digital |
| Hydraulic oil filter restriction | Indicator light |
| Engine rpm indicator | Digital |
| Warm-up indicator | Indicator light, Digital |
| Engine oil pressure | Indicator light |
| Alternator, low voltage | Indicator light |
| Boom breakout force with foundry bucket (kg) | 3039 kg |
| Advertised tipping load with construction bucket (lbs) | 9000 lb. |
| Bucket breakout force with foundry bucket (kg) | 4989.5 kg |
| Advertised tipping load with construction bucket (kg) | 4082.3 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (lb) | 3150 lb. |
| Bucket breakout force with foundry bucket (lb) | 11000 lb. |
| Boom breakout force with foundry bucket (lb) | 6700 lb. |
| Boom breakout force with construction bucket (lb) | 6000 lb. |
| Boom breakout force with construction bucket (kg) | 2721.6 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (kg) | 2041.2 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (kg) | 1428.8 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (lb) | 4500 lb. |
| Cylinders type | John Deere Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Non-road emission standards | Final Tier 4 |
| Air cleaner type | Dry dual element |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (kW) | 70.8 kW |
| Engine cylinders | 4 |
| Rated gross power (ISO 14396) at 2500 rpm (kW) | 73 kW |
| Rated gross power (ISO 14396) at 2500 rpm (hp) | 97.89 hp |
| Torque rise percent at 1700 rpm (%) | 47 % |
| Peak torque at 1700 rpm (lb-ft) | 281.75 lb-ft |
| Rated gross power (ISO 14396) at 2600 rpm (hp) | 98 hp |
| Peak torque at 1700 rpm (Nm) | 382 Nm |
| Rated gross power (ISO 14396) at 2600 rpm (kW) | 73 kW |
| Aspiration | Turbocharged, intercooled |
| Displacement (cu in.) | 186.33 cu in. |
| Displacement (L) | 3.05 L |
| Model | 4TNV94FHT |
| Manufacturer | Yanmar® |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (hp) | 94.96 hp |
| Standard track (lb) | 11914 lb. |
| Machine configuration that will produce base machine weight (ISO 6016) | Standard 450 mm (17.7-in.) Track *E trim |
| Standard track (kg) | 5404 kg |
| Fuel tank (L) | 111.7 L |
| Fuel tank (gal.) | 29.5 gal. |
| Voltage (V) | 12 V |
| Battery Capacity (CCA) | 950 CCA |
| Alternator rating with A/C (amp) | 120 amp |
| Lighting options | Halogen, Two (2) Front and One (1) Rear, (Optional): LED, Four (4) Front, and One (1) Rear |
| Structure | ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot |
| Fan drive type | Variable speed hydraulic drive |
