John Deere 333 P
Compact Track Loader
The John Deere 333 P-Tier Compact Track Loader delivers industry-leading lift capacity, premium operator comfort, and SmartGradeready technology, built for contractors who demand maximum productivity, precision, and control on every jobsite.
Product Features:
- Gross Rated Power: 108.5 hp (80.9 kW)
- Net Peak Power: 105.8 hp (78.9 kW)
- Rated Operating Capacity: 3,850 lb. (1748 kg)
- Operating Weight: 12,183 lb. (5531 kg)
Features
The John Deere 333 P‑Tier Compact Track Loader delivers industry‑leading lift capacity, premium operator comfort, and SmartGrade‑ready technology, built for contractors who demand maximum productivity, precision, and control on every jobsite.
Gross Rated Power: 108.5 hp (80.9 kW)
Net Peak Power: 105.8 hp (78.9 kW)
Rated Operating Capacity: 3,850 lb. (1748 kg)
Operating Weight: 12,183 lb. (5531 kg)
Benefits
SmartGrade‑Ready Precision and Attachment Versatility

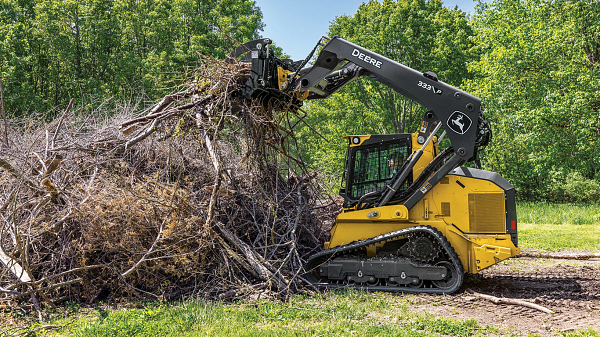

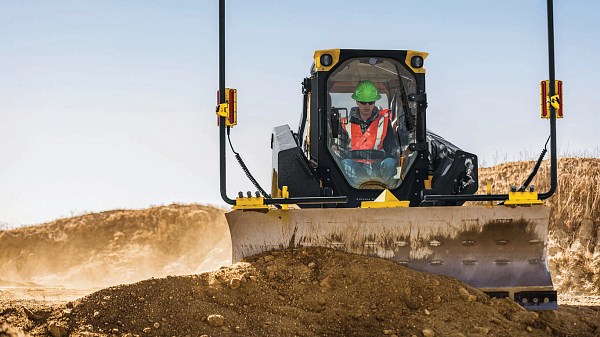

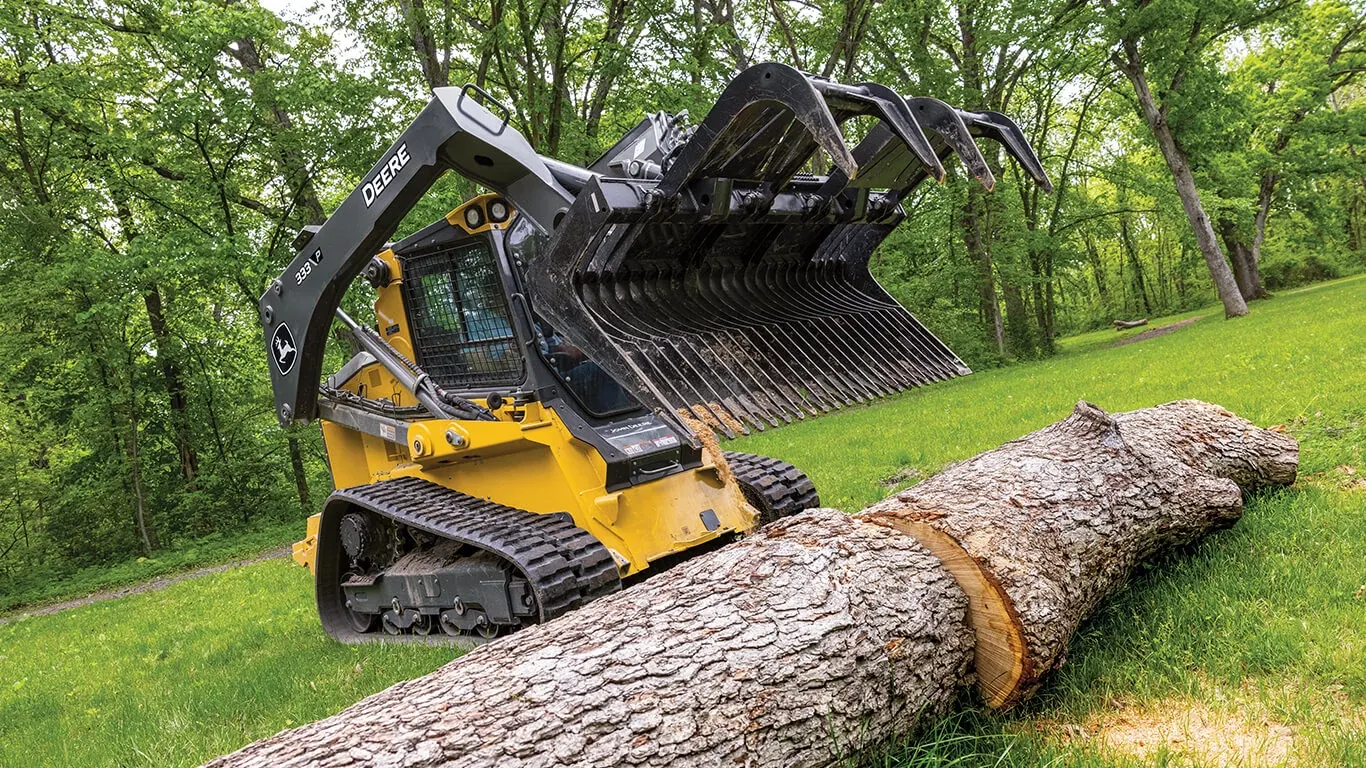

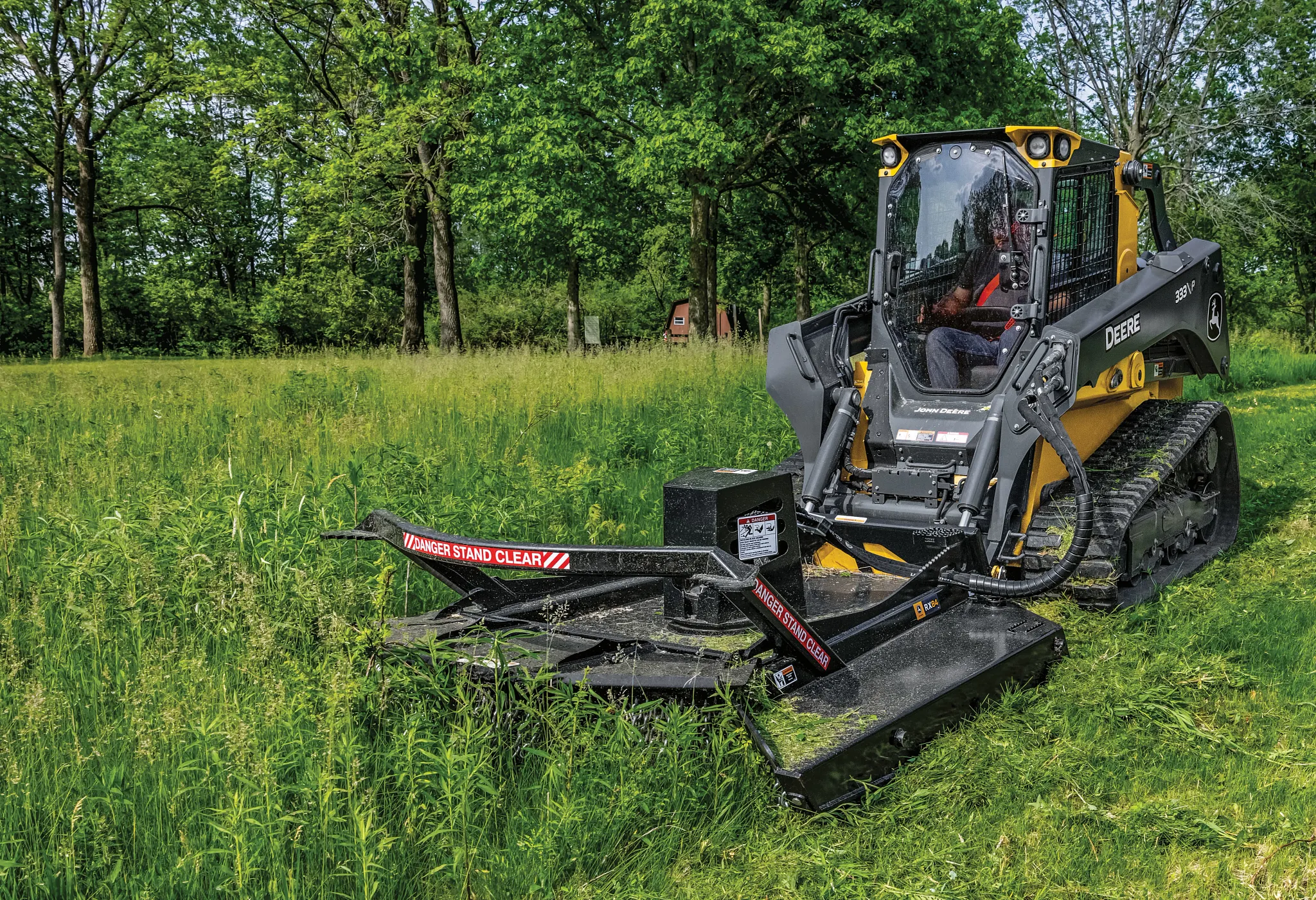

The 333 P‑Tier is grade‑management ready, enabling compatibility with John Deere SmartGrade™ technology to help operators grade faster and more accurately with fewer passes and less rework. Combined with support for over 100 John Deere attachments and smooth electrohydraulic controls, the 333 P‑Tier transitions easily between grading, material handling, site prep, and finish work—maximizing versatility as jobsite demands change.
High‑Capacity Vertical‑Lift Performance for Demanding Loads

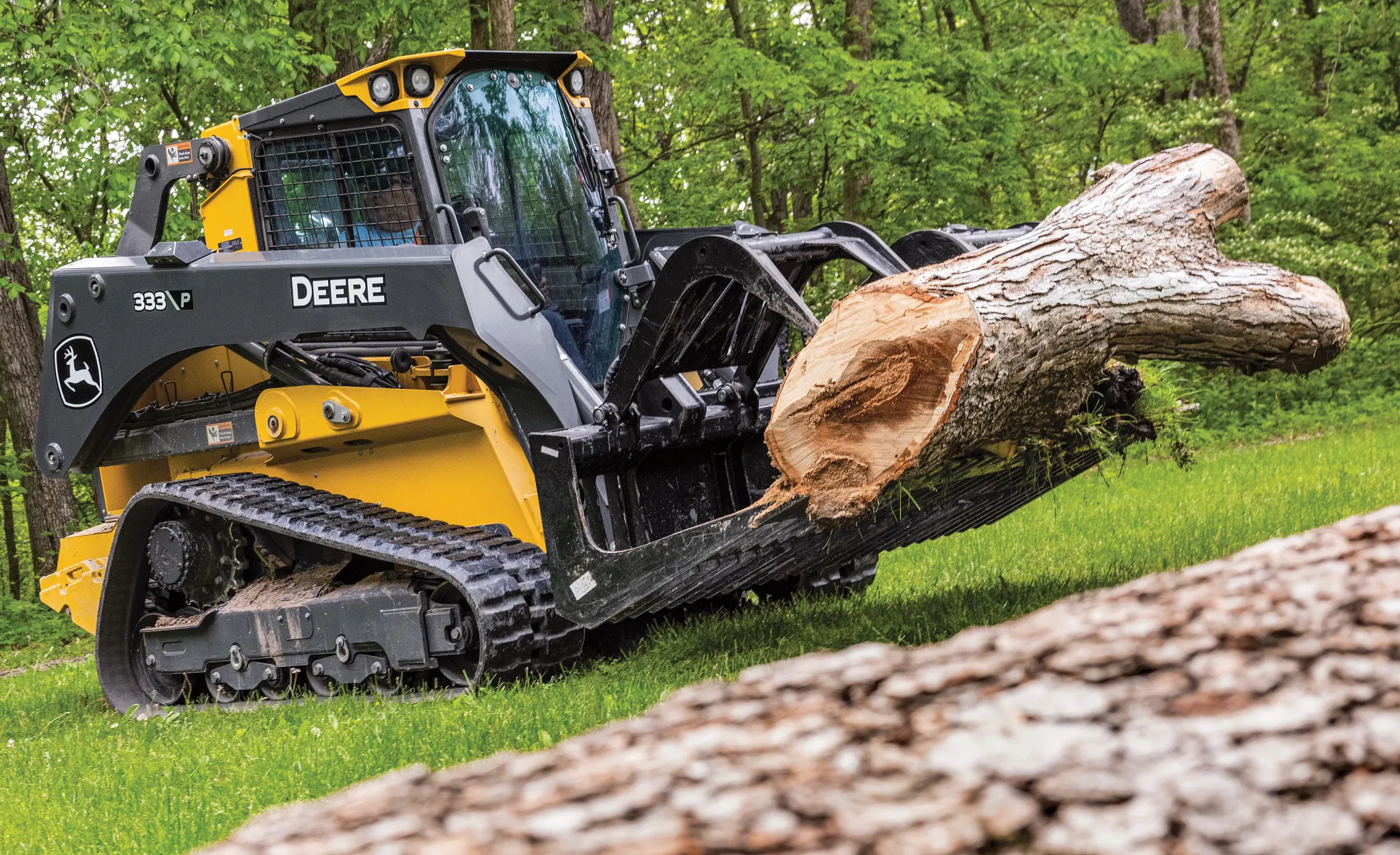

The 333 P‑Tier combines a vertical‑lift boom path with high rated operating capacity and strong breakout force, making it ideal for truck loading, pallet handling, and bulk material movement. Its wide stance and track system provide excellent traction and stability, helping maintain performance and control on soft or uneven ground.
Premium Cab Designed for Long Workdays
A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable work environment. Increased glass area improves visibility, while ergonomically positioned joysticks, a redesigned switch module, and available heated and ventilated seating help reduce fatigue and keep operators productive throughout long shifts.
Specifications
| Length with foundry bucket (ft in.) | 12, 7 ft, in. |
| Front turn radius, foundry bucket (m) | 2.18 m |
| Length without bucket (m) | 3.18 m |
| Ground clearance (in.) | 9.75 in. |
| Ground clearance (m) | 0.25 m |
| Width without bucket with 400-mm tracks (m) | 2 m |
| Dump reach, foundry bucket (ft in.) | 2, 5 ft, in. |
| Dump angle (full lift height) degree | 48 degree (angle) |
| Height to top of rollover protective structure (ROPS) (m) | 2.22 m |
| Angle of departure degree | 30 degree (angle) |
| Dump reach, foundry bucket (m) | 0.74 m |
| Dump height, foundry bucket (m) | 2.69 m |
| Dump reach, construction bucket, no edge (ft in.) | 3, 0 ft, in. |
| Length without bucket (in.) | 125 in. |
| Width without bucket with 17.7-in. tracks (in.) | 80.7 in. |
| Height to top of rollover protective structure (ROPS) (in.) | 87.4 in. |
| Dump reach, construction bucket, no edge (m) | 0.92 m |
| Length with foundry bucket (in.) | 151.2 in. |
| Width without bucket with 15.8-in. tracks (ft in.) | 6, 7 ft, in. |
| Width without bucket with 15.8-in. tracks (in.) | 78.86 in. |
| Width without bucket with 450-mm tracks (m) | 2.05 m |
| Front turn radius, foundry bucket (ft in.) | 7, 2 ft, in. |
| Dump height, foundry bucket (ft in.) | 8, 10 ft, in. |
| Front turn radius, foundry bucket (in.) | 86 in. |
| Height to hinge pin (in.) | 132 in. |
| Length without bucket (ft in.) | 10, 5 ft, in. |
| Dump height, foundry bucket (in.) | 106.08 in. |
| Height to hinge pin (ft in.) | 11, 0 ft, in. |
| Dump reach, construction bucket, no edge (in.) | 36.2 in. |
| Bucket rollback (ground level) degree | 35 degree (angle) |
| Length with foundry bucket (m) | 3.84 m |
| Width without bucket with 17.7-in. tracks (ft in.) | 6, 9 ft, in. |
| Height to hinge pin (m) | 3.35 m |
| Height to top of rollover protective structure (ROPS) (ft in.) | 7, 3 ft, in. |
| Dump reach, foundry bucket (in.) | 29 in. |
| High flow option total pump flow (L/min) | 166.6 L/min |
| Hydraulic horsepower high flow (calculated) (hp) | 89.85 hp |
| System pressure at couplers (kPa) | 24131.65 kPa |
| Hydraulic horsepower standard flow (calculated) (kW) | 38.1 kW |
| Standard pump flow (L/min) | 94.6 L/min |
| Standard pump flow (gpm) | 25 gpm |
| System pressure at couplers (psi) | 3500 psiPerMin |
| High flow option total pump flow (gpm) | 44 gpm |
| Hydraulic horsepower standard flow (calculated) (hp) | 51.05 hp |
| Hydraulic horsepower high flow (calculated) (kW) | 67 kW |
| Parking brake type | Integral, automatic, spring applied, hydraulically released wet-disk brake |
| Travel speed low (mph) | 5.5 mph |
| Travel speed high (mph) | 8.5 mph |
| Travel speed low (km/h) | 8.85 km/h |
| Pump type | Axial piston hydrostatic pump |
| Controls type | Electrohydraulic |
| Travel speed high (km/h) | 13.68 km/h |
| Ground pressure standard track (kPa) | 32.8 kPa |
| Bearings/seals (rollers/idlers) type | Not specified |
| Standard track width (in.) | 17.7 in. |
| Tractive effort (kgf) | 5216.4 kgf |
| Rubber tracks construction | New-generation smooth-ride long-life rubber with steel inserts |
| Tractive effort (lbf) | 11500 lbf |
| Optional track width (mm) | 401.3 mm |
| Ground pressure standard track (psi) | 4.75 psi |
| Track idlers (per side) | 2 double-flange smooth-ride, all-steel rollers |
| Optional track width (in.) | 15.8 in. |
| Track rollers (per side) | 5 triple-flange smooth-ride, all-steel rollers |
| Standard track width (mm) | 449.6 mm |
| Ground pressure optional track (psi) | 5.27 psi |
| Ground pressure optional track (kPa) | 36.3 kPa |
| Hydraulic oil temperature | Indicator light, Gauge, Digital |
| Engine air filter restriction indicator | Indicator light |
| Park brake engaged | Indicator light |
| Diesel exhaust fluid (DEF) level indicator | Audible warning, Gauge |
| Hourmeter | Digital |
| Battery voltage | Indicator light, Digital |
| Fuel gauge | Gauge |
| Hi-flow indicator | Indicator light |
| Auxiliary hydraulics | Indicator light |
| Diagnostics | Digital |
| Engine coolant temperature | Indicator light, Gauge, Digital |
| Hydraulic oil filter restriction | Indicator light |
| Engine rpm indicator | Digital |
| Warm-up indicator | Indicator light, Digital |
| Engine oil pressure | Indicator light |
| Alternator, low voltage | Indicator light |
| Boom breakout force with foundry bucket (kg) | 3855.5 kg |
| Bucket breakout force with foundry bucket (kg) | 6233.3 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (lb) | 3290 lb. |
| Bucket breakout force with foundry bucket (lb) | 13750 lb. |
| Boom breakout force with foundry bucket (lb) | 8500 lb. |
| Boom breakout force with construction bucket (lb) | 7800 lb. |
| Boom breakout force with construction bucket (kg) | 3538.4 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (kg) | 2131.9 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (kg) | 1492.4 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (lb) | 4700 lb. |
| Cylinders type | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Non-road emission standards | Final Tier 4 |
| Air cleaner type | Dry dual element |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (kW) | 78.9 kW |
| Engine cylinders | 4 |
| Rated gross power (ISO 14396) at 2500 rpm (kW) | 80.9 kW |
| Rated gross power (ISO 14396) at 2500 rpm (hp) | 108.49 hp |
| Torque rise percent at 1700 rpm (%) | 39 % |
| Peak torque at 1700 rpm (lb-ft) | 290.6 lb-ft |
| Rated gross power (ISO 14396) at 2600 rpm (hp) | 108.5 hp |
| Peak torque at 1700 rpm (Nm) | 394 Nm |
| Rated engine speed (rpm) | 2500 rpm |
| Rated gross power (ISO 14396) at 2600 rpm (kW) | 80.9 kW |
| Aspiration | Turbocharged, intercooled |
| Displacement (cu in.) | 186.33 cu in. |
| Displacement (L) | 3.05 L |
| Model | 4TNV94FHT |
| Manufacturer | Yanmar® |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (hp) | 105.81 hp |
| Standard track (lb) | 12300 lb. |
| Machine configuration that will produce base machine weight (ISO 6016) | Standard 17.7-in. (450 mm) Track |
| Standard track (kg) | 5579.3 kg |
| Fuel tank (L) | 136.3 L |
| Fuel tank (gal.) | 36 gal. |
| Voltage (V) | 12 V |
| Battery Capacity (CCA) | 950 CCA |
| Alternator rating with A/C (amp) | 120 amp |
| Lighting options | Halogen, Two (2) Front and One (1) Rear; (Optional): LED, Four (4) Front, and One (1) Rear |
| Structure | ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot |
| Fan drive type | Variable speed hydraulic drive |
