John Deere 335 P
Compact Track Loader
The John Deere 335 P-Tier Compact Track Loader delivers maximum power, advanced grade-management technology, and premium operator comfort, built for highproduction work where precision and performance matter most.
Product Features:
- Gross Horsepower: 118 hp (88 kW)
- Net Horsepower: 114.7 hp (85.5 kW)
- Rated Operating Capacity: 4,025 lb. (1,827 kg) With 1 Counterweight
- Operating Weight: 12,300 lb. (5,584 kg) / 13,542 lb. (6,148 kg) With SG96 Dozer Blade
Features
The John Deere 335 P‑Tier Compact Track Loader delivers maximum power, advanced grade‑management technology, and premium operator comfort, built for high‑production work where precision and performance matter most.
Gross Horsepower: 118 hp (88 kW)
Net Horsepower: 114.7 hp (85.5 kW)
Rated Operating Capacity: 4,025 lb. (1,827 kg) With 1 Counterweight
Operating Weight: 12,300 lb. (5,584 kg) / 13,542 lb. (6,148 kg) With SG96 Dozer Blade
Benefits
Premium Cab, Advanced Hydraulics, and Attachment Versatility

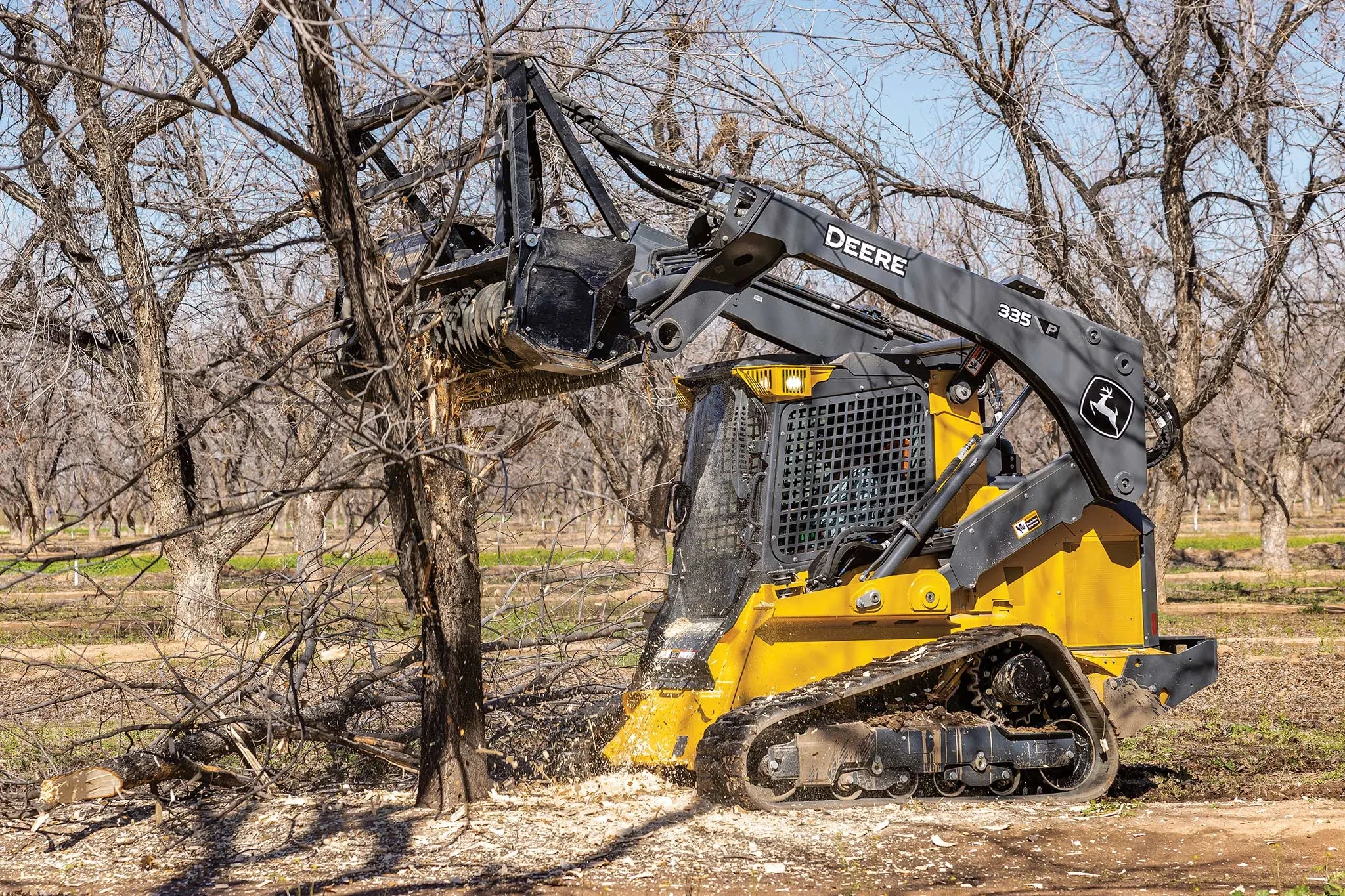

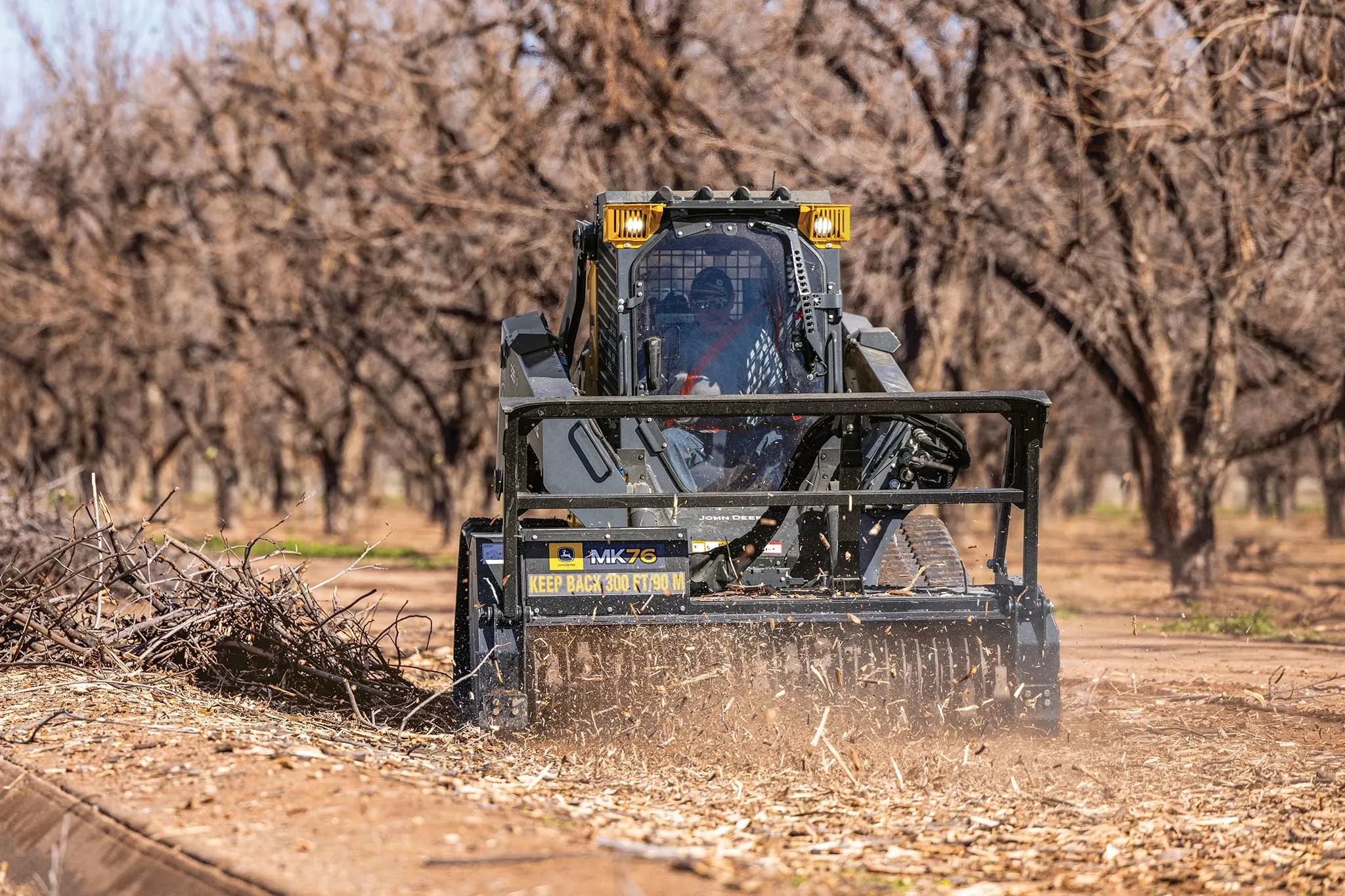

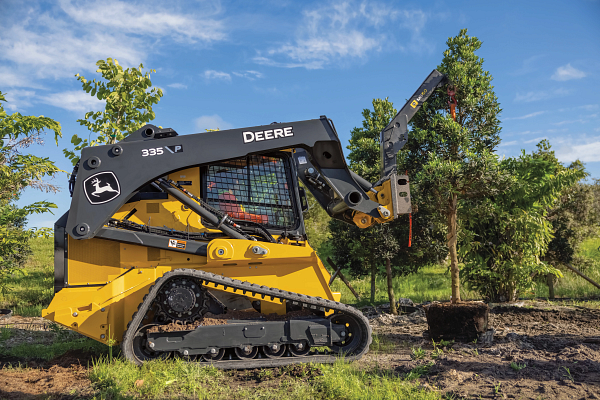

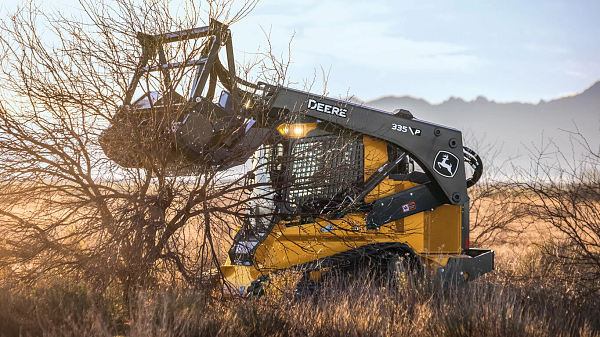

A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable operator environment, with features such as a touchscreen display, hands‑free Bluetooth calling, and ergonomic electrohydraulic controls. High‑flow hydraulics and compatibility with over 100 John Deere attachments allow the 335 P‑Tier to take on everything from grading and material handling to mulching and land clearing—making it one of the most versatile CTLs in the lineup.
Maximum Power and Lift for High‑Production Work
With 118 gross horsepower and a high rated operating capacity, the 335 P‑Tier is engineered to handle demanding applications such as site development, roadbuilding, and vegetation management. Its vertical‑lift boom design delivers excellent reach and stability for truck loading and material placement, while the tracked undercarriage provides traction and control on soft or uneven ground.
SmartGrade™ Technology for Precision and Efficiency

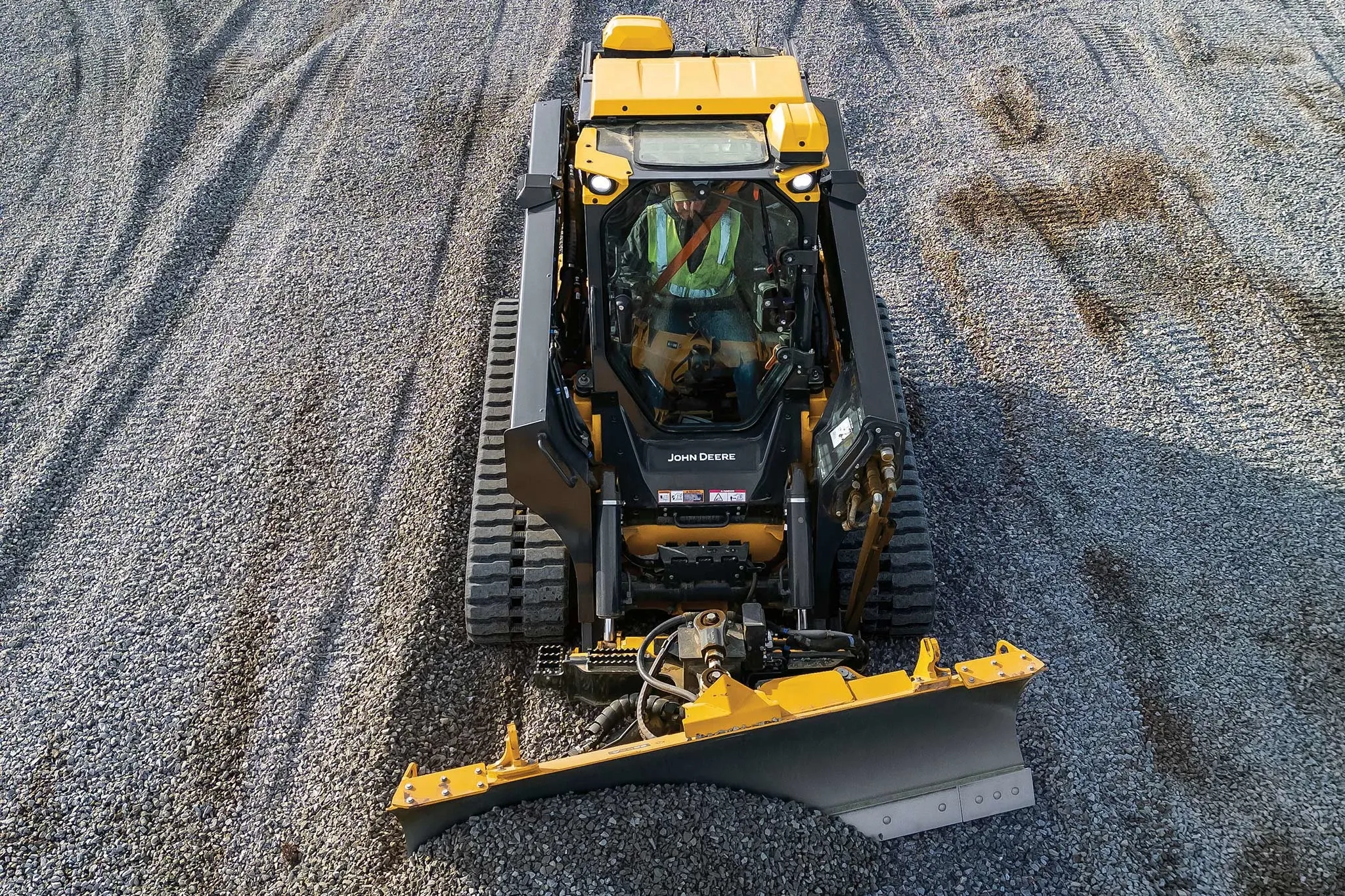

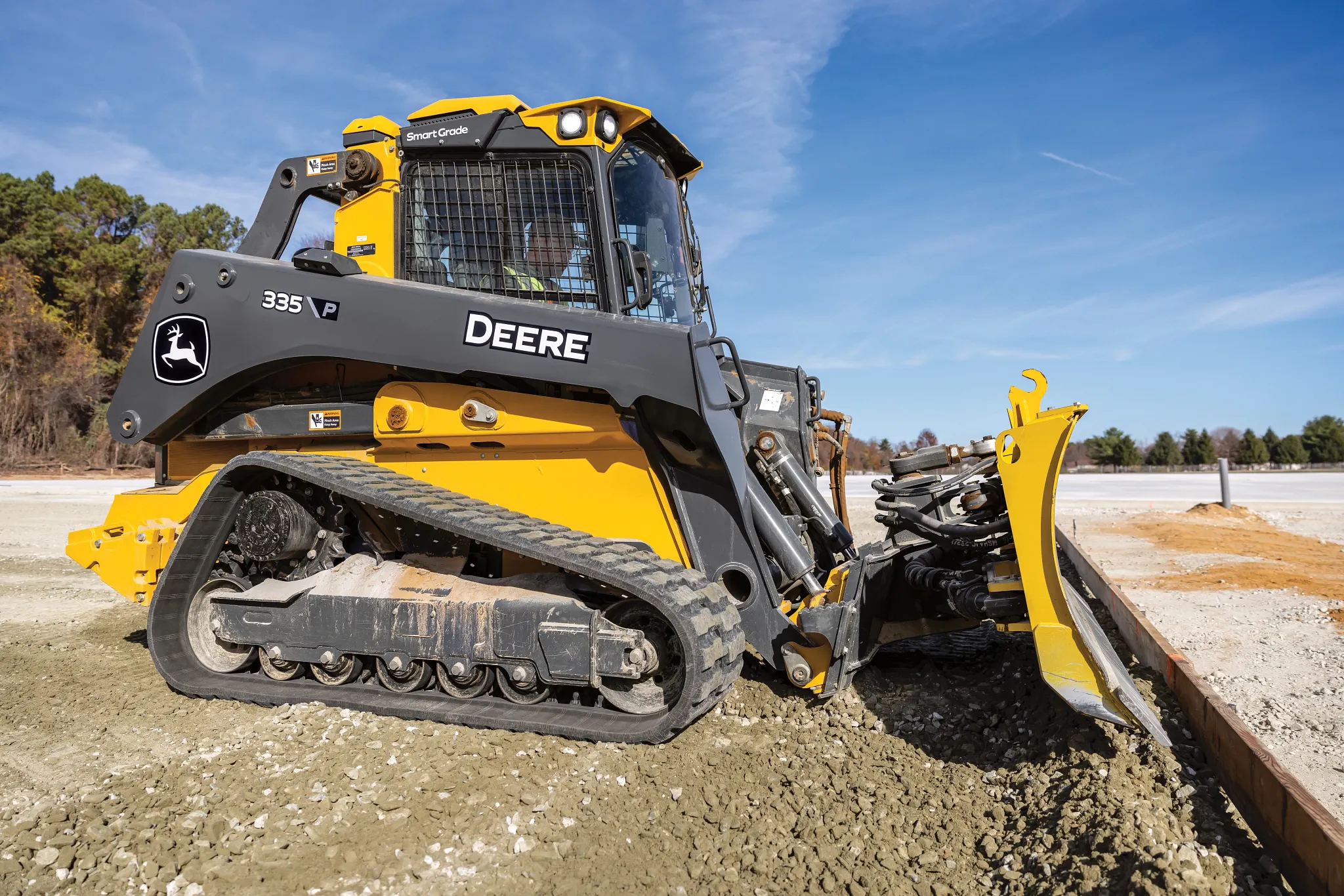

The 335 P‑Tier can be equipped with John Deere SmartGrade™ technology, along with slope control and laser slope control options, helping operators grade faster and more accurately with fewer passes and less rework. By automating blade movement and maintaining consistent grade, SmartGrade improves productivity and makes it easier for operators of all experience levels to achieve quality results the first time.
Specifications
| Length with foundry bucket (ft in.) | 12, 7 ft, in. |
| Front turn radius, foundry bucket (m) | 2.18 m |
| Length without bucket (m) | 3.18 m |
| Ground clearance (in.) | 9.75 in. |
| Ground clearance (m) | 0.25 m |
| Width without bucket with 400-mm tracks (m) | 2 m |
| Dump reach, foundry bucket (ft in.) | 2, 5 ft, in. |
| Dump angle (full lift height) degree | 48 degree (angle) |
| Height to top of rollover protective structure (ROPS) (m) | 2.22 m |
| Angle of departure degree | 24.7 degree (angle) |
| Dump reach, foundry bucket (m) | 0.74 m |
| Dump height, foundry bucket (m) | 2.69 m |
| Dump reach, construction bucket, no edge (ft in.) | 3, 0 ft, in. |
| Length without bucket (in.) | 125 in. |
| Width without bucket with 17.7-in. tracks (in.) | 80.7 in. |
| Height to top of rollover protective structure (ROPS) (in.) | 87.4 in. |
| Dump reach, construction bucket, no edge (m) | 0.92 m |
| Length with foundry bucket (in.) | 151.2 in. |
| Width without bucket with 15.8-in. tracks (ft in.) | 6, 7 ft, in. |
| Width without bucket with 15.8-in. tracks (in.) | 78.86 in. |
| Width without bucket with 450-mm tracks (m) | 2.05 m |
| Front turn radius, foundry bucket (ft in.) | 7, 2 ft, in. |
| Dump height, foundry bucket (ft in.) | 8, 10 ft, in. |
| Front turn radius, foundry bucket (in.) | 86 in. |
| Height to hinge pin (in.) | 132 in. |
| Length without bucket (ft in.) | 10, 5 ft, in. |
| Dump height, foundry bucket (in.) | 106.08 in. |
| Height to hinge pin (ft in.) | 11, 0 ft, in. |
| Dump reach, construction bucket, no edge (in.) | 36.2 in. |
| Bucket rollback (ground level) degree | 35 degree (angle) |
| Length with foundry bucket (m) | 3.84 m |
| Width without bucket with 17.7-in. tracks (ft in.) | 6, 9 ft, in. |
| Height to hinge pin (m) | 3.35 m |
| Height to top of rollover protective structure (ROPS) (ft in.) | 7, 3 ft, in. |
| Dump reach, foundry bucket (in.) | 29 in. |
| High flow option total pump flow (L/min) | 166.6 L/min |
| Hydraulic horsepower high flow/high pressure (calculated) (hp) | 102.68 hp |
| System pressure at couplers (kPa) | 24131 kPa |
| Hydraulic horsepower standard flow (calculated) (kW) | 38.1 kW |
| Optional high pressure system pressure at couplers (psi) | 4000 psi |
| Optional high pressure system pressure at couplers (kPa) | 27579 kPa |
| Standard pump flow (L/min) | 94.6 L/min |
| Standard pump flow (gpm) | 25 gpm |
| System pressure at couplers (psi) | 3500 psiPerMin |
| High flow option total pump flow (gpm) | 44 gpm |
| Hydraulic horsepower standard flow (calculated) (hp) | 51.05 hp |
| Hydraulic horsepower high flow/high pressure (calculated) (kW) | 76.6 kW |
| Parking brake type | Integral, automatic, spring applied, hydraulically released wet-disk brake |
| Travel speed low (mph) | 5.5 mph |
| Travel speed high (mph) | 8.5 mph |
| Travel speed low (km/h) | 8.85 km/h |
| Pump type | Axial piston hydrostatic pump |
| Controls type | Electrohydraulic |
| Travel speed high (km/h) | 13.68 km/h |
| Ground pressure standard track (kPa) | 32.8 kPa |
| Bearings/seals (rollers/idlers) type | Not specified |
| Standard track width (in.) | 17.7 in. |
| Tractive effort (kgf) | 5216.4 kgf |
| Rubber tracks construction | New-generation smooth-ride long-life rubber with steel inserts |
| Tractive effort (lbf) | 11500 lbf |
| Optional track width (mm) | 401.3 mm |
| Ground pressure standard track (psi) | 4.76 psi |
| Track idlers (per side) | 2 double-flange smooth-ride, all-steel rollers |
| Optional track width (in.) | 15.8 in. |
| Track rollers (per side) | 5 triple-flange smooth-ride, all-steel rollers |
| Standard track width (mm) | 449.6 mm |
| Ground pressure optional track (psi) | 5.28 psi |
| Ground pressure optional track (kPa) | 36.4 kPa |
| Hydraulic oil temperature | Indicator light, Gauge, Digital |
| Engine air filter restriction indicator | Indicator light |
| Park brake engaged | Indicator light |
| Diesel exhaust fluid (DEF) level indicator | Audible warning, Gauge |
| Hourmeter | Digital |
| Battery voltage | Indicator light, Digital |
| Fuel gauge | Gauge |
| Hi-flow indicator | Indicator light |
| Auxiliary hydraulics | Indicator light |
| Diagnostics | Digital |
| Engine coolant temperature | Indicator light, Gauge, Digital |
| Hydraulic oil filter restriction | Indicator light |
| Engine rpm indicator | Digital |
| Warm-up indicator | Indicator light, Digital |
| Engine oil pressure | Indicator light |
| Alternator, low voltage | Indicator light |
| Boom breakout force with foundry bucket (kg) | 3855.5 kg |
| Bucket breakout force with foundry bucket (kg) | 6259.7 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (lb) | 4025 lb. |
| Bucket breakout force with foundry bucket (lb) | 13800 lb. |
| Boom breakout force with foundry bucket (lb) | 8500 lb. |
| Boom breakout force with construction bucket (lb) | 7800 lb. |
| Boom breakout force with construction bucket (kg) | 3538.4 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (kg) | 2177 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (kg) | 1825.3 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (lb) | 4800 lb. |
| Cylinders type | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Non-road emission standards | Final Tier 4 |
| Air cleaner type | Dry dual element |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (kW) | 85.5 kW |
| Engine cylinders | 4 |
| Rated gross power (ISO 14396) at 2500 rpm (kW) | 88 kW |
| Rated gross power (ISO 14396) at 2500 rpm (hp) | 118 hp |
| Torque rise percent at 1700 rpm (%) | 39 % |
| Peak torque at 1700 rpm (lb-ft) | 291.34 lb-ft |
| Rated gross power (ISO 14396) at 2600 rpm (hp) | 118 hp |
| Peak torque at 1700 rpm (Nm) | 395.1 Nm |
| Rated engine speed (rpm) | 2500 rpm |
| Rated gross power (ISO 14396) at 2600 rpm (kW) | 88 kW |
| Aspiration | Turbocharged, intercooled |
| Displacement (cu in.) | 186.33 cu in. |
| Displacement (L) | 3.05 L |
| Model | 4TNV94FHT |
| Manufacturer | Yanmar® |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (hp) | 114.66 hp |
| Standard track (lb) | 12320 lb. |
| Machine configuration that will produce base machine weight (ISO 6016) | Standard 17.7-in. (450 mm) Track |
| Standard track (kg) | 5589.4 kg |
| Fuel tank (L) | 136.3 L |
| Fuel tank (gal.) | 36 gal. |
| Voltage (V) | 12 V |
| Battery Capacity (CCA) | 950 CCA |
| Alternator rating with A/C (amp) | 120 amp |
| Lighting options | Halogen, Two (2) Front and One (1) Rear; (Optional): LED, Four (4) Front, and One (1) Rear |
| Structure | ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot |
| Fan drive type | Variable speed hydraulic drive |
