184 G-Tier Compact Wheel Loader with a close up of a yellow construction vehicle with a large shovel

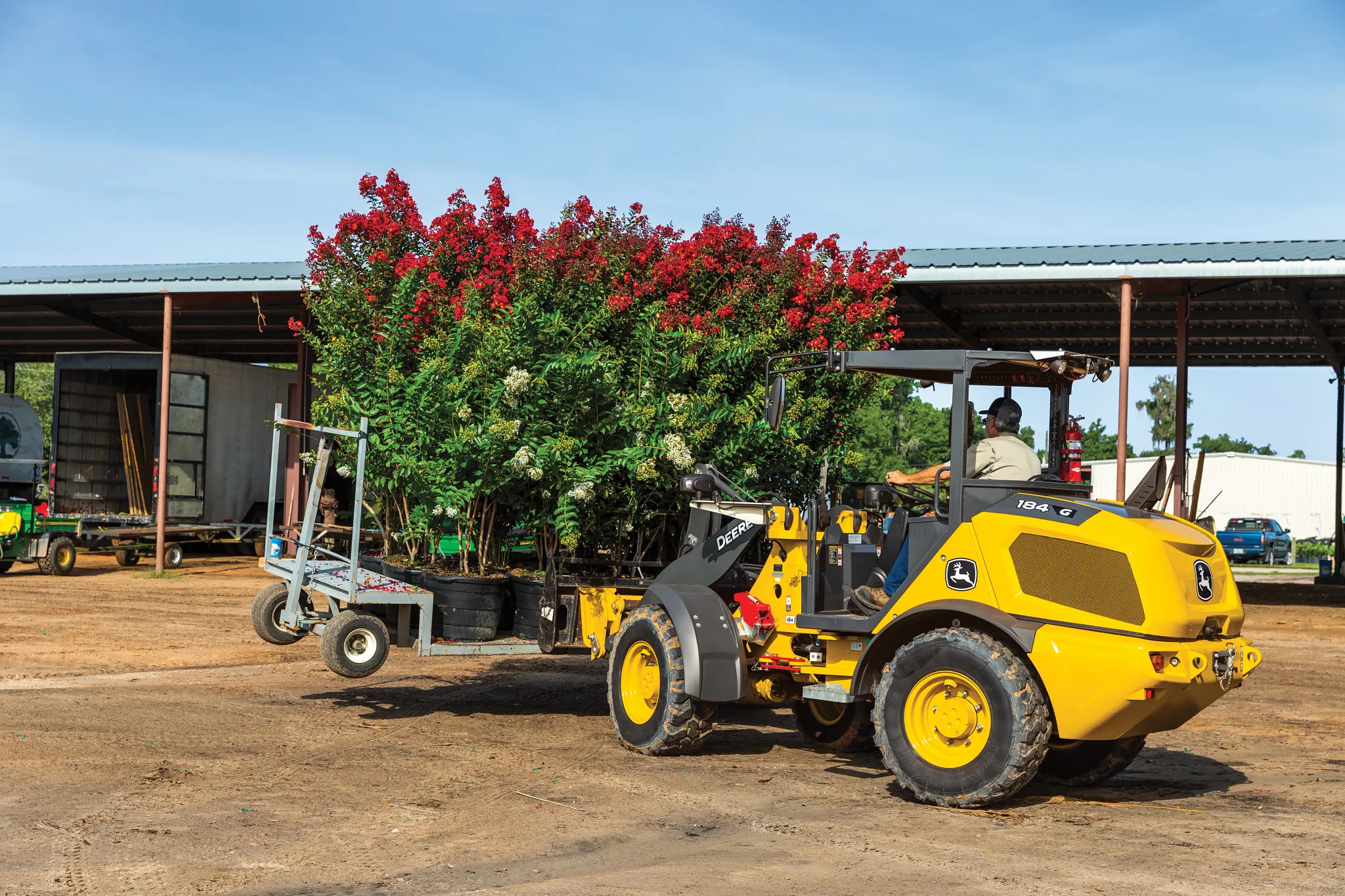

A wheel loader using front forks to transport large potted trees across a dirt yard, with an open-sided storage building and additional equipment visible in the background.

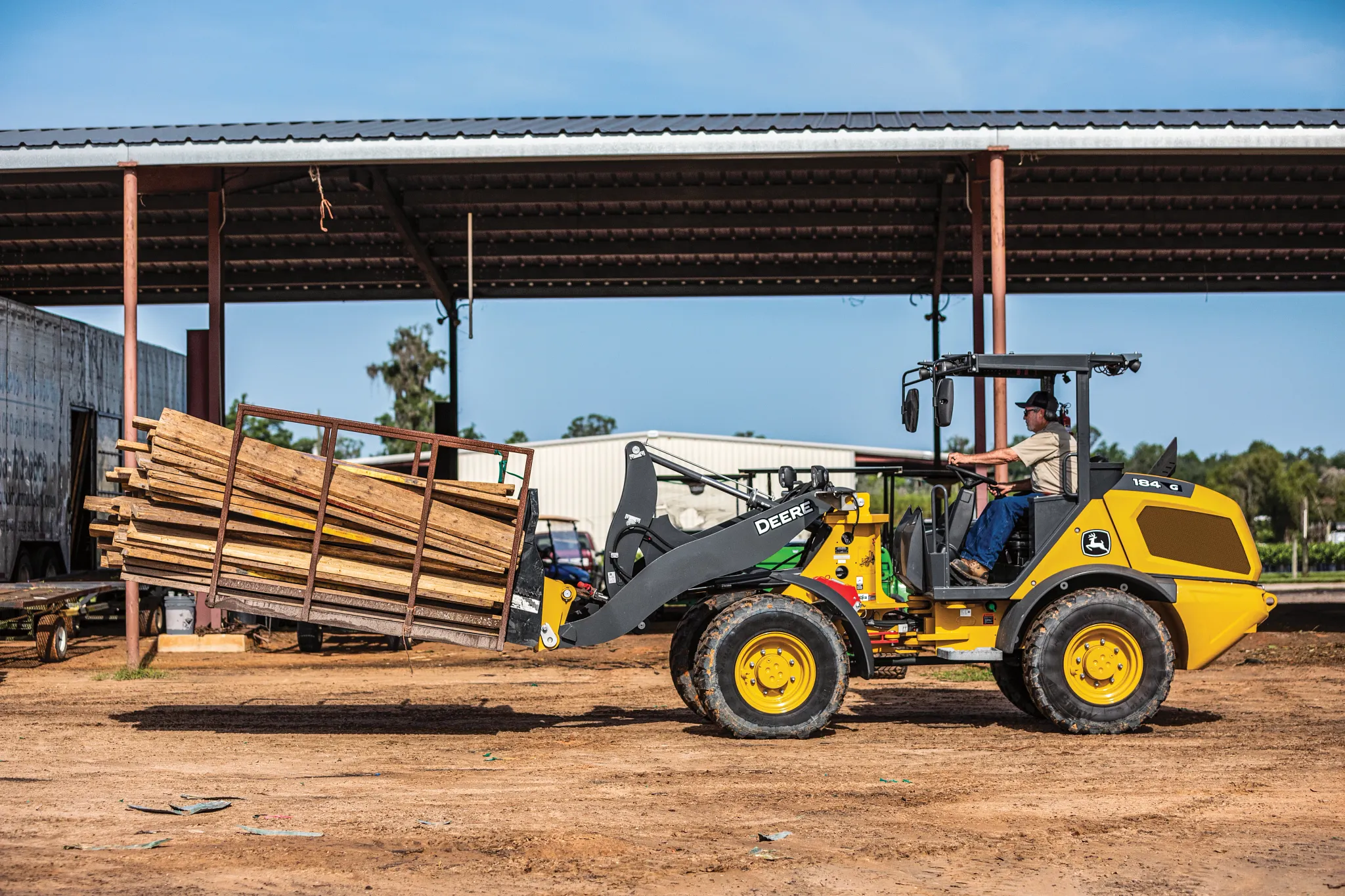

A wheel loader using pallet forks to carry a stacked bundle of lumber across a dirt yard, with an open-sided metal structure and additional materials visible in the background.

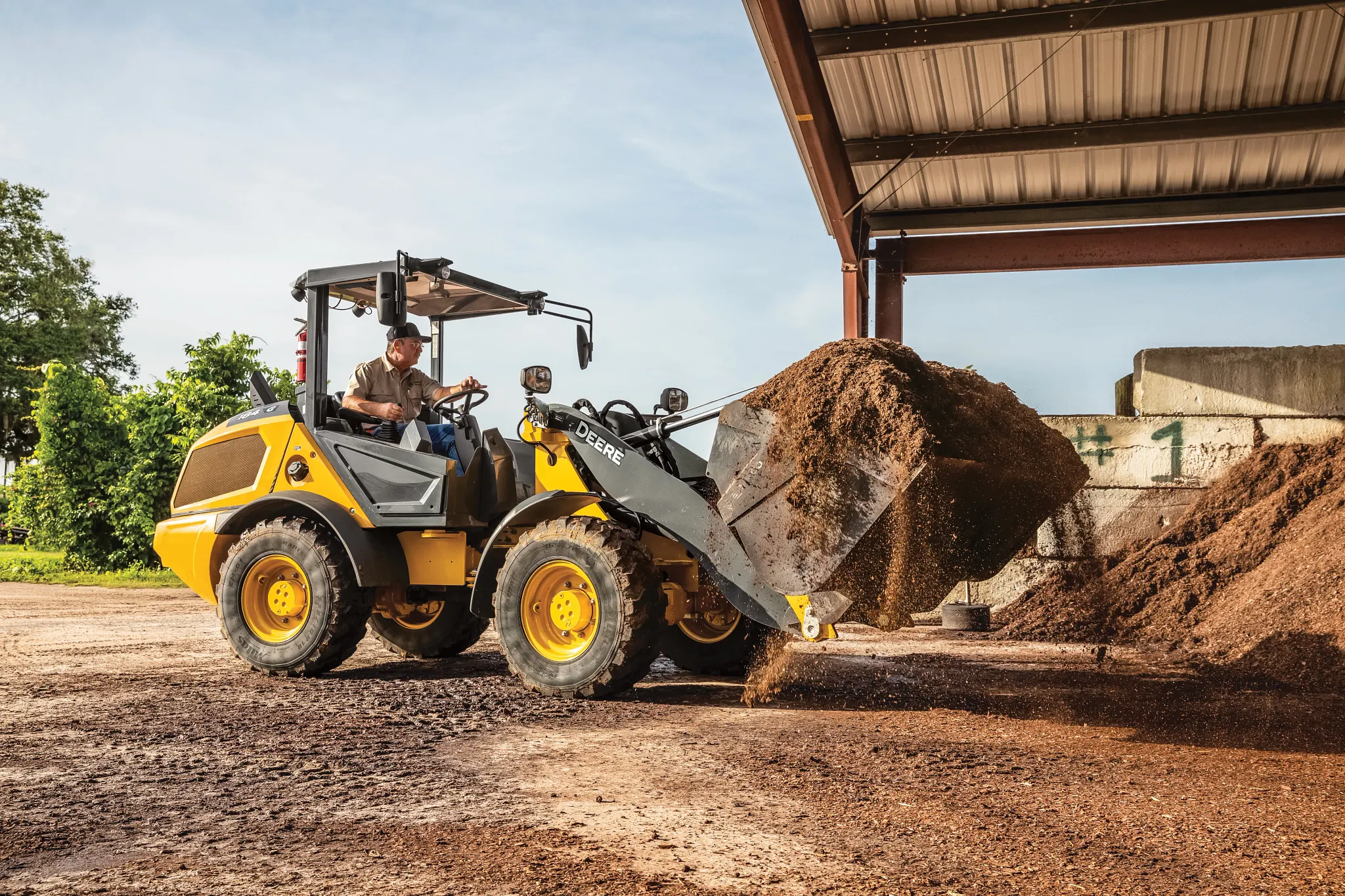

A wheel loader lifting a bucket of loose soil inside an open-sided structure, with material piles on the ground and daylight visible beyond the roofed area.

John Deere 184 G

Compact Wheel Loader

The John Deere 184 G-Tier Compact Wheel Loader delivers exceptional performance and versatility with its powerful engine, intuitive controls, and rugged design, making it the ideal choice for customers seeking reliable productivity and efficiency in compact spaces.

Product Features:

  • Net Power: 33 kW (44 hp) at 2,200 rpm
  • Operating Weight: 4,840 kg (10,670 lb)
  • Bucket Capacity: 0.7–1.1 m³ (0.9–1.4 cu yd)
  • Height to Top of Cab 2,455 mm (8 ft., 1 in.)
View Product Broshure

Specifications

Parking Brake (SAE J1473, ISO3450) Automatically spring applied, hydraulically released, internal wet disk
Final Drive Type Heavy-duty outboard planetary
Degree Of Articulation Left And Right 40 degree (angle)
Differentials Rear 45 percent locking rear differentials
Maximum Rise And Fall, Single Wheel 254 mm
Service Brakes (SAE J1473, ISO3450) Hydraulically actuated, self-adjusting internal wet-disk brake and driveline drum brake
Steering Type Hydraulic power steering (SAE J1511
Axles Front Rigid mount front axles with 10-degree frame oscillation
Differentials Front 45 percent locking front differentials
Steering Wheel Turns Right Stop to Stop 4.5
Axles Rear Rigid mount rear axles with 10-degree frame oscillation
Articulation Arc 40 degree (angle)
Maximum Rise And Fall, Single Wheel 10 in.
Steering Wheel Number Of Turns Left Stop To Stop 3.5

System Relief Pressure (Loader) 3335.87 psi
Main Pump (Loader and Steering) Fixed-displacement gear pump; open-center system
Hydraulic Dump Cycle Time 1.3 seconds
Hydraulic Lower (Power Down) Cycle Time 3.0 seconds
System Relief Pressure (Steering) 2610.68 psi
Max Rated Flow at 1,000 psi 16.11 gpm
Maximum Pressure at Couplings 3335.87 psi
Total Cycle Time 8.90 seconds
Controls Type Three-function valve with single-lever control for boom and bucket, with hydraulic lockout feature; Joystick mounted push button electrohydraulic control for auxiliary hydraulics, with hydraulic lockout feature
Hydraulic Raise Cycle Time 4.6 seconds

Gross Rated Power At 2,200 Rpm (ISO 14396) 47.61 hp
Engine Bore And Stroke 87.9 x 90 mmByMm
Engine Model 4TNV88C
Non-Road Emission Standards EPA Final Tier 4 / EU Stage V
Displacement 2.2 L
Peak Torque At 1,950 Rpm (SAE J1349 /ISO 9249) 198.25 lb-ft
Lubrication Pressure system with full-flow spin-on filter
Cylinders 4
Net Peak Power At 2,200 Rpm (SAE J1349 /ISO 9249) 32.5 kW
Engine Manufacturer Yanmar
Engine Bore And Stroke 3.46 x 3.54 in.
Gross Rated Power At 2,200 Rpm (ISO 14396) 35.5 kW
Peak Torque At 1,950 Rpm (SAE J1349 /ISO 9249) 268.8 Nm
Displacement 133.64 cu in.
Aspiration Naturally aspirated
Air Cleaner Dual safety element dry type
Valves Per Cylinder 4
Net Peak Power At 2,200 Rpm (SAE J1349 /ISO 9249) 43.58 hp

Exhaust Filter Indicator light
Engine rpm Indicator light, digital
Hydraulic Oil Temperature Indicator light
Fuel Level Indicator light, gauge
Park Brake Engaged Indicator light
Hourmeter Indicator light, digital
Stop Indicator Indicator light, audible warning
High Speed Indicator Indicator light
Turn Signals And Flashers Indicator light
Engine Preheat Indicator light
Engine Coolant Temperature Indicator light, audible warning
Direction Indicator, Forward And Reverse Indicator light, audible warning
Engine Air Filter Restriction Indicator light, audible warning
Low Speed Indicator Indicator light
Lights, High Beam Indicator light
Engine Oil Pressure Indicator light, audible warning
Speedometer Digital
Pilot Disable Indicator light
Alternator, Low Voltage Indicator light

Available Sight Gauges Hydraulic reservoir; see-through coolant reservoir
Cooling System (Engine and Radiator) Refill Capacity 10.01 L
Differential and Planetary Rear Axle Refill Capacity 5.5 L
Differential and Planetary Front Axle Refill Capacity 5.5 L
Hydraulic/hydrostatic Reservoir with Filter Refill Capacity 45.03 L
Lube Bank Remote lube bank for easy reach and maintenance
Fuel Tank Refill Capacity 16.38 gal.
Diagnostic Monitoring Location In-cab
Fuel Filter Service Hours 500 hr
Engine Oil Filter Service Hours 500 hr
Hydraulic Oil Change Interval (Hours) 3000 hr
Cooling System (Engine and Radiator) Refill Capacity 10.57 qt
Hydrostatic Motor Gearbox Refill Capacity 0.5 L
Loader Boom Service Lock Available Yes
Hydraulic Filter Service Hours 1000 hr
Fueling Level Ground level
Hydrostatic Motor Gearbox Refill Capacity 0.53 qt
Engine Oil Change Interval (Hours) 500 hr
Engine Oil with Filter Refill Capacity 7.82 qt
Secondary Fuel Filter Service Hours 500 hr
Quick-Coupler Diagnostic Ports Priority pressure, hydraulic pump pressure, control valve pressure and hydrostatic pressure
Differential and Planetary Front Axle Refill Capacity 5.81 qt
Differential and Planetary Rear Axle Refill Capacity 5.81 qt
Hydraulic/hydrostatic Reservoir with Filter Refill Capacity 11.89 gal.
Fuel Tank Refill Capacity 62.04 L
Engine Oil with Filter Refill Capacity 7.4 L

Open ROPS with Hook/Euro Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10493.99 lb.
Open ROPS with Hook/Euro Quick-Coupler and Fork 4540 kg
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork 4760 kg
Enclosed Cab Loader with Hook/Euro Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10339.67 lb.
Open ROPS with Quik-Tatch™ Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10648.31 lb.
Enclosed Cab Loader with Hook/Euro Quick-Coupler and Fork 4590 kg
Enclosed Cab Loader with Hook/Euro Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10273.53 lb.
Enclosed Cab Loader with Hook/Euro Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10604.22 lb.
Open ROPS with Hook/Euro Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10229.44 lb.
Open ROPS with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10890.82 lb.
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge 11001.05 lb.
Open ROPS with Hook/Euro Quick-Coupler and Fork 10008.97 lb.
Optional Quik-Tatch Coupler Fork and Tines 48 in. 722.89 lb.
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork 10493.99 lb.
Open ROPS with Quik-Tatch™ Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10626.27 lb.
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10758.55 lb.
Enclosed Cab Loader with Hook/Euro Quick-Coupler and Fork 10119.21 lb.
Optional Quik-Tatch Coupler Bucket, 0.9-cu yd 858.48 lb.
Open ROPS with Hook/Euro Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10163.3 lb.
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge 10670.36 lb.

Cylinders Type Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Battery Capacity 830 CCA
Number Of Batteries 1
Lights (SAE 99) Driving/Front working lights (two), turn signals, flashers, stop and tail lights
Alternator Rating 80 amp
System Type Electrical load center with blade-type multi-fused circuits
Voltage 12 V

Fan Direct driven
Engine Coolant Rating -34 °F
Engine Coolant Rating -36.7 ℃

Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims 53.54 in.
Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims 1360 mm
Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims 1780 mm
Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims 23.1 mm
Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims 70.08 in.
Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims 0.91 in.
Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims 1820 mm
Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims 71.65 in.
Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims 53.94 in.
Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims 1370 mm

Noise Level for Bystander (ISO 6395) 101 dba
Noise Level For Operator (ISO 6396) 78 dba
