John Deere 244 P
Compact Wheel Loader
The 244 P-Tier Compact Wheel Loader offers exceptional versatility, power, and precision in tight working spaces, enabling operators to efficiently handle a variety of tasks with ease and performance reliability.
Product Features:
- Net Power: 52 kW (71 hp) at 2,400 rpm
- Operating Weight: 5560 kg (12,258 lb.)
- Bucket Capacity: 0.8–1.1 m³ (1.0–1.4 cu. yd.)
- Height to Top of Cab 2.75 m (9 ft., 0 in.)
Features
The 244 P-Tier Compact Wheel Loader offers exceptional versatility, power, and precision in tight working spaces, enabling operators to efficiently handle a variety of tasks with ease and performance reliability.
Net Power: 52 kW (71 hp) at 2,400 rpm
Operating Weight: 5560 kg (12,258 lb.)
Bucket Capacity: 0.8–1.1 m³ (1.0–1.4 cu. yd.)
Height to Top of Cab 2.75 m (9 ft., 0 in.)
Benefits

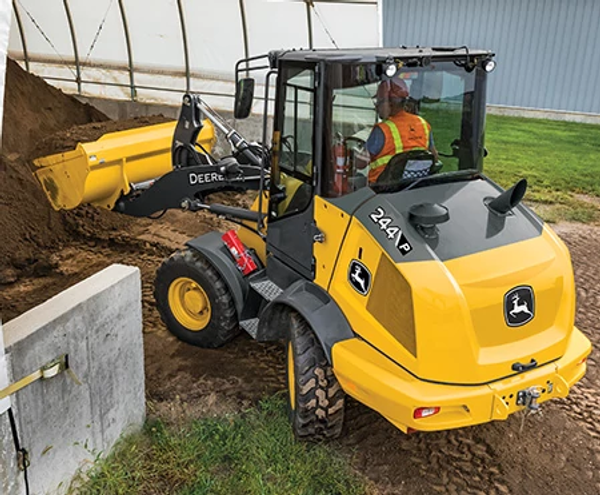

Articulation Plus™ Steering
Articulation Plus™ Steering combines 30 degrees of standard articulation with 10 degrees of rear-wheel steering for improved maneuverability and tighter turns. This exclusive feature leads to a considerably higher full turn tipping load without excessive articulation, making it ideal for tighter job sites.

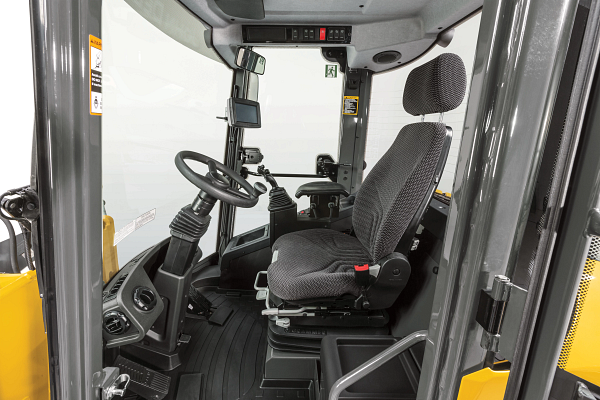

Ergonomic Operator Cab
The spacious cab offers comfort with its adjustable high-back air suspension seat, optimal air conditioning, and ergonomic controls. The adjustable steering column, coupled with low-effort controls, ensures operator comfort even during long shifts. Ample storage and improved visibility enhance the all-day operator experience.
Increase Your Machine's Versatility with a Wide Array of Attachments
With over 100 attachments offered in the John Deere attachment portfolio, you can make the most out of your compact loader by equipping it with many popular attachments.
Specifications
| Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 1510 mm |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1960 mm |
| Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 23 mm |
| Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 76 in. |
| Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 77 in. |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 44 mm |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1950 mm |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1510 mm |
| Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 1510 mm |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1.9 in. |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1510 mm |
| Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 59 in. |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 77 in. |
| Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 1920 mm |
| Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 0.9 in. |
| Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 1960 mm |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 76 in. |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1.7 in. |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 59 in. |
| Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 59 in. |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 48 mm |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 59 in. |
| Differentials Front | Locking |
| Parking Brake (SAE J1473, ISO3450) | Automatically spring-applied, hydraulically released, internal wet disc |
| Steering Wheel Turns Right Stop to Stop | 2.5 |
| Final Drive Type | Heavy-duty outboard planetary |
| Articulation Arc | 60 degree (angle) |
| Degree Of Articulation Left And Right | 30 degree (angle) |
| Differentials Rear | Open |
| Maximum Rise And Fall, Single Wheel | 370 mm |
| Service Brakes (SAE J1473, ISO3450) | Hydraulically actuated, self-adjusting internal we-disc brake and driveline drum brake |
| Steering Wheel Number Of Turns Left Stop To Stop | 2 |
| Maximum Rise And Fall, Single Wheel | 14.5 in. |
| System Relief Pressure (Loader) | 23000 kPa |
| System Relief Pressure (Loader) | 3335 psi |
| Main Pump (Loader and Steering) | Fixed-displacement gear pump; open-center system |
| Hydraulic Dump Cycle Time | 1.7 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 3.5 seconds |
| System Relief Pressure (Steering) | 18000 kPa |
| System Relief Pressure (Steering) | 2611 psi |
| Maximum Pressure at Couplings | 23000 kPa |
| Maximum Pressure at Couplings | 3335 psi |
| Total Cycle Time | 10.1 seconds |
| Controls Type | Pilot-operated, 3-function valves with single-lever control for boom and bucket, standard pin disconnect and third-function proportional electrohydraulic (EH) auxiliary hydraulics |
| Hydraulic Raise Cycle Time | 4.9 seconds |
| Engine Manufacturer | Yanmar |
| Engine Bore And Stroke | 98 x 110 mmByMm |
| Engine Bore And Stroke | 3.89 x 4.33 in. |
| Engine Model | 4TNV98CT |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage 5 |
| Displacement | 3.3 L |
| Displacement | 203 cu in. |
| Aspiration | Turbocharged |
| Air Cleaner | Dual safety element dry type |
| Lubrication | Pressure system with full-flow spin-on filter |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Fan | Hydraulically driven, proportionally controlled |
| Engine Coolant Rating | -37 ℃ |
| Engine Coolant Rating | -34 °F |
| Differential and Planetary Rear Axle Refill Capacity | 4.7 L |
| Differential and Planetary Front Axle Refill Capacity | 5.2 L |
| Cooling System (Engine and Radiator) Refill Capacity | 12.1 L |
| Hydrostatic Motor Gearbox Refill Capacity | 1.8 qt |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 66 L |
| Engine Oil with Filter Refill Capacity | 10.8 qt |
| Fuel Tank Refill Capacity | 23.8 gal. |
| Differential and Planetary Front Axle Refill Capacity | 5.5 qt |
| Cooling System (Engine and Radiator) Refill Capacity | 12.7 qt |
| Differential and Planetary Rear Axle Refill Capacity | 5 qt |
| Hydrostatic Motor Gearbox Refill Capacity | 1.7 L |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 17.4 gal. |
| Fuel Tank Refill Capacity | 90 L |
| Engine Oil with Filter Refill Capacity | 10 L |
| Cylinders Type | Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins |
| Battery Capacity | 925 CCA |
| Number Of Batteries | 1 |
| Lights (SAE 99) | Driving/front working lights (2), turn signals, flashers, and stop- and taillights |
| Alternator Rating | 80 amp |
| System Type | Electrical load center with blade-type multi-fused circuits |
| Voltage | 12 V |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork | 12125 lb. |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork | 550 kg |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 12544 lb. |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 12787 lb. |
