John Deere 326 P
Compact Wheel Loader
The John Deere 326 P-Tier Compact Wheel Loader offers unparalleled lifting capability with its advanced telescopic arms, ensuring operators can reach up to 16 feet vertically and 4.96 meters without sacrificing maneuverability thanks to the Articulation Plus steering system.
Product Features:
- Net Power: 52 kW (71 hp) at 2,400 rpm
- Operating Weight: 6400 kg (14,110 lb.)
- Bucket Capacity: 0.8–2.0 m³ (1.0–2.6 cu. yd.)
- Load Limitation System
Features
The John Deere 326 P-Tier Compact Wheel Loader offers unparalleled lifting capability with its advanced telescopic arms, ensuring operators can reach up to 16 feet vertically and 4.96 meters without sacrificing maneuverability thanks to the Articulation Plus™ steering system.
Net Power: 52 kW (71 hp) at 2,400 rpm
Operating Weight: 6400 kg (14,110 lb.)
Bucket Capacity: 0.8–2.0 m³ (1.0–2.6 cu. yd.)
Load Limitation System
Benefits

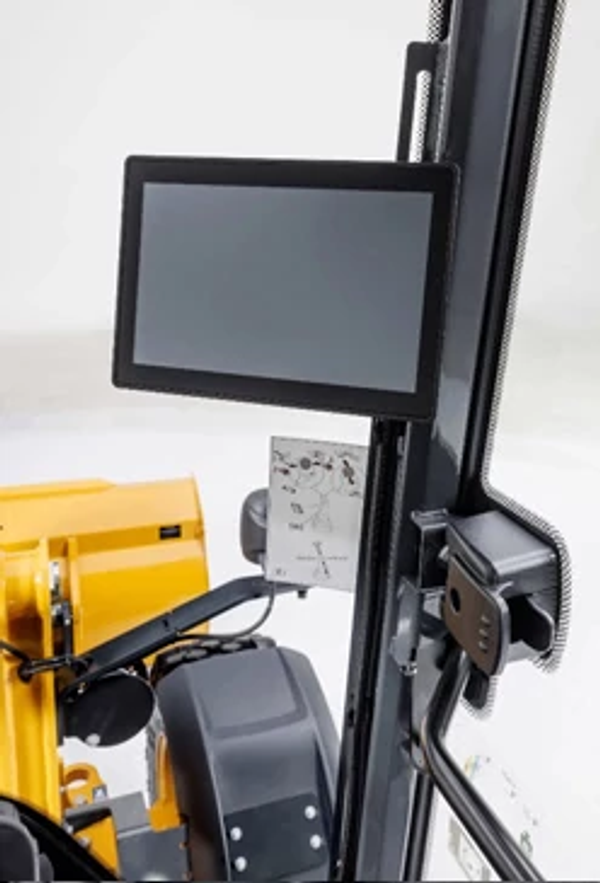

EH Controls and Touchscreen Display
The enhanced EH controls allow operators to perform various functions with ease, while the 9-in. (22.9-cm) touchscreen display offers key information and intuitive navigation. Automated features like Return to Dig and adjustable settings enhance operator comfort and performance.

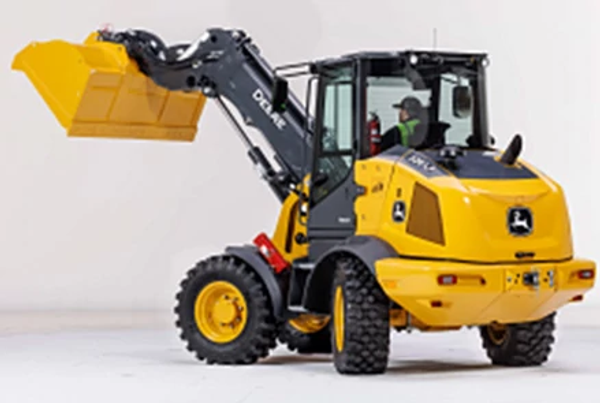

Articulation Plus™ Steering Paired with Tele Lift
This steering system combines standard articulation with rear-wheel steering, providing a tighter turning radius and increased stability. It improves maneuverability and full-turn tipping load, allowing more efficient operations in tighter spaces.

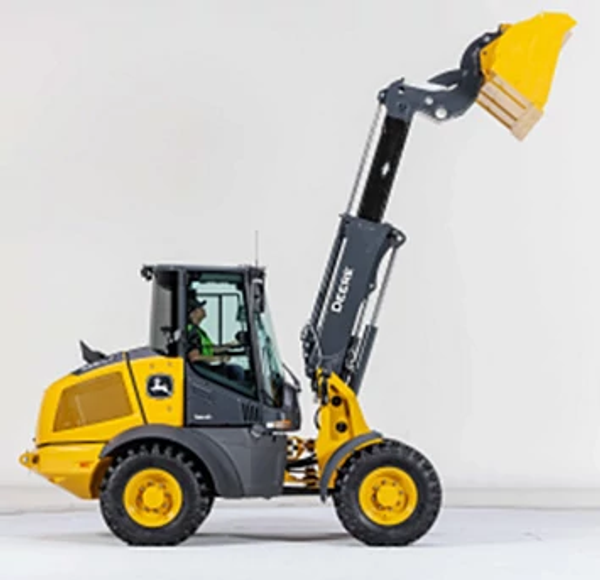

Telescopic Lift Arms
The 326 P-Tier features purpose-built telescopic lift arms, providing unparalleled lifting prowess. It can lift up to 16 ft (4.9 m), offering greater vertical and horizontal reach. This feature enhances control and allows operators to work efficiently without requiring a larger machine.
Specifications
| Differentials Front | Open |
| Parking Brake (SAE J1473, ISO3450) | Automatically spring-applied, hydraulically released, internal wet disc |
| Steering Wheel Turns Right Stop to Stop | 2.25 |
| Final Drive Type | Heavy-duty outboard planetary |
| Articulation Arc | 60 degree (angle) |
| Degree Of Articulation Left And Right | 30 degree (angle) |
| Differentials Rear | Open |
| Maximum Rise And Fall, Single Wheel | 370 mm |
| Service Brakes (SAE J1473, ISO3450) | Hydraulically actuated, self-adjusting internal wet-disc brake and driveline drum brake |
| Steering Wheel Number Of Turns Left Stop To Stop | 2 |
| Maximum Rise And Fall, Single Wheel | 14.5 in. |
| Steering Type | Hydraulic power steering (SAE J1511); 30-degree articulation left and right with mechanical-actuated rear-wheel steering |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 2090 mm |
| Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 82 in. |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 6 mm |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 2080 mm |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1678 mm |
| Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 66 in. |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 0.4 in. |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1680 mm |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 82 in. |
| Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 2060 mm |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 72 in. |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 0.2 in. |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 66 in. |
| Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 1683 mm |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 10 mm |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 66 in. |
| System Relief Pressure (Loader) | 18960 kPa |
| Hydraulic Dump Cycle Time | 2 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 4 seconds |
| System Relief Pressure (Steering) | 2611 psi |
| Max Rated Flow at 1,000 psi | 25 gpm |
| Maximum Pressure at Couplings | 23000 kPa |
| System Relief Pressure (Loader) | 2750 psi |
| Main Pump (Loader and Steering) | Fixed-displacement gear pump; open-center system |
| System Relief Pressure (Steering) | 18000 kPa |
| Max Rated Flow At 6895 kPa | 93 L/min |
| Maximum Pressure at Couplings | 3336 psi |
| Controls Type | Electrohydraulic (EH) 4-function valve with single-lever control for boom and bucket; proportional mini joystick control of first auxiliary and telescopic functions |
| Hydraulic Raise Cycle Time | 5.2 seconds |
| Engine Manufacturer | Yanmar |
| Engine Bore And Stroke | 98 x 110 mmByMm |
| Engine Bore And Stroke | 3.89 x 4.33 in. |
| Engine Model | 4TNV98CT |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Displacement | 3.3 L |
| Displacement | 203 cu in. |
| Aspiration | Turbocharged |
| Air Cleaner | Dual safety element dry type |
| Lubrication | Pressure system with full-flow spin-on filter |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Fan | Hydraulically driven, proportionally controlled |
| Engine Coolant Rating | -37 ℃ |
| Engine Coolant Rating | -34 °F |
| Differential and Planetary Rear Axle Refill Capacity | 6 L |
| Differential and Planetary Front Axle Refill Capacity | 6.8 L |
| Cooling System (Engine and Radiator) Refill Capacity | 9 L |
| Hydrostatic Motor Gearbox Refill Capacity | 1.4 qt |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 66 L |
| Engine Oil with Filter Refill Capacity | 10.8 qt |
| Fuel Tank Refill Capacity | 23.8 gal. |
| Differential and Planetary Front Axle Refill Capacity | 7.2 qt |
| Cooling System (Engine and Radiator) Refill Capacity | 9.5 qt |
| Differential and Planetary Rear Axle Refill Capacity | 6.3 qt |
| Hydrostatic Motor Gearbox Refill Capacity | 1.3 L |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 17.4 gal. |
| Fuel Tank Refill Capacity | 90 L |
| Engine Oil with Filter Refill Capacity | 10.2 L |
| Cylinders Type | Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins |
| Battery Capacity | 295 CCA |
| Number Of Batteries | 1 |
| Lights (SAE 99) | Driving/front working lights (2), turn signals, flashers, and stop- and taillights |
| Alternator Rating | 120 amp |
| System Type | Electrical load center with blade-type multi-fused circuits |
| Voltage | 12 V |
| Noise Level for Bystander (ISO 6395) | 101 dBA |
| Noise Level For Operator (ISO 6396) | 73 dBA |
