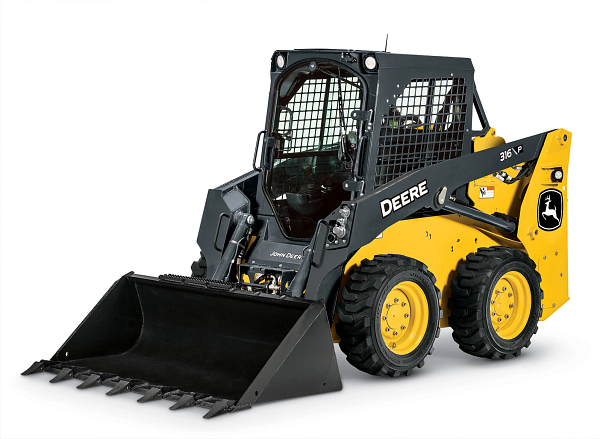

John Deere 316 P
Skid Steer

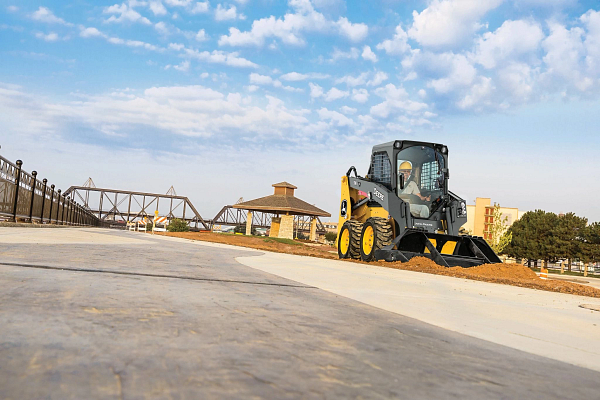

The John Deere 316 P-Tier Skid Steer delivers compact performance and everyday versatility for construction, landscaping, and materialhandling tasks. With a maneuverable footprint, radiallift design, and a comfortable, sealed cab, it helps operators work efficiently in tight spaces while maintaining consistent productivity.
Product Features:
- Gross Power: 65 hp (48.5 kW)
- Net Power: 61 hp (45.6 kW)
- Rated Operating Capacity: 1,750 lb. (795 kg)
- Operating Weight: 6,180 lb. (2806 kg)
Features
The John Deere 316 P‑Tier Skid Steer delivers compact performance and everyday versatility for construction, landscaping, and material‑handling tasks. With a maneuverable footprint, radial‑lift design, and a comfortable, sealed cab, it helps operators work efficiently in tight spaces while maintaining consistent productivity.
Gross Power: 65 hp (48.5 kW)
Net Power: 61 hp (45.6 kW)
Rated Operating Capacity: 1,750 lb. (795 kg)
Operating Weight: 6,180 lb. (2806 kg)
Benefits

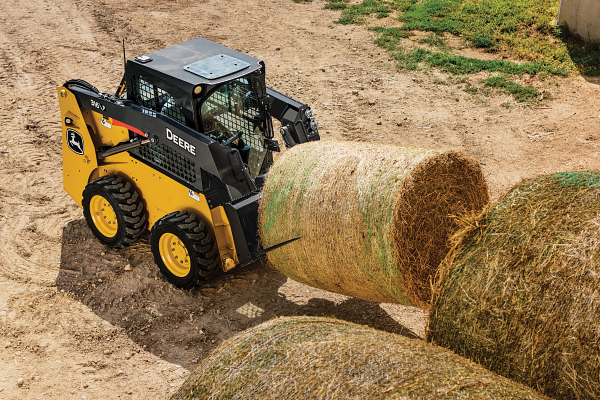

Compact Radial‑Lift Design
The radial‑lift boom provides strong breakout force and excellent mid‑range performance, making the 316 P‑Tier well suited for digging, grading, and ground‑level material handling in confined spaces.
Operator‑Focused Cab & Controls
A sealed, pressurized cab with increased interior space, optional air‑ride heated seat, and electrohydraulic controls helps reduce fatigue and improve comfort through long workdays.
Attachment Versatility & Precise Control
Compatibility with over 100 John Deere attachments—along with features like optional creep control and Quik‑Tatch™ allows operators to easily adapt the machine to a wide range of tasks.
Specifications
| Length With Foundry Bucket (ft in.) | 10, 8 ft, in. |
| Front Turn Radius, Foundry Bucket (m) | 2.01 m |
| Length Without Bucket (m) | 2.63 m |
| Ground Clearance (in.) | 7 in. |
| Ground Clearance (m) | 0.18 m |
| Dump Reach, Construction Bucket (m) | 0.58 m |
| Wheelbase (ft in.) | 3, 5 ft, in. |
| Height To Top Of Rollover Protective Structure (ROPS) (m) | 1.96 m |
| Dump Angle (Full Lift Height) Degree | 45 degree (angle) |
| Bucket Breakout Force Foundry Bucket (kg) | 2384 kg |
| Angle Of Departure Degree | 22.3 degree (angle) |
| Dump Reach, Foundry Bucket (m) | 0.4 m |
| Width Without Bucket (m) | 1.6 m |
| Dump Height, Foundry Bucket (m) | 2.25 m |
| Width Without Bucket (in.) | 62.9 in. |
| Advertised SAE Rated Operating Capacity (lb) | 1750 lb. |
| Advertised SAE Rated Operating Capacity (kg) | 795 kg |
| Bucket Breakout Force Foundry Bucket (lb) | 5250 lb. |
| Boom Breakout Construction Bucket (kg) | 2043 kg |
| Length Without Bucket (in.) | 103 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (in.) | 77.2 in. |
| Boom Breakout Foundry Bucket (lb) | 4750 lb. |
| Width Without Bucket (ft in.) | 5, 3 ft, in. |
| Rated Operating Capacity With Counterweight (lb) | 1900 lb. |
| Length With Foundry Bucket (in.) | 127.6 in. |
| Advertised Tipping Load (lb) | 3500 lb. |
| Front Turn Radius, Foundry Bucket (ft in.) | 6, 7 ft, in. |
| Dump Reach, Construction Bucket (in.) | 22.8 in. |
| Bucket Breakout Force Construction Bucket (kg) | 1816 kg |
| Height To Hinge Pin (in.) | 115.1 in. |
| Length Without Bucket (ft, in.) | 8, 7 ft, in. |
| Bucket Breakout Force Construction Bucket (lb) | 4000 lb. |
| Height To Hinge Pin (ft in.) | 9, 7 ft, in. |
| Dump Height, Foundry Bucket (in.) | 88.6 in. |
| Advertised Tipping Load (kg) | 1589 kg |
| Bucket Rollback (Ground Level) Degree | 30 degree (angle) |
| Dump Height, Foundry Bucket (ft in.) | 7, 5 ft, in. |
| Length With Foundry Bucket (m) | 3.24 m |
| Height To Hinge Pin (m) | 2.92 m |
| Wheelbase (in.) | 41.5 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 6, 5 ft, in. |
| Boom Breakout Foundry Bucket (kg) | 2157 kg |
| Boom Breakout Construction Bucket (lb) | 4500 lb. |
| Rated Operating Capacity With Counterweight (kg) | 863 kg |
| Front Turn Radius, Foundry Bucket (in.) | 79 in. |
| Dump Reach, Foundry Bucket (in.) | 15.8 in. |
| Wheelbase (m) | 1.05 m |
| Hydraulic Horsepower Standard Flow (calculated) (hp) | 33 hp |
| System Pressure At Couplers (kPa) | 23787 kPa |
| Standard Pump Flow (L/min) | 63 L/min |
| Standard Pump Flow (gpm) | 17 gpm |
| System Pressure At Couplers (psi) | 3450 psi |
| Hydraulic Power Standard Flow (calculated) (kW) | 25 kW |
| Tractive Effort (lbf) | 7831 lbf |
| Parking Brake Type | Integral, automatic, spring-applied, hydraulically released, wet-disc park brake |
| Tractive Effort (kgf) | 3552 kgf |
| Final Drive | High-strength, adjustment-free chains |
| Travel Speed High (mph) | 10.1 mph |
| Pump Type | Hydrostatic-manual or electrohydraulic (EH); 4 – 80 heavy-duty (HD) continuous-loop chain |
| Fuel Tank (L) | 71 L |
| Fuel Tank (gal.) | 19 gal. |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Engine Cylinders | 4 |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (HP) | 61 hp |
| Rated Gross Power (ISO 14396) At 2600 RPM (HP) | 65 hp |
| Manufacturer | Yanmar® |
| Rated Engine Speed (RPM) | 2600 rpm |
| Rated Gross Power (ISO 14396) At 2600 RPM (kW) | 48.5 kW |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (kW) | 45.6 kW |
| Aspiration | Turbocharged |
| Displacement (cu in.) | 128 cu in. |
| Air Cleaner | Dry dual element |
| Displacement (L) | 2.1 L |
| Model | 4TNV86CHT |
| Cylinders Type | John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Base Machine Weight (lb) | 6180 lb. |
| Base Machine Weight (kg) | 2806 kg |
| Voltage (V) | 12 V |
| Battery capacity (CCA) | 750 CCA |
| Alternator Rating (amp) | 75 amp |
| Lighting Options | Halogen: 2 front and 1 rear |
| Structure | ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick pivot standard |
| Standard Tire Size | 10 x 16.5 |
| Fan Drive Type | Direct belt drive |
