John Deere 318 P
Skid Steer
The John Deere 318 P-Tier Skid Steer delivers compact, dependable performance with the versatility operators need for everyday construction, landscaping, and materialhandling tasks. With a verticallift design, responsive controls, and a comfortable, sealed cab, it helps crews work efficiently in tight spaces without sacrificing productivity.
Product Features:
- Gross Power: 65 hp (48.5 kW)
- Net Power: 61 hp (45.6 kW)
- Rated Operating Capacity: 1,945 lb. (883 kg)
- Operating Weight: 6,542 lb. (2970 kg)
Features
The John Deere 318 P‑Tier Skid Steer delivers compact, dependable performance with the versatility operators need for everyday construction, landscaping, and material‑handling tasks. With a vertical‑lift design, responsive controls, and a comfortable, sealed cab, it helps crews work efficiently in tight spaces without sacrificing productivity.
Gross Power: 65 hp (48.5 kW)
Net Power: 61 hp (45.6 kW)
Rated Operating Capacity: 1,945 lb. (883 kg)
Operating Weight: 6,542 lb. (2970 kg)
Benefits
Compact Vertical‑Lift Performance

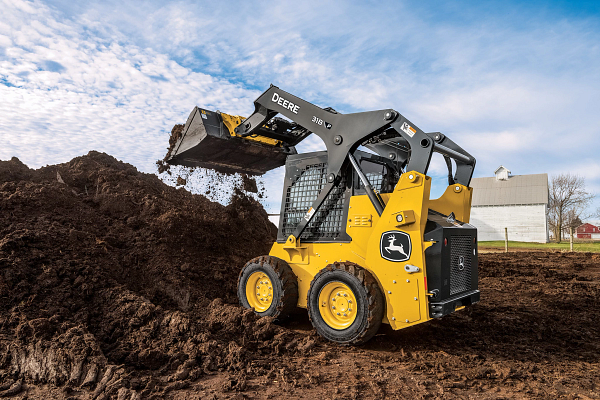

The vertical‑lift boom provides added reach and stability at full lift, making the 318 P‑Tier ideal for stacking, truck‑loading, and material placement in confined jobsites
Operator‑Focused Cab & Controls
A sealed, pressurized cab with increased interior space, optional air‑ride heated seat, and electrohydraulic controls helps reduce fatigue and improve comfort through long workdays.
Attachment Versatility & Precise Control

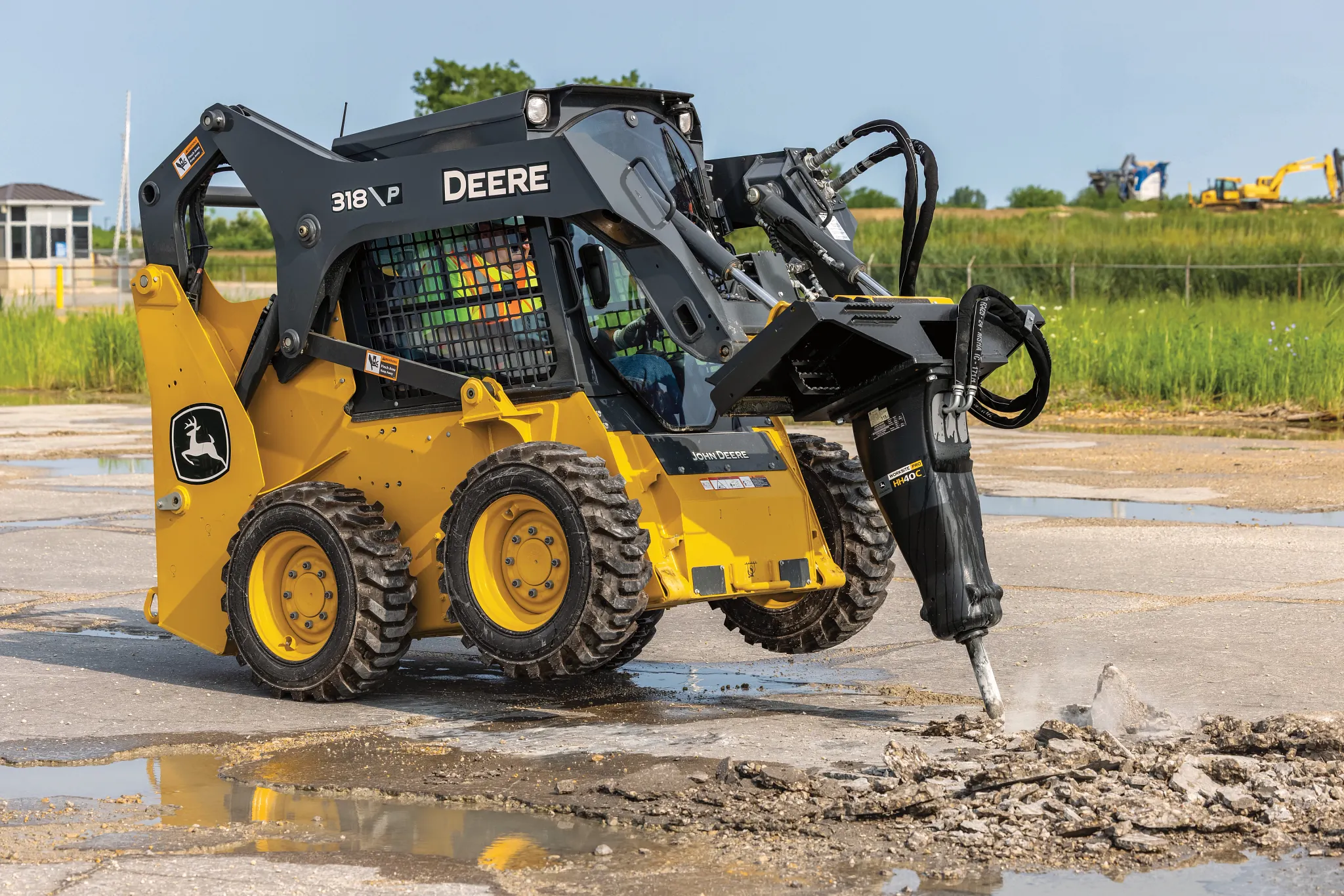

Compatibility with over 100 John Deere attachments—along with features like optional creep control and Quik‑Tatch™ allows operators to easily adapt the machine to a wide range of tasks.
Specifications
| Length With Foundry Bucket (ft in.) | 10, 8 ft, in. |
| Front Turn Radius, Foundry Bucket (m) | 2.01 m |
| Length Without Bucket (m) | 2.63 m |
| Ground Clearance (in.) | 7 in. |
| Ground Clearance (m) | 0.18 m |
| Dump Reach, Construction Bucket (m) | 1.05 m |
| Wheelbase (ft in.) | 3, 5 ft, in. |
| Height To Top Of Rollover Protective Structure (ROPS) (m) | 1.96 m |
| Dump Angle (Full Lift Height) Degree | 42 degree (angle) |
| Bucket Breakout Force Foundry Bucket (kg) | 2724 kg |
| Angle Of Departure Degree | 22.3 degree (angle) |
| Dump Reach, Foundry Bucket (m) | 0.86 m |
| Width Without Bucket (m) | 1.6 m |
| Dump Height, Foundry Bucket (m) | 2.4 m |
| Width Without Bucket (in.) | 62.9 in. |
| Advertised SAE Rated Operating Capacity (lb) | 1945 lb. |
| Advertised SAE Rated Operating Capacity (kg) | 883 kg |
| Bucket Breakout Force Foundry Bucket (lb) | 6000 lb. |
| Boom Breakout Construction Bucket (kg) | 2270 kg |
| Length Without Bucket (in.) | 103 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (in.) | 77.2 in. |
| Dump Reach, Construction Bucket (ft in.) | 3, 5 ft, in. |
| Boom Breakout Foundry Bucket (lb) | 5250 lb. |
| Width Without Bucket (ft in.) | 5, 3 ft, in. |
| Rated Operating Capacity With Counterweight (lb) | 2095 lb. |
| Length With Foundry Bucket (in.) | 127.6 in. |
| Advertised Tipping Load (lb) | 3890 lb. |
| Front Turn Radius, Foundry Bucket (ft in.) | 6, 7 ft, in. |
| Dump Reach, Construction Bucket (in.) | 41.3 in. |
| Bucket Breakout Force Construction Bucket (kg) | 1930 kg |
| Height To Hinge Pin (in.) | 120 in. |
| Length Without Bucket (ft, in.) | 8, 7 ft, in. |
| Bucket Breakout Force Construction Bucket (lb) | 4250 lb. |
| Height To Hinge Pin (ft in.) | 10, 0 ft, in. |
| Dump Height, Foundry Bucket (in.) | 94.3 in. |
| Advertised Tipping Load (kg) | 1766 kg |
| Bucket Rollback (Ground Level) Degree | 30 degree (angle) |
| Dump Height, Foundry Bucket (ft in.) | 7, 10 ft, in. |
| Length With Foundry Bucket (m) | 3.24 m |
| Height To Hinge Pin (m) | 3.05 m |
| Wheelbase (in.) | 41.5 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 6, 5 ft, in. |
| Boom Breakout Foundry Bucket (kg) | 2384 kg |
| Boom Breakout Construction Bucket (lb) | 5000 lb. |
| Rated Operating Capacity With Counterweight (kg) | 951 kg |
| Front Turn Radius, Foundry Bucket (in.) | 79 in. |
| Dump Reach, Foundry Bucket (in.) | 34 in. |
| Wheelbase (m) | 1.05 m |
| Hydraulic Horsepower Standard Flow (calculated) (hp) | 33 hp |
| System Pressure At Couplers (kPa) | 23787 kPa |
| Standard Pump Flow (L/min) | 63 L/min |
| Standard Pump Flow (gpm) | 17 gpm |
| System Pressure At Couplers (psi) | 3450 psi |
| Hydraulic Power Standard Flow (calculated) (kW) | 25 kW |
| Tractive Effort (lbf) | 7831 lbf |
| Parking Brake Type | Integral, automatic, spring-applied, hydraulically released, wet-disc park brake |
| Tractive Effort (kgf) | 3552 kgf |
| Final Drive | High-strength, adjustment-free chains |
| Travel Speed High (mph) | 10.1 mph |
| Pump Type | Hydrostatic-manual or electrohydraulic (EH); 4 – 80 heavy-duty (HD) continuous-loop chain |
| Fuel Tank (L) | 71 L |
| Fuel Tank (gal.) | 19 gal. |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Engine Cylinders | 4 |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (HP) | 61 hp |
| Rated Gross Power (ISO 14396) At 2600 RPM (HP) | 65 hp |
| Manufacturer | Yanmar® |
| Rated Engine Speed (RPM) | 2600 rpm |
| Rated Gross Power (ISO 14396) At 2600 RPM (kW) | 48.5 kW |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (kW) | 45.6 kW |
| Aspiration | Turbocharged |
| Displacement (cu in.) | 128 cu in. |
| Air Cleaner | Dry dual element |
| Displacement (L) | 2.1 L |
| Model | 4TNV86CHT |
| Cylinders Type | John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Base Machine Weight (lb) | 6542 lb. |
| Base Machine Weight (kg) | 2970 kg |
| Voltage (V) | 12 V |
| Battery capacity (CCA) | 750 CCA |
| Alternator Rating (amp) | 75 amp |
| Lighting Options | Halogen: 2 front and 1 rear |
| Structure | ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick pivot standard |
| Standard Tire Size | 10 x 16.5 |
| Fan Drive Type | Direct belt drive |
