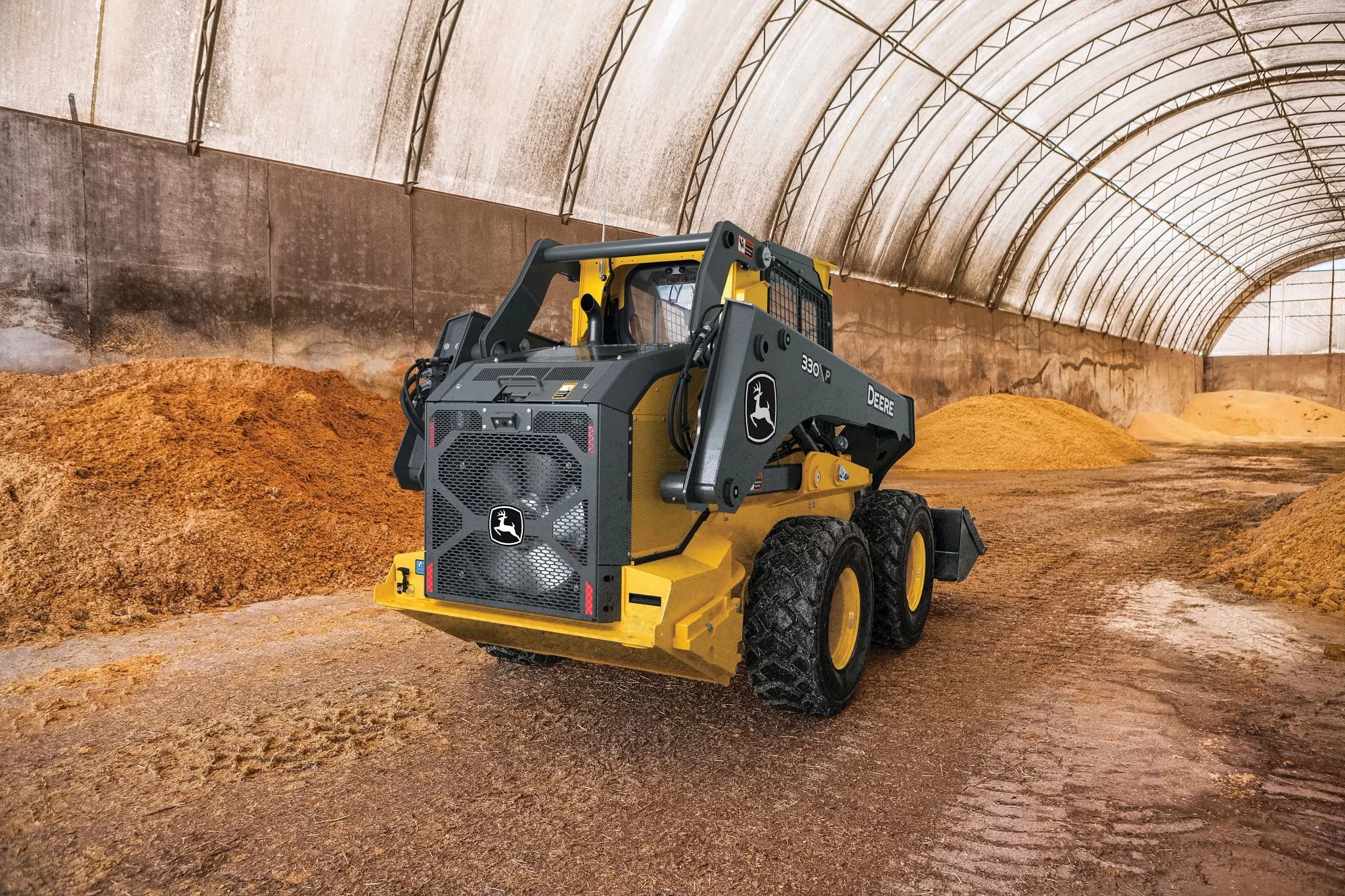

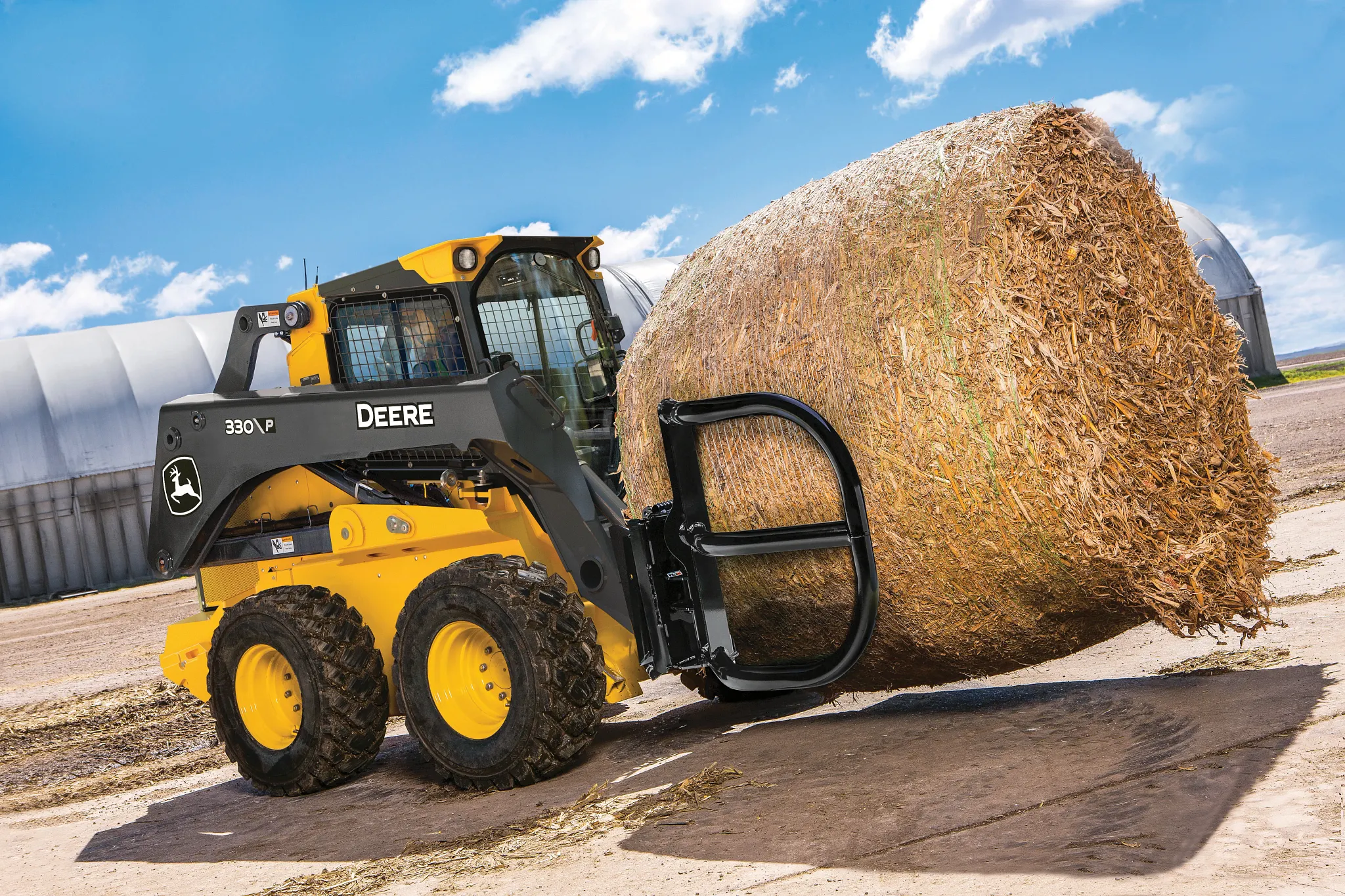

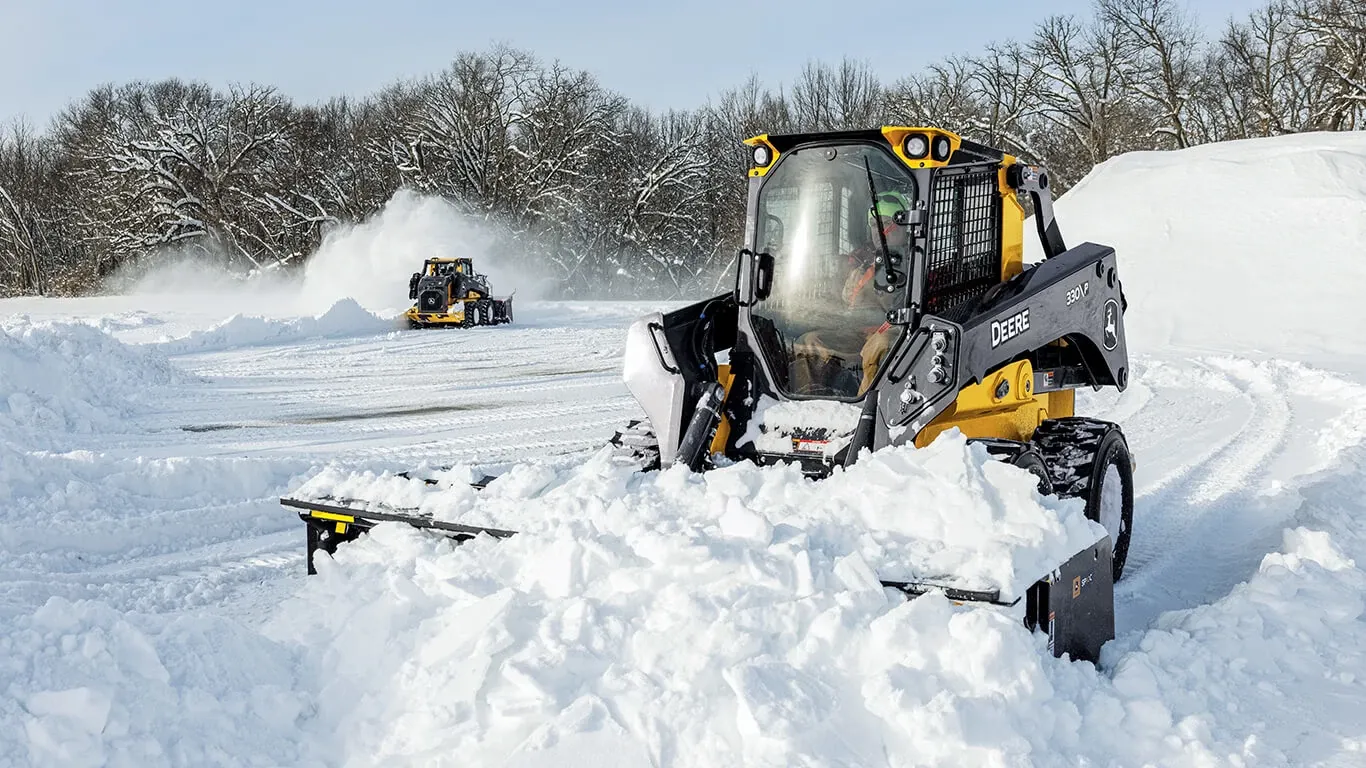

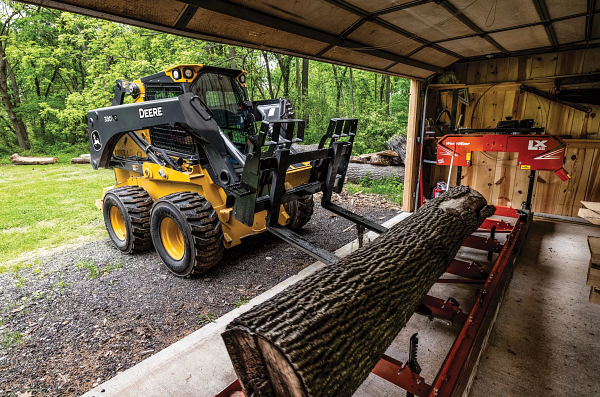

John Deere 330 P
Skid Steer
The John Deere 330 P-Tier Skid Steer delivers strong, reliable performance in a compact, maneuverable design-making it well-suited for construction, landscaping, and materialhandling work. With responsive hydraulics, improved visibility, and an operatorfocused cab, it helps crews stay productive and comfortable across demanding jobsites
Product Features:
- Gross Rated Power: 98.0 hp (73.0 kW)
- Net Peak Power: 95.0 hp (70.8 kW)
- Rated Operating Capacity: 2,950 lb. (1339 kg)
- Operating Weight: 9,930 lb. (4508 kg)
Features
The John Deere 330 P‑Tier Skid Steer delivers strong, reliable performance in a compact, maneuverable design—making it well‑suited for construction, landscaping, and material‑handling work. With responsive hydraulics, improved visibility, and an operator‑focused cab, it helps crews stay productive and comfortable across demanding jobsites
Gross Rated Power: 98.0 hp (73.0 kW)
Net Peak Power: 95.0 hp (70.8 kW)
Rated Operating Capacity: 2,950 lb. (1339 kg)
Operating Weight: 9,930 lb. (4508 kg)
Benefits
High-Power Performance
With 98 hp (73 kW) and a 2,950‑lb (1338 kg) rated operating capacity, the 330 P‑Tier delivers the muscle needed for grading, material handling, and site work without sacrificing maneuverability.
Redesigned Cab and Improved Visibility
A sealed, pressurized cab with increased glass area improves visibility and reduces noise, while optional comfort upgrades help operators stay focused during long workdays.
Versatile Hydraulics & Attachment Capability
Responsive hydraulics and compatibility with a wide range of attachments allow the 300 Series P‑Tier to adapt easily to changing tasks on the jobsite.
Specifications
| Length With Foundry Bucket (ft in.) | 12, 7 ft, in. |
| Bucket Breakout Foundry Bucket (lb) | 10500 lb. |
| Ground Clearance (in.) | 9.7 in. |
| Wheelbase (ft in.) | 4, 2 ft, in. |
| Ground Clearance (ft in.) | 0, 10 ft, in. |
| Dump Reach, Foundry Bucket (ft in.) | 2, 4 ft, in. |
| Dump Angle (Full Lift Height) Degree | 48 degree (angle) |
| Angle Of Departure Degree | 23 degree (angle) |
| Width Without Bucket (in.) | 78.5 in. |
| Advertised SAE Rated Operating Capacity (lb) | 2950 lb. |
| Length Without Bucket (in.) | 125 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (in.) | 86.25 in. |
| Dump Reach, Construction Bucket (ft in.) | 3, 0 ft, in. |
| Boom Breakout Foundry Bucket (lb) | 6600 lb. |
| Width Without Bucket (ft in.) | 6, 7 ft, in. |
| Length With Foundry Bucket (in.) | 150.7 in. |
| Advertised Tipping Load (lb) | 5900 lb. |
| Front Turn Radius, Foundry Bucket (ft in.) | 7, 0 ft, in. |
| Dump Reach, Construction Bucket (in.) | 35.6 in. |
| Height To Hinge Pin (in.) | 132.3 in. |
| Length Without Bucket (ft, in.) | 10, 5 ft, in. |
| Height To Hinge Pin (ft in.) | 11, 0 ft, in. |
| Dump Height, Foundry Bucket (in.) | 106.1 in. |
| Bucket Rollback (Ground Level) Degree | 35 degree (angle) |
| Dump Height, Foundry Bucket (ft in.) | 8, 10 ft, in. |
| Wheelbase (in.) | 49.9 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 7, 2 ft, in. |
| Boom Breakout Construction Bucket (lb) | 6000 lb. |
| Front Turn Radius, Foundry Bucket (in.) | 84.25 in. |
| Dump Reach, Foundry Bucket (in.) | 28 in. |
| Bucket Breakout Construction Bucket (lb) | 7400 lb. |
| Hydraulic Horsepower Standard Flow (calculated) (hp) | 50.32 hp |
| Hydraulic Horsepower High Flow (calculated) (hp) | 78.5 hp |
| Standard Pump Flow (gpm) | 25 gpm |
| System Pressure At Couplers (psi) | 3450 psi |
| High Flow Option Total Pump Flow (gpm) | 39 gpm |
| Tractive Effort (lbf) | 8610 lbf |
| Parking Brake Type | Spring applied, hydraulically released wet-disk park brake |
| Final Drive | Chains high strength, adjustment free |
| Travel Speed High (mph) | 12.5 mph |
| Controls Type | Electrohydraulic |
| Base Machine Weight (lb) | 9930 lb. |
| Machine Configuration That Will Produce Base Machine Weight (ISO 6016) | Base Machine |
| Fuel Tank (L) | 25.5 L |
| Fuel Tank (gal.) | 25.5 gal. |
| Engine Air Filter Restriction Indicator | Indicator light |
| Hydraulic Oil Temperature | Indicator light, Gauge, Digital |
| Park Brake Engaged | Indicator light |
| Diesel Exhaust Fluid (DEF) Level Indicator | Audible warning, Gauge |
| Hourmeter | Digital |
| Battery Voltage | Digital |
| Fuel Gauge | Gauge |
| Diagnostics | Digital |
| Engine Coolant Temperature | Indicator light, Gauge, Digital |
| Engine RPM Indicator | Digital |
| Hydraulic Oil Filter Restriction | Indicator light |
| Warm-Up Indicator | Indicator light, Digital |
| Engine Oil Pressure | Indicator light |
| Alternator, Low Voltage | Indicator light |
| Rated Engine Speed (RPM) | 2500 rpm |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Aspiration | Turbocharged, intercooled |
| Displacement (cu in.) | 186.33 cu in. |
| Air Cleaner | Dry dual element |
| Engine Cylinders | 4 |
| Model | 4TNV94FHT |
| Rated Gross Power (ISO 14396) At 2500 RPM (HP) | 97.89 hp |
| Net Power (SAE J1349, ISO 9249) At 2500 RPM (HP) | 94.96 hp |
| Torque Rise At 1700 RPM (percent) | 47 % |
| Peak Torque At 1700 RPM (lb-ft) | 281.75 lb-ft |
| Manufacturer | Yanmar® |
| Cylinders Type | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Voltage (V) | 12 V |
| Battery capacity (CCA) | 950 CCA |
| Alternator Rating (amp) | 120 amp |
| Lighting Options | Halogen, Two (2) Front and One (1) Rear; (Optional): LED, Four (4) Front, and One (1) Rear |
| Structure | ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot |
| Standard Tire Size | 14X17.5 14 PR TITAN HD2000-II |
| Fan Drive Type | Variable speed hydraulic drive |
