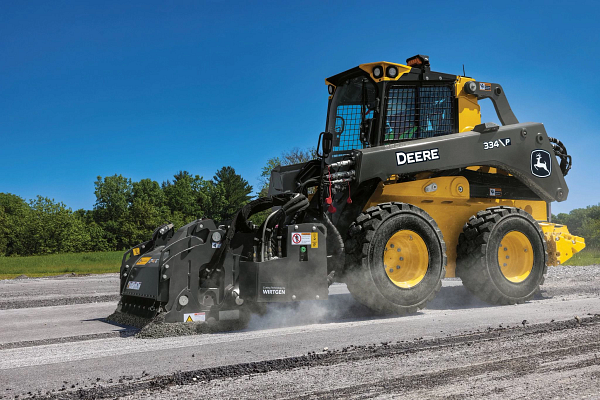

John Deere 334 P
Skid Steer
Built to take on tough work in tight spaces, the John Deere 334 P-Tier Skid Steer offers impressive lifting power, smooth control, and a comfortable cab to keep operators productive shift after shift. Its durable design and versatility make it a dependable choice for a wide range of jobsites.
Product Features:
- Gross Rated Power: 118.0 hp (88.0 kW)
- Net Peak Power: 114.7 hp (85.5 kW)
- Rated Operating Capacity: 4,000 lb. (1816 kg) With 1 Standard Counterweight Set
- Operating Weight: 10,264 lb. (4660 kg)
Features
Built to take on tough work in tight spaces, the John Deere 334 P‑Tier Skid Steer offers impressive lifting power, smooth control, and a comfortable cab to keep operators productive shift after shift. Its durable design and versatility make it a dependable choice for a wide range of jobsites.
Gross Rated Power: 118.0 hp (88.0 kW)
Net Peak Power: 114.7 hp (85.5 kW)
Rated Operating Capacity: 4,000 lb. (1816 kg) With 1 Standard Counterweight Set
Operating Weight: 10,264 lb. (4660 kg)
Benefits
High-Power Performance
Packed with 118 hp (87.9 kW), the 334 P‑Tier delivers the power operators need to tackle demanding tasks like grading, material handling, and site development with confidence.
Premium Operator Comfort and Controls
Standard features include a heated and ventilated seat, touchscreen display, adjustable controls, and EH dual leveling—helping operators stay comfortable, focused, and productive all day.
Productivity‑Driven Hydraulics and Uptime Features
High‑flow hydraulics, ride control, optimized cooling, and increased fuel and DEF capacity are designed to keep the machine running efficiently through long, demanding workdays.
Specifications
| Length With Foundry Bucket (ft in.) | 12, 7 ft, in. |
| Bucket Breakout Foundry Bucket (lb) | 13800 lb. |
| Ground Clearance (in.) | 9.7 in. |
| Wheelbase (ft in.) | 4, 2 ft, in. |
| Ground Clearance (ft in.) | 0, 10 ft, in. |
| Dump Reach, Foundry Bucket (ft in.) | 2, 8 ft, in. |
| Dump Angle (Full Lift Height) Degree | 48 degree (angle) |
| Angle Of Departure Degree | 23.5 degree (angle) |
| Width Without Bucket (in.) | 76.6 in. |
| Advertised SAE Rated Operating Capacity (lb) | 4000 lb. |
| Length Without Bucket (in.) | 125.2 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (in.) | 87 in. |
| Dump Reach, Construction Bucket (ft in.) | 3,1 ft, in. |
| Boom Breakout Foundry Bucket (lb) | 8500 lb. |
| Width Without Bucket (ft in.) | 6, 5 ft, in. |
| Length With Foundry Bucket (in.) | 150.7 in. |
| Advertised Tipping Load (lb) | 8000 lb. |
| Front Turn Radius, Foundry Bucket (ft in.) | 7, 0 ft, in. |
| Dump Reach, Construction Bucket (in.) | 37 in. |
| Height To Hinge Pin (in.) | 131 in. |
| Length Without Bucket (ft, in.) | 10, 5 ft, in. |
| Height To Hinge Pin (ft in.) | 11, 0 ft, in. |
| Dump Height, Foundry Bucket (in.) | 106.7 in. |
| Bucket Rollback (Ground Level) Degree | 35 degree (angle) |
| Dump Height, Foundry Bucket (ft in.) | 8, 11 ft, in. |
| Wheelbase (in.) | 49.91 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 7, 3 ft, in. |
| Boom Breakout Construction Bucket (lb) | 7900 lb. |
| Front Turn Radius, Foundry Bucket (in.) | 84.3 in. |
| Dump Reach, Foundry Bucket (in.) | 31.9 in. |
| Bucket Breakout Construction Bucket (lb) | 9500 lb. |
| Hydraulic Horsepower Standard Flow (calculated) (hp) | 50.32 hp |
| Hydraulic Horsepower High Flow (calculated) (hp) | 88.56 hp |
| Optional High Pressure System Pressure At Couplers (psi) | 4000 psi |
| Standard Pump Flow (gpm) | 25 gpm |
| System Pressure At Couplers (psi) | 3450 psi |
| High Flow Option Total Pump Flow (gpm) | 44 gpm |
| Hydraulic Horsepower High Flow/High Pressure (calculated) (hp) | 102.68 hp |
| Tractive Effort (lbf) | 9300 lbf |
| Parking Brake Type | Spring applied, hydraulically released wet-disk park brake |
| Final Drive | Chains high strength, adjustment free |
| Travel Speed High (mph) | 12 mph |
| Controls Type | Electrohydraulic |
| Base Machine Weight (lb) | 10264 lb. |
| Machine Configuration That Will Produce Base Machine Weight (ISO 6016) | Base Machine |
| Fuel Tank (L) | 35.5 L |
| Fuel Tank (gal.) | 35.5 gal. |
| Engine Air Filter Restriction Indicator | Indicator light |
| Hydraulic Oil Temperature | Indicator light, Gauge, Digital |
| Park Brake Engaged | Indicator light |
| Diesel Exhaust Fluid (DEF) Level Indicator | Audible warning, Gauge |
| Hourmeter | Digital |
| Battery Voltage | Digital |
| Fuel Gauge | Gauge |
| Auxiliary Hydraulics | Indicator light |
| Diagnostics | Digital |
| Engine Coolant Temperature | Indicator light, Gauge, Digital |
| Engine RPM Indicator | Digital |
| Hydraulic Oil Filter Restriction | Indicator light |
| Warm-Up Indicator | Indicator light, Digital |
| Engine Oil Pressure | Indicator light |
| Alternator, Low Voltage | Indicator light |
| Rated Engine Speed (RPM) | 2500 rpm |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Aspiration | Turbocharged, intercooled |
| Displacement (cu in.) | 186.33 cu in. |
| Air Cleaner | Dry dual element |
| Engine Cylinders | 4 |
| Model | 4TNV94FHT |
| Rated Gross Power (ISO 14396) At 2500 RPM (HP) | 118 hp |
| Net Power (SAE J1349, ISO 9249) At 2500 RPM (HP) | 115.33 hp |
| Torque Rise At 1700 RPM (percent) | 39 % |
| Peak Torque At 1700 RPM (lb-ft) | 291.34 lb-ft |
| Manufacturer | Yanmar® |
| Cylinders Type | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Voltage (V) | 12 V |
| Battery capacity (CCA) | 950 CCA |
| Alternator Rating (amp) | 120 amp |
| Lighting Options | Halogen, Two (2) Front and One (1) Rear |
| Structure | ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot |
| Standard Tire Size | 14X17.5 14 PR Galaxy Hulk |
| Fan Drive Type | Variable speed hydraulic drive |
