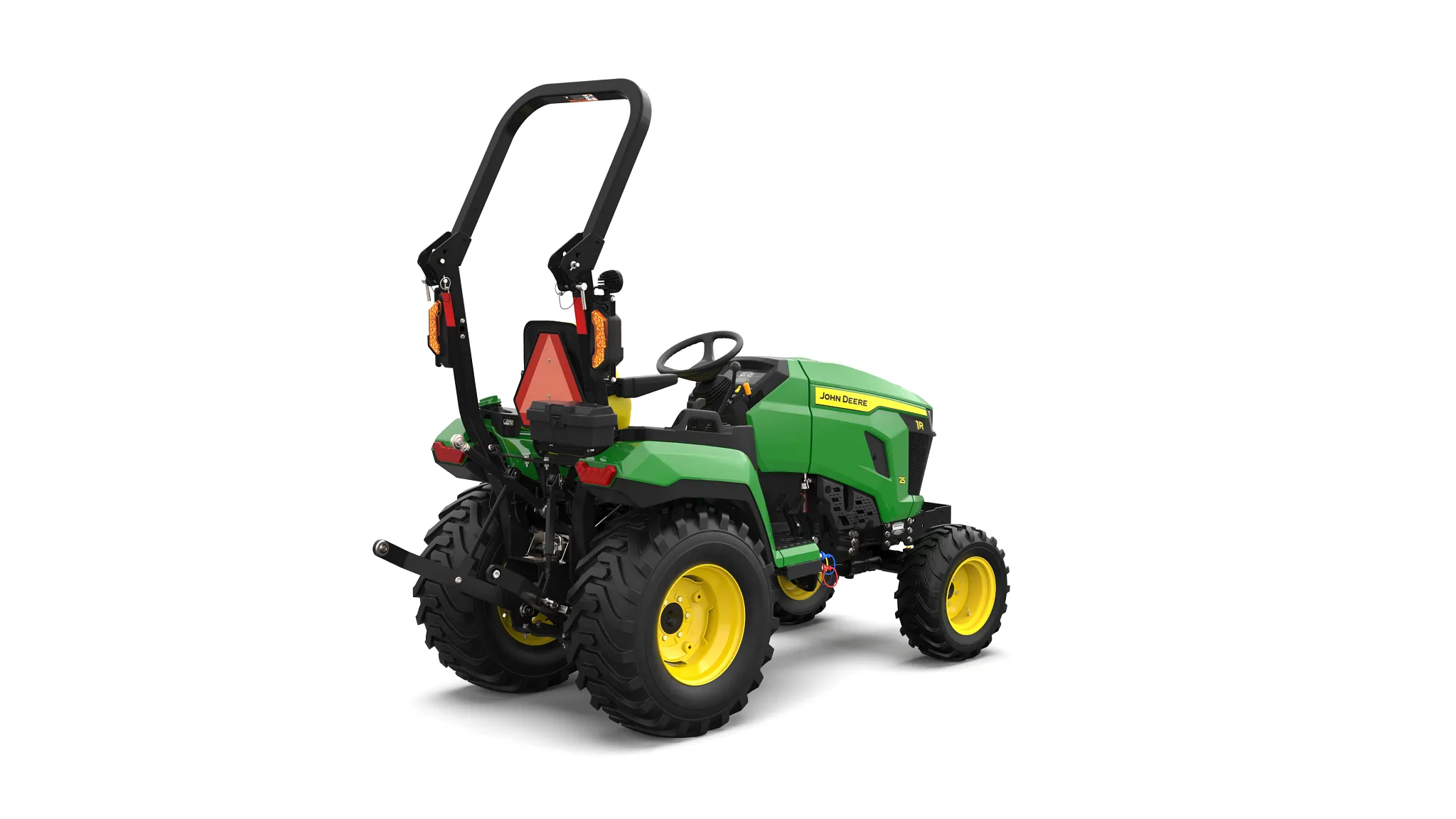

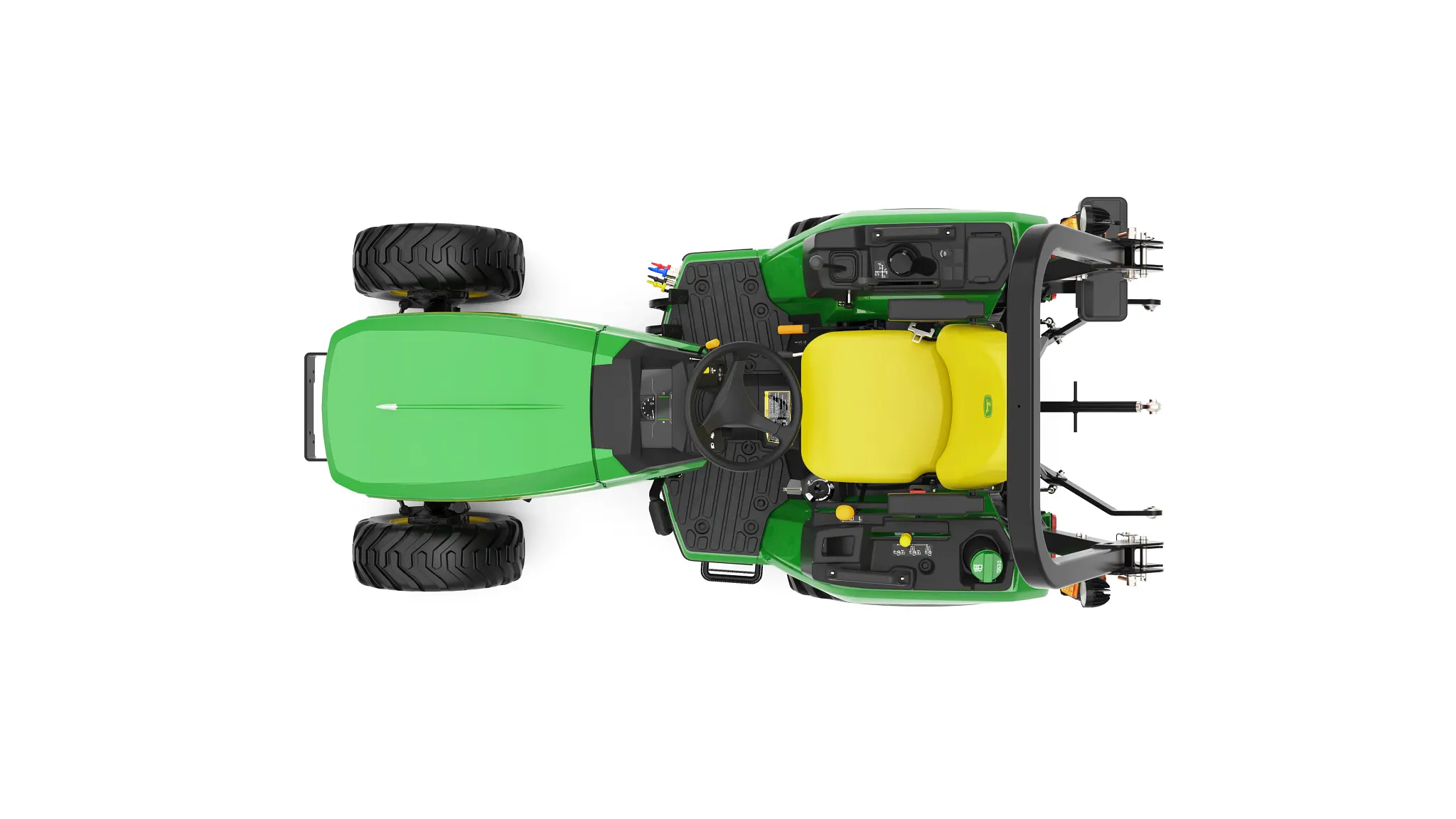

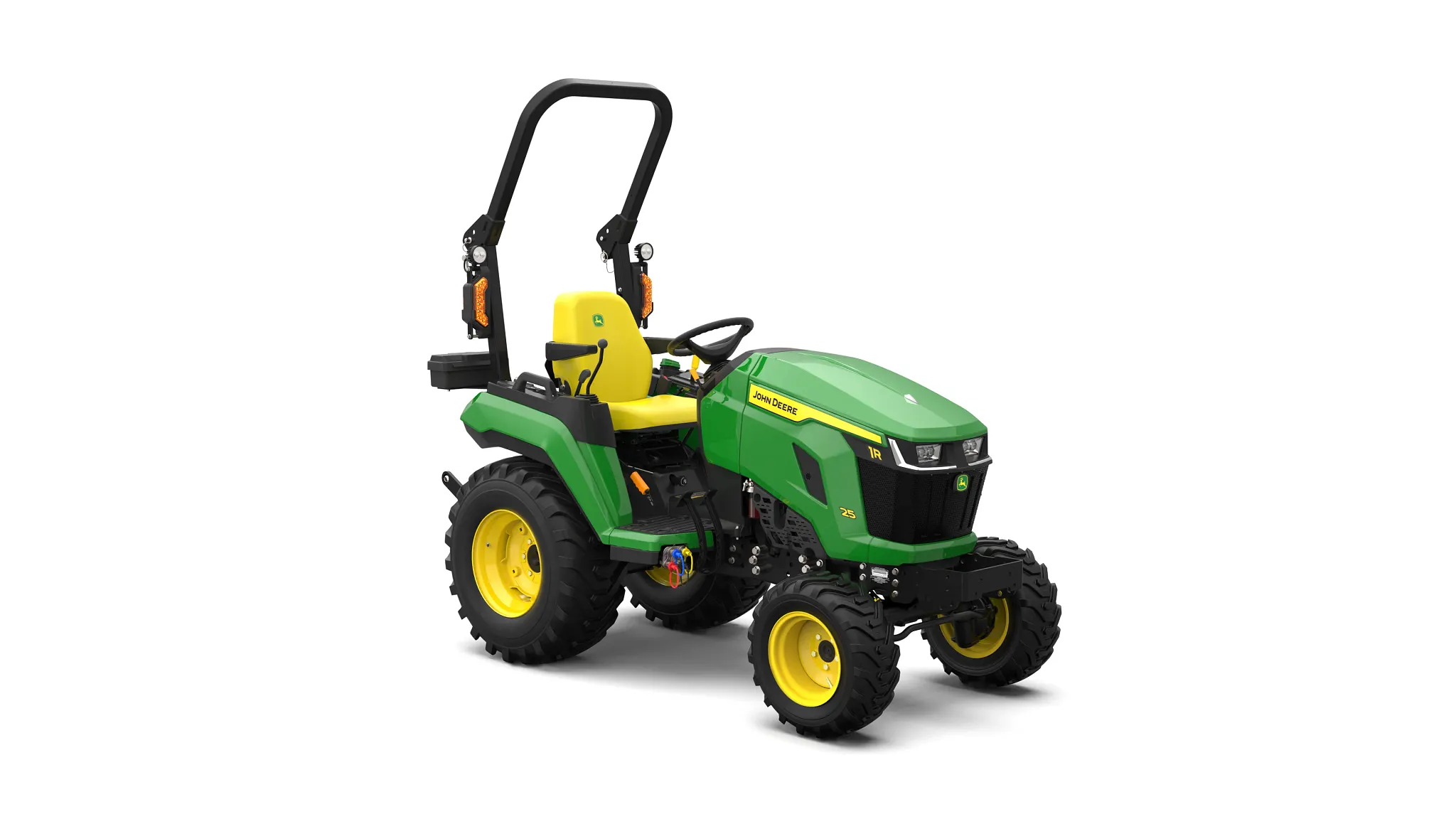

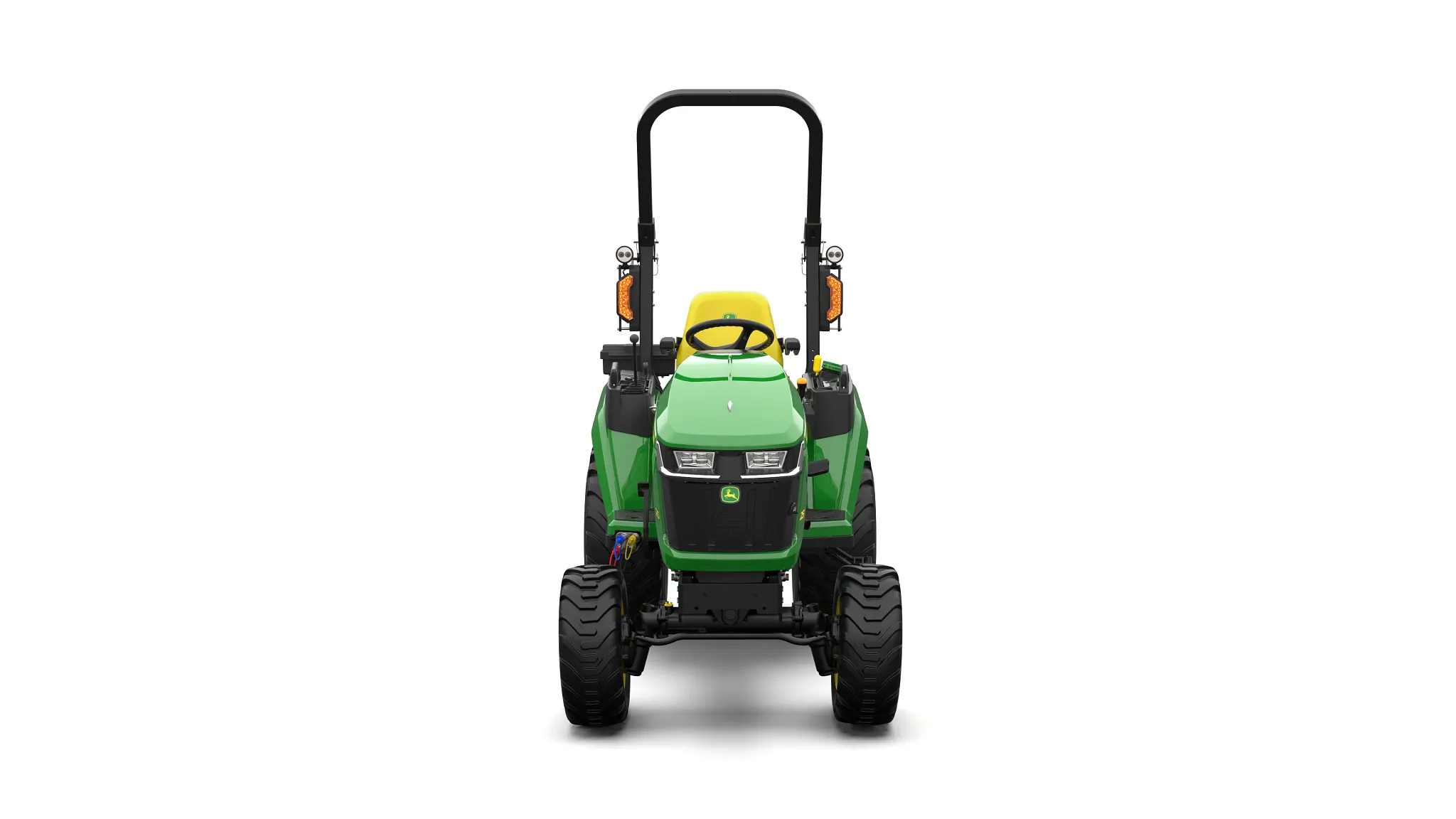

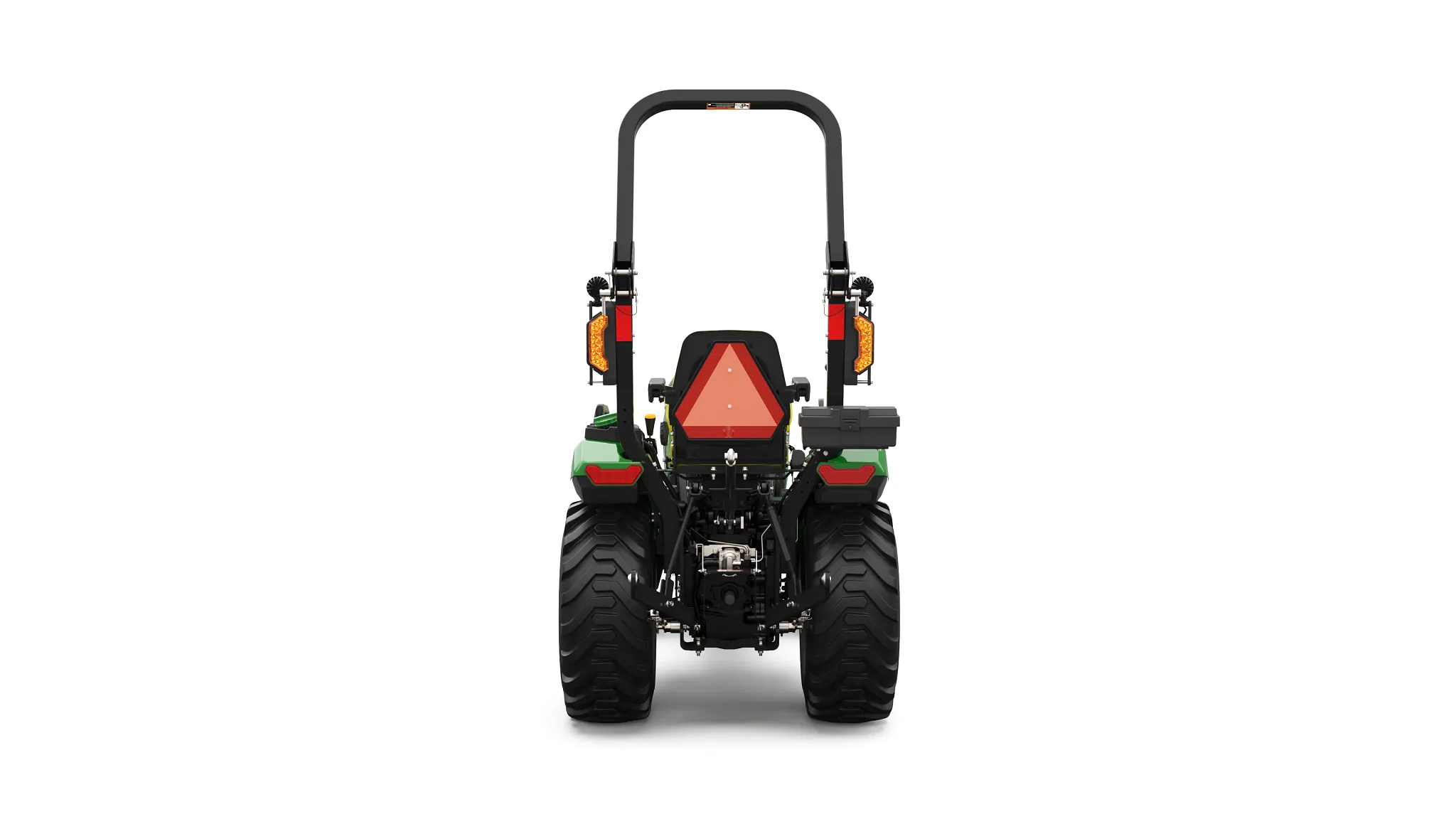

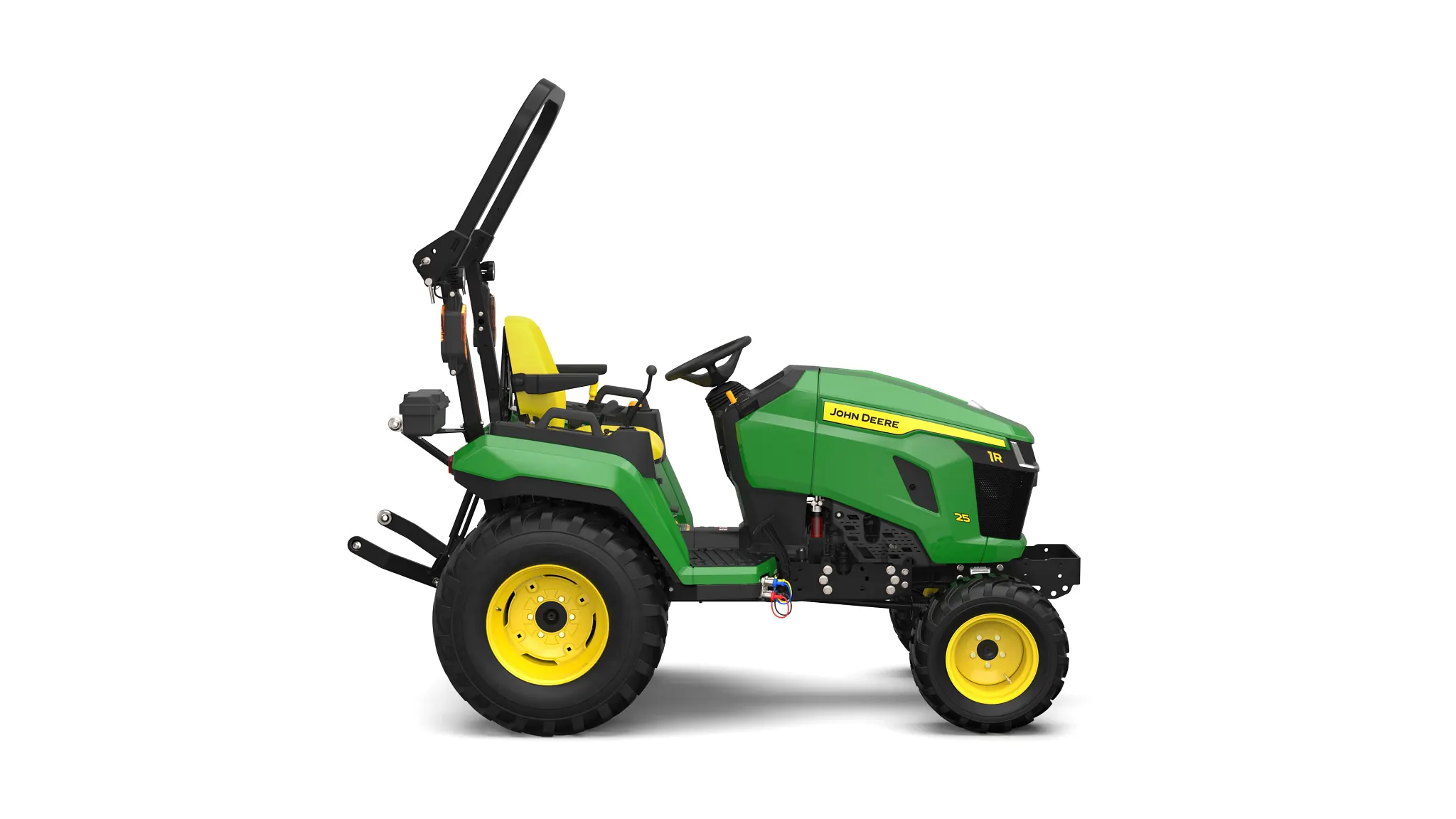

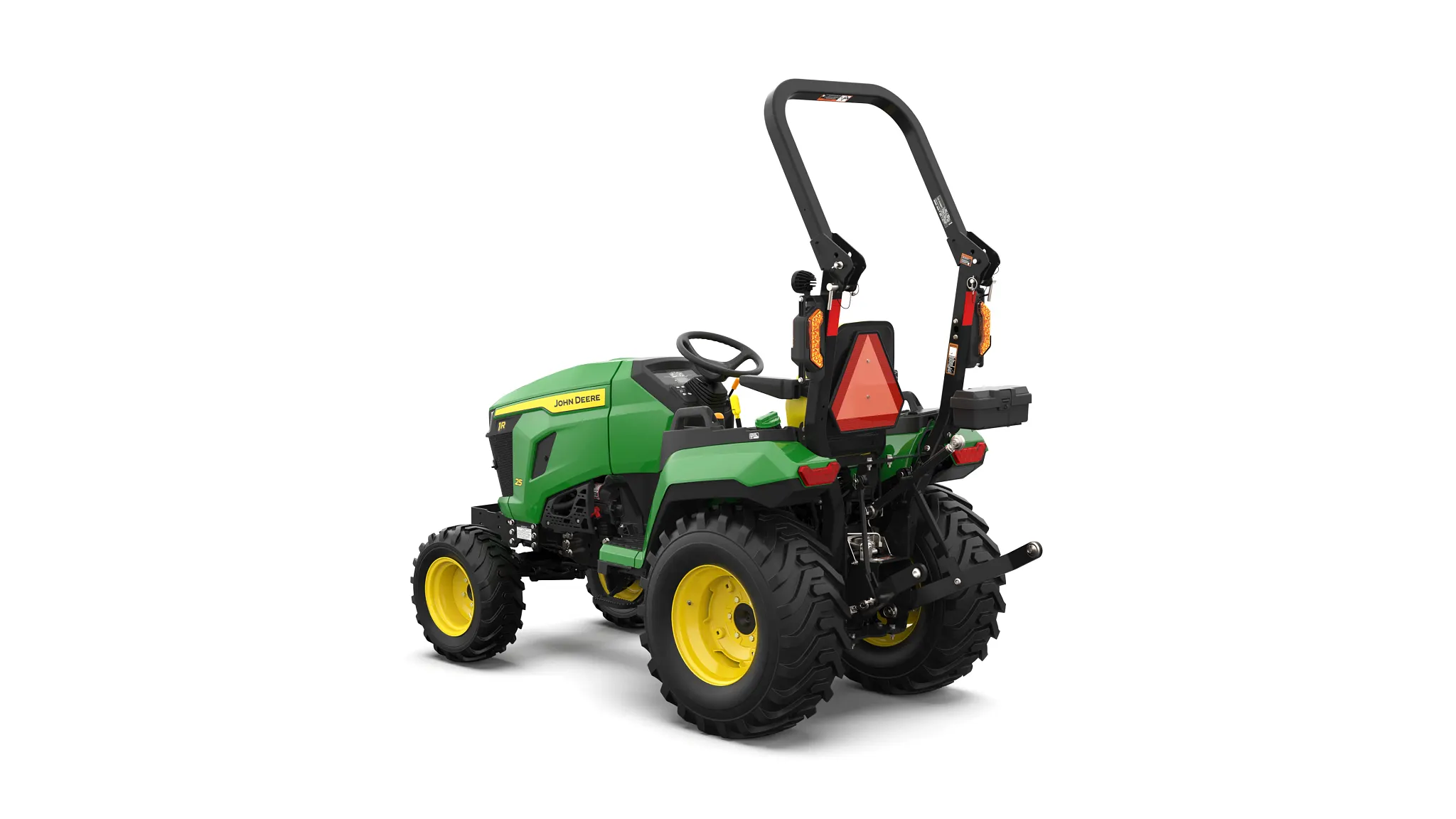

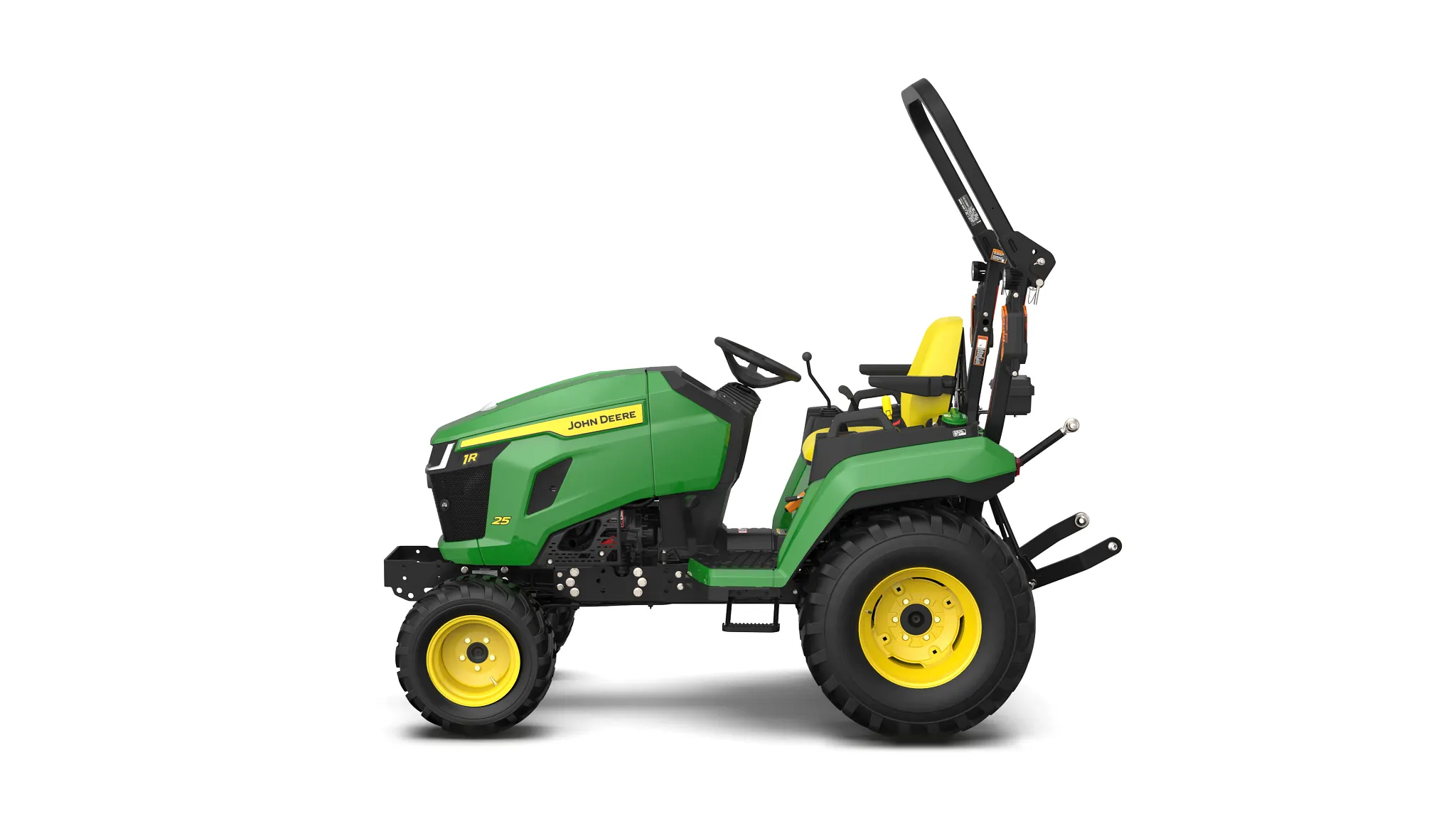

John Deere 1R 25
Sub-Compact Tractor
Enjoy year-round versatility without the hassle with the 1R 25 Sub-Compact Tractor. Fast, tool-free Quick Connect implement changes and easy hydro controls make loader and mowing work a breeze. Add the optional HVAC cab for comfortable operation in any season. Built for property owners who want comfortable, capable performance in a compact package.
Product Features:
- Optional Factory-Installed All-Weather HVAC Cab
- One-Piece Hood Design for Easier Maintenance
- Larger Tires for Better Traction, Faster Speed, and Higher Ground Clearance
- 12V Outlet, USB-C Port, Tilt Steering Wheel, and Toolbox
Features
Enjoy year-round versatility without the hassle with the 1R 25 Sub-Compact Tractor. Fast, tool-free Quick Connect implement changes and easy hydro controls make loader and mowing work a breeze. Add the optional HVAC cab for comfortable operation in any season. Built for property owners who want comfortable, capable performance in a compact package.

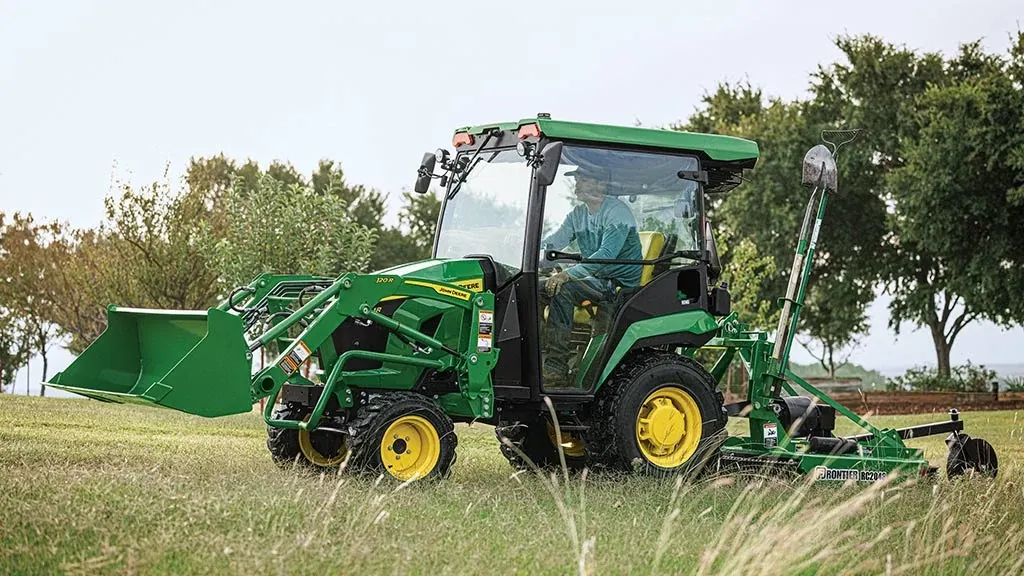

Optional Factory-Installed All-Weather HVAC Cab
One-Piece Hood Design for Easier Maintenance
Larger Tires for Better Traction, Faster Speed, and Higher Ground Clearance
12V Outlet, USB-C Port, Tilt Steering Wheel, and Toolbox
Benefits
Convenient Twin Touch™ Foot Controls
Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.
Equipment Mobile and Smart Connector
Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.

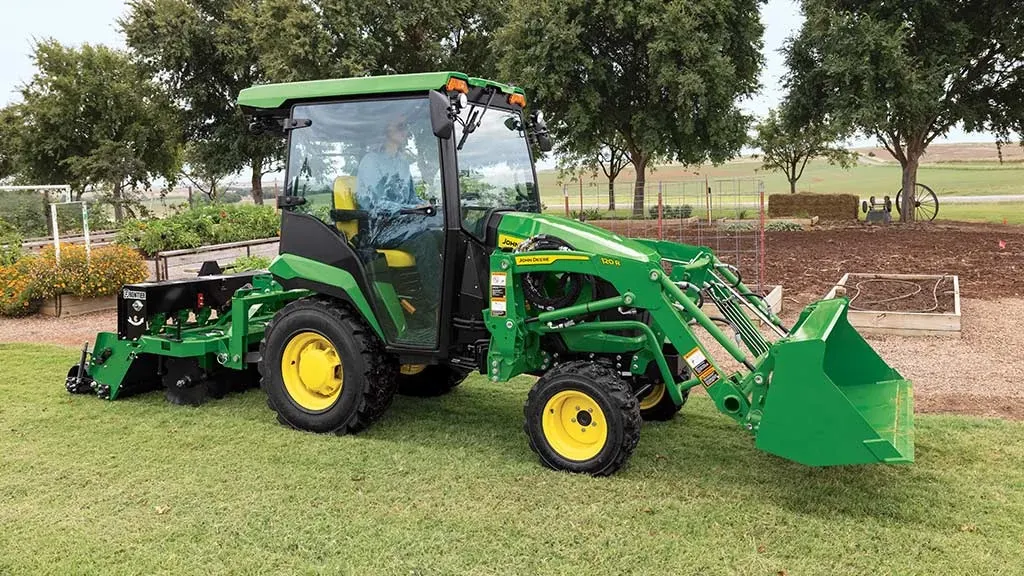

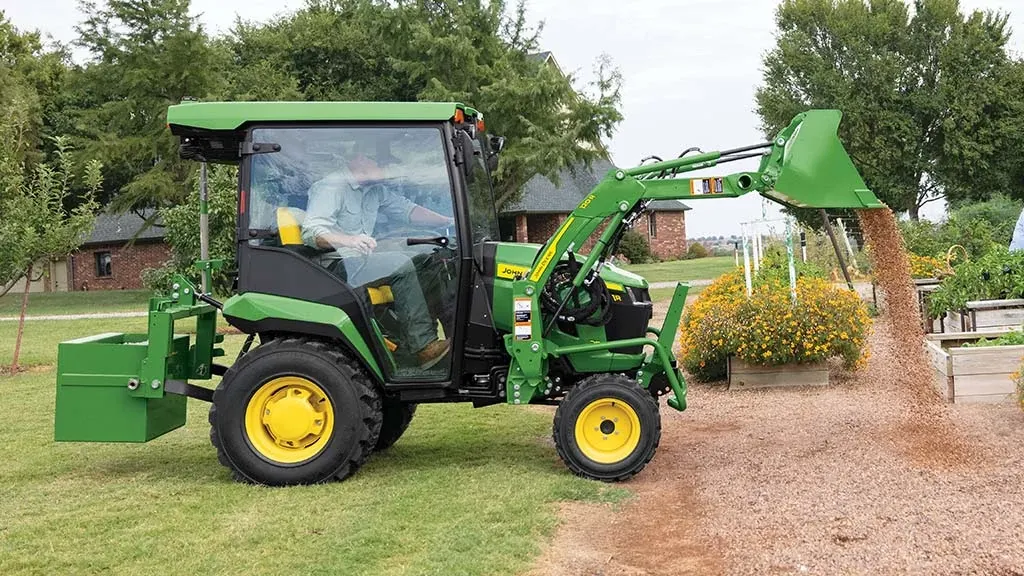

More Time Working, Less Time Switching Implements
John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
Specifications
| Front Rated PTO Power | 18 hp |
| PTO Speed | 2100 |
| Engine Make | Yanmar® |
| Engine Model | 3TNV80F-NCJT |
| Air Cleaner Type | Dual element with mechanical restriction indicator |
| Rated Engine Power | 17 kW |
| Displacement | 1.267 L |
| Rated Engine Speed | 3200 rpm |
| Bore and Stroke | 3.2 x 3.3 in. |
| Rated Engine Power | 23 PS |
| Fuel Type | Diesel |
| Displacement | 77 cu in. |
| Aspiration | Natural |
| Emissions Certifications | Final Tier 4 |
| Cooling System Type | Water pump |
| Rated Engine Power |
23 hp
(SAE J1995) |
| Number of Cylinders | 3 |
| Number of Rear Selective Control Valves (SCVs) | Two |
| Pump Rated Output | Steering - 3.5 gpm; Implement - 3.9 gpm; Total - 7.4 gpm (27.9 L/min) |
| Hydraulic System Type | Open center |
| Rear Tread Spacing | 35 in. |
| Front Tires Size | R3 Turf: 23x8.50-12; R3 Radial: 220/55-R12; R4 Industrial: 23x8.50-12 |
| Front Tread Spacing | 37 in. |
| Rear Tires Size | R3 Turf: 12-16.5; R3 Radial: 280/70 R16; R4 Industrial: 12-16.5 |
| Wheelbase | 63 in. |
| Front Axle Ground Clearance | 7.7 in. |
| Base Machine Weight | 1872 lb. |
| PTO Clutch | Wet disk |
| Brake (For Mid and Rear PTO) | Wet disk |
| PTO Category | Limited Category 1 |
| Engagement Method | Independent |
| Maximum Lift Capacity at 610-mm Behind Hitch Point | 915 lb / 415 kg |
| Rear Hitch Category (SAE Designation) | Limited Category 1 |
| Sensing Type | Position control |
| Draft Control Sensing | Position control |
| Wheel or Track Configuration | Wheel |
| Seat Suspension | Suspension seat |
| ROPS Type | Foldable |
| Primary Brakes | Wet disc |
| Steering Type | Power steering |
| Battery Cold Cranking Amps | 500 CCA |
| Alternator Capacity | 40 amp |
| Battery Voltage | 12 V |
| Electrical System Voltage | 12 V |
| Fuel Tank Capacity | 5.4 gal. |
| Clutch | Wet disc |
| Cruise Control | Standard |
| Transmission Type | Hydrostatic - two range |
