John Deere CS1360

Conservation Seeder

The Frontier CS1360 Conservation Seeder is designed for efficient seeding in conservation, pasture, and turf applications.

Product Features:

  • Working Width: 5 ft. (1.5 m)
  • Seedboxes Available in Multiple Configurations

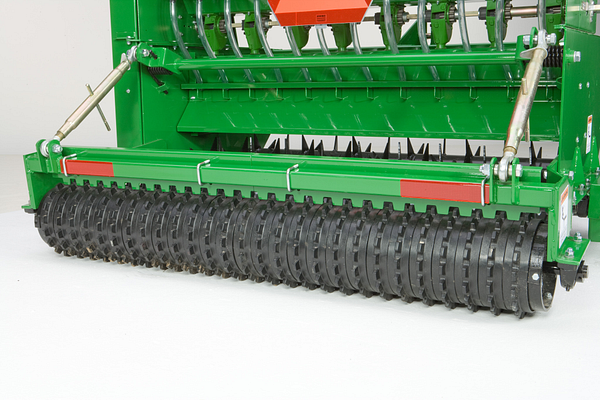

  • Rear Cultipacker Ensures good Seed-to-Soil Contact
  • iMatch™ Compatible
View Product Broshure

Specifications

Large Seed Box Capacity 0.123 m³
Large Seed Box Capacity 3.5 bu
Legume, Small Seed Box Capacity 0.529 m³
Legume, Small Seed Box Capacity 1.5 bu
Fertilizer Box Capacity 0.123 m³
Fertilizer Box Capacity 3.5 bu
Native Grass Seed Box Capacity 3.5 bu
Native Grass Seed Box Capacity 0.123 m³

Rear Spike Outside Diameter 40 cm
Nylon Rear Cultipacker Standard
Rear Spike Outside Diameter 15.75 in.
Rear Spike (Quantity) 114
Front Spike (Quantity) 72
Spike Material AR-500 Steel
Front Spike Outside Diameter 15.75 in.
Front Spike Outside Diameter 40 cm
Cast Iron Rear Cultipacker Optional

3-Point Type Hitch Category 1, Category 2
iMatch™ Compatible Yes
Quik-Coupler Category 2

Setup Time Labor Hour 1 hr

Unit Height 48 in.
Unit Height 122 cm
Unit Length 170 cm
Unit Length 67 in.
Working Width 152 cm
Working Width 60 in.
Overall Width 73 in.
Overall Width 185 cm

Minimum Power 30 hp
Minimum Power 26 kW

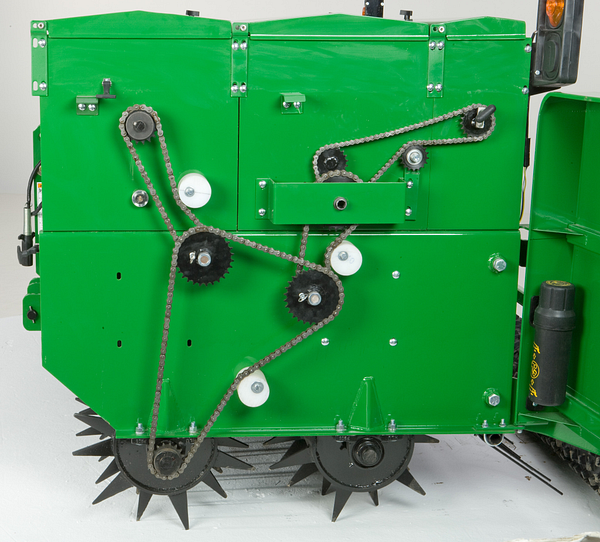

Spike Roller Drive Ratio 15:22
Seed Box Drive Ratio 15:28

Stainless Steel Fertilizer Box Weight 66.7 kg
Stainless Steel Fertilizer Box Weight 147 lb.
Second Large Seed Box Weight 147 lb.
Native Grass Box Weight 207 lb.
Base Machine Weight 614.6 kg
Second Large Seed Box Weight 66.7 kg
Native Grass Box Weight 93.9 kg
Base Machine Weight 1355 lb.
Small Seed Box Weight 65 lb.
Small Seed Box Weight 29.5 kg
Cast Iron Wheels Weight 81.6 kg
Cast Iron Wheels Weight 180 lb.

Warranty Time Period 1 year
