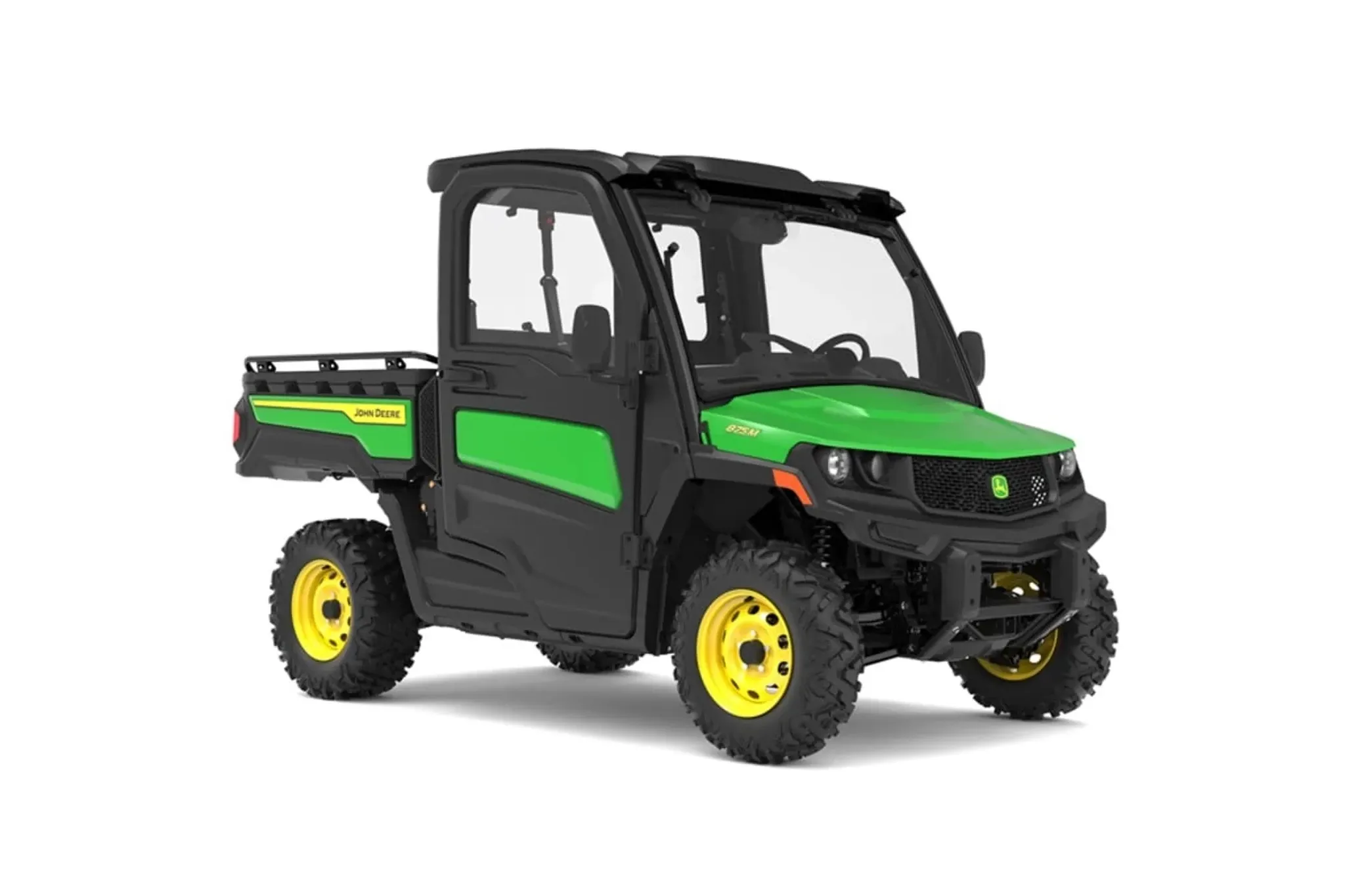

Front right studio view of XUV 875M HVAC

John Deere XUV 875M

Crossover Utility Vehicle

Work comfortably in any season with the GATOR XUV 875M HVAC Utility Vehicle. The enclosed cab with climate control keeps you comfortable whether you're working in summer heat or winter cold. Diesel power delivers the capability you need.

Product Features:

22.8-hp (17.0-kW) Three-Cylinder Liquid-Cooled Diesel Engine
Two-Speed CVT Transaxle with 4-Wheel Drive and Rear Differential Lock
Maxxis® Bighorn® 2.0 Extreme Terrain or Predator Heavy-Duty All-Terrain Radial Tires ^ⓘ
Fully-Independent Adjustable Suspension with up to 9-in. (229-mm) of Travel

View Product Broshure

Features

Work comfortably in any season with the Gator™ XUV 875M HVAC Utility Vehicle. The enclosed cab with climate control keeps you comfortable whether you're working in summer heat or winter cold. Diesel power delivers the capability you need.

22.8-hp (17.0-kW) Three-Cylinder Liquid-Cooled Diesel Engine

Two-Speed CVT Transaxle with 4-Wheel Drive and Rear Differential Lock

Maxxis® Bighorn® 2.0 Extreme Terrain or Predator Heavy-Duty All-Terrain Radial Tires

Fully-Independent Adjustable Suspension with up to 9-in. (229-mm) of Travel

Benefits

View from a dirt road of a 1025R loader attachment with 120R pallet forks unloading bags from an XUV 845 Gator while an operator looks on from beside it

Class-Leading Cargo Box Volume Configures to the Needs of the Job

Haul up to 1000 lb. (454 kg) in the class-leading 18.5-cu ft (524-L) cargo box. Use built-in slots and stake pockets to quickly reconfigure the cargo box to the job. A 12-V power port is located in the cargo box to power attachments. Tow up to 4000 lb. (1840 kg) with the included receiver hitch.

View of an XUV845R Gator's interior from the passenger-side door, with operator holding the bench up and peering at the storage below

Room for Three in Air Conditioned Comfort

Stay cool in the air conditioned cab. An automotive-inspired design features power steering, a digital instrument panel, and two 12-V outlets. Shift from park and into gear with a throw of the dash-mounted lever. For tough conditions, engage four-wheel drive and rear differential lock switches. The split-bench seat accommodates three and an under seat storage bin. Comfort and convenience packages include cargo box power lift, dual-beam LED headlights, and turn signals.

New John Deere Gator XUV 845R Signature Series Utility Vehicle with StarFire receiver moving through a field with dust swirling with a golden sunset look to the photo

Factory-Installed Precision Ag Technology

Installing a G5 Display, StarFire™ 7500 Receiver, and a GreenStar™ ready or an AutoTrac™ ready option enables you to utilize the vehicle’s speed, light weight, and nimbleness to establish boundary lines, even when the soil is too wet for larger equipment. Use the AutoTrac™ assisted steering system to ensure field boundaries are planter ready, or spray in predefined paths around buildings and fence rows while minimizing overlap, input costs, and operator fatigue.

Specifications

Fuel Capacity	42.4 L
Cargo Box Volume	524 L
Weight	1073 kg
Cargo Box Dimensions	43.3 x 13.5 x 54.8 in.
Tread Centers - Rear	51.2 in.
Tread Centers - Front	54.2 in.
Cargo Box Volume	18.5 cu ft
Hitch	Standard receiver: 2 in. (5.1 cm)
Ground Clearance	305 mm
Tread Centers - Front	1376 mm
Height	79.9 in.
Wheelbase	87 in.
Ground Clearance	12 in.
Width	1790 mm
Cargo Box Capacity (Weight)	454 kg
Towing Capacity	1814 kg
Payload Capacity	1034 lb.
Length	3250 mm
Wheelbase	2211 mm
Height	2030 mm
Fuel Capacity	11.2 U.S. gal.
Weight	2366 lb.
Cargo Box Dimensions	1099 x 343 x 1392 mm
Width	70.5 in.
Tread Centers - Rear	1300 mm
Cargo Box Capacity (Weight)	1000 lb.
Towing Capacity	4000 lb.
Payload Capacity	469 kg
Length	128 in.

Battery	480 CCA
Alternator	85 amp
Color	Green and yellow, TrueTimber® KANATI® camo, olive and black
Power Steering	Yes
Battery	12 V
Instrumentation	Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
Storage	Total: 18.4 gal. (69.5 L); Six cup holders: 1.2 gal. (4.6 L); Center tray: 0.3 gal. (1.2 L); Two dash bins: 0.9 gal. (3.3 L); Storage pocket: 0.4 gal. (1.4 L); Glove box: 1 gal. (3.8 L); Under seat: 14.6 gal. (55.3 L)
Power Port - Cargo Box	12 V
Power Port - DC Outlet	12 V
Seating	Black vinyl 40/60 split three-passenger bench

Park Brake	Park in-transmission; Optional factory-installed secondary foot operated with hand release
Type	Front/rear hydraulic disc with twin piston front calipers

Cooling System	Liquid
Displacement	854 cc
Displacement	52.1 cu in.
Engine Power	22.8 hp
Engine Power	17 kW
Engine Type	4-cycle diesel

Rear	27x11-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels
Front	27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels

Date Collected	2024-06-11T11:08:00
Country Of Manufacture	U.S.

Rear Suspension	Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Front Suspension	Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

Four Wheel Drive	Dash switch actuated four-wheel drive system
Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
Final Drive	Park, high, low, neutral, reverse transaxle
Traction Assist	Limited slip front differential; Positive locking, switch actuated rear differential lock
Descent Control	Yes
