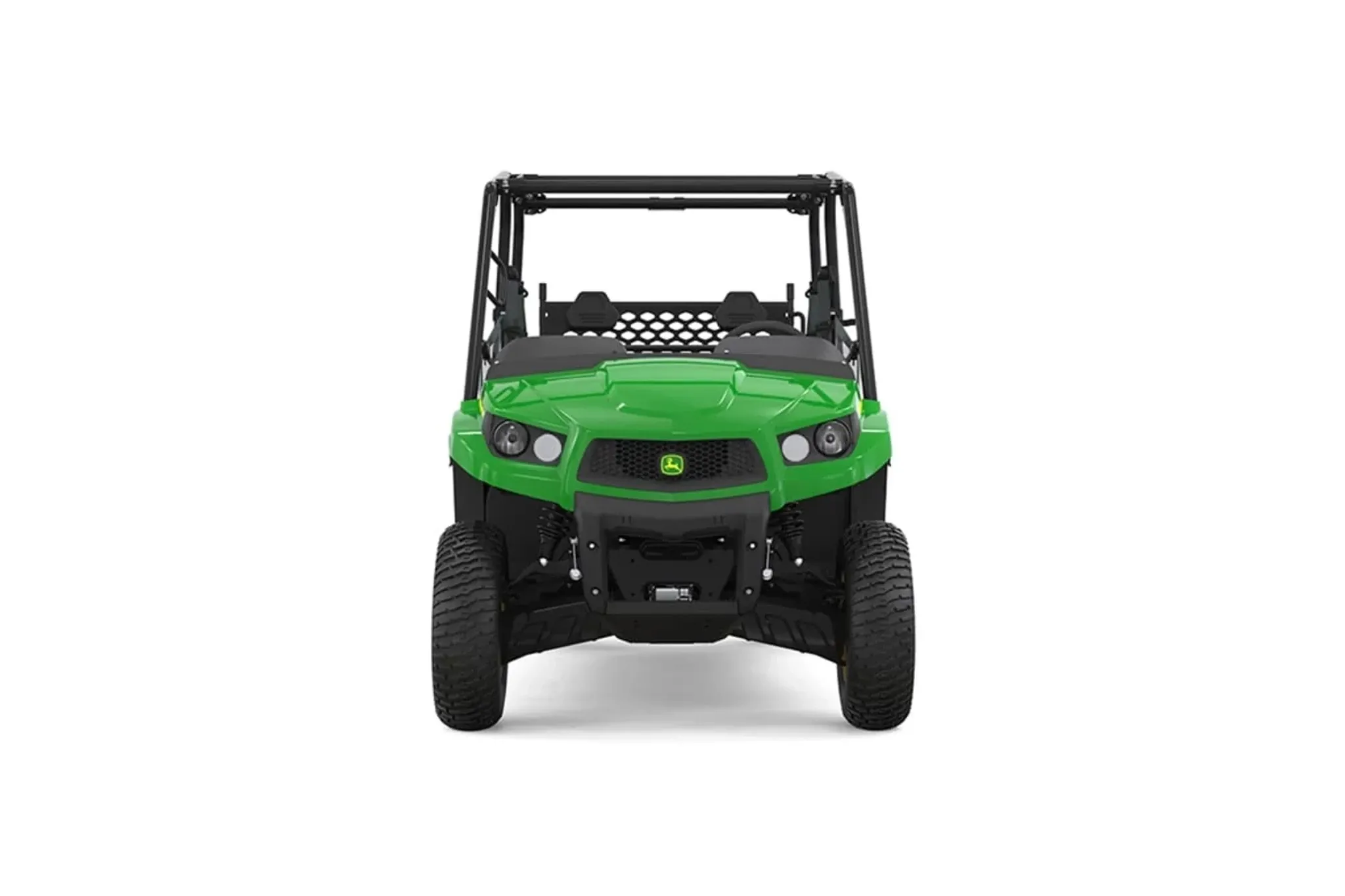

Studio image with a front view of a Gator XUV560E S4

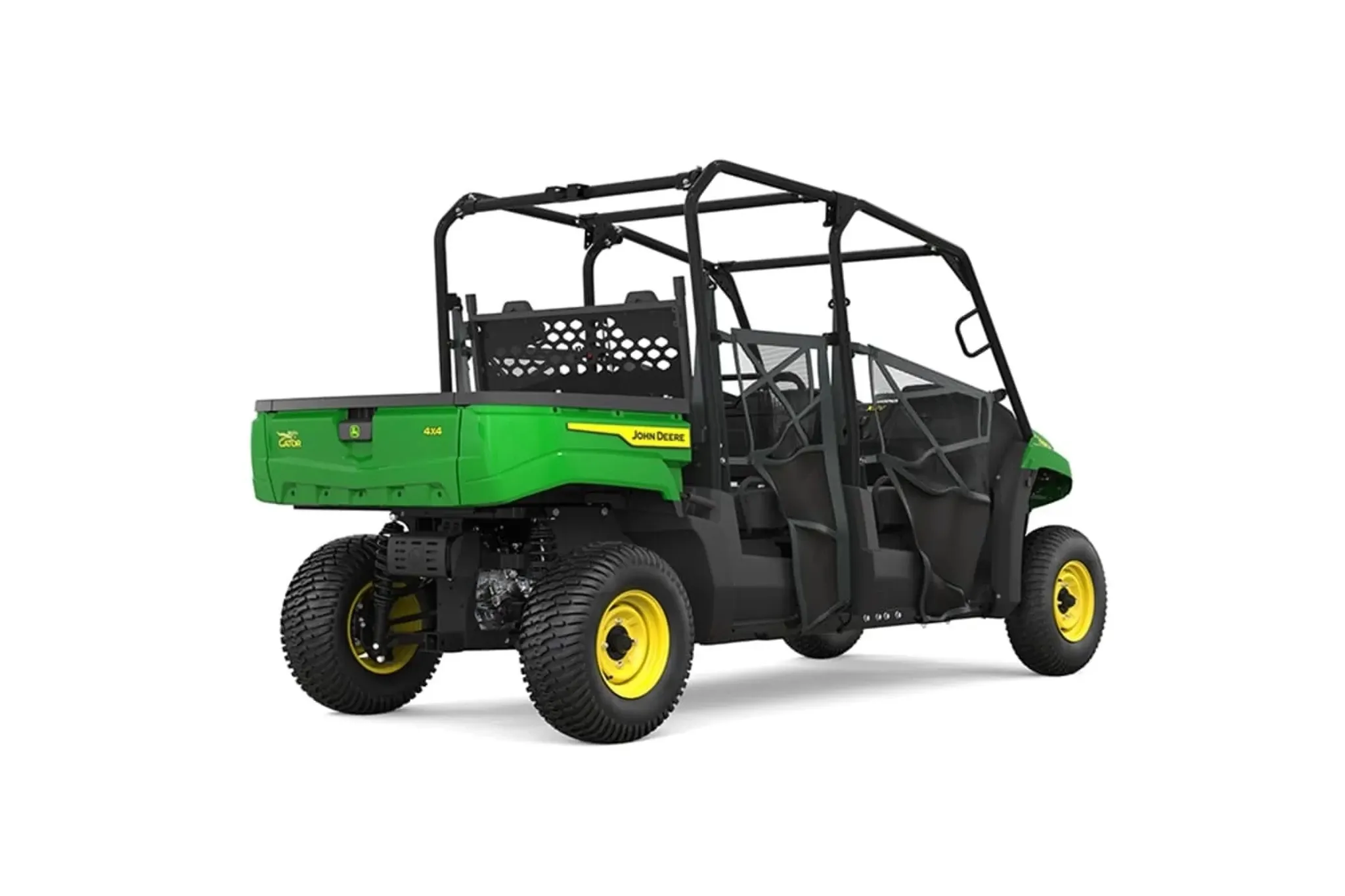

Studio image with a rear right view of XUV560E S4 UTV Crossover Gator Utility Vehicle

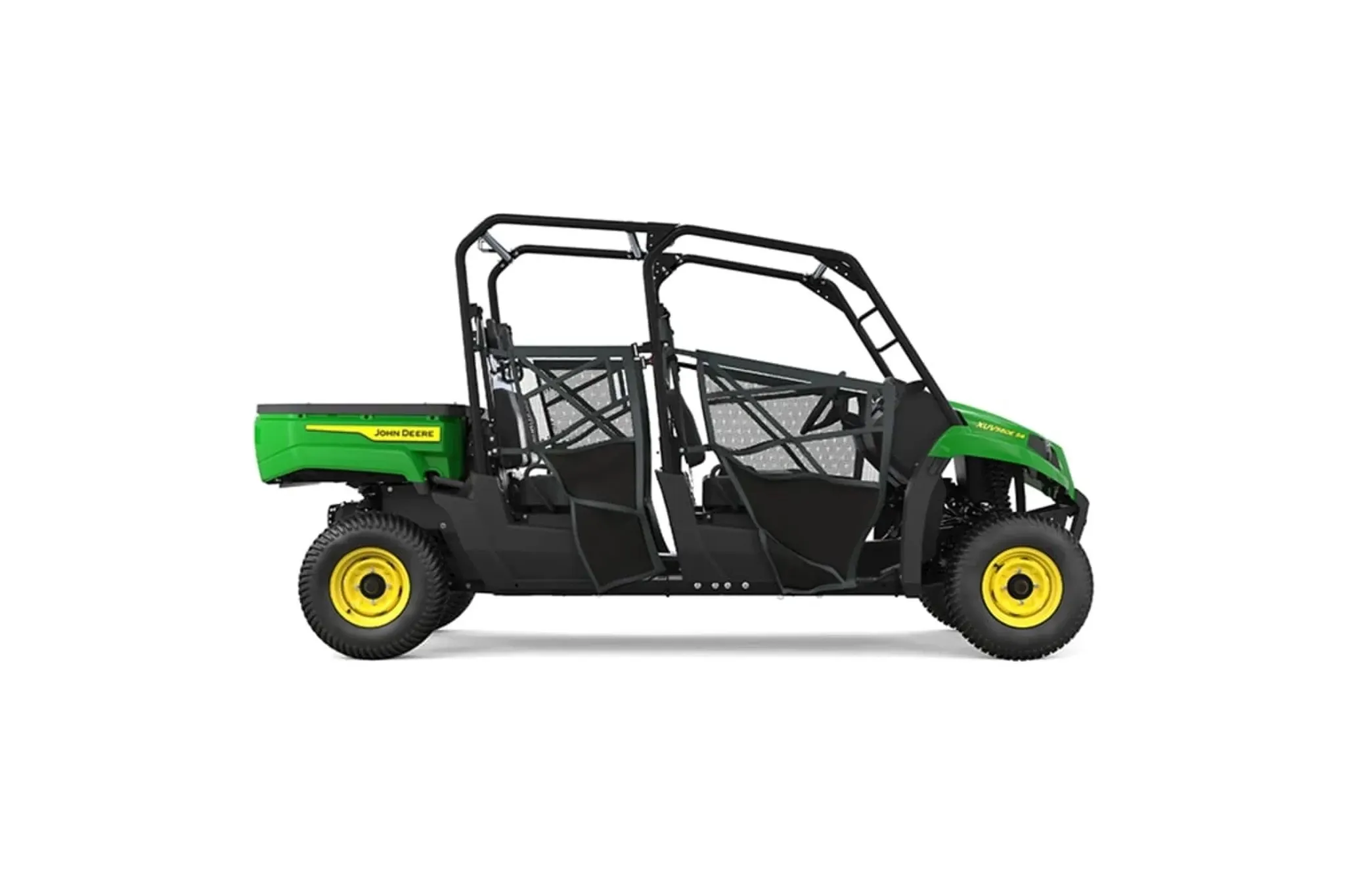

Studio image with a right view of XUV560E S4 UTV Crossover Gator Utility Vehicle

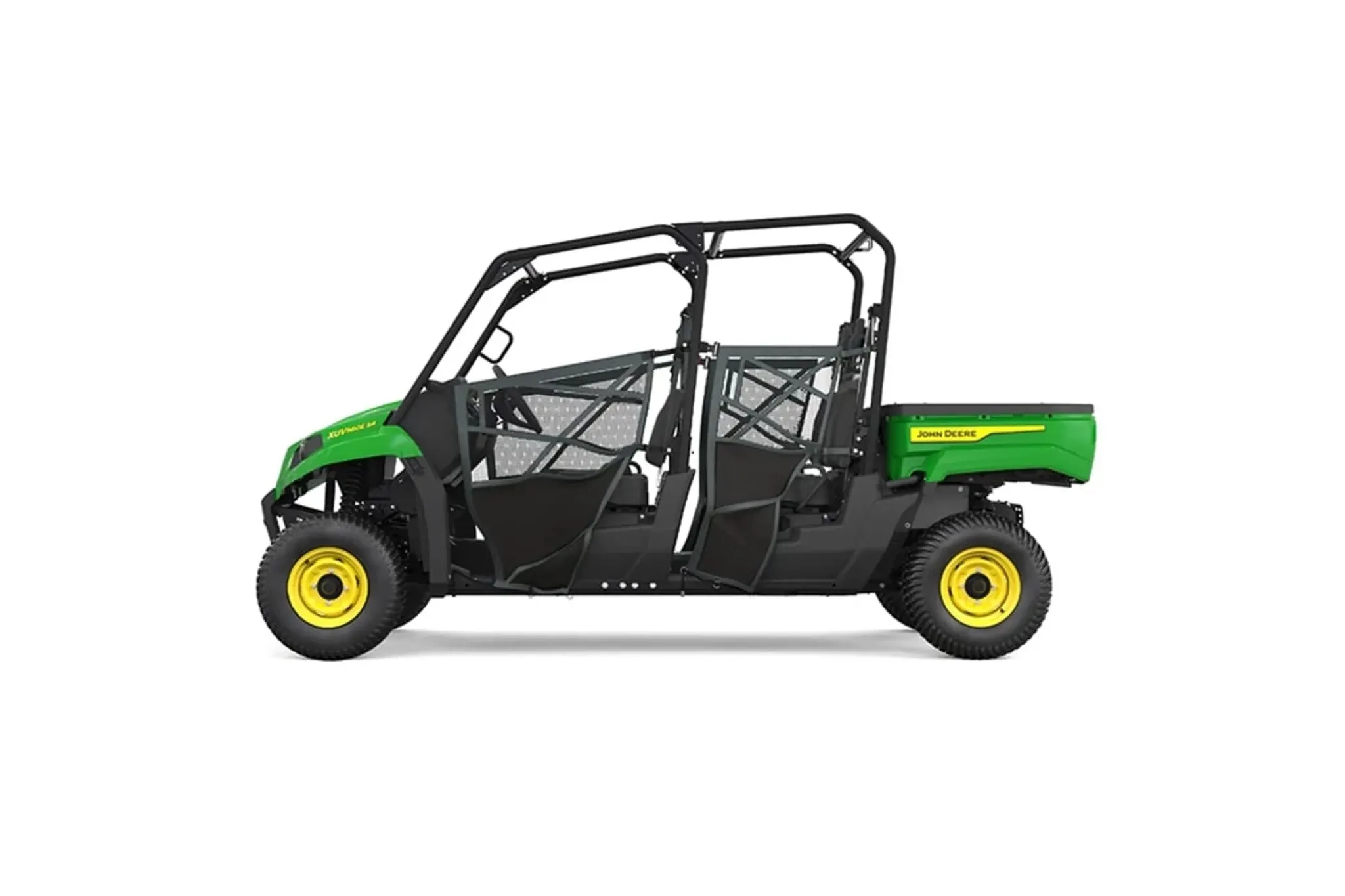

Studio image with a left view of XUV560E S4 UTV Crossover Gator Utility Vehicle

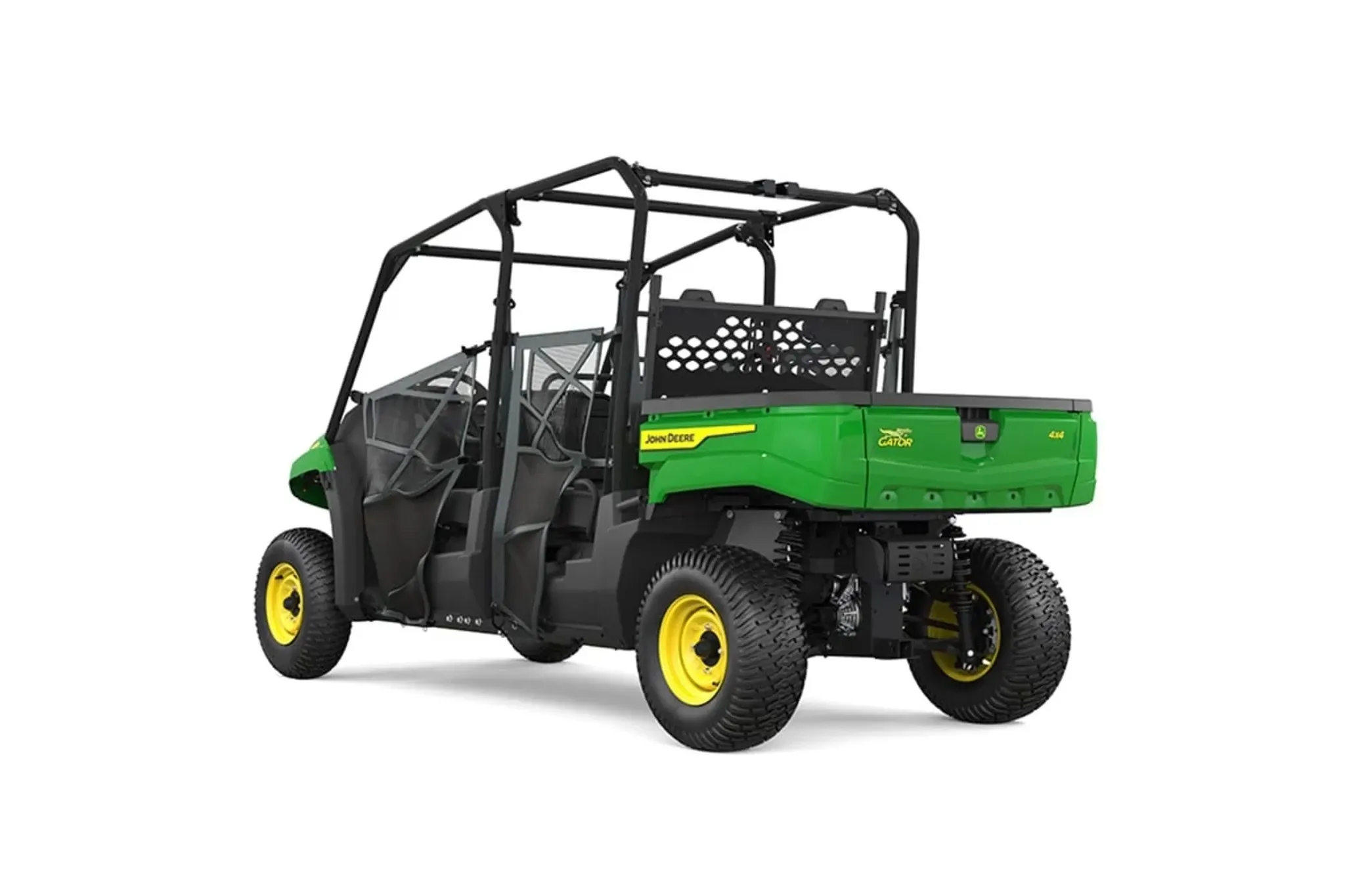

Studio image with a rear left view of XUV560E S4 UTV Crossover Gator Utility Vehicle

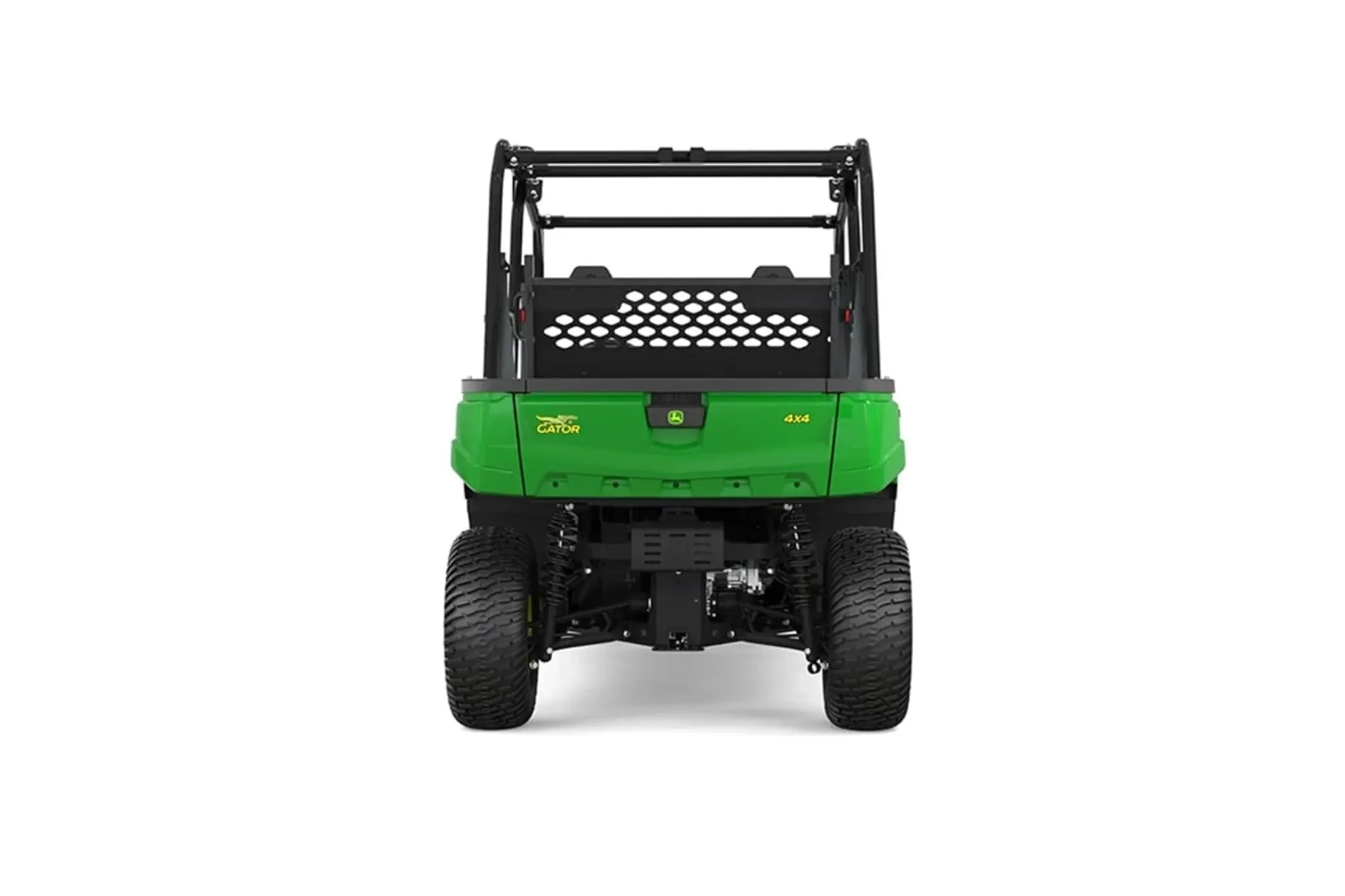

Studio image with a rear view of XUV560E S4 UTV Crossover Gator Utility Vehicle

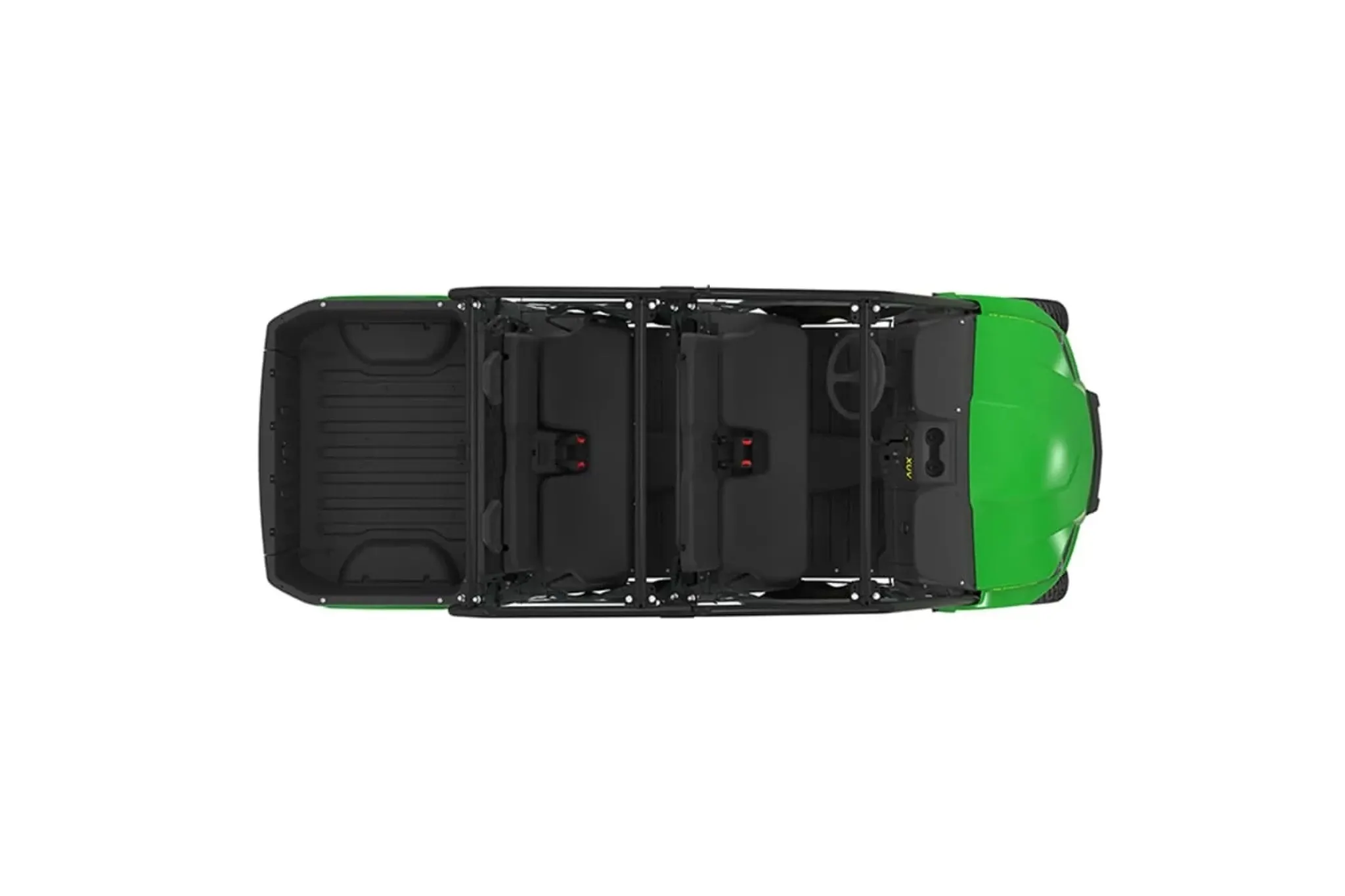

Studio image with a top view of a Gator XUV560E S4

John Deere XUV560E S4

Crossover Utility Vehicle

Get the whole crew involved with the GATOR XUV560E S4 Utility Vehicle. Four-passenger seating combines with durable construction and dependable performance for property work and outdoor fun alike.

Product Features:

16-hp (11.9-kW) 570-cc V-Twin Engine
Two-Speed CVT Transaxle with 4-Wheel Drive and Rear Differential Lock
Terra Hawk All-Terrain or Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires
Fully-Independent Adjustable Suspension with 8 in. (203-mm) of Travel

View Product Broshure

Features

Get the whole crew involved with the Gator™ XUV560E S4 Utility Vehicle. Four-passenger seating combines with durable construction and dependable performance for property work and outdoor fun alike.

16-hp (11.9-kW) 570-cc V-Twin Engine

Two-Speed CVT Transaxle with 4-Wheel Drive and Rear Differential Lock

Terra Hawk All-Terrain or Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires

Fully-Independent Adjustable Suspension with 8 in. (203-mm) of Travel

Benefits

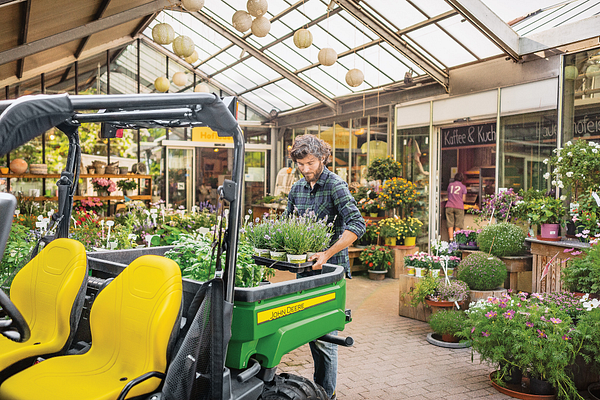

View from the left front of an XUV560E Crossover Utility Vehicle of a man loading the cargo box with herbs inside a greenhouse

One-Piece Cargo Box

Haul up to 500 lb. (227 kg) in the 8.9-cu ft (250-L) cargo box. The box's composite design reduces noise and is supported by a welded steel-ladder structure. Unlatch and lift the cargo box with one hand or install an optional power lift. Tow up to 1500 lb. (680 kg) with the included receiver hitch.

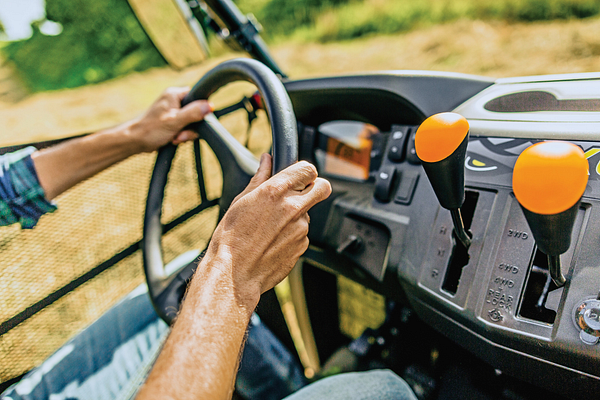

Side right view of the dash and steering wheel of an XUV560E Mid-Size Crossover Utility Vehicle, two hands steering

All-Day Comfort for Four

Operator‑centric design includes dash‑mounted gear‑shift levers, a digital display, power steering on select models, and dual cup holders. A spacious operator station offers two‑row bench seating for four with ample legroom for easy entry and exit. Sealed under‑hood storage helps keep gear dry, with capacity varying by model, along with additional under‑seat storage for added convenience.

man working with a smart phone and tablet

Optional AMS Integration and JDLink™ Modem Attachments

The optional AMS integration kit provides everything needed to mount your StarFire™ receiver and GreenStar™ display for boundary mapping, flagging field obstacles, and soil sampling. Install an optional JDLink™ modem and track your vehicle in the John Deere Operations Center with your fleet. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.

Specifications

Fuel Capacity	28 L
Weight	683 kg
Cargo Box Dimensions	32.3 x 47.6 x 11.7 in.
Tread Centers - Rear	46 in.
Tread Centers - Front	48 in.
Hitch	Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
Ground Clearance	236 mm
Tread Centers - Front	1220 mm
Height	74 in.
Wheelbase	108 in.
Ground Clearance	9.3 in.
Width	1435 mm
Cargo Box Capacity (Weight)	227 kg
Towing Capacity	680 kg
Payload Capacity	1300 lb.
Length	3658 mm
Wheelbase	2743 mm
Height	1880 mm
Fuel Capacity	7.4 U.S. gal.
Weight	1507 lb.
Cargo Box Dimensions	820 x 1209 x 297 mm
Width	56.5 in.
Tread Centers - Rear	1168 mm
Cargo Box Capacity (Weight)	500 lb.
Towing Capacity	1500 lb.
Payload Capacity	590 kg
Length	144 in.

Battery	340 CCA
Alternator	16 amp
Color	Green/yellow
Power Steering	Not available
Battery	12 V
Instrumentation	Digital display with hour meter with maintenance and driver seatbelt reminder; speedometer, gear position, 4WD indicator, rear differential indicator, and engine oil temperature sensor
Storage	Two cupholders, sealed underhood storage, glove box, center console, optional under seat
Power Port - DC Outlet	12 V
Seating	Black vinyl front and rear bench (four-passenger)

Park Brake	Park in-transmission
Type	196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 35 mm (1.375 in.) diameter hydraulic twin-piston calipers

Cooling System	Air cooled
Displacement	570 cc
Displacement	34.8 cu in.
Engine Power	16 hp
Engine Power	11.9 kW
Engine Type	4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV)

Rear	25x10-12 Terra Hawk all-terrain on steel wheels 26x10-14 Maxxis Bighorn 2.0 extreme terrain on steel wheels
Front	25x8-12 Terra Hawk all-terrain on steel wheels 26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel wheels

Date Collected	2025-01-15T11:12:00
Country Of Manufacture	U.S.

Rear Suspension	Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Front Suspension	Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar

Four Wheel Drive	Dash switch actuated four-wheel drive system
Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
Final Drive	Park, high, low, neutral, reverse transaxle
Traction Assist	Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent Control	No
