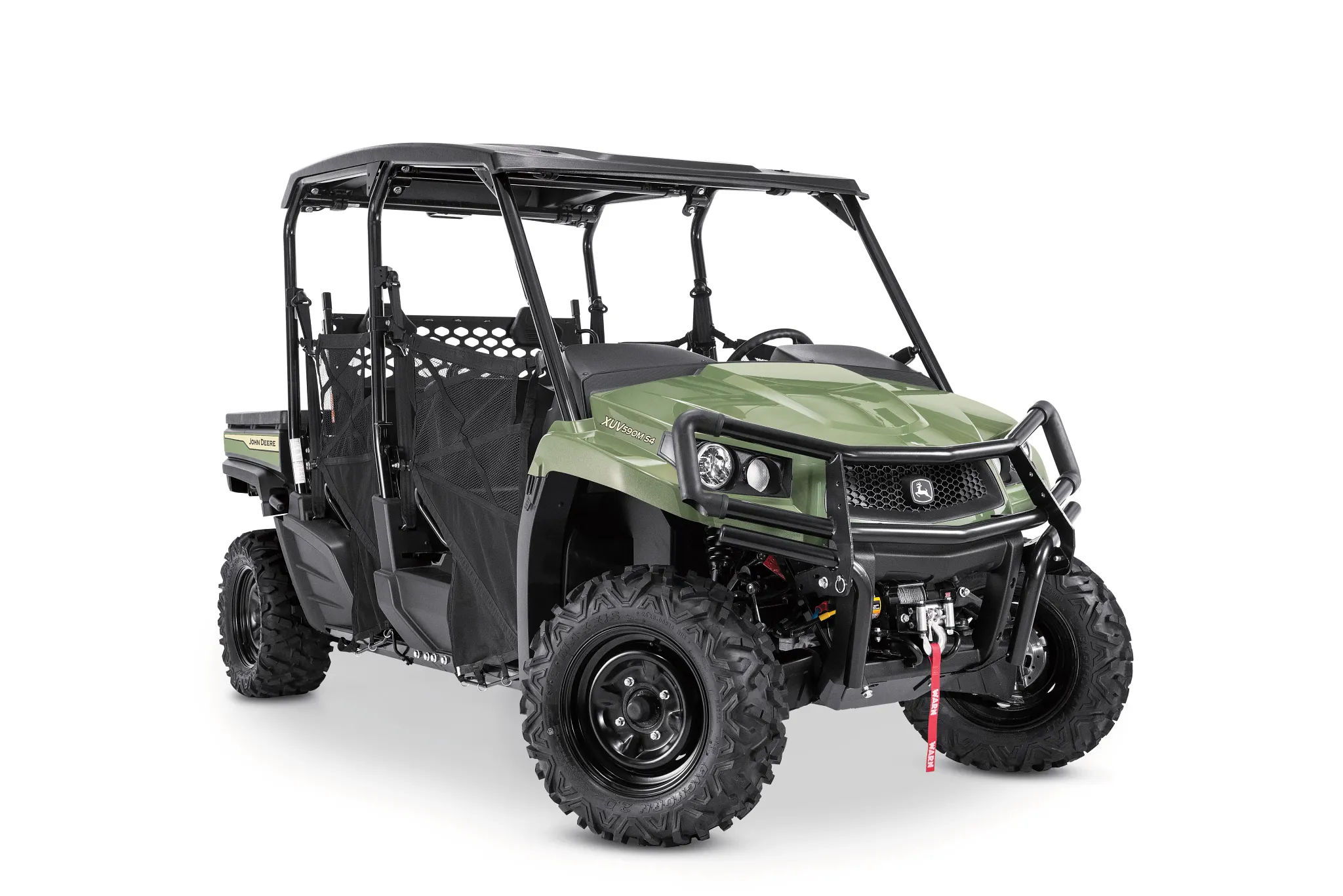

Front right studio view of a green and black XUV 590M S4

Front left view of an XUV 590M S4 Gator with four helmeted passengers tearing down a grassy path, dust flying behind it

Side right view of an XUV590M S4 Gator with three passengers driving through a neighborhood

John Deere XUV590M S4

Crossover Utility Vehicle

Carry more passengers and cargo with the GATOR XUV590M S4 Utility Vehicle. Four-seat capability, smooth suspension, and a durable cargo box give you the flexibility to tackle property work or enjoy the outdoors with family and friends.

Product Features:

32-hp (23.8-kW) 586-cc EFI Liquid-Cooled Engine
Two-Speed CVT Transaxle with 4-Wheel Drive and Rear Differential Lock
Terra Hawk All-Terrain or Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires
Fully-Independent Adjustable Suspension with 8 in. (203-mm) of Travel

View Product Broshure

Features

Carry more passengers and cargo with the Gator™ XUV590M S4 Utility Vehicle. Four-seat capability, smooth suspension, and a durable cargo box give you the flexibility to tackle property work or enjoy the outdoors with family and friends.

32-hp (23.8-kW) 586-cc EFI Liquid-Cooled Engine

Two-Speed CVT Transaxle with 4-Wheel Drive and Rear Differential Lock

Terra Hawk All-Terrain or Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires

Fully-Independent Adjustable Suspension with 8 in. (203-mm) of Travel

Benefits

View from the left front of an XUV560E Crossover Utility Vehicle of a man loading the cargo box with herbs inside a greenhouse

One-Piece Cargo Box

Haul up to 500 lb. (227 kg) in the 8.9-cu ft (250-L) cargo box. The box's composite design reduces noise and is supported by a welded steel-ladder structure. Unlatch and lift the cargo box with one hand or install an optional power lift. Tow up to 1500 lb. (680 kg) with the included receiver hitch.

Side right view of the dash and steering wheel of an XUV560E Mid-Size Crossover Utility Vehicle, two hands steering

All-Day Comfort for Four

Operator‑centric design includes dash‑mounted gear‑shift levers, a digital display, power steering on select models, and dual cup holders. A spacious operator station offers two‑row bench seating for four with ample legroom for easy entry and exit. Sealed under‑hood storage helps keep gear dry, with capacity varying by model, along with additional under‑seat storage for added convenience.

man working with a smart phone and tablet

Optional AMS Integration and JDLink™ Modem Attachments

The optional AMS integration kit provides everything needed to mount your StarFire™ receiver and GreenStar™ display for boundary mapping, flagging field obstacles, and soil sampling. Install an optional JDLink™ modem and track your vehicle in the John Deere Operations Center with your fleet. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.

Specifications

Fuel Capacity	28 L
Weight	788 kg
Cargo Box Dimensions	32.3 x 47.6 x 11.7 in.
Tread Centers - Rear	46 in.
Tread Centers - Front	48 in.
Hitch	Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
Ground Clearance	236 mm
Tread Centers - Front	1220 mm
Height	74 in.
Wheelbase	108 in.
Ground Clearance	9.3 in.
Width	1435 mm
Cargo Box Capacity (Weight)	227 kg
Towing Capacity	680 kg
Payload Capacity	1300 lb.
Length	3658 mm
Wheelbase	2743 mm
Height	1880 mm
Fuel Capacity	7.4 U.S. gal.
Weight	1736 lb.
Cargo Box Dimensions	820 x 1209 x 297 mm
Width	56.5 in.
Tread Centers - Rear	1168 mm
Cargo Box Capacity (Weight)	500 lb.
Towing Capacity	1500 lb.
Payload Capacity	590 kg
Length	144 in.

Battery	340 CCA
Alternator	65 amp
Color	Green/yellow, olive/black, TRUETIMBER® Kanati camo
Power Steering	Standard
Battery	12 V
Instrumentation	Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
Storage	Two cupholders, sealed underhood storage, glove box, center console, optional under seat
Power Port - DC Outlet	12 V
Seating	Black vinyl front and rear bench (four-passenger)

Park Brake	Park in-transmission
Type	196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 35 mm (1.375 in.) diameter hydraulic twin-piston calipers

Cooling System	Liquid cooled
Displacement	586 cc
Displacement	35.8 cu in.
Engine Power	32 hp
Engine Power	23.8 kW
Engine Type	4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)

Rear	25x10-12 Terra Hawk all-terrain on steel wheels 26x10-14 Maxxis Bighorn 2.0 extreme terrain on steel or alloy wheels
Front	25x8-12 Terra Hawk all-terrain on steel wheels 26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel or alloy wheels

Date Collected	2025-06-11T11:11:00
Country Of Manufacture	U.S.

Rear Suspension	Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Front Suspension	Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar

Four Wheel Drive	Dash switch actuated four-wheel drive system
Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
Final Drive	Park, high, low, neutral, reverse transaxle
Traction Assist	Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent Control	No
