John Deere TURF TX 4X2
Gator™ Utility Vehicle
The TX Turf GATOR offers unparalleled versatility and durability, making it the ideal choice for turf maintenance and transportation across varied terrains, all while maximizing comfort and efficiency for the operator.
Product Features:
- 13.5-hp (10.1-kW) 400-cc Engine
- CVT Transaxle With Differential Lock
- Wide Stance for Balanced Weight Distribution and Stability
- Independent Front and High Floatation Rear Suspension With Low-Pressure Tires
Features
The TX Turf Gator™ offers unparalleled versatility and durability, making it the ideal choice for turf maintenance and transportation across varied terrains, all while maximizing comfort and efficiency for the operator.
13.5-hp (10.1-kW) 400-cc Engine
CVT Transaxle With Differential Lock
Wide Stance for Balanced Weight Distribution and Stability
Independent Front and High Floatation Rear Suspension With Low-Pressure Tires
Benefits

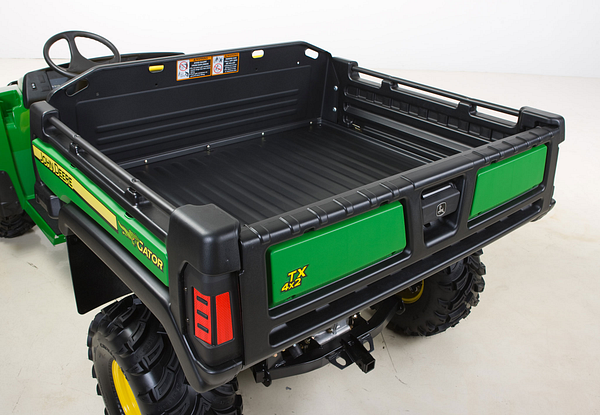

Durable Deluxe Cargo Box
The deluxe cargo box is constructed from a sturdy 15% glass-filled polypropylene composite. It resists rust and dents, features a gas-assisted lift, and has integrated tie-down points for ease of use. The box can convert to a flatbed for transporting larger loads, enhancing utility.
Walk-Through Platform Provides Easy Entry and Exit
A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.
Optional JDLink™ Modem Connects to John Deere Operations Center™
Install JDLink™ modems and use John Deere Operations Center™ to stay connected to your fleet. The modems report each vehicle's location, speed, and engine hours, enabling Operations Center to send an alert when a vehicle leaves a selected area, is operated outside prescribed times, or when maintenance is needed. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.
Specifications
| Fuel Capacity | 18.9 L |
| Weight | 501 kg |
| Cargo Box Dimensions | 45 x 12 x 52 in. |
| Tread Centers - Rear | 48 in. |
| Tread Centers - Front | 50 in. |
| Hitch | Standard: receiver hitch, 5.1 cm 2 in. |
| Ground Clearance | 145 mm |
| Tread Centers - Front | 1270 mm |
| Height | 43.6 in. |
| Wheelbase | 77 in. |
| Ground Clearance | 5.7 in. |
| Width | 1525 mm |
| Cargo Box Capacity (Weight) | 272 kg |
| Towing Capacity | 454 kg |
| Payload Capacity | 1000 lb. |
| Length | 2745.7 mm |
| Wheelbase | 1955.8 mm |
| Height | 1108 mm |
| Fuel Capacity | 5 U.S. gal. |
| Weight | 1105 lb. |
| Cargo Box Dimensions | 1143 x 305 x 1320 mm |
| Width | 60 in. |
| Tread Centers - Rear | 1220 mm |
| Cargo Box Capacity (Weight) | 600 lb. |
| Towing Capacity | 1000 lb. |
| Payload Capacity | 454 kg |
| Length | 108.1 in. |
| Battery | 340 CCA |
| Alternator | 16.6 amp |
| Color | Green/yellow |
| Power Steering | No |
| Battery | 12 V |
| Instrumentation | Fuel gauge, hour meter |
| Storage | Cup holders, glove box |
| Power Port - DC Outlet | 12 V |
| Seating | Bucket seats |
| Park Brake | Wet disk, hand operated |
| Type | Wet disk in transaxle |
| Cooling System | Air |
| Displacement | 400 cc |
| Displacement | 24.4 cu in. |
| Engine Power | 13.5 hp |
| Engine Power | 10.1 kW |
| Engine Type | Four-cycle gas |
| Rear | Two 24x12-10 4PR turf on steel wheels |
| Front | Two 22x9.5-10 4PR turf on steel wheels |
| Date Collected | 2025-06-08T11:13:00 |
| Country Of Manufacture | U.S. |
| Rear Suspension | Two high-floatation, low pressure tires (solid axles) |
| Front Suspension | Independent spring-over-shock, single A-arm |
| Four Wheel Drive | No |
| Transmission | Continuously Variable Transmission (CVT) |
| Final Drive | Fully enclosed; oil bath |
| Traction Assist | No |
| Descent Control | No |
