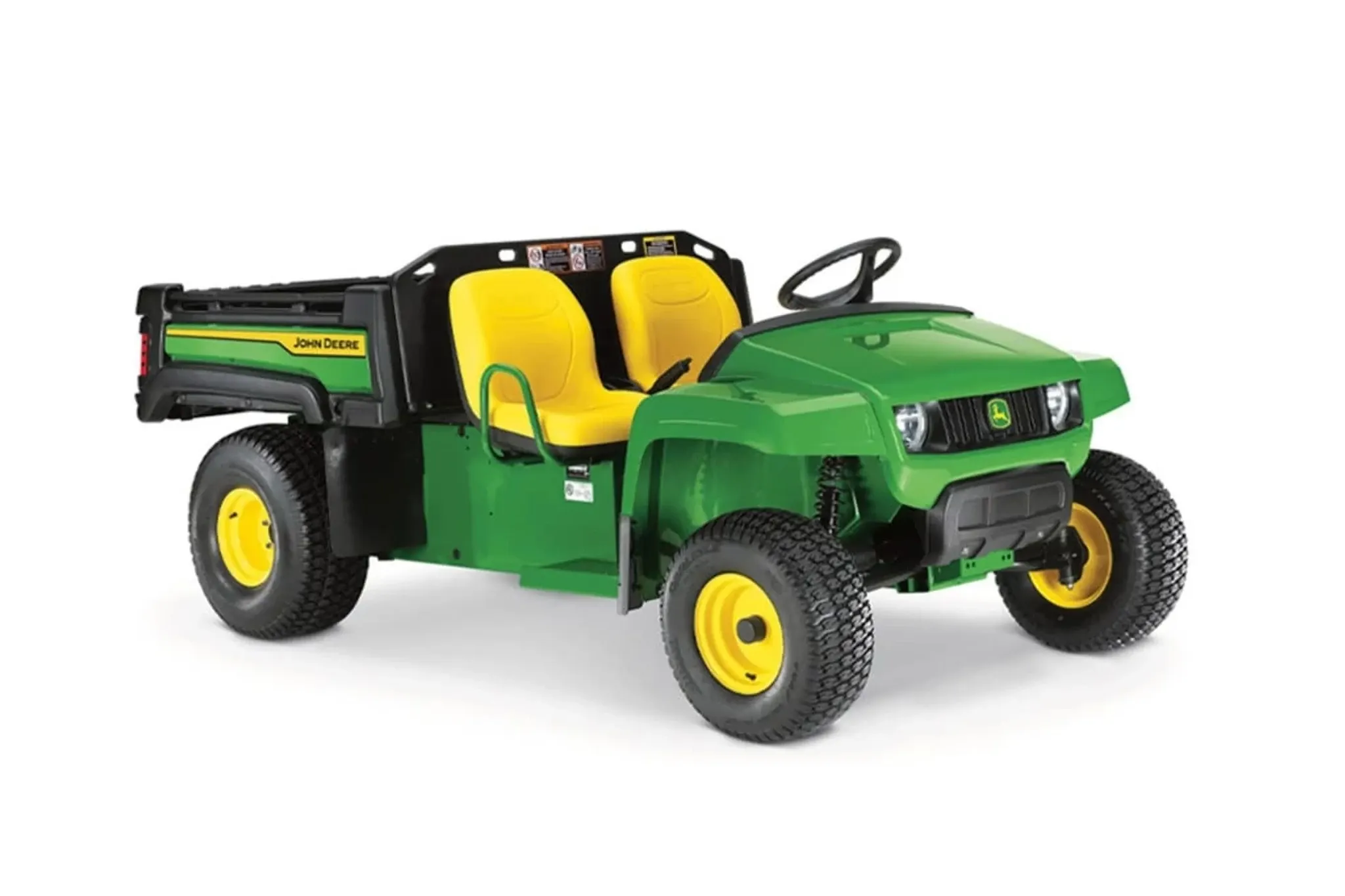

John Deere TE 4X2
Work Utility Vehicle
Work quietly and efficiently with the TE 4x2 Electric Work Utility Vehicle. Electric power means quiet operation and zero emissions, making it ideal for noise-sensitive environments and operators who want lower operating costs.
Product Features:
- 48-V Electrical System with Eight Batteries
- Electric Transaxle with Regenerative Braking
- Optional JDLink™ Modem Connects to John Deere Operations Center
- Fully-Independent Front and Semi-Independent Rear Suspension
Features
Work quietly and efficiently with the TE 4x2 Electric Work Utility Vehicle. Electric power means quiet operation and zero emissions, making it ideal for noise-sensitive environments and operators who want lower operating costs.
48-V Electrical System with Eight Batteries
Electric Transaxle with Regenerative Braking
Optional JDLink™ Modem Connects to John Deere Operations Center
Fully-Independent Front and Semi-Independent Rear Suspension
Benefits
Haul More in Fewer Trips

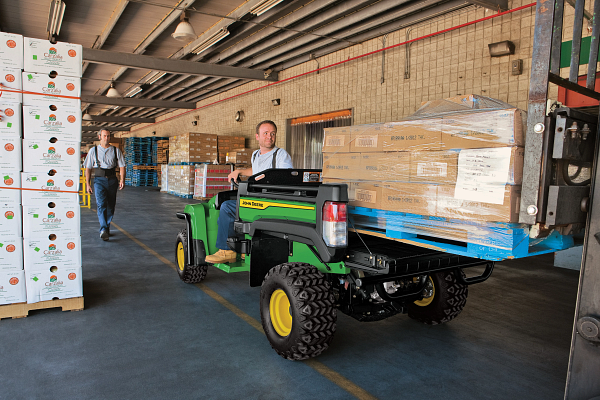

Haul up to 500 lb. (227 kg) in the 16.4-cu ft (460-L) cargo box, which can be converted to a flatbed to haul irregular cargo. Tow up to 600 lb. (272 kg) with an optional receiver hitch.
Walk-Through Platform Provides Easy Entry and Exit

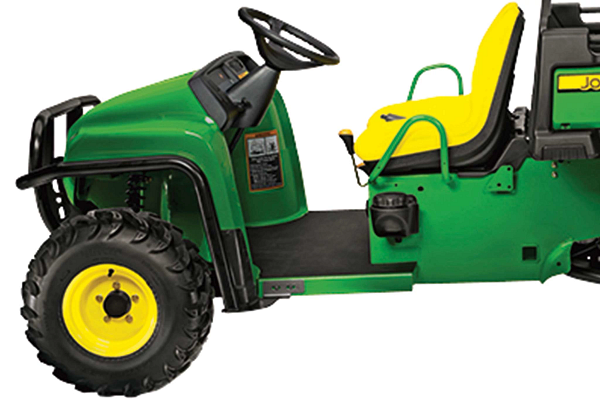

A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.
Charge Anywhere There is a Power Outlet

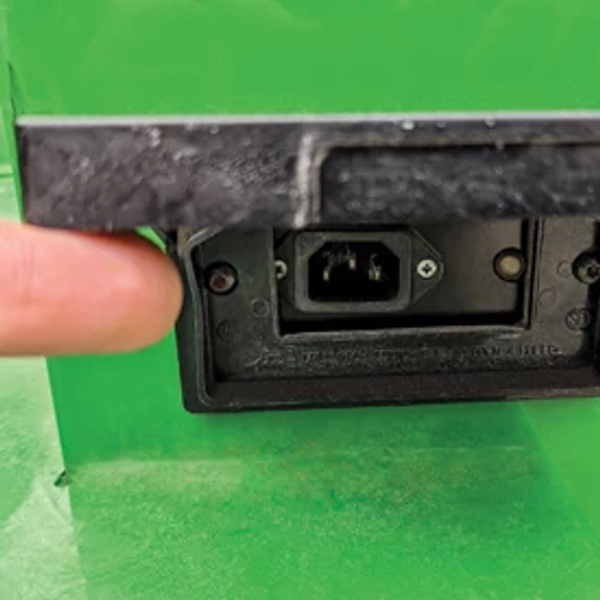

An onboard charger enables the vehicle to be charged anywhere with a standard 120-V outlet grounded outlet. The charger port is conveniently located below the driver's seat and is equipped with charge level indicator.
Specifications
| Motor | Wound direct drive, 48 VDC separately excited |
| Extended Run Time Battery | Not available |
| Controller | Separately excited, maximum 400 amp Anti-roll away braking and alarm, anti-stall motor protection, regenerative braking, diagnostic indicator, full torque, reduced speed reverse |
| Electrical System Voltage | 48 V |
| Electrical System Power | 12 kWh |
| Transaxle | 16.99:1 ratio with helical gearing |
| Gear Selection | Forward, neutral, reverse |
| Battery | Trojan T-105 |
| Speed | 20.92 km/h |
| Electrical System | Eight Trojan T-105 batteries |
| Speed | 13 mph |
| Type | Professional high back bucket, tilt forward |
| Seating Capacity | Two |
| Seat Adjustment | Optional |
| Front Tread Centers | 50 in. |
| Turning Clearance Circle | 22 ft |
| Length - Without Bumper | 104.9 in. |
| Length - With Bumper | 107.4 in. |
| Front Tread Centers | 1270 mm |
| Turning Clearance Circle | 6.7 m |
| Ground Clearance - Under Transaxle | 7.7 in. |
| Length - Without Bumper | 2664 mm |
| Rear Tread Centers | 1219 mm |
| Height | 44.5 in. |
| Ground Clearance - Under Foot Platform | 185 mm |
| Wheelbase | 76.4 in. |
| Ground Clearance - Under Transaxle | 196 mm |
| Width | 1524 mm |
| Towing Capacity | 272 kg |
| Payload Capacity | 900 lb. |
| Vehicle Weight | 1389 lb. |
| Rear Tread Centers | 48 in. |
| Wheelbase | 194 cm |
| Height | 1130 mm |
| Ground Clearance - Under Foot Platform | 7.3 in. |
| Width | 60 in. |
| Towing Capacity | 600 lb. |
| Length - With Bumper | 2728 mm |
| Payload Capacity | 408 kg |
| Vehicle Weight | 630 kg |
| Height Above Ground | 30 in. |
| Depth | 304.8 mm |
| Cargo Box Volume | 464 L |
| Width | 1321 mm |
| Tailgate | Hinged at bottom, removable; side panels are removable |
| Cargo Box Capacity | 600 lb. |
| Length | 1143 mm |
| Height Above Ground | 762 mm |
| Material | Polypropylene side panels and tailgate; steel floor and load guard |
| Depth | 12 in. |
| Cargo Box Volume | 16.4 cu ft |
| Width | 52 in. |
| Cargo Box Capacity | 272 kg |
| Dump | Manual, power lift (optional) |
| Length | 45 in. |
| Park Brake | Hand operated, multi-latch |
| Brake Type | Dual rear wheel mechanical drum |
| With 200 lb Operator Only | 8.6 psi |
| With 200 lb Operator Only | 0.6 bar |
| AC Power Cord | 2.4 m |
| AC Power Cord | 7.8 ft |
| Input Voltage | 120 V |
| Input Amperage (Nominal) | 12 amp |
| Breaker Maximum | 15 amp |
| Input Voltage | 60 Hz |
| Output Voltage | 48 VDC nominal |
| AC Input Connector | IEC320/C14 |
| Output Amperage | 21 ADC |
| Charger Type | High frequency switched-mode kW |
| Rear Suspension | Tow high-flotation, low pressure tires |
| Front Suspension - Total Travel | 127 mm |
| Steering | Rack and pinion |
| Front Suspension - Total Travel | 5 in. |
| Front Suspension | Independent, spring over shock, single A-arm |
| Date Collected | 2022-08-31T00:00:00 |
| Type | Mig welded uni-body, high strength steel |
| Rear | Two 24x12-10, 4-ply high-flotation turf |
| Front | Two 22x9.5-10, 4-ply high-flotation turf |
| Type | TPO - Rubber and Polypropylene |
| Other Standard Features | Battery discharge indicator, reverse warning indicator, operator presence switch, hour meter, headlight switch, two cup holders, glove box |
