John Deere TX 4X2
Traditional Utility Vehicle
Get work done with the TX 4x2 Traditional Utility Vehicle. Strong hauling capacity and straightforward operation make it easy to move materials, transport equipment, and tackle daily tasks around your property.
Product Features:
- 15.5-hp (11.6-kW) 675-cc V-Twin Engine
- CVT Transaxle with Differential Lock
- Turf Tires
- Fully Independent Front Suspension with High-Flotation Low-Pressure Tires
Features
Get work done with the TX 4x2 Traditional Utility Vehicle. Strong hauling capacity and straightforward operation make it easy to move materials, transport equipment, and tackle daily tasks around your property.
15.5-hp (11.6-kW) 675-cc V-Twin Engine
CVT Transaxle with Differential Lock
Turf Tires
Fully Independent Front Suspension with High-Flotation Low-Pressure Tires
Benefits
Haul More in Fewer Trips

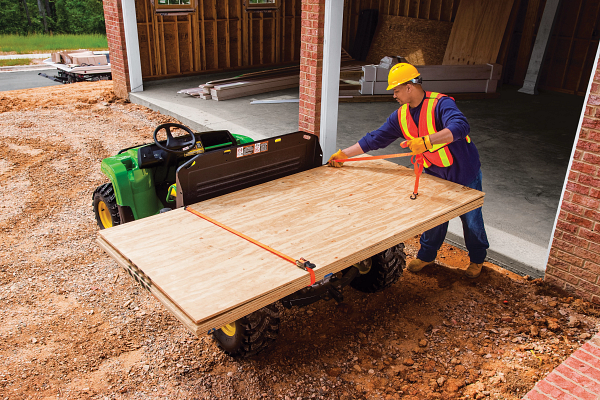

Haul up to 600 lb. (272 kg) in the 16.4-cu ft (460-L) cargo box, which can be converted to a flatbed to haul irregular cargo. An optional power lift raises the cargo box with the press of a button. Tow up to 1000 lb. (454 kg) with the included receiver hitch.
Walk-Through Platform Provides Easy Entry and Exit
A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.
Optional JDLink™ Modem Connects to John Deere Operations Center™
Install JDLink™ modems and use John Deere Operations Center™ to stay connected to your fleet. The modems report each vehicle's location, speed, and engine hours, enabling Operations Center to send an alert when a vehicle leaves a selected area, is operated outside prescribed times, or when maintenance is needed. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.
Specifications
| Fuel Capacity | 18.9 L |
| Weight | 501 kg |
| Cargo Box Dimensions | 45 x 12 x 52 in. |
| Tread Centers - Rear | 48 in. |
| Tread Centers - Front | 50 in. |
| Hitch | Standard: receiver hitch, 5.1 cm 2 in. |
| Ground Clearance | 145 mm |
| Tread Centers - Front | 1270 mm |
| Height | 43.6 in. |
| Wheelbase | 77 in. |
| Ground Clearance | 5.7 in. |
| Width | 1525 mm |
| Cargo Box Capacity (Weight) | 272 kg |
| Towing Capacity | 454 kg |
| Payload Capacity | 1000 lb. |
| Length | 2745.7 mm |
| Wheelbase | 1955.8 mm |
| Height | 1108 mm |
| Fuel Capacity | 5 U.S. gal. |
| Weight | 1105 lb. |
| Cargo Box Dimensions | 1143 x 305 x 1320 mm |
| Width | 60 in. |
| Tread Centers - Rear | 1220 mm |
| Cargo Box Capacity (Weight) | 600 lb. |
| Towing Capacity | 1000 lb. |
| Payload Capacity | 454 kg |
| Length | 108.1 in. |
| Battery | 340 CCA |
| Alternator | 16.6 amp |
| Color | Green/yellow |
| Power Steering | No |
| Battery | 12 V |
| Instrumentation | Fuel gauge, hour meter |
| Storage | Cup holders, glove box |
| Power Port - DC Outlet | 12 V |
| Seating | Bucket seats |
| Park Brake | Rear mechanical disk, hand operated |
| Type | All-wheel hydraulic disc |
| Cooling System | Air |
| Displacement | 675 cc |
| Displacement | 41.2 cu in. |
| Engine Power | 15.5 hp |
| Engine Power | 11.6 kW |
| Engine Type | Four-cycle gas |
| Rear | Two 24x10.5-10 4PR all-terrain on steel wheels Two 24x12-10 4PR turf on steel wheels |
| Front | Two 22x9.5-10 4PR all-terrain on steel wheels Two 22x9.5-10 4PR turf on steel wheels |
| Date Collected | 2025-06-08T11:12:00 |
| Country Of Manufacture | U.S. |
| Rear Suspension | Semi-independent coil over shock (COS) system |
| Front Suspension | Independent spring-over-shock, single A-arm |
| Four Wheel Drive | No |
| Transmission | Continuously Variable Transmission (CVT) |
| Final Drive | Fully enclosed; oil bath |
| Traction Assist | Mechanically activated differential lock |
| Descent Control | No |
