John Deere FM4012
Flex-Wing Grooming Mower
The John Deere FM4012 Flex-Wing Grooming Mower delivers superior cutting performance and unmatched durability, making it the ideal choice for maintaining large lawns and sports fields with precision and efficiency.
Product Features:
- Rear Chain Shield
- Hydraulic Wing Latch Release Kit
- Light Bar Kit for Transport
- Front and Rear Anti-Scalp Deck Wheel Kits
Features
The John Deere FM4012 Flex-Wing Grooming Mower delivers superior cutting performance and unmatched durability, making it the ideal choice for maintaining large lawns and sports fields with precision and efficiency.
Rear Chain Shield
Hydraulic Wing Latch Release Kit
Light Bar Kit for Transport
Front and Rear Anti-Scalp Deck Wheel Kits
Benefits

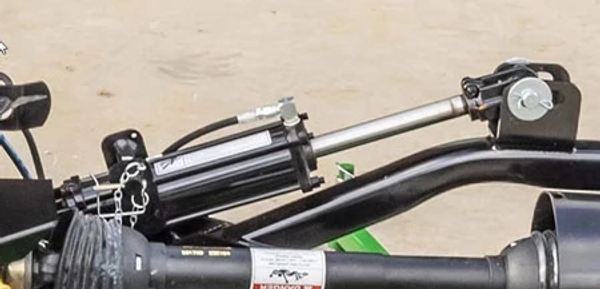

Hydraulic Wing Deck Locks
The FM4012 has hydraulic lifts for the wing and rear decks to automatically lock them in the up position for transport. It uses a single acting cylinder, requiring only one tractor rear SCV.

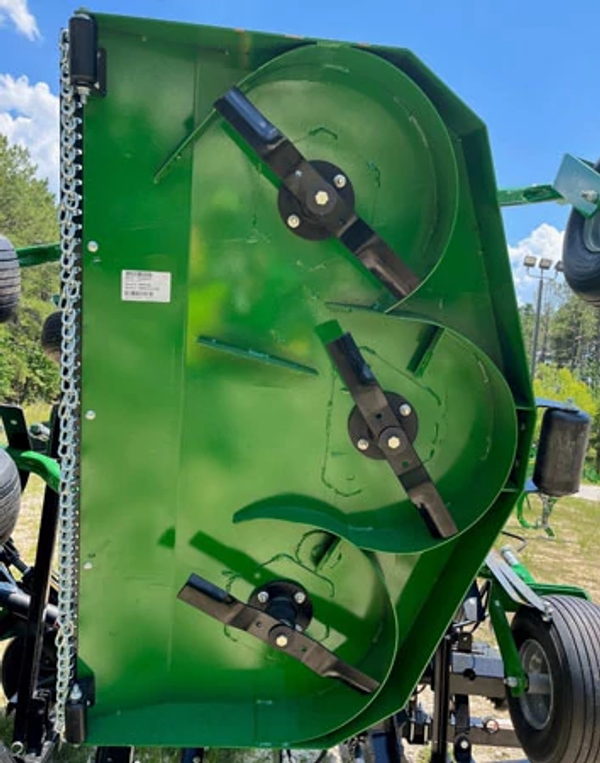

Deck Baffling for Quality Cut
Deck baffling around the blade ensures optimum cut quality. The FM4012 deck depth with baffling around the blades ensures exceptional material distribution and a higher quality of cut.
Caster Wheels for Uniform Cut
By having four caster wheels per deck, this mower follows ground contours with ease. Tubular caster wheel arms are bolted to rail supports for added durability.
Specifications
| Discharge Type | Rear |
| Lift Cylinders | 3x10 in. |
| Lift Cylinders | 7.6x25.4 cm |
| Deck Thickness, Gauge | 3.416 mm |
| Deck Thickness, Gauge | 0.1345 in. |
| Wing Travel, Degrees | Up 20 degree (angle) and down 15 degree (angle) |
| Deck Overlap | 6 in. |
| Deck Overlap | 15.2 cm |
| Deck Thickness, Gauge | 10 gauge |
| Blade Dimensions, Type 1 | 0.6x6.4 cm |
| Blade Overlap | 1.5 in. |
| Average Blade Tip Speed | 16200 fpm |
| Blade Tip Speed | 17,900 ft./min (Center Deck) / 18,200 ft./min (wing decks) |
| Blade Spindles | Ductile iron, lubed for life; sealed, ball bearing |
| Blade Composition | Heat-treated alloy steel |
| Blade Dimensions, Type 1 | 0.25x2.5 in. |
| Blade Overlap | 3.8 cm |
| Number Of Blades | 9 |
| Average Blade Tip Speed | 4938 m/min |
| Blade Spindle Bearings | Greaseable ball |
| Blade Spindle Quantity | Nine |
| Blade Spindle Type | Cast iron |
| Operating Weight | 1999 lb. |
| Transport Tongue Weight | 384 lb. |
| Shipping Weight | 2005 lb. |
| Shipping Weight | 909 kg |
| Operating Tongue Weight | 218 lb. |
| Drive Type | Gearbox over V-belt |
| Wing Driveline | Category 3 |
| Input Driveline | Category 3 CV |
| Machine Warranty | 1 year |
| Gearbox Warranty | 1 year |
| Spindle Warranty | 1 year |
| Mainframe Construction | 10.2 cm / 4 in. |
| Front Roller | Optional |
| Front And Rear Anti-Scalping Roller | Option (field installed) |
| Working Width | 12 ft |
| Transport Dimensions (Lxwxh): | 11.25 x 7.6 x 10.25 ft |
| Working Length | 11.7 ft |
| Hitch Clevis | Floating |
| Hitch Category (Drawbar) | Category 1 |
| Hitch Drawbar | Category 1 |
| Hitch Adjustment | 4 positions |
| iMatch / Quick Hitch | N/A |
| Hitch Type | Adjustable Clevis |
| Belt Type | B-section, Kevlar |
| Belt Adjustment | Spring-loaded idler |
| Caster Wheels Quantity | 10 |
| Caster Wheels Bearings | Powder metal bushing |
| Caster Wheels Size | 10x4 |
| Caster Wheels Size | 25.4x10.2 |
| Caster Wheels Type | Solid |
| PTO Speed | 540 rpm |
| PTO Power Range | 25-60 hp |
| Setup Time Labor Hours | 1.25 hr |
| Auto-Engage Transport Latch | Optional |
| Transport Lights | Optional |
| Rear Chain Shields | Optional |
| Markings | Slow-moving vehicle |
| Gauge Wheels Quantity | 10 |
| Gauge Wheels Type | Solid rubber |
| Gauge Wheels Size | 8x3.5 in. |
| Cutting Width Total | 3.6 m |
| Cutting Width Total | 12 ft |
| Cutting Width Wing Deck | 48 ft |
| Cutting Width Center Deck | 60 ft |
| Cutting Height Range | 1-4.5 in. |
| Cutting Height Range | 2.5-11.4 cm |
| Cutting Height Adjustment | .5 increments (spacer) |
| Ground Pressure | 5 pounds per square inch |
| Gearbox Ratio | 1:2.5, 1:1.92 |
| Mower Deck Gearbox Power | 30 hp |
| Transport Tires | 20X8-10 |
