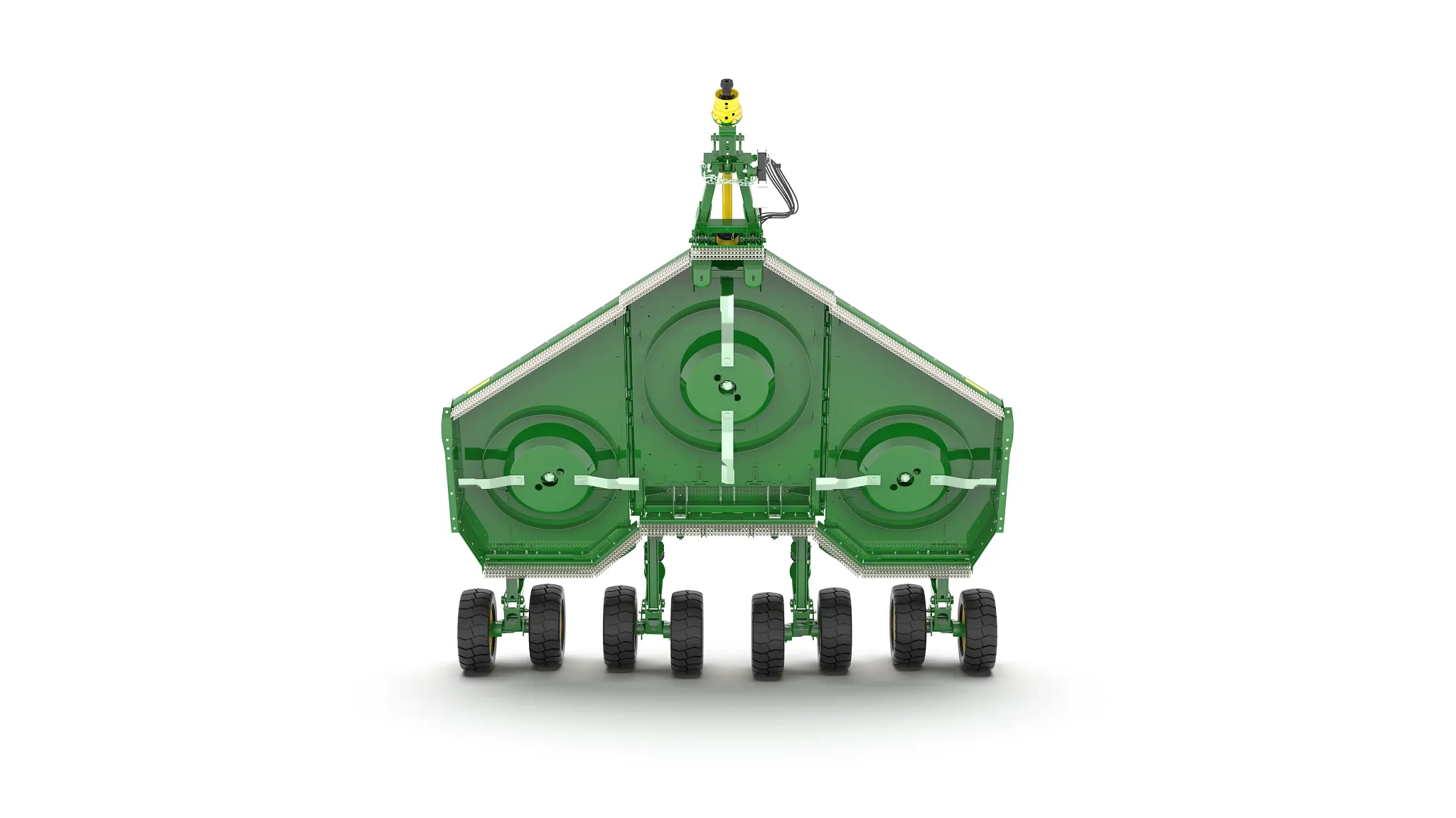

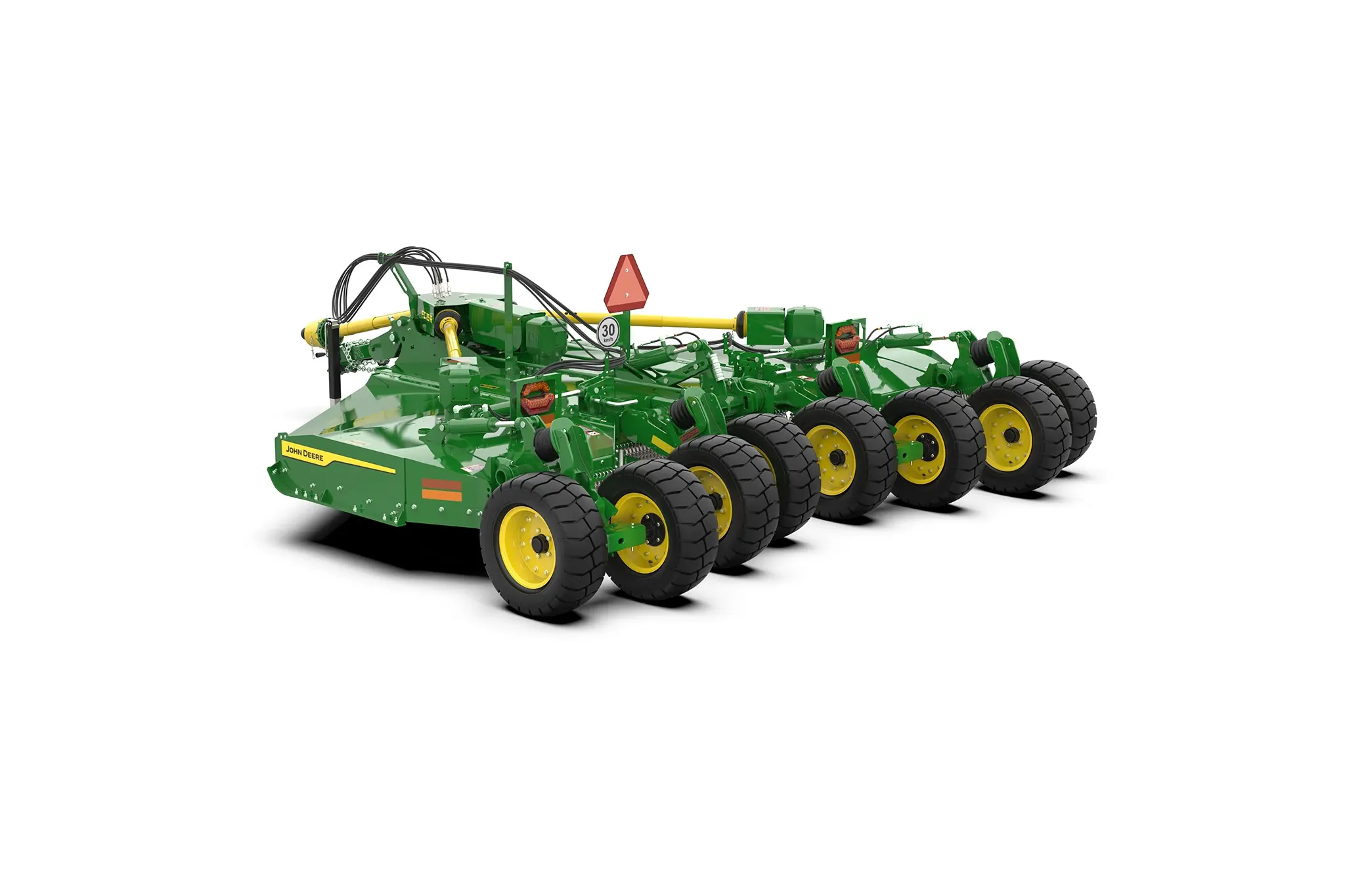

Studio rendering of FC15R Heavy Duty

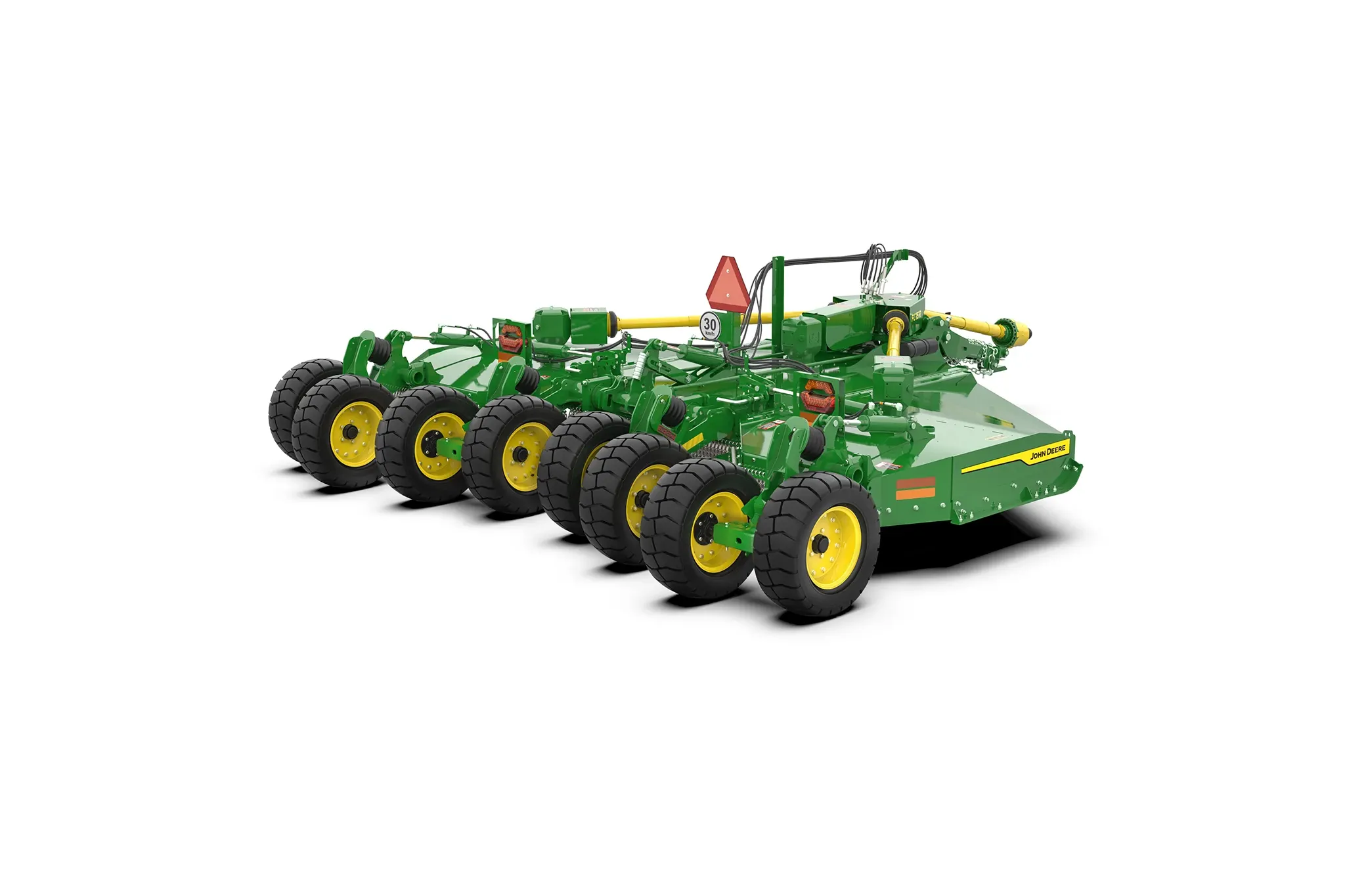

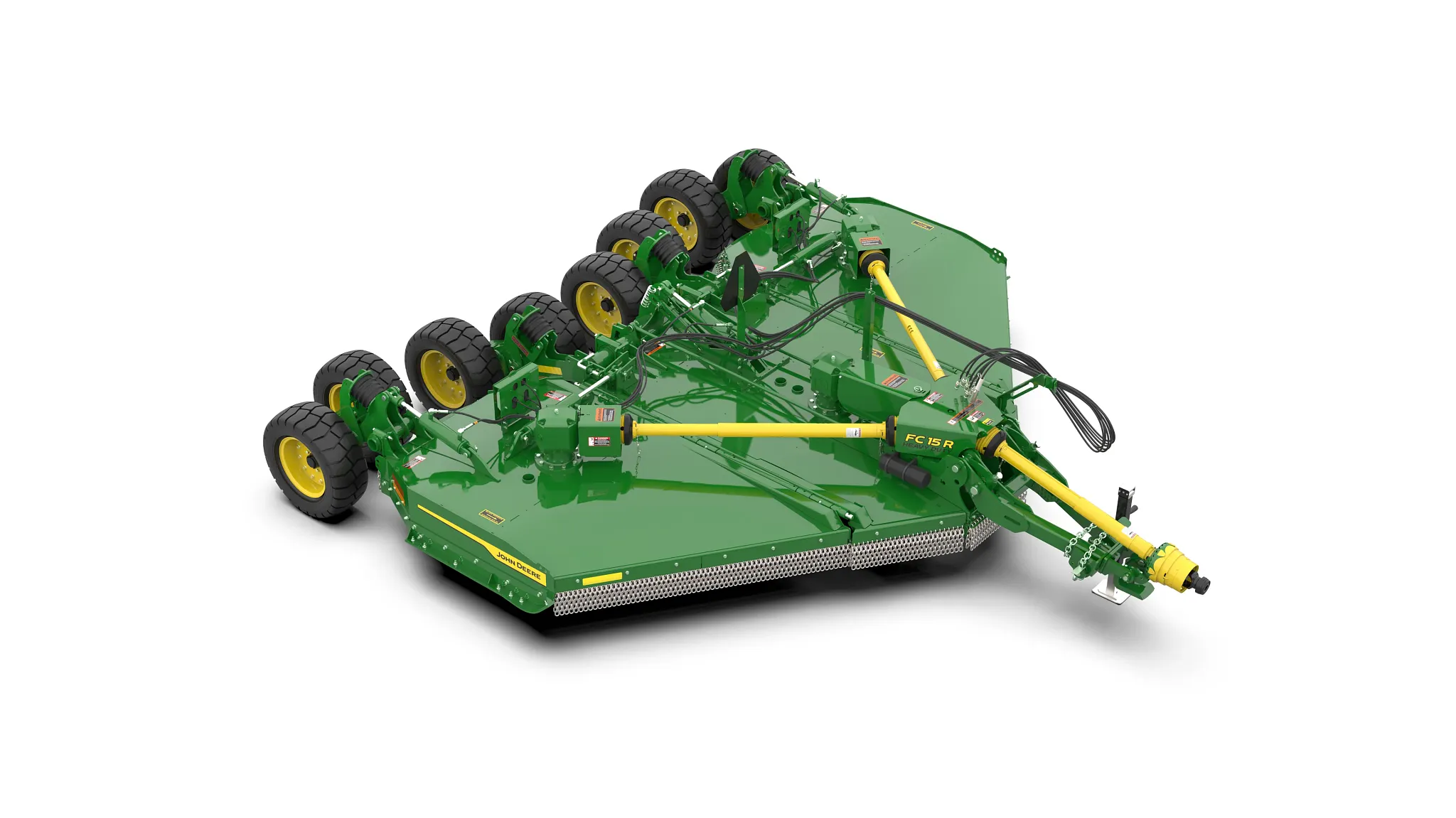

Studio rendering of FC15R Heavy Duty

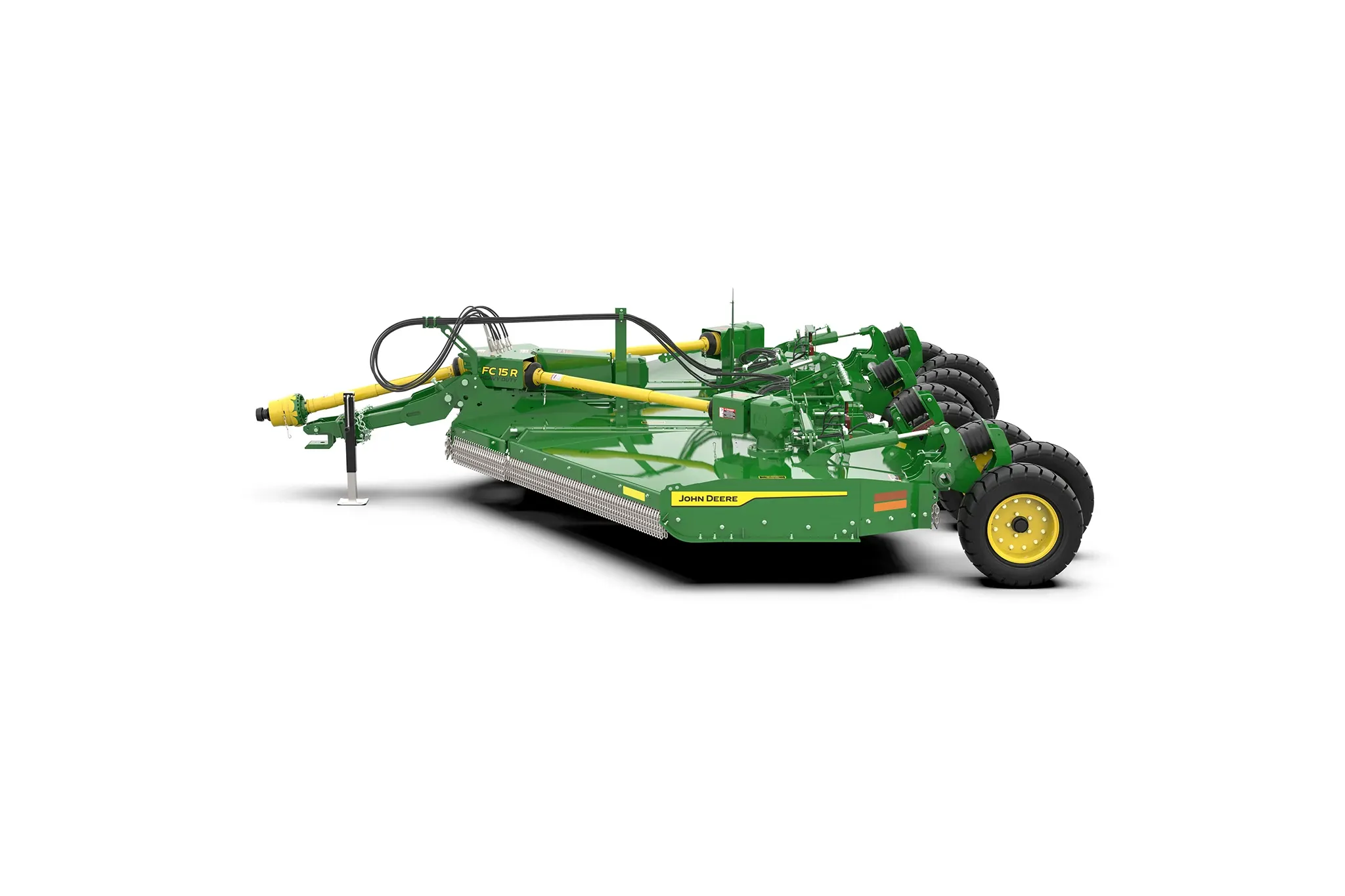

Studio rendering of FC15R Heavy Duty

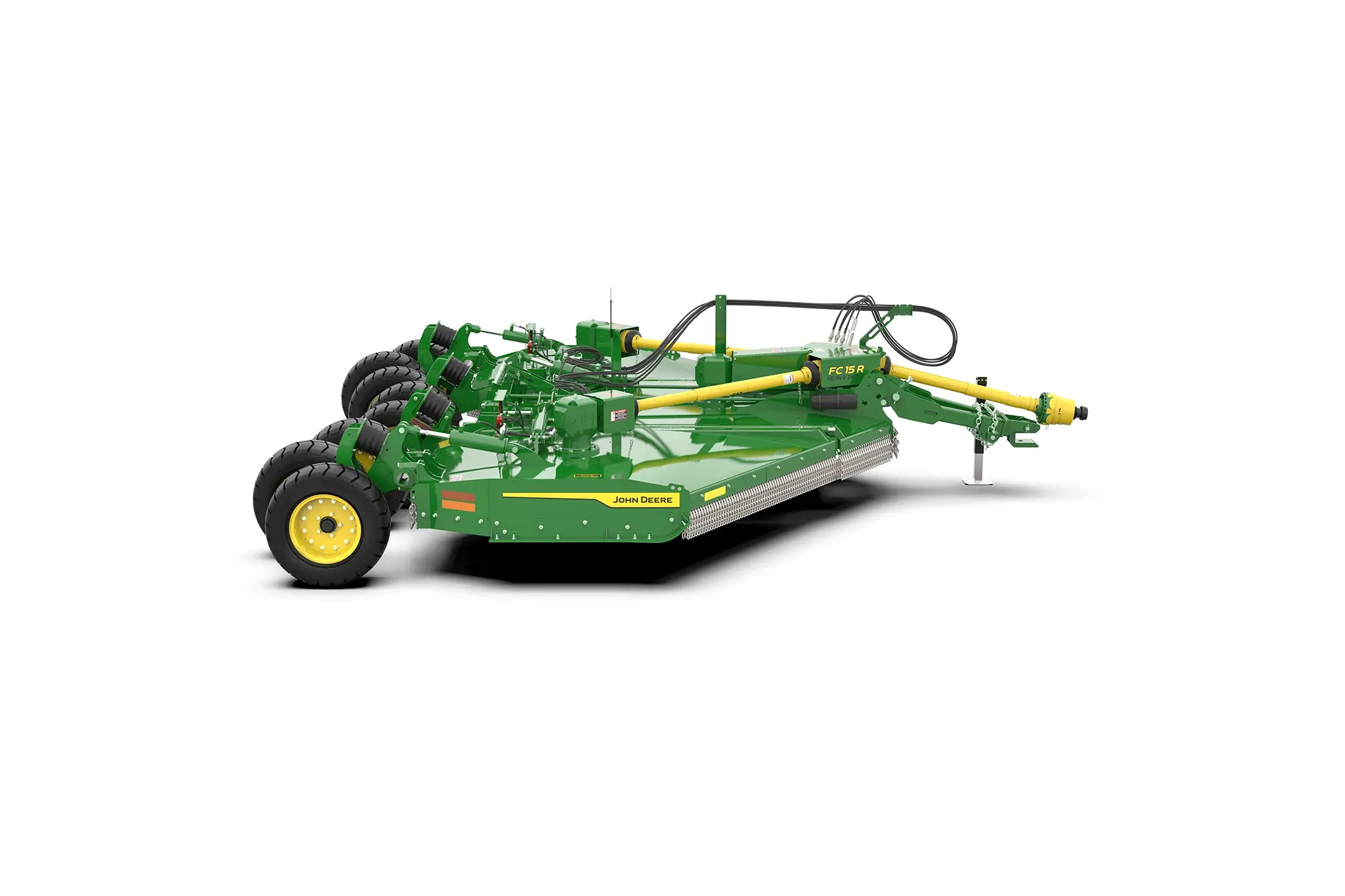

Studio rendering of FC15R Heavy Duty

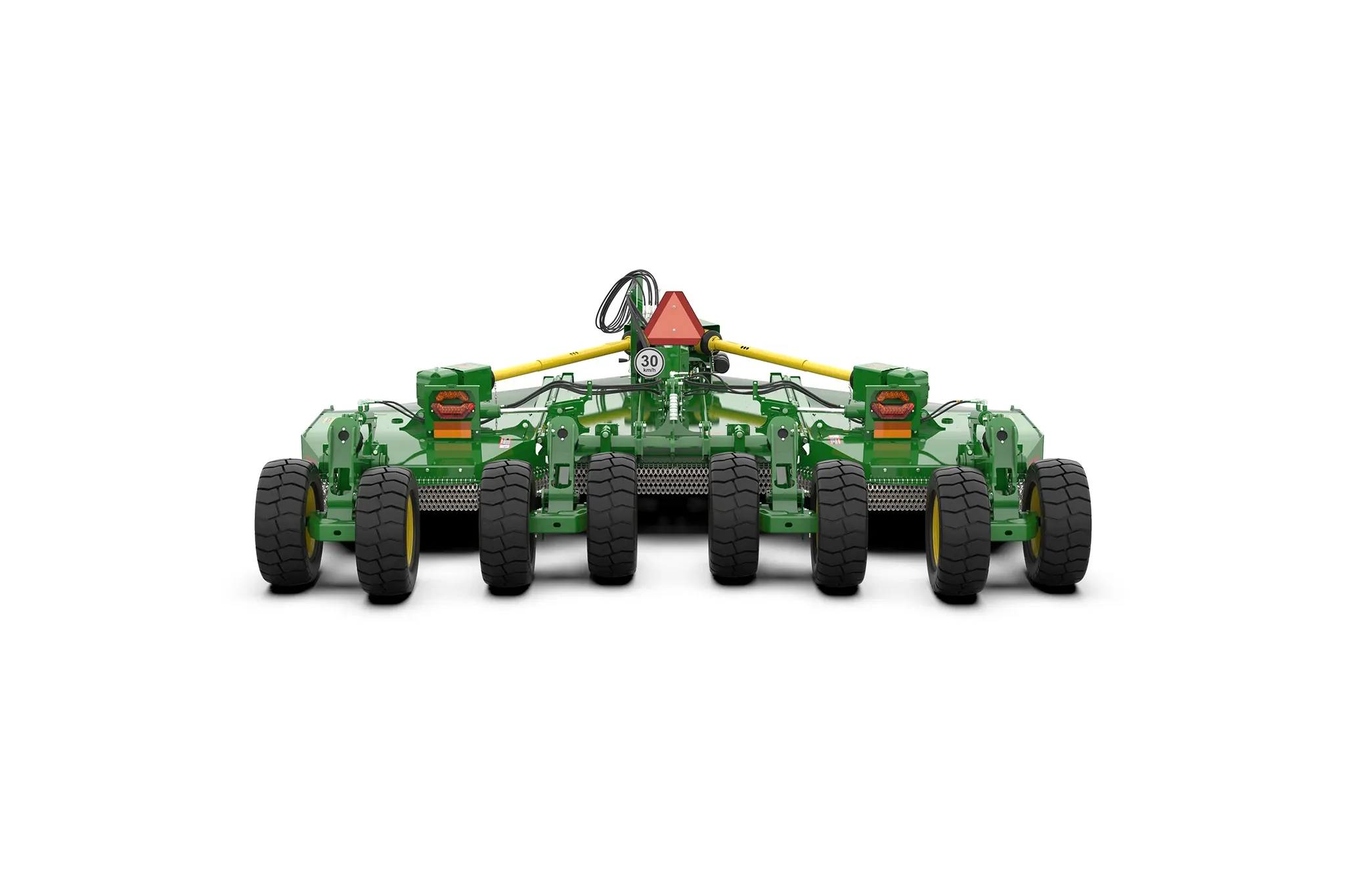

Studio rendering of FC15R Heavy Duty

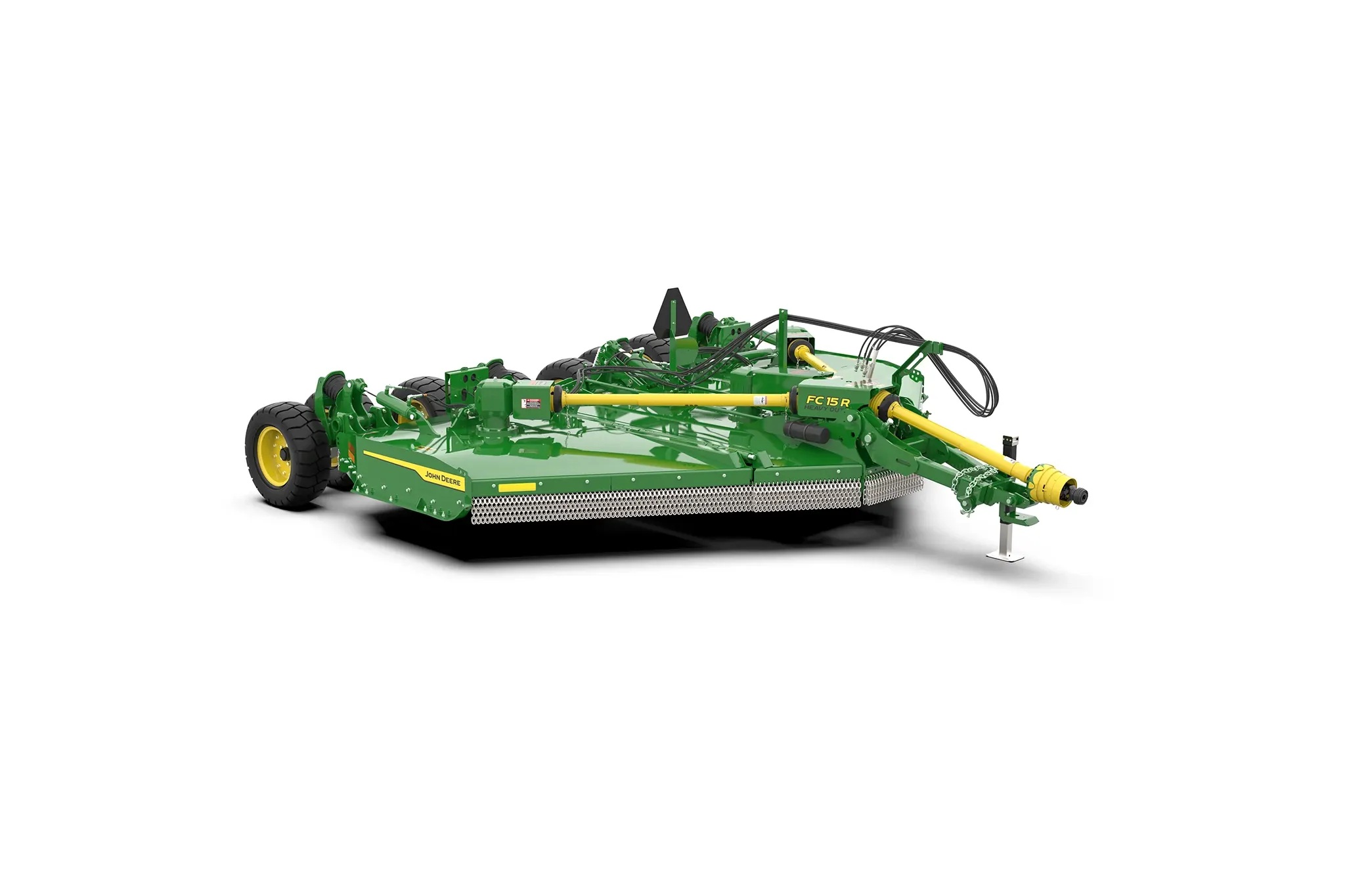

Studio rendering of FC15R Heavy Duty

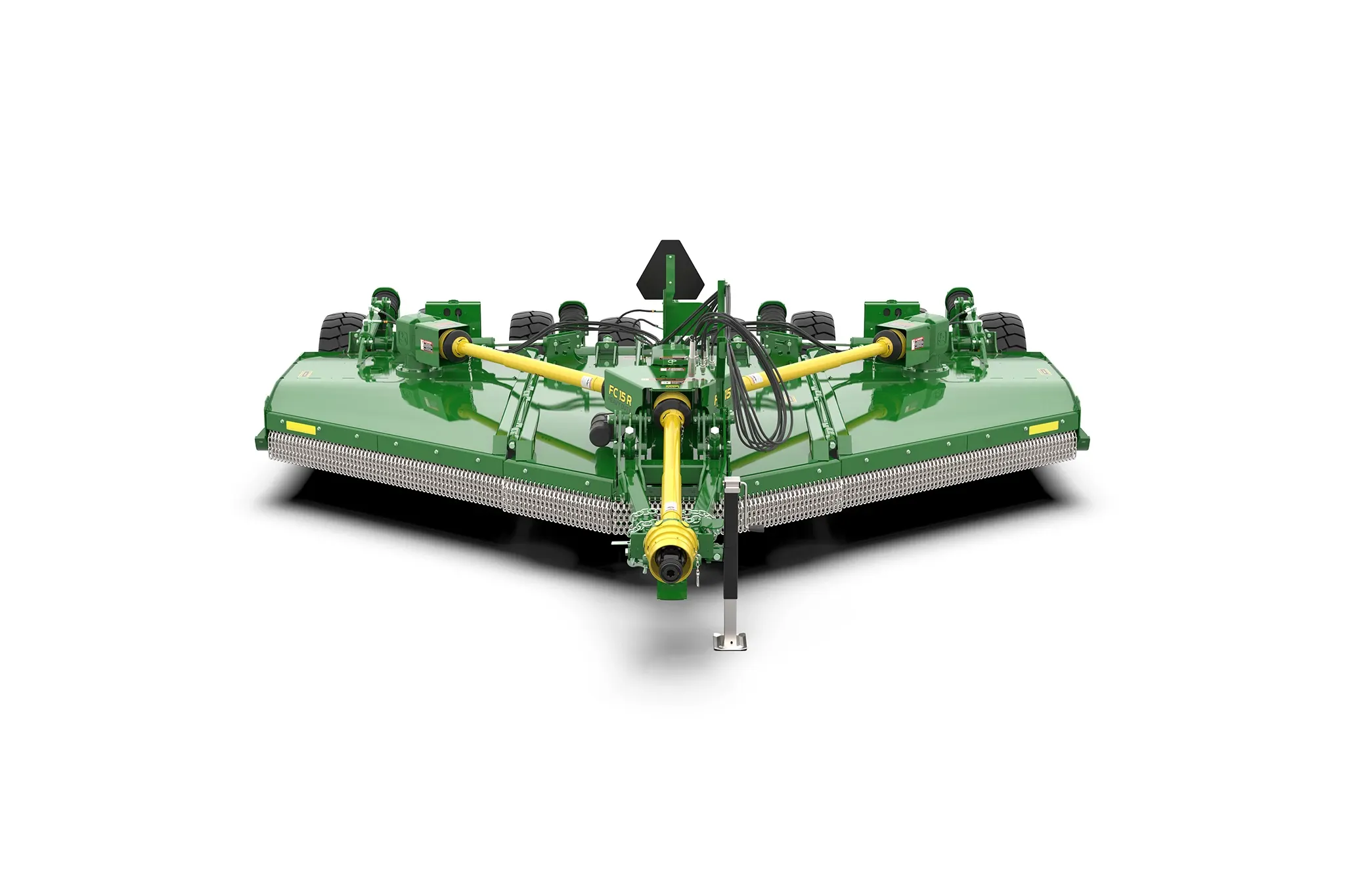

Studio rendering of FC15R Heavy Duty

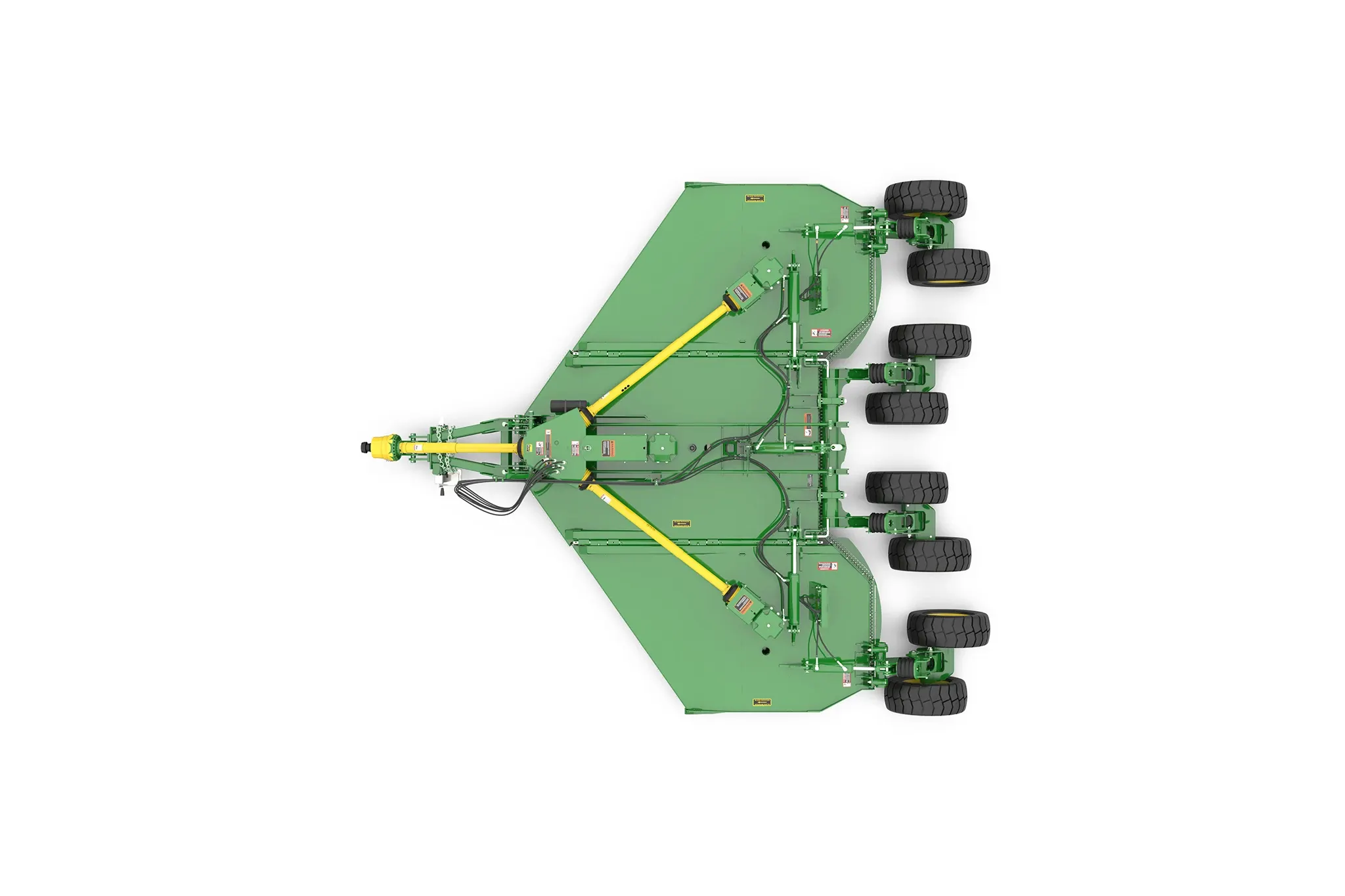

Studio rendering of FC15R Heavy Duty
Studio rendering of FC15R Heavy Duty
Studio rendering of FC15R Heavy Duty
Studio rendering of FC15R Heavy Duty

John Deere FC15R Heavy Duty

Flex-Wing Rotary Cutter

Take on tough terrain with the FC15R HD. This Heavy-Duty model is built to power through thick grass and brush with precision and efficiency. The upgraded suspension is designed for improved durability and increased stability to handle demanding roadside and rough terrain mowing jobs with ease.

Product Features:

  • 15-ft Cutting Width
  • 540 or 1000 PTO rpm
  • 4-in. Cutting Capacity
  • Poly Spring Suspension

Specifications

Connecting Driveline Protection No-seize, slip-clutch driveline
Main Driveline Size CV ASAE Category 6, splined telescoping profiles
Connecting Driveline Size ASAE Category 5, splined telescoping profiles

Cutting Width 4.6 m
Cutting Width 15 ft
Cutting Capacity (Diameter) 4 in.
Cutting Chamber Depth 25.4 cm
Cutting Chamber Depth 10 in.
Cutting Height 2.54-45.5 cm
Cutting Height 1-18 in.
Cutting Capacity (Diameter) 10.2 cm

Tractor PTO 540, 1000 rpm
Tractor PTO HP Range 41 kW
Tractor PTO HP Range 55 hp

Center Horsepower Rating - Continuous 186 kW
Outer Horsepower Rating - Peak 205 kW
Transfer Horsepower Rating - Peak 224 kW
Outer Horsepower Rating - Continuous 186 kW
Center Horsepower Rating - Peak 275 hp
Transfer Horsepower Rating - Continuous 250 hp
Number 4
Center Horsepower Rating - Continuous 250 hp
Outer Horsepower Rating - Peak 275 hp
Transfer Horsepower Rating - Peak 300 hp
Outer Horsepower Rating - Continuous 250 hp
Center Horsepower Rating - Peak 205 kW
Transfer Horsepower Rating - Continuous 186 kW

Blade Tip Speed - 1000 RPM 268.700796 fps
Blade Holder Type Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 4.55 mm 0.18 in. Blade bar: 2.5 x 12 cm 1 x 4.7 in.
Blade Tip Speed - 1000 RPM 81.9 m/s
Overlap 152 mm
Overlap 6 in.
Thickness 0.5 in.
Thickness 13 mm
Type Suction
Width 4 in.
Width 102 mm
Blade Tip Speed - 540 RPM 264.435704 fps
Blade Tip Speed - 540 RPM 80.6 m/s

Transport Width (At Wing Wheels) 2.5 m
Approximate Weight 3454 kg
Side Skirt Thickness 0.24 in.
Overall Length 5.3 m
Deck Type Full double deck
Lower Deck Thickness 7 gauge
Upper Deck Thickness 11 gauge
Overall Width 5.7 ft
Deck Shape Smooth top deck
Lower Deck Thickness 0.17 in.
Upper Deck Thickness 0.12 in.
Approximate Weight 7616 lb.
Transport Width (At Wing Wheels) 8 ft
Side Skirt Thickness 6 mm
Overall Length 17.3 ft
Overall Width 4.8 m
Hinges Intermittent cast segments with segmented 3.1-cm (1.25-in.) diameter hinge pins
Upper Deck Thickness 3 mm
Side Skirt Thickness 3 gauge
Lower Deck Thickness 4.5 mm

Wing Lift Three SCV connected to the tractor (machine height and wing lift) Independent wing operation
Wing Flex For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

Rear Double-row chain guard
Front Double-row chain guard

Wing-Leveling Adjustment Adjustable threaded clevis on wing lift cylinders
Row Width Adjustment No
Suspension Poly spring suspension
Type - Option 1 5-bolt, 16 PR Heavy-Duty Forklift Tires 736 x 282 x 381 mm (29 x 11 x 15 in)

Gearbox Warranty 5 years

Jack Stand Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering
Type Standard narrow A-frame tongue with Swivel hitch
