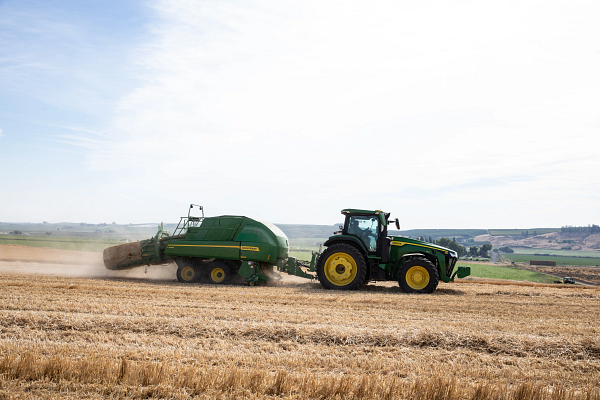

John Deere L341R HIGH-DENSITY
Large Square Baler
The L341R High-Density Baler has reinforced components with an increased plunger force, tension panel pressure and an 18 longer bale chamber to produce bales that weigh 30% more compared to previous standard balers.
Product Features:
- Bale Documentation With John Deere Operations Center™
- MegaWide™ Pickup With Mega Tough™ Pickup Teeth
- John Deere Moisture Sensor and Weighing System
- BalerAssist™ Drivetrain System
Features
The L341R High-Density Baler has reinforced components with an increased plunger force, tension panel pressure and an 18” longer bale chamber to produce bales that weigh 30% more compared to previous standard balers.
Bale Documentation With John Deere Operations Center™
MegaWide™ Pickup With Mega Tough™ Pickup Teeth
John Deere Moisture Sensor and Weighing System
BalerAssist™ Drivetrain System
Benefits
Near Real-Time Data
Get near real-time data on yield, moisture, and bale weight via John Deere Operations Center™. Make informed production and resource management decisions, ensuring high-quality baling while helping to reduce operational costs.
High-Density Components
The L341R High-Density Baler produces 30% heavier bales compared to standard models due to additional cylinders, reinforced hoops, and a longer bale chamber. This results in fewer bales per acre and maximized truck weights, enhancing operational efficiency.
Double-Tie Knotter System
The double-tie knotter system offers reliable knotting in high-density and challenging baling conditions. It features an integrated auto-lube system and simplified maintenance to ensure consistent and efficient bale production.
Specifications
| High-Capacity Rotor | Yes |
| Knives | 21, 11, or 10 |
| Knife Protection | Individual spring |
| Cutting Length | 1.7 in. |
| Cutting Length | 44 mm |
| Slide Out Floor | Yes |
| Machine Weight | 23710 lb. |
| Machine Weight | 10755 kg |
| Machine Width | 3.35 m |
| Machine Width | 11 ft |
| Minimum Tractor Requirement | 108 kW 145 PTO hp - no Pre-Cutter 119 kW 160 PTO hp - with Pre-Cutter |
| Machine Length | 9.29 m |
| Machine Length | 30.6 ft |
| Machine Height | 9.9 ft |
| Machine Height | 3 m |
| Density Control | Six hydraulic cylinders |
| Bale Chamber Length | 138 ft |
| Bale Chamber Length | 3.23 m |
| Number Of Plunger Strokes | 45 spm |
| Plunger Stroke | 27 in. |
| Plunger Stroke | 695 cm |
| Control | ISOBUS - GreenStar™ 2 1800 or GreenStar 3 2630 |
| Bale Length | 60 cm |
| Bale Length | 24 in. |
| Bale Height | 90 cm |
| Bale | 90x120 cm cm |
| Bale | 3x4 ft in. |
| Bale Width | 46.5 in. |
| Bale Width | 120 cm |
| Bale Height | 35 in. |
| Pickup Diameter | 10 in. |
| Pickup Diameter | 25.6 cm |
| Tine Spacing | 6.6 mm |
| Tine Spacing | 2.6 in. |
| Number Of Tine Bars 4-5 | 4 |
| Intake Width | 220 cm |
| Intake Width | 86 in. |
| Single Axle | 600/50/22.5 or 710/40R/22.5 |
| Tandem Axle Steered (Optional) | 500/55/20 or 550/45/22.5 |
| Brakes System | Optional hydraulic |
| Number Of Knotters | 6 |
| Twine Capacity (Rolls) | 30 |
