Overhead view of DB60 24Row30 Planter pulled through a field by a large tractor

John Deere DB60

Planter

The DB60 24Row Split 47 Planter enhances efficiency with dual-variety planting and precise fertilizer and seed placement, boosting productivity and crop yields.

Product Features:

  • 60-ft Toolbar With 24 Rows on 15-in. Spacing
  • Available in Mini-Hopper, 1.6-bu, or 3-bu ExactEmerge™ or MaxEmerge™ 5e Row Unit
  • Insecticide Option for Mini-Hopper
  • Requires a Minimum 275-hp Tractor Equipped With Category 4 Drawbar
View Product Broshure

Specifications

Less Marker Option Optional
Marker Disk Base: Notched with depth gauging band: 40.6 cm 16 in.
Control Base: Independent
Type 3-section front-fold

Counter Shaft Hex: 2.22 cm 0.875 in.
Transmission Combinations Infinite
Drill Shaft Hex: 2.22 cm 0.875 in.
Base Three-motor hydraulic variable rate drive

Plastic Rotary Opener Blades Optional
Scrapers, Opener Blade Optional
Walking Wheels Optional
Seed Hopper Capacity 0.063 bu
Seed Tube Sensors Base equipment
Type ExactEmerge™ row units or MaxEmerge™ 5e row units or MaxEmerge™ 5 row units
Depth Gauging (2) semi-pneumatic wheels: 11.4x40.6 cm 4.5x16 in.
Pneumatic Down Force Base, Infinitely adjustable to 181.4 kg 400 lb
Seed Hopper Material Plastic
Heavy-Duty Opener Blades Optional
Adjustment T-handle depth: 0.635-10.2 cm 0.25-4 in. with increments of 0.635 cm 0.25 in.
Seed Hopper Capacity 2.24 L
Row Unit Seed Hoppers Mini hoppers
Steel Straight Opener Blades Optional
Row Unit Down Force Base equipment

Cast Iron Closing System Optional
Cast Iron Closing System - Wheel (2) cast iron wheels: 2.54x30.5 cm 1x12 in.
Cast Iron Closing System - Position In-line or staggered
Rubber Tire Closing System - Adjustment T-handle
Rubber Tire Closing System - Position In-line or staggered
Rubber Tire Closing System Base equipment
Rubber Tire Closing System - Wheel (2) rubber tires with nylon wheels: 2.54x30.5 cm 1x12 in.
Rubber Tire Closing System - Alignment Adjustable
Rubber Tire Closing System - Down Force 5-position
Cast Iron Closing System - Adjustment T-handle

Frame Tube Size 17.8x17.8 cm
Frame Flexibility - Down 15 degree (angle)
Frame Flexibility - Up 15 degree (angle)
Frame Tube Size 7x7 in.
Frame Fold Configuration 3-section front-fold
Fold-And-Go From Tractor Base

Warranty Length 1 year

Transport Height 10 ft
Transport Height 3 m
Transport Width (With Markers) 5.4 m
Transport Width (With Markers) 17.5 ft
Transport Underframe Clearance 22 ft
Transport Weight 13517 kg
Transport Underframe Clearance 55.9 m
Transport Weight 29800 lb.
Transport Length 12.5 m
Transport Length 41 ft

Map-Based Seeding Yes
Parallel Tracking Yes
Field Documentation Yes

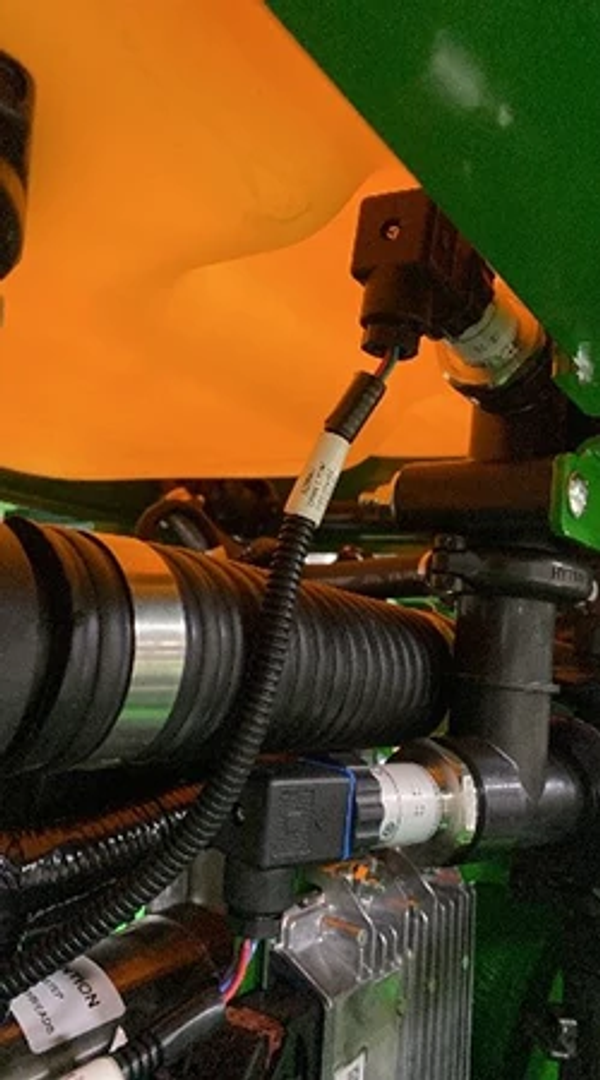

Tank Capacity 1590 L
Tank Capacity 420 gal.

Type Electrohydraulic series rephasing cylinders with center sec. drop axle
Number Of Cylinders 5

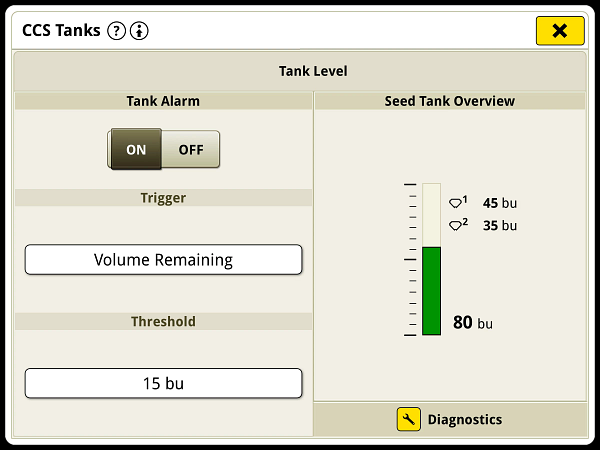

Central Commodity System (CCS) Base equipment
CCS Seed Capacity 130 bu
CCS Seed Capacity 4581 L
Base Seed Meter Vacuum

Quantity 8
Base (4) 16.5x16.1, (4) 31-13.5x15

Base SeedStar™ electronic system

Row Spacing 38.1 cm
Row Spacing 15 in.
Number Of Rows 47

Unit-Mounted Coulter Optional

Base Drawbar
