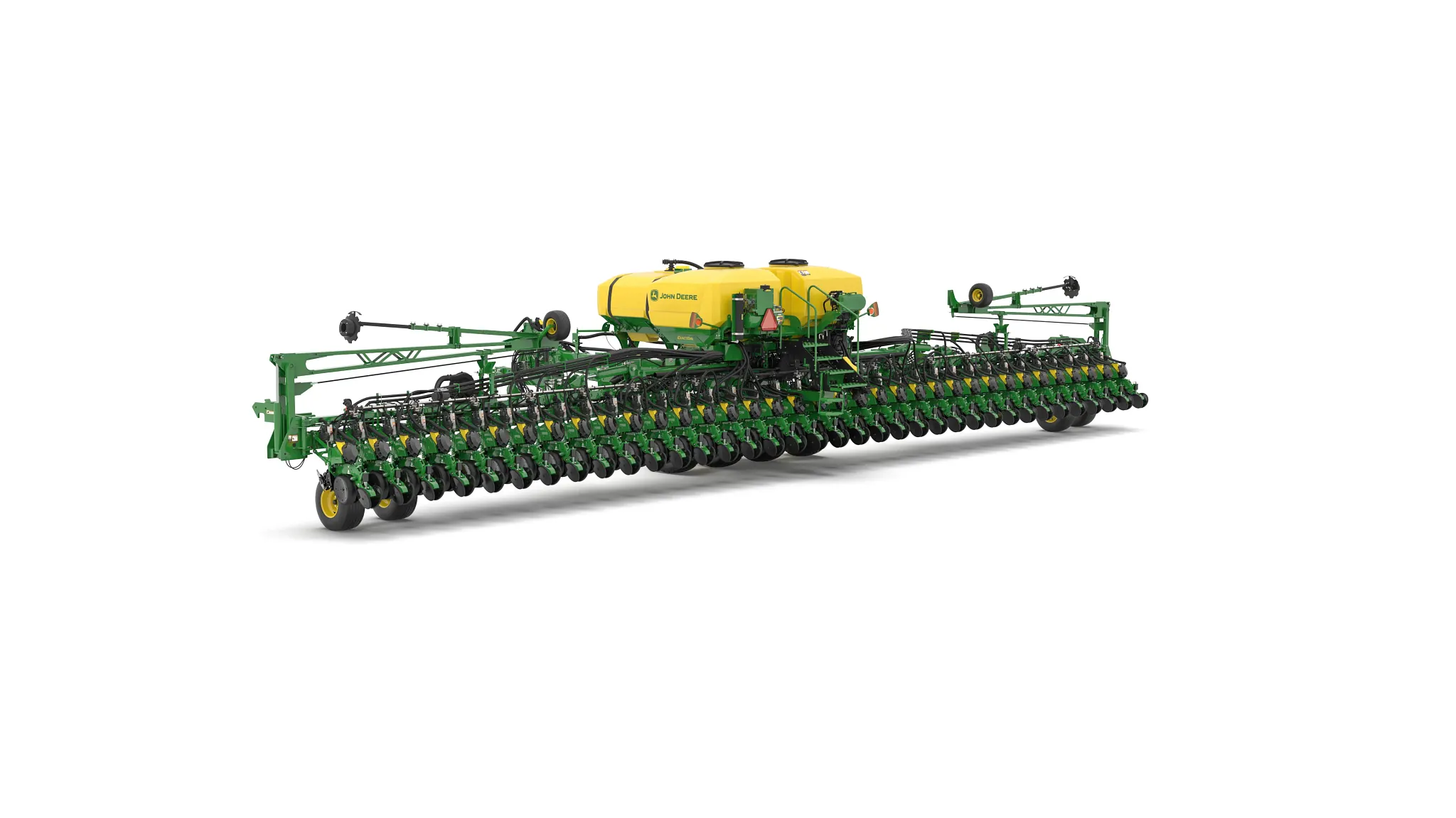

Studio rendering with left rear view of DB60 36R planter.

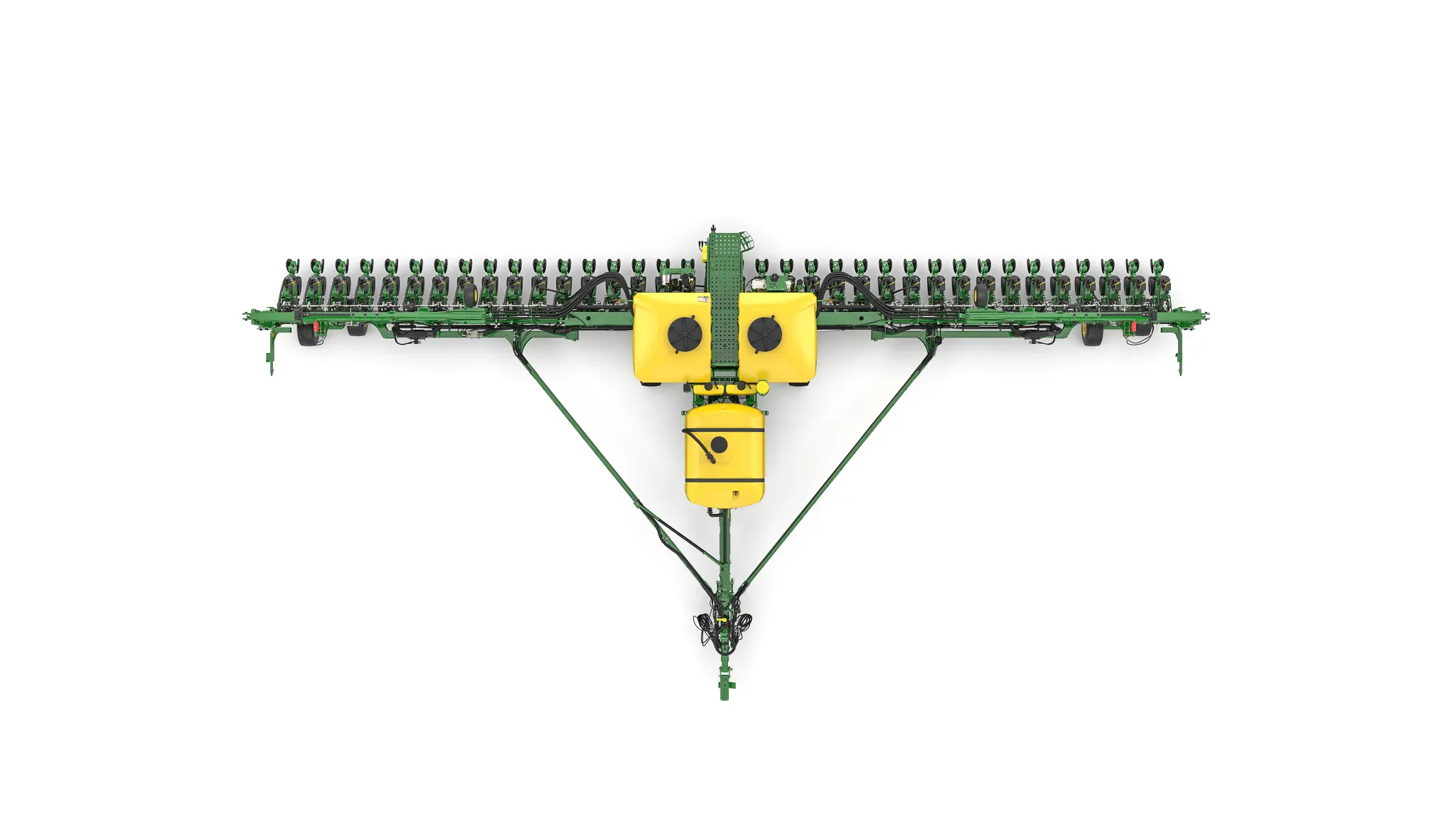

Studio rendering with overhead view of DB60 36R planter.

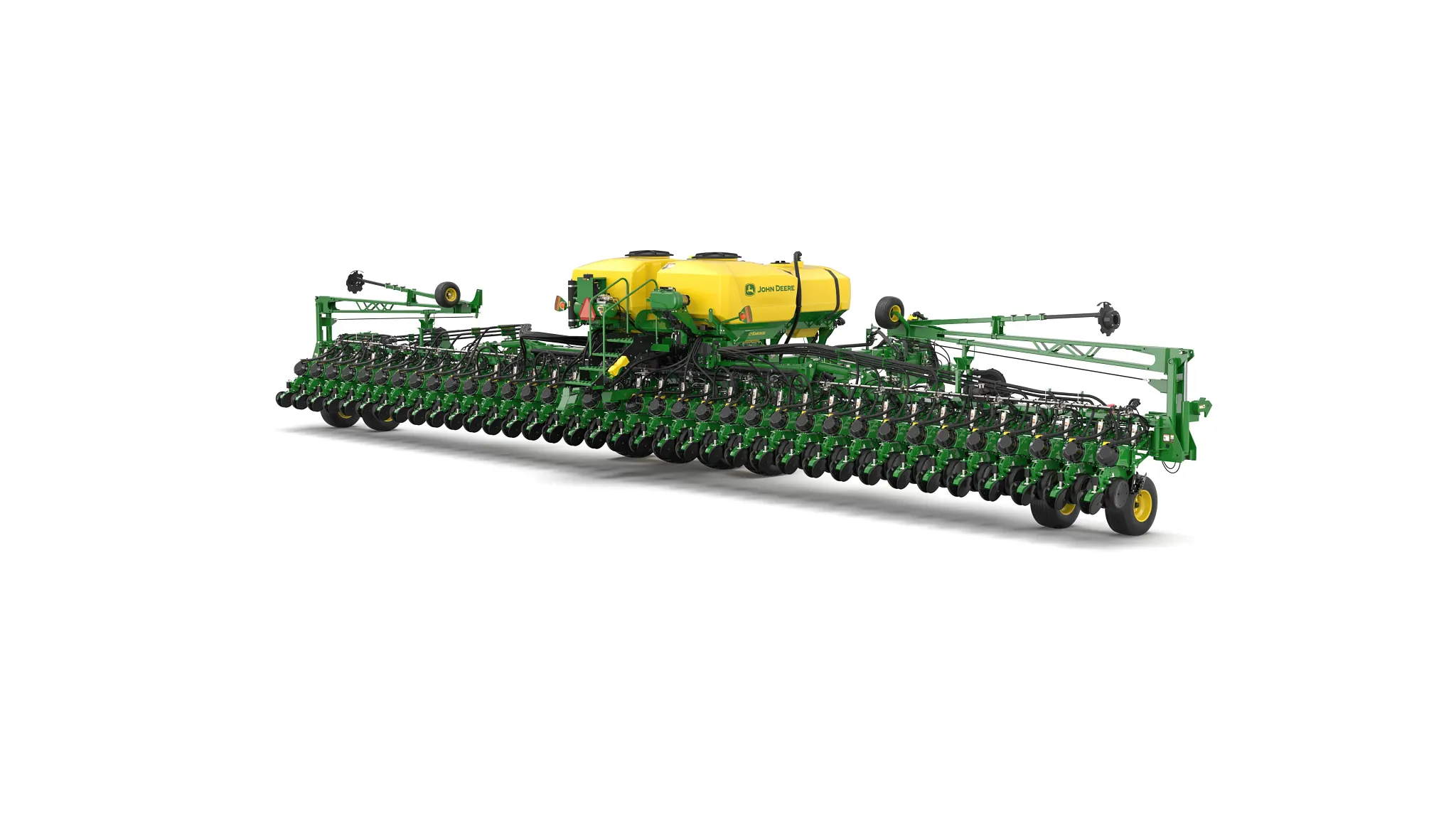

Studio rendering with right rear view of DB60 36R planter.

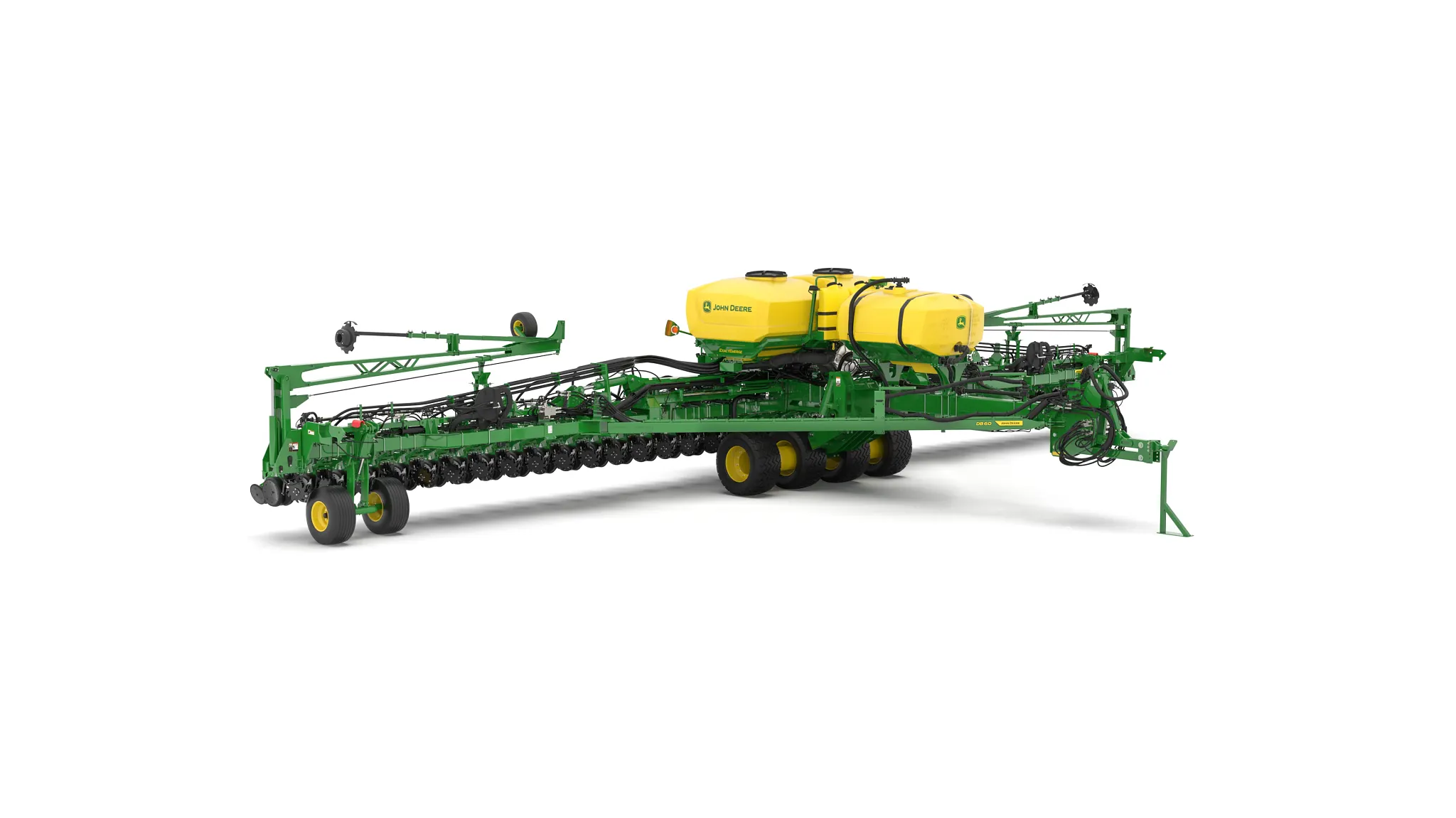

Studio rendering with front right view of DB60 36R planter.

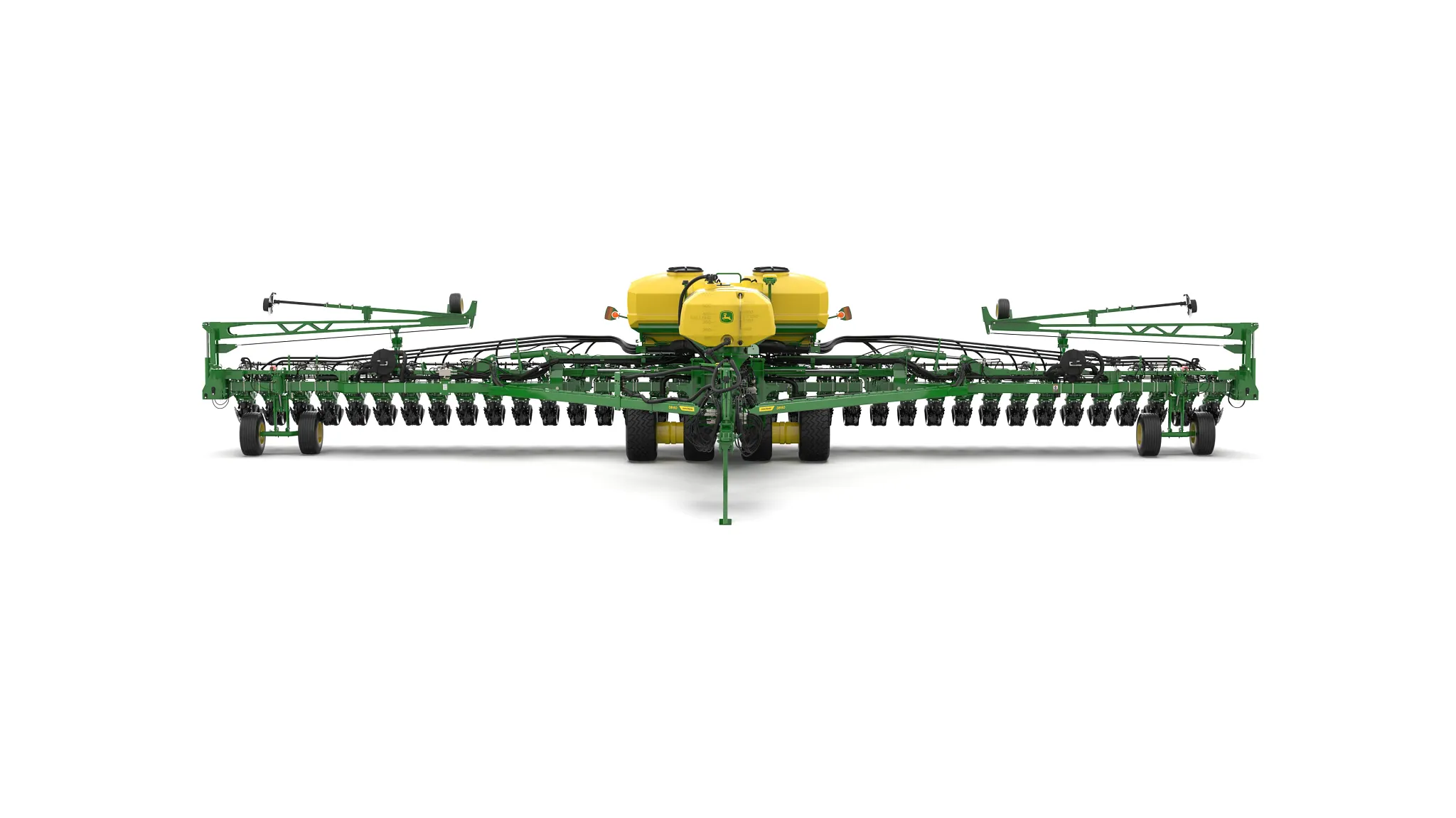

Studio rendering with front view of DB60 36R planter.

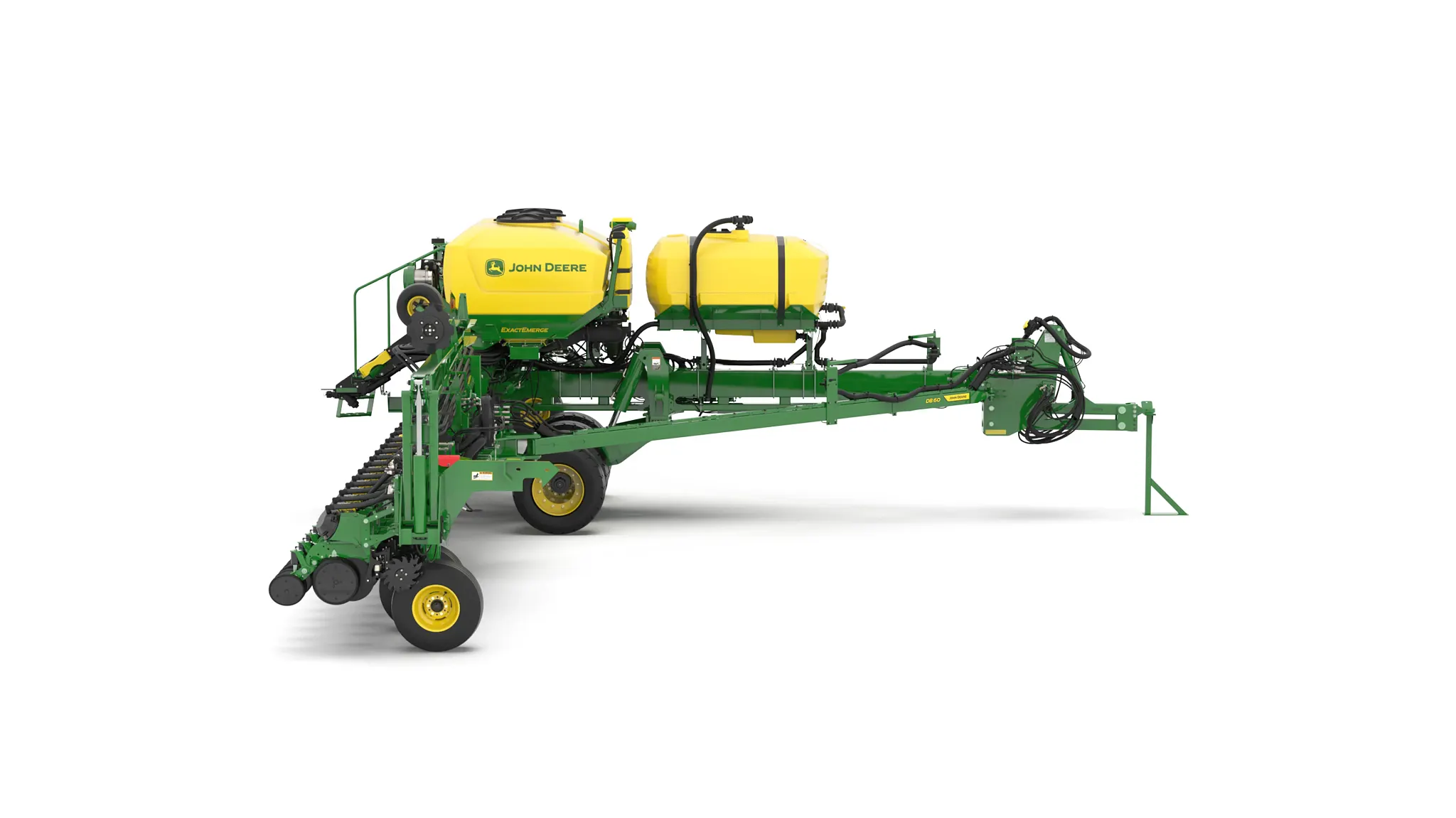

Studio rendering with right side view of DB60 36R planter.

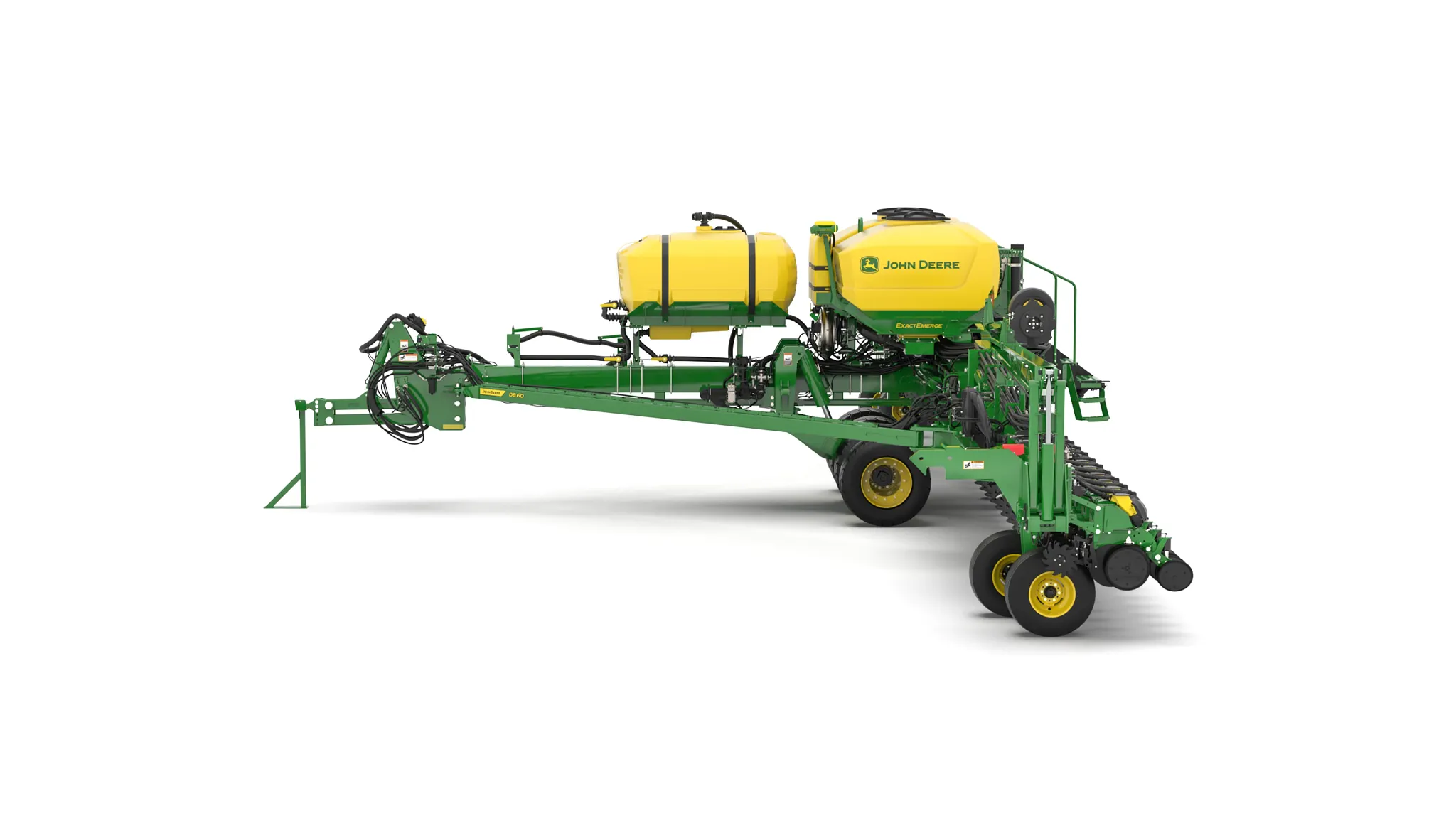

Studio rendering with left side view of DB60 36R planter.

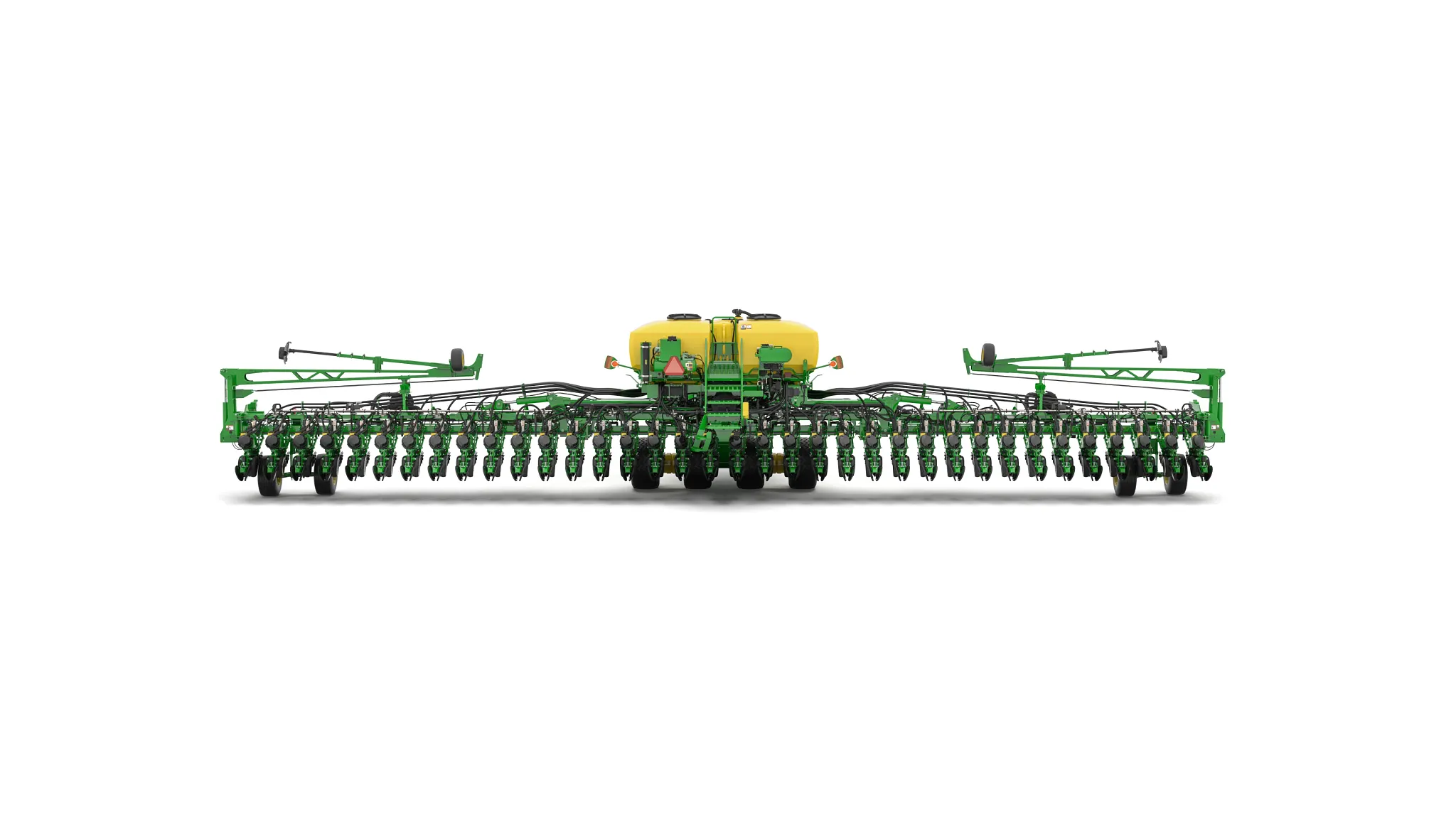

Studio rendering with rear view of DB60 36R planter.

John Deere DB60

Planter

The John Deere DB60 36Row20 Planter delivers unparalleled planting precision and efficiency with its advanced technology, ensuring maximum yield potential and minimal field passes, tailored for large-scale agricultural operations.

Product Features:

  • 60-ft Toolbar With 36 Rows on 20-in. Spacing
  • Available in Mini-Hopper, 1.6-bu, or 3-bu ExactEmerge™ or MaxEmerge™ 5e Row Unit
  • Insecticide Option for Mini-Hopper
  • Requires a Minimum 275-hp Tractor Equipped With Category 4 Drawbar
View Product Broshure

Specifications

Base Electric motors: 56 V

Opener Tru-Vee double disk
Seed Hopper Capacity 2.2 L
Seed Hopper Capacity 0.062 bu
Type ExactEmerge™ row units or MaxEmerge™ 5e row units
Row Unit Seed Hoppers Vacuum meter
Row Unit Down Force Active Pneumatic Downforce or Individual Row Hydraulic Downforce

Transport Height 10 ft
Transport Height 3 m
Transport Weight Average empty weight: 15,785 kg 34,800 lb
Transport Width (With Markers) 4.9 m
Transport Underframe Clearance 55.9 m
Transport Width (With Markers) 16 ft
Transport Underframe Clearance 22 ft
Transport Length 41 ft
Transport Length 12.5 m

Recommended Tractor Horsepower Requires tractor equipped with Category 4 drawbar and minimum 205 kW/275 hp
Recommended Tractor Hydraulics Hydraulic oil pump required to operate electric drive planter: 227 L/min 60 gpm; Tractor standby pressure: 15,500 kPa 155 bar (2300 psi); Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi); Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi)

ExactRate Fluid Transfer System Available
Tank Capacity 600 gal.
Tank Capacity 2271 L

Row Spacing 20 in.
Row Spacing 50.8 cm
Number Of Rows 36

Central Commodity System (CCS) Seed capacity
CCS Seed Capacity 130 bu
CCS Seed Capacity 4581 L
Base Seed Meter Vacuum

Frame Flexibility - Down 15 degree (angle)
Frame Flexibility - Up 15 degree (angle)
Frame Fold Configuration 3-section front-fold

Type Wheel modules with rephasing hydraulic cylinders

Base Center frame tires: 400/500-R22.5: 552 kPa 5.5 bar (80 psi); Center frame tires: 600/50R22.5: 379 kPa 3.8 bar (55 psi); 14-ply Center frame tires: 31-13.5x15 621 kPa 6.2 bar (90 psi); Center frame tires (DB66 and smaller planters): 445/50R22.5: 517 kPa (5.2 bar) [75 psi]; 6-ply wing frame implement tires: 31-13.5x15: 152 kPa (1.5 bar) [22 psi]; 8-ply wing frame skid steer tires: 31-13.5x16.5: 241 kPa (2.4 bar) [35 psi]

Base SeedStar™ electronic system

Type Automatic alternating or independent control
