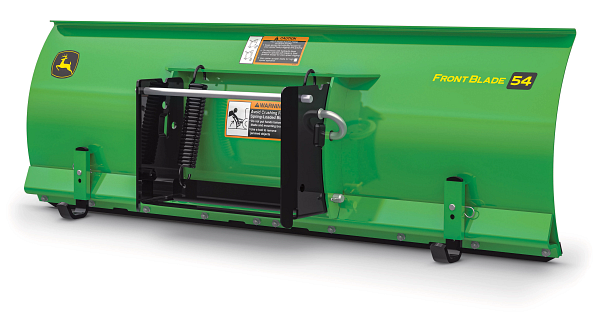

John Deere 54 IN. BLADES
For X700 Signature Series Lawn Tractors
The 54-in. (137-cm) Quick-Hitch Front Blade offers unmatched versatility and efficiency for John Deere tractors, providing easy attachment and superior maneuverability, making it the ideal solution for swift and precise snow or debris removal.
Product Features:
- Attach and Go, No Tools Needed With the Required Front Quick-Hitch System
- Coil-Spring Breakaway Feature Reduces Potential Blade Damage When Solid Objects are Struck
- Skid Shoes are Easily Adjustable for Consistent, More-Even Blading
- Durable Construction
Features
The 54-in. (137-cm) Quick-Hitch Front Blade offers unmatched versatility and efficiency for John Deere tractors, providing easy attachment and superior maneuverability, making it the ideal solution for swift and precise snow or debris removal.
Attach and Go, No Tools Needed With the Required Front Quick-Hitch System
Coil-Spring Breakaway Feature Reduces Potential Blade Damage When Solid Objects are Struck
Skid Shoes are Easily Adjustable for Consistent, More-Even Blading
Durable Construction
Benefits

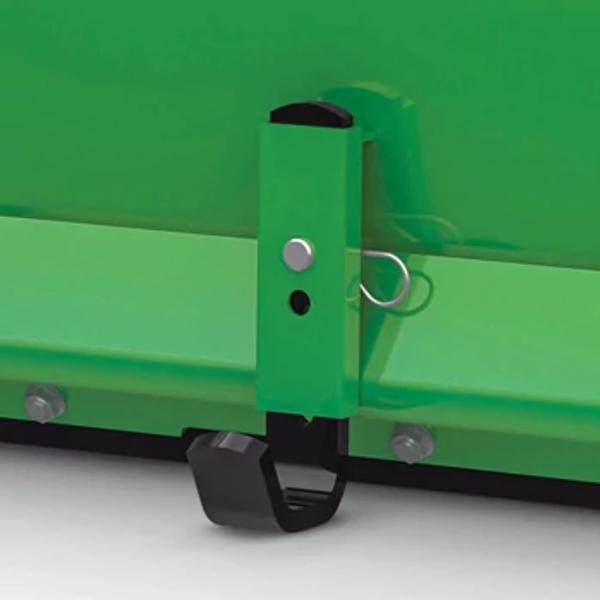

Adjustable Skid Shoes
Adjustable skid shoes offer eight different height settings, enabling operators to choose the appropriate blading height for various tasks. This adjustability simplifies achieving uniform grading and prolongs skid shoes' utility. Optional heavy-duty skid shoes available for purchase.

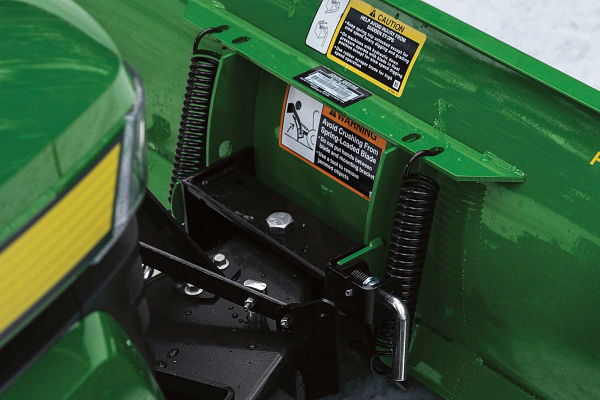

Breakaway Feature
The breakaway feature includes two large coil springs that help the blade edge retract when encountering a solid object. This reduces the operational shock experienced by the driver and minimizes the risk of blade damage. A locking pin keeps the blade secured in the desired position.
Heavy-Duty Construction
A reinforcing angle behind the blade's front edge ensures durability. The blade has a replaceable cutting edge that forms a continuous curve, rolling material rather than pushing it, which enhances capacity and extends the blade's life.
Specifications
| Type | Hydraulic |
| Compact Utility Tractors - Above Ground Level | 27.9 cm |
| Compact Utility Tractors - Above Ground Level | 11 in. |
| Garden Tractors - Above Ground Level | 27.9 cm |
| Garden Tractors - Above Ground Level | 11 in. |
| Garden Tractors - Below Ground Level | 9.9 cm |
| Garden Tractors - Below Ground Level | 3.5 in. |
| Compact Utility Tractors - Below Ground Level | 3.5 cm |
| Compact Utility Tractors - Below Ground Level | 1.5 in. |
| Right And Left | 27 degree (angle) |
| Type | Spring trip |
| Replaceable Scraper Edge | 4.78 mm |
| Replaceable Scraper Edge | 0.188 in. |
| Blade | 3.05 mm |
| Blade | 0.12 in. |
| Blade Straight | 54 in. |
| Blade Straight | 137 cm |
| Blade Angled | 52.2 in. |
| Blade Angled | 132.6 cm |
| Approximate Weight | 23 kg |
| Approximate Weight | 50 lb. |
| Type | Eight position |
