John Deere 52 IN. BROOMS
For X700 Lawn Tractors, Select Compact Tractors
The 52-in. (132-cm) Quick-Hitch Rotary Broom provides efficient and versatile ground-clearing capabilities for debris and snow, enhancing productivity and maintaining cleanliness with easy attachment and superior performance on various surfaces.
Product Features:
- Clean Everything From Dirt and Leaves or Even 2-in. of Snow With This Versatile Broom
- Angle Broom From 0-27 Degrees, Right or Left
- Choose From 9 Different Sweeping Height Positions, in 0.5-in. Increments
- Attach Broom in Minutes, No Tools Needed, With the Required Front Quick-Hitch System
Features
The 52-in. (132-cm) Quick-Hitch Rotary Broom provides efficient and versatile ground-clearing capabilities for debris and snow, enhancing productivity and maintaining cleanliness with easy attachment and superior performance on various surfaces.
Clean Everything From Dirt and Leaves or Even 2-in. of Snow With This Versatile Broom
Angle Broom From 0-27 Degrees, Right or Left
Choose From 9 Different Sweeping Height Positions, in 0.5-in. Increments
Attach Broom in Minutes, No Tools Needed, With the Required Front Quick-Hitch System
Benefits

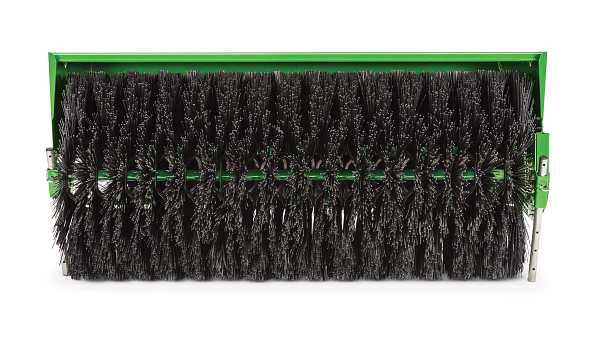

Polypropylene Wafers
Equipped with 22 convoluted polypropylene wafers, this broom ensures efficient sweeping. The flicking action of the bristles guarantees optimal debris collection, and even wear is achieved by replacing all wafers at once.
Robust Power Transfer
Equipped with a 2000-rpm front PTO kit, the broom receives efficient power transfer necessary for tackling tough materials. Its design ensures optimal performance, making it suitable for demanding cleaning landscapes.
Hydraulic Angling Capability
The heavy-duty rotary broom features a hydraulic angling cylinder kit, allowing the broom to pivot from 0 to 27 degrees left or right. This feature provides enhanced maneuverability and precision when cleaning large areas.
Specifications
| Diameter | 53.3 cm |
| Diameter | 21 in. |
| Speed | 220 rpm |
| Material | Polypropylene |
| Top Speed | 1209 fpm |
| Top Speed | 369 m/min |
| Sweeping Height | 13 mm |
| Sweeping Height | 5 in. |
| Number Of Wafers | 22 |
| Drive | Front power take-off (PTO) |
| Input | Telescoping drive shaft |
| Brush Shaft | Oil-filled metal flange bearing and thrust bearing, greaseable |
| Center Drive | Number 50 roller chain from offset 3:1 gearbox |
| Size | 159x83 mm |
| Size | 6.25x3.25 in. |
| Adjustment | 0.5 in. |
| Adjustment | 13 mm |
| Housing | 14 gauge |
| Frame | 6 mm |
| Frame | 0.25 in. |
| Housing | 1.9 mm |
| Housing | 0.07 in. |
| Lateral Float | Hitch clearance |
| Weight (Broom Only) | 109 kg |
| Weight (Broom Only) | 240 lb. |
| Shipping Weight | 306 lb. |
| Shipping Weight | 139 kg |
| Right And Left | 27 degree (angle) |
| Broom Straight | 52 in. |
| Broom Straight | 132 cm |
| Broom Angled | 122 cm |
| Broom Angled | 48 in. |
| Storage Stands | Standard equipment |
