John Deere 47 IN. HEAVY DUTY SNOWBLOWER
Heavy-Duty Snow Blower
The 47-in. Heavy-Duty Snow Blower from John Deere combines robust construction and a two-stage design to effectively tackle wet, heavy snow with ease, ensuring maximum snow removal efficiency and reduced downtime.
Product Features:
- 16-in. (40.6-cm) Diameter Auger With Double-Center Flighting
- Two Standard Drift Blades
- Standard Hydraulic Chute Rotation
- Easy Installation With Front 3-Point Hitch
Features
The 47-in. Heavy-Duty Snow Blower from John Deere combines robust construction and a two-stage design to effectively tackle wet, heavy snow with ease, ensuring maximum snow removal efficiency and reduced downtime.
16-in. (40.6-cm) Diameter Auger With Double-Center Flighting
Two Standard Drift Blades
Standard Hydraulic Chute Rotation
Easy Installation With Front 3-Point Hitch
Benefits
Efficient Two-Stage Design
The two-stage design efficiently handles wet, heavy snow. A low-speed auger collects the snow, moving it to the center, where a high-speed impeller blows it out of the discharge chute. This allows snow removal over greater distances and handles volumes of up to 100 lb (45.4 kg) per minute.

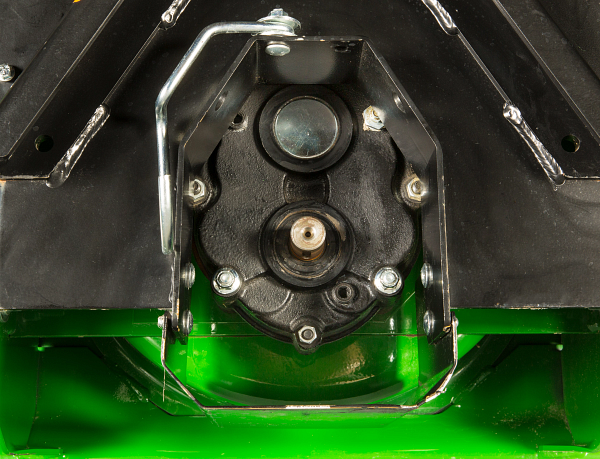

Heavy-Duty Cast-Iron Drive
A heavy-duty cast-iron helical gearcase drives the blower impeller, maximizing engine horsepower for excellent snow throwing capacity and distance. The telescoping drive shaft ensures easy attachment, making it efficient and reliable in various snow conditions.
Heavy-Duty Front 3-Point Hitch
The heavy-duty snow blower mounts using a robust front 3-point hitch, allowing quick attachment of implements. This design offers added strength and longer life, consistent levelness, improved maneuverability, and faster implement changes with a shared A-frame quick attach system.
Specifications
| Type | Reversible and replaceable |
| Diameter | 184 mm |
| Diameter | 7.25 in. |
| Rotation Control | Hydraulic remote control |
| Rotation | 200 degree (angle) |
| Side Panel Thickness | 6.35 mm |
| Height Of Opening | 23 in. |
| Clearing Width | 1194 mm |
| Overall Width | 1260 mm |
| Housing Thickness | 0.075 in. |
| Height To Top Of Chute Deflector | 1315 mm |
| Housing Depth | 432 mm |
| Side Panel Thickness | 0.25 in. |
| Height Of Opening | 584 mm |
| Clearing Width | 47 in. |
| Overall Width | 49.6 in. |
| Housing Thickness | 1.9 mm |
| Height To Top Of Chute Deflector | 51.8 in. |
| Housing Depth | 17 in. |
| Auger Diameter | 16 in. |
| Auger Diameter | 406 mm |
| Auger Drive Gearbox | Cast-iron worm gearcase with 1.25-in. (32-mm) output shafts |
| Auger Speed | 189-199 rpm |
| Auger Protection | Shear bolt for each auger half, four shell-mounted extra shear bolts |
| Auger Drive | Splined-coupler power take-off (PTO) shaft to helical gearcase |
| Approximate Weight | 390 lb. |
| Approximate Weight | 177 kg |
| Attaching Time | 4 min. |
| Removal Time | 3 min. |
| Type | Hydraulic cylinder on front 3-point hitch |
| Blower Fan Material | Welded steel |
| Blower Fan Size | 3.94 x 16 in. |
| Blower Fan Size | 100 x 406 mm |
| Speed | 898-943 rpm |
| Bearing | Sealed ball bearings |
| Date Collected | 2021-11-03 |
