John Deere RT2283
Rotary Tillers
The Frontier RT2283 Rotary Tiller is a medium-duty tiller ready to prepare ground for seed, sod, or plants.
Product Features:
- Working Width: 83 in. (210.8 cm)
- Duty: Medium
- Skid Shoes Control Depth
- Category 2 Quick-Hitch Compatible
Features
The Frontier™ RT2283 Rotary Tiller is a medium-duty tiller ready to prepare ground for seed, sod, or plants.
Working Width: 83 in. (210.8 cm)
Duty: Medium
Skid Shoes Control Depth
Category 2 Quick-Hitch Compatible
Benefits

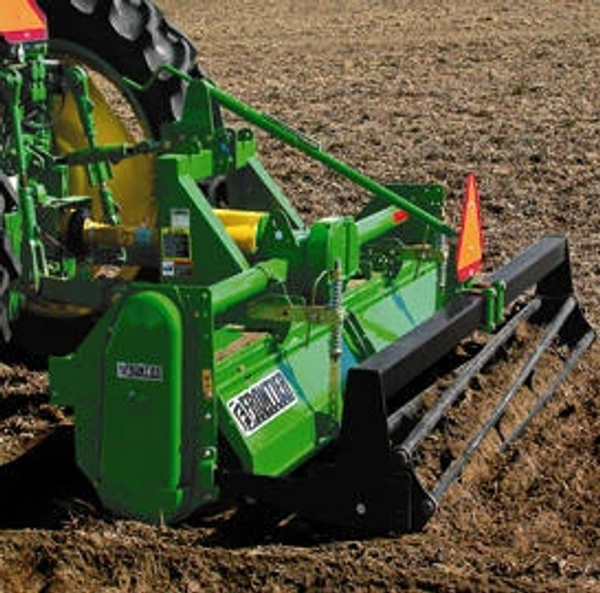

Cage Roller Adjustment for Firming Action Is Easy
The hand crank makes adjusting the depth of the roller easy on the RT22 and RT23 Series Rotary Tillers. Use a lower setting for more firming action, ideal for controlling wind erosion. The RT22 and RT23 Series have an optional hydraulic cage roller adjustment kit available to allow for depth adjustments without leaving the tractor seat.

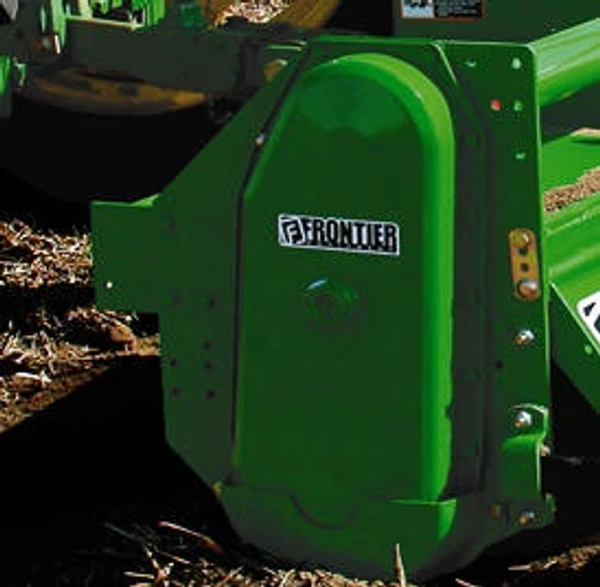

Heavy-Duty Wear Shields for Added Gearcase Protection
The gearcase is protected from abrasion and premature wear by the heavy-duty wear shields.

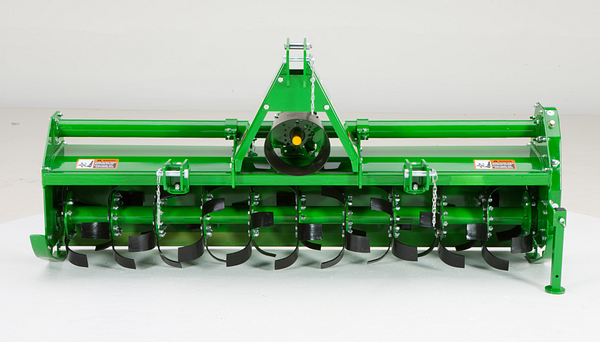

Rotor Is Helical-Shaped for Higher Efficiency
The helical-shaped rotor decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.
Specifications
| Markings | Standard |
| Rear Door Support | Chain |
| Parking Stand | Standard |
| PTO Speed | 540 rpm |
| Maximum PTO Power | 90 hp |
| Maximum PTO Power | 67 kW |
| Minimum PTO Power | 34 kW |
| Minimum PTO Power | 45 hp |
| Maximum Working Depth | 27 cm |
| Maximum Working Depth | 10.6 in. |
| Depth Control Type | Skid shoes |
| Outside To Outside Width | 88 in. |
| Outside To Outside Width | 2234 mm |
| Working Width | 2108 mm |
| Working Width | 83 in. |
| Operating With Skid Shoes | 1719 lb. |
| Operating With Skid Shoes | 779.7 kg |
| Gearbox Type | Multi-stage |
| Quick Coupler (Category 2) | Yes |
| 3-Point Compatible | Category 2 |
| Blade Shape | L-shape |
| Blades (Quantity) | 6 |
| Flanges (Quantity) | 8 |
| Drive System Type | Gear |
| Time Period | 1 year |
| Clutch Type | Friction |
| Duty Type | Medium |
