John Deere SS1220P
Pendular Spreader

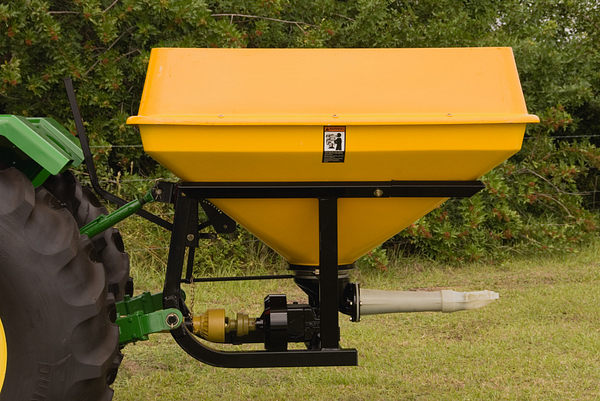

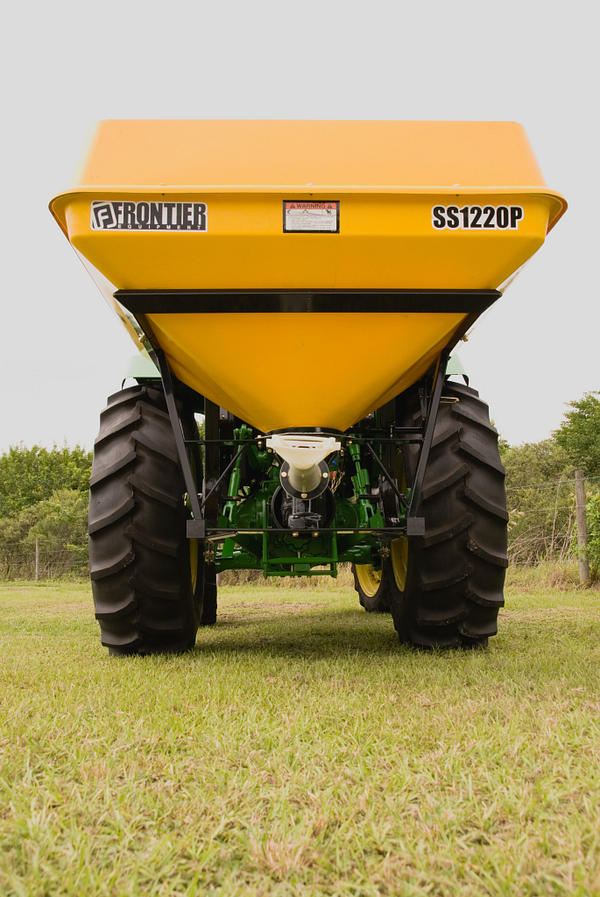

The Frontier SS1220P delivers precision and versatility to spread materials of different weights, sizes and textures. It features a corrosion-resistant fiberglass hopper, reinforced steel frame, and premium PTO-driven pendular system ensuring an even spread of seed, fertilizer, or salt.
Product Features:
- Field Installed Agitator Kit Available
- Spreader Spout Provides Precision Spreading
- Drive System has Anti-Wear, Cast-Steel Gearbox
- Rubber Insert Conversion Kit Keeps Discharge from Clogging
Features
The Frontier™ SS1220P delivers precision and versatility to spread materials of different weights, sizes and textures. It features a corrosion-resistant fiberglass hopper, reinforced steel frame, and premium PTO-driven pendular system ensuring an even spread of seed, fertilizer, or salt.
Field Installed Agitator Kit Available
Spreader Spout Provides Precision Spreading
Drive System has Anti-Wear, Cast-Steel Gearbox
Rubber Insert Conversion Kit Keeps Discharge from Clogging
Benefits
Precision Spreading Spout
Designed for precise distribution, the Frontier™ pendular spreaders come with various spreader spouts made of nylon and reinforced fiberglass, enhancing their resistance to corrosion and durability. The optional directional spout allows easy spread adjustment to the left, right, or center by simple rotation.
Hopper Made of Anti-Shock, Reinforced Fiberglass
The SS1220P features a hopper constructed from anti-shock reinforced fiberglass, significantly enhancing its corrosion resistance. This durable material ensures a longer wear life and is backed by a sturdy steel frame with a polyester resin powder coat for added protection.
Cast-Steel Gearbox Provides Extended Durability
Equipped with a 540-rpm PTO, it boasts a Category 1 driveline with a heavy-duty shielded shaft. The cast-steel gearbox, operating in an oil bath, ensures extended durability and complies with ASABE standards for safety and reliability.
Specifications
| Hopper Loading Height | 119.4 cm |
| Hopper Loading Height | 47 in. |
| Shipping (Per Pair) | 430 lb. |
| Shipping (Per Pair) | 195 kg |
| Hopper Capacity | 1000.2 kg |
| Hopper Capacity | 2205 lb. |
| Machine | 155.6 kg |
| Machine | 343 lb. |
| Swath Spread | 5.2-14.3 m |
| Swath Spread | 17-47 ft |
| Tractor Horsepower Range | 20-60 hp hp |
| Tractor Horsepower Range | 14.9-44.7 kW kW |
| RPM | 540 rpm |
| Volume Capacity | 42.4 cu ft |
| Volume Capacity | 1.2 m³ |
| Material | Reinforced fiberglass |
| Time Period | 1 year |
| Labor Hours | 0.5 |
| Type | 3-point, Category 1, Category 2 |
