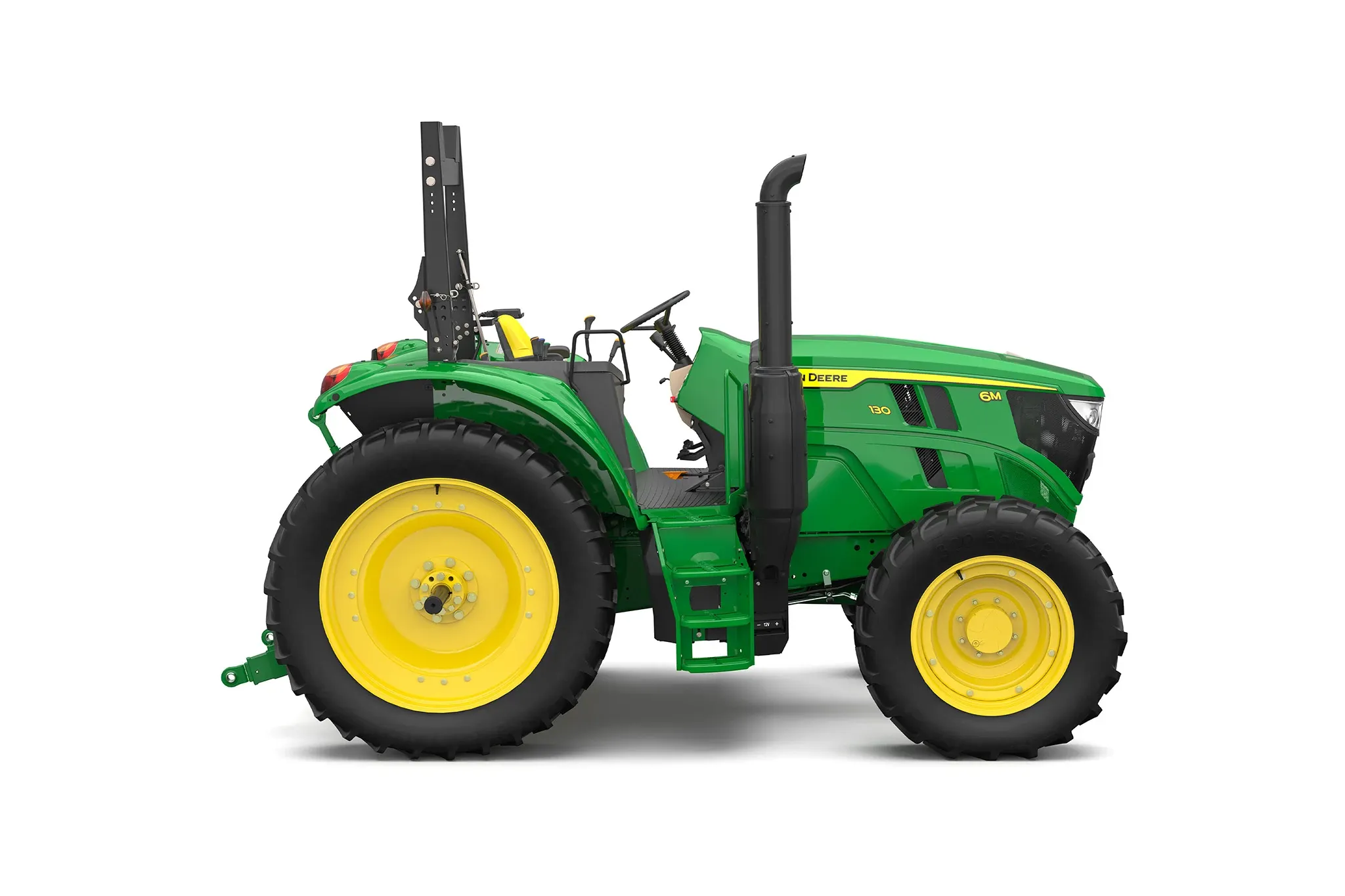

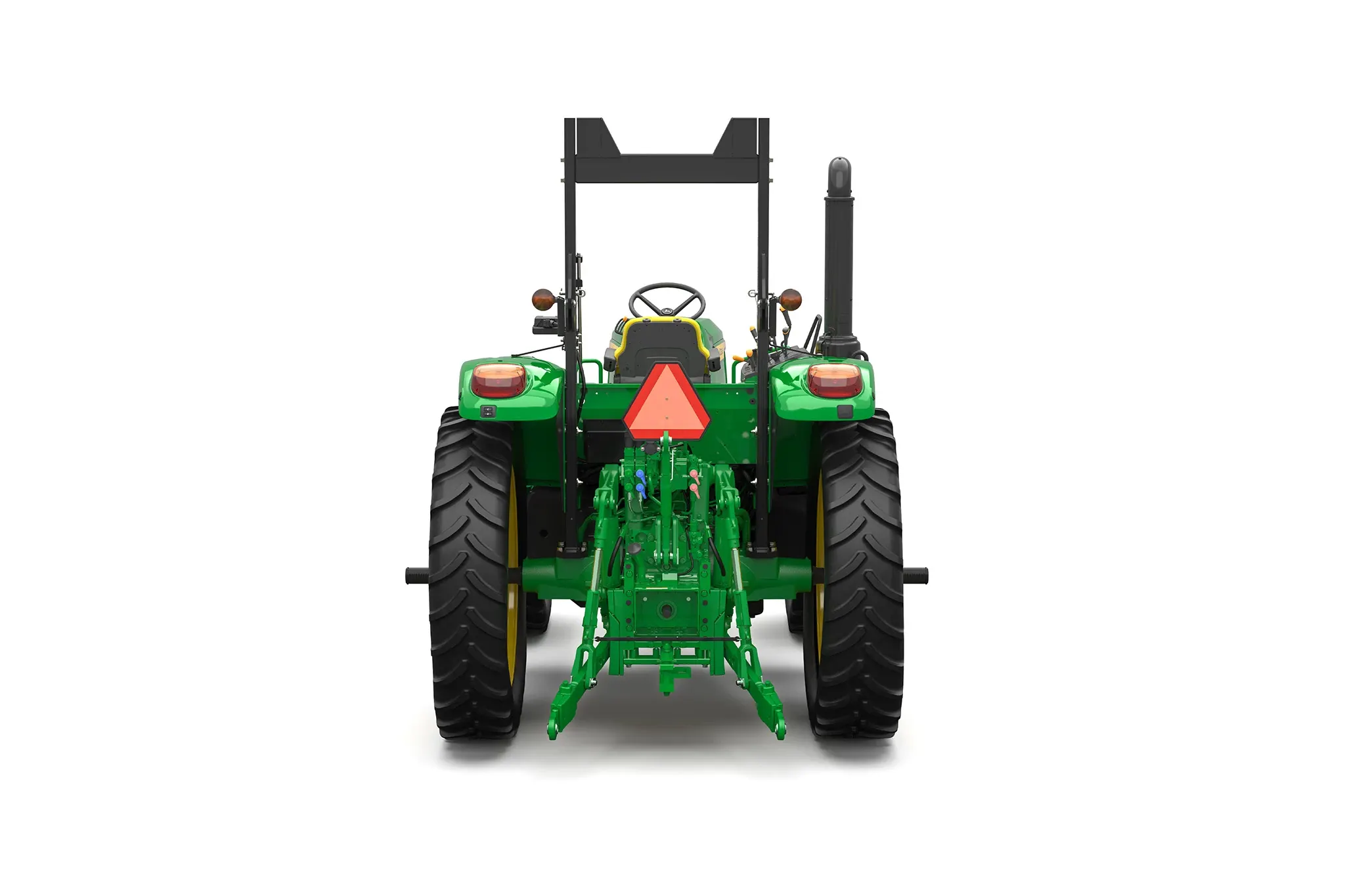

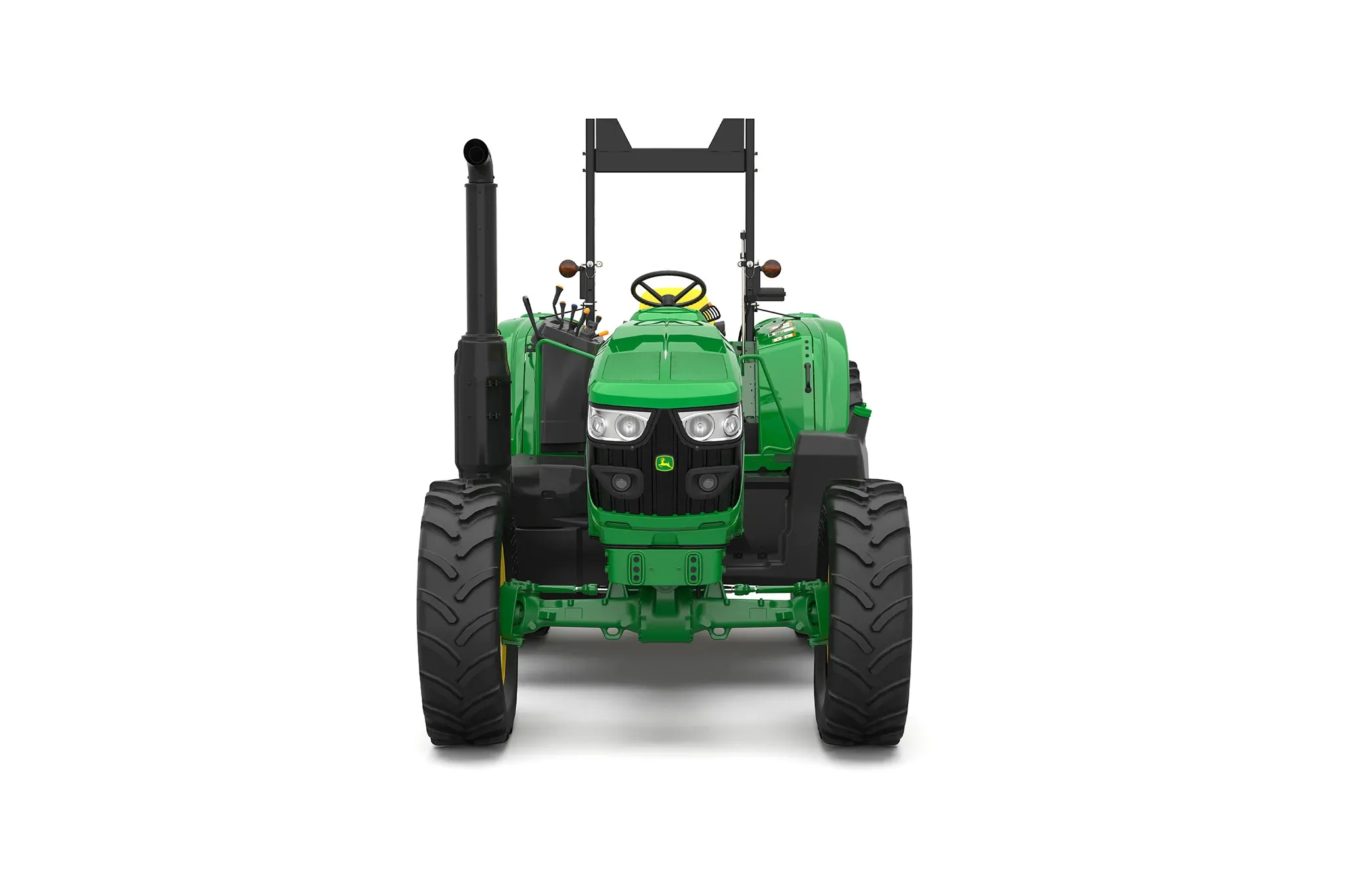

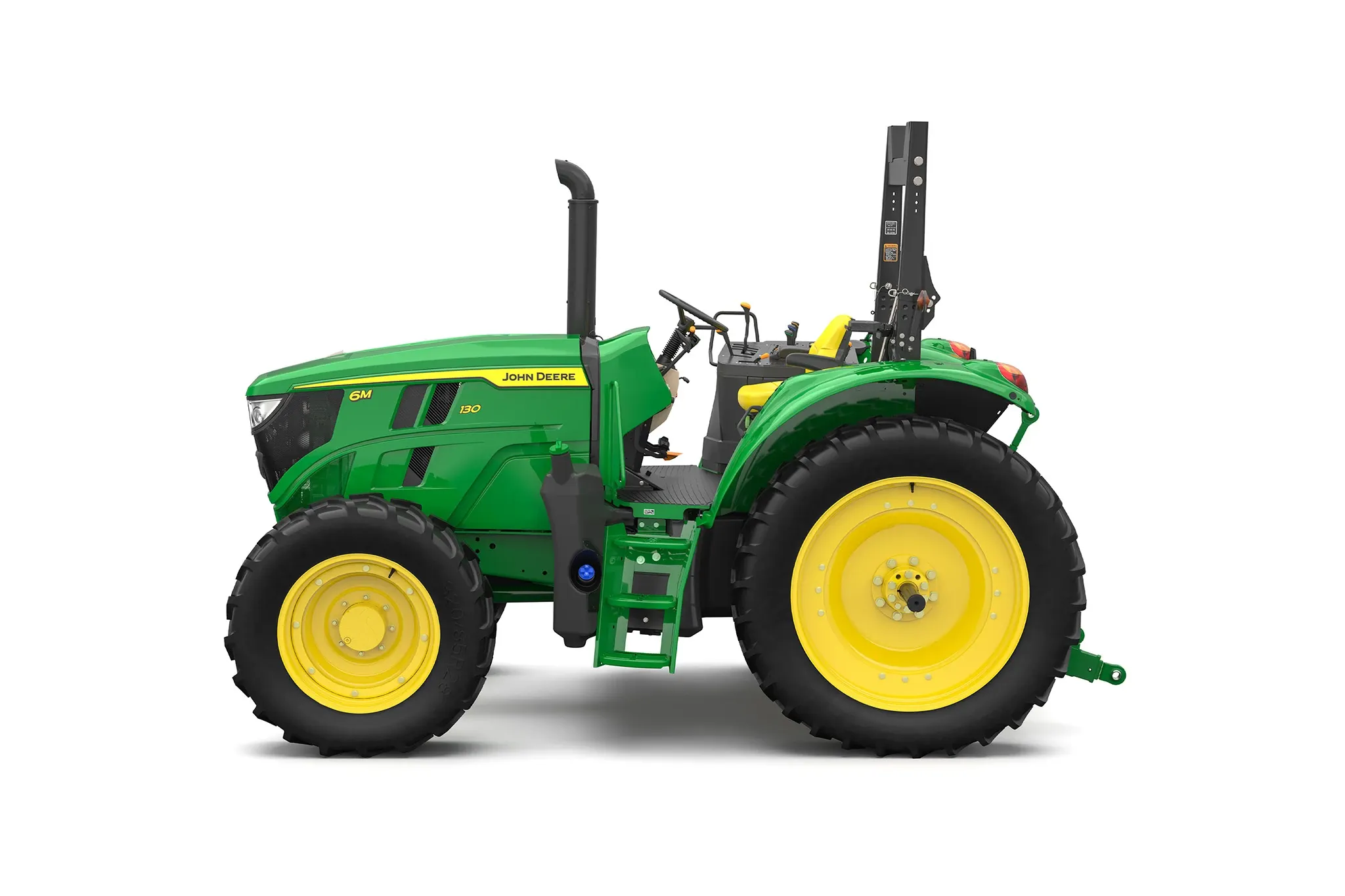

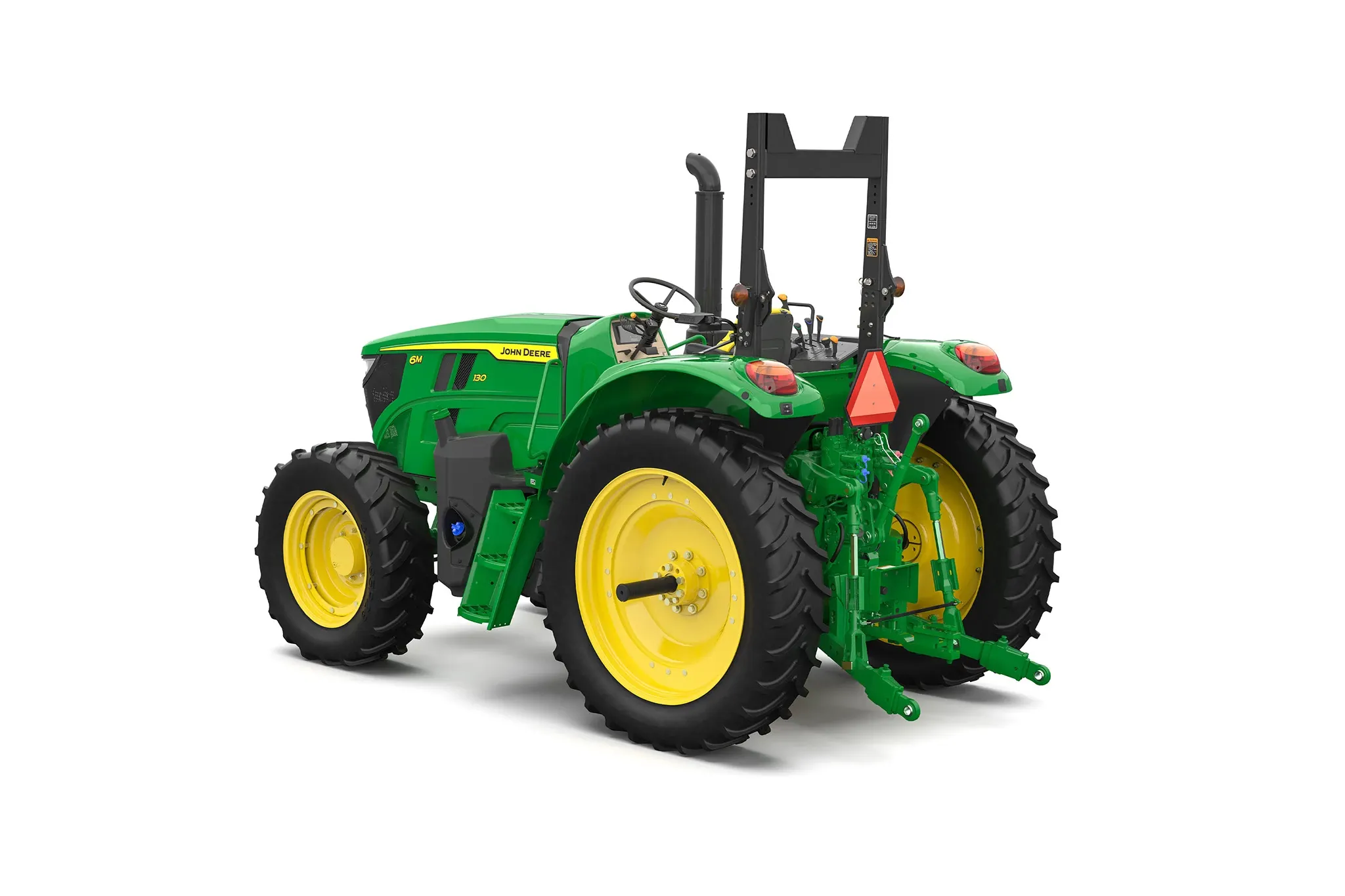

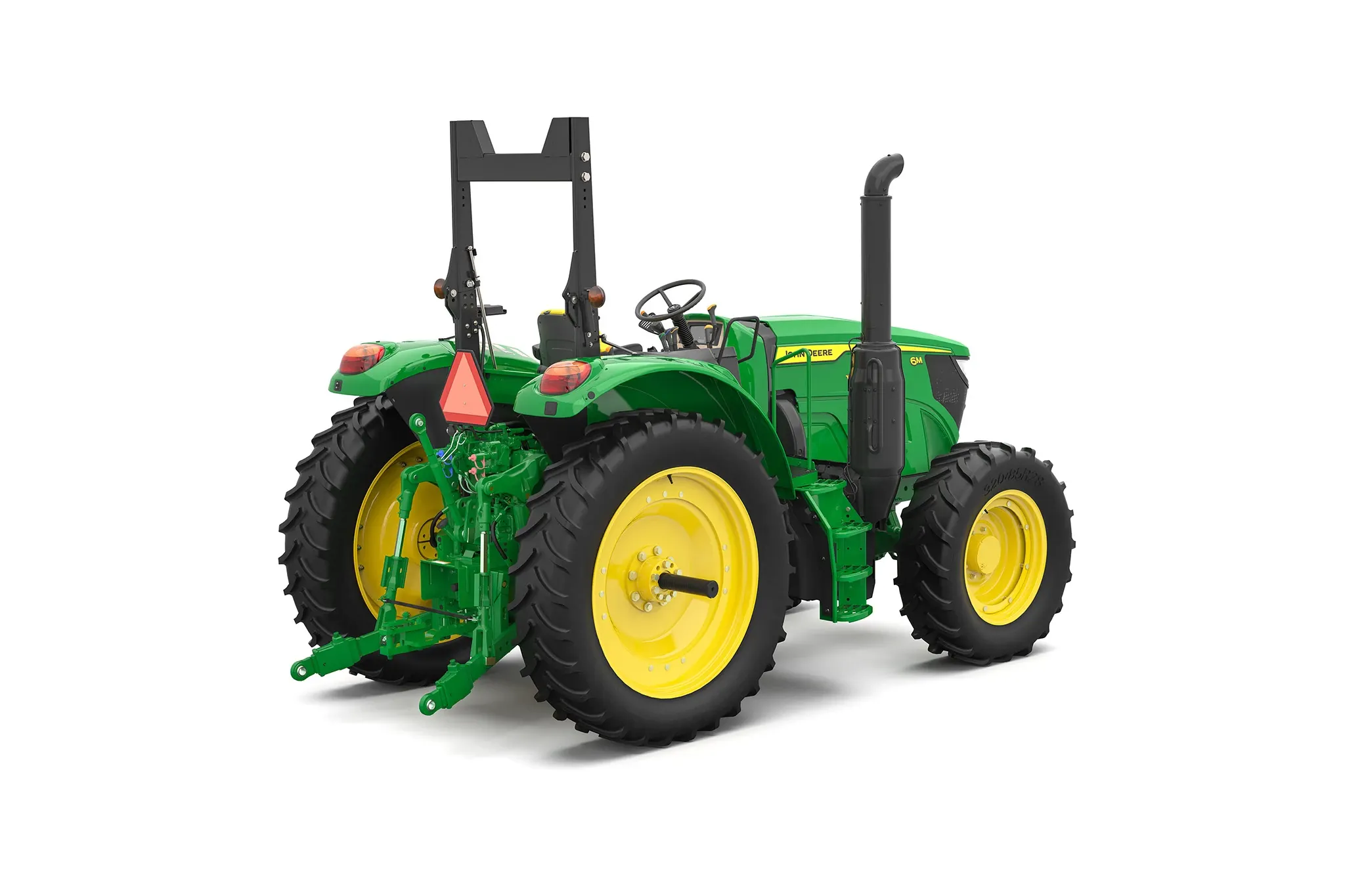

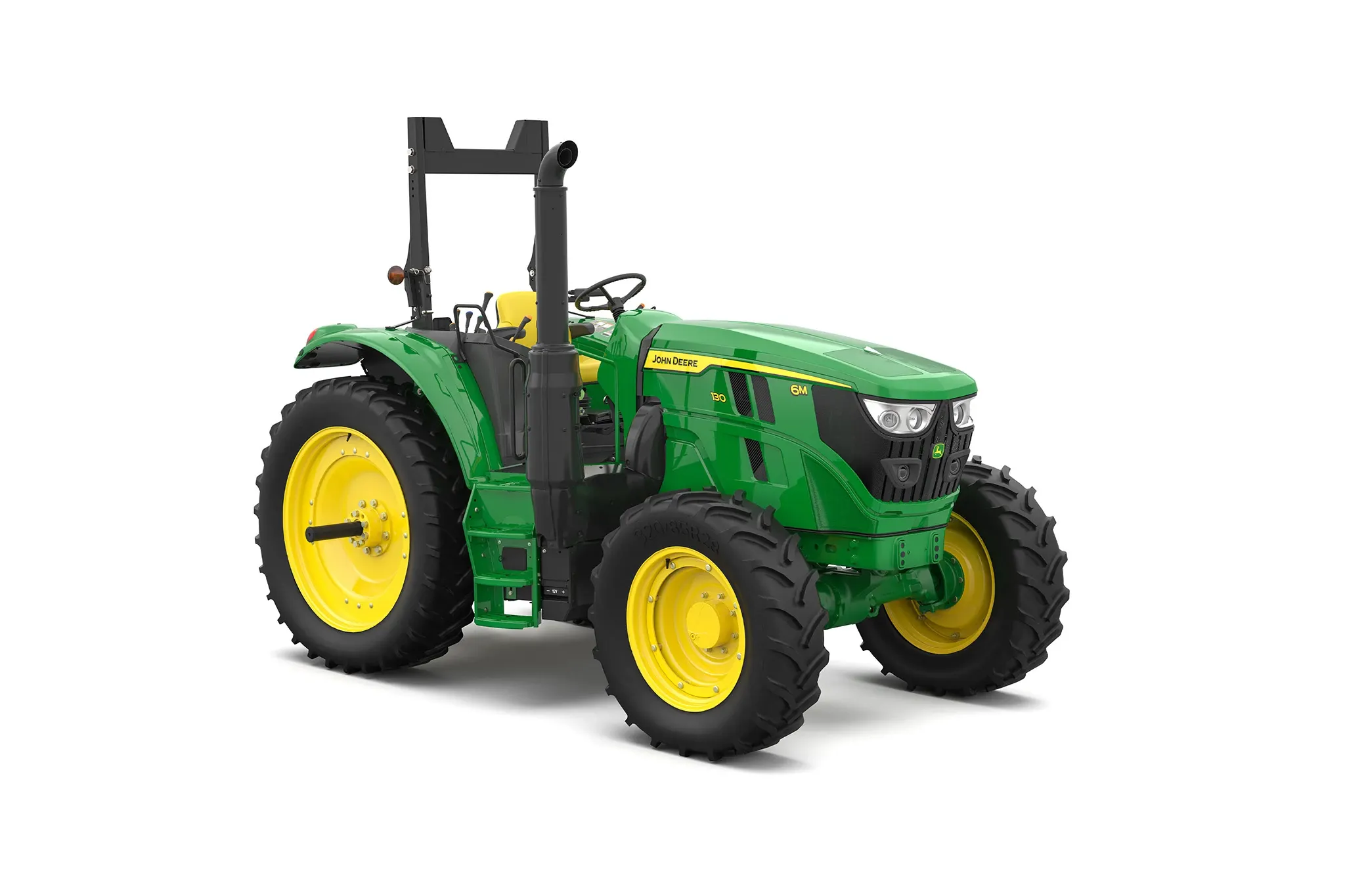

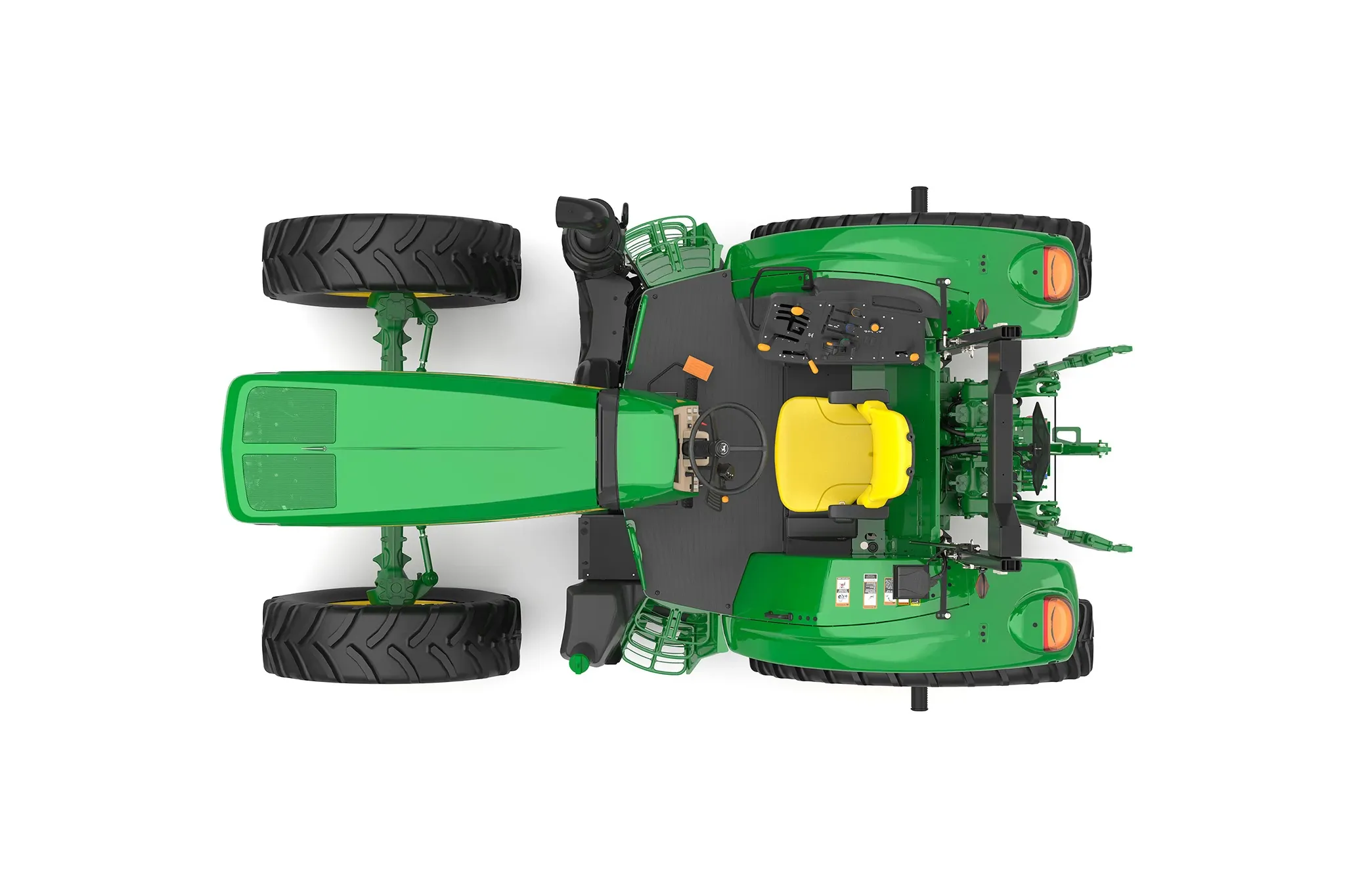

John Deere 6M 130
Tractor
With increased power to pull larger loads in the field and handle bigger implements, the 6M 130 can still easily maneuver in tight spaces. The Open Operator Station provides easy entry and exit for jobs that require frequent stops and starts.
Product Features:
- Multiple Transmission Choices With Creeper Available
- Factory-Installed JDLink™ Modem
- Closed Center Hydraulics
- Rear Hitch Lift Capacity - Standard: 7,048 lb. (3,200 kg); Optional: 7,930 lb. (3,600 kg)
Features
With increased power to pull larger loads in the field and handle bigger implements, the 6M 130 can still easily maneuver in tight spaces. The Open Operator Station provides easy entry and exit for jobs that require frequent stops and starts.
Multiple Transmission Choices With Creeper Available
Factory-Installed JDLink™ Modem
Closed Center Hydraulics
Rear Hitch Lift Capacity - Standard: 7,048 lb. (3,200 kg); Optional: 7,930 lb. (3,600 kg)
Benefits
Precision Technology to Help Improve Efficiency
Precision ag technology availability includes AutoTrac™ guidance readiness, JDLink™ connectivity, and an intuitive corner post display to help operators improve accuracy, efficiency, and uptime.
PowrQuad™ Transmission
PowrQuad™ transmissions feature a partial PowerShift technology. An operator selects a desired range using the range lever on the right-hand console and the gears using the gear lever right beside the range lever. For specialty uses like vegetable, orchard and other operations that need extremely slow speeds, creeper speeds are available with the PowrQuad™ transmission.

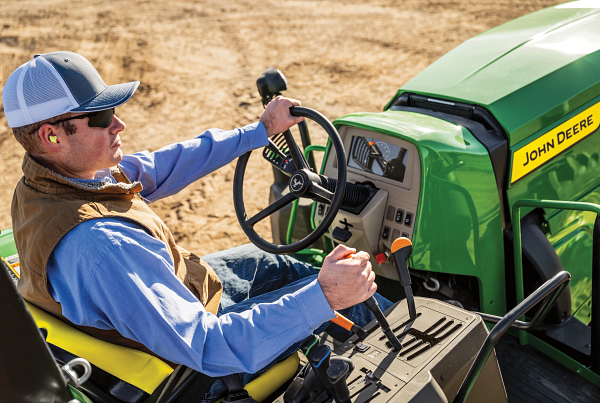

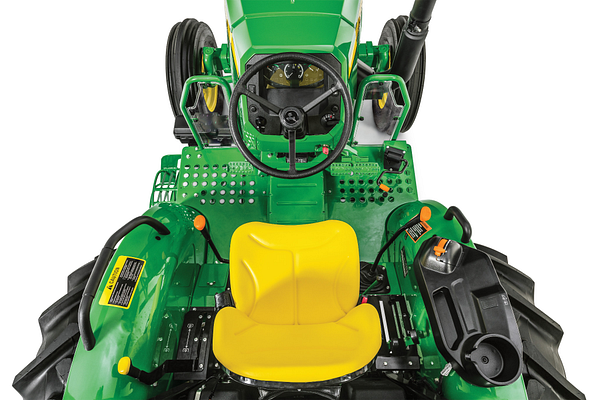

6M Open Operator Station
Open station tractors offer great visibility, which can be crucial for tasks that require precise maneuvering, such as working in tight spaces or around obstacles.
Specifications
| Rear Axle Type | Flange |
| Rear Differential Lock | Electrohydraulic |
| Final Drive | Inboard planetary |
| Differential Controls | Electrohydraulic |
| Available Flow at a Single Rear SCV | 70 L/min / 18.4 gpm |
| SCV Control | Mechanical |
| Pump Rated Output | 94 L/min (24.7 gpm) |
| Hydraulic System Type | Open center |
| Maximum Engine Power | 143 PS |
| Maximum Engine Torque | 300 Nm / 221 lb-ft |
| Engine Make | John Deere PowerTech™ 3029 EWX |
| Rated Engine Power | 130 PS |
| Aftertreatment Type | DOC/DPF |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Maximum Engine Power | 105 kW |
| Maximum Engine Power | 141 hp |
| Rated Engine Power | 96 kW |
| Rated Engine Power | 129 hp |
| Cylinder Liners | Wet sleeved |
| Alternator Capacity | OOS: 90 amp; Cab: 120 amp |
| Driving Lights | Halogen (Standard), LED (Optional) |
| Working Lights | Halogen (Standard), LED (Optional) |
| Rear Hitch Category (SAE Designation) | Category 2; convertible to 1 |
| Sensing Type | Lower link |
| Draft Control Sensing | Mechanical or Electrohydraulic |
| PTO Category | 540/540E (6 spline); Optional: 1000 rpm (21 spline) reversible shaft |
| Fuel Tank Capacity | OOS: 178.3; Cab: 196.8 L |
| Fuel Tank Capacity | OOS: 47.1; Cab: 51.9 gal. |
| Instructional Seat | Optional |
| Gearshift Location | Floor |
| Primary Display | Automotive-style light-emitting diode (LED) instrument cluster |
| Seat Suspension | Mechanical (Standard), Air Ride or Premium Air Ride (Optional) |
| Radio | Optional |
| ROPS Type | Foldable, two-post |
| Front Axle Type | Mechanical Front Wheel Drive (MFWD) |
| Drawbar Category | Category 2 |
| Maximum Vertical Load | Road/field use (250-mm extended): 1450 kg / 3197 lb; Field use (350-mm extended): 1200 kg / 2646 lb; Field use (400-mm extended): 1200 kg / 2646 lb |
| Clutch | Wet |
| Transmission Type | PowrReverser™ 16F/16R; Optional: PowrReverser Hi-Lo 32F/16R |
| Reverser | Left hand, electrohydraulic |
| Creeper | Not available |
| Date Collected | 2023_01_06T00:00:00.0000000 |
| Country of Manufacture | Pune, India |
| Wheel Tread Range | Front: 1299–1997 mm / 51.1–78.6 in |
| Rear Tires Size | 460/85R30 (18.4R30) R1W Radial |
| Front Hitch Category | Category 2 |
| Wheel or Track Configuration | Wheel |
| Primary Brakes | Hydraulic wet disc |
