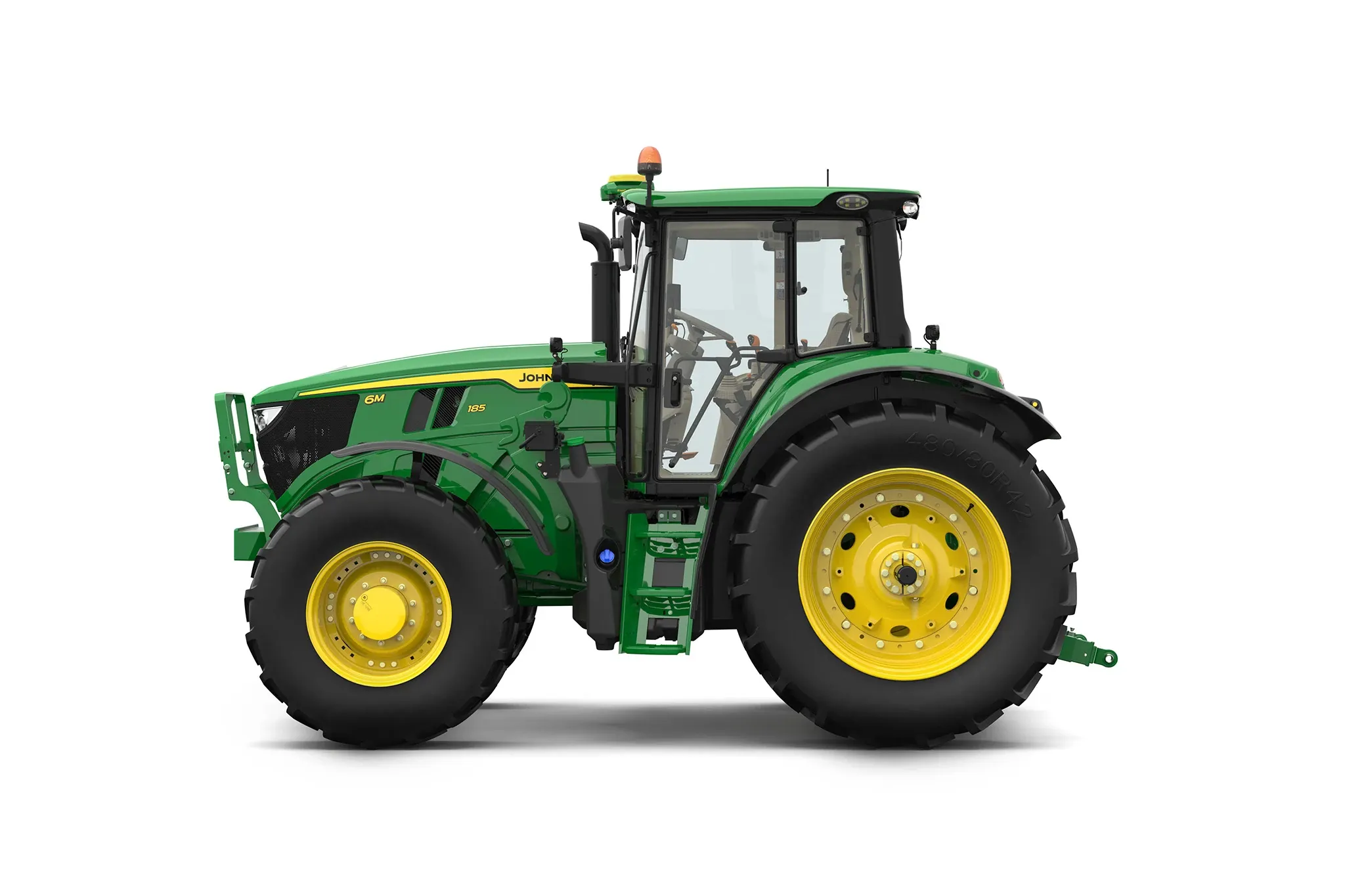

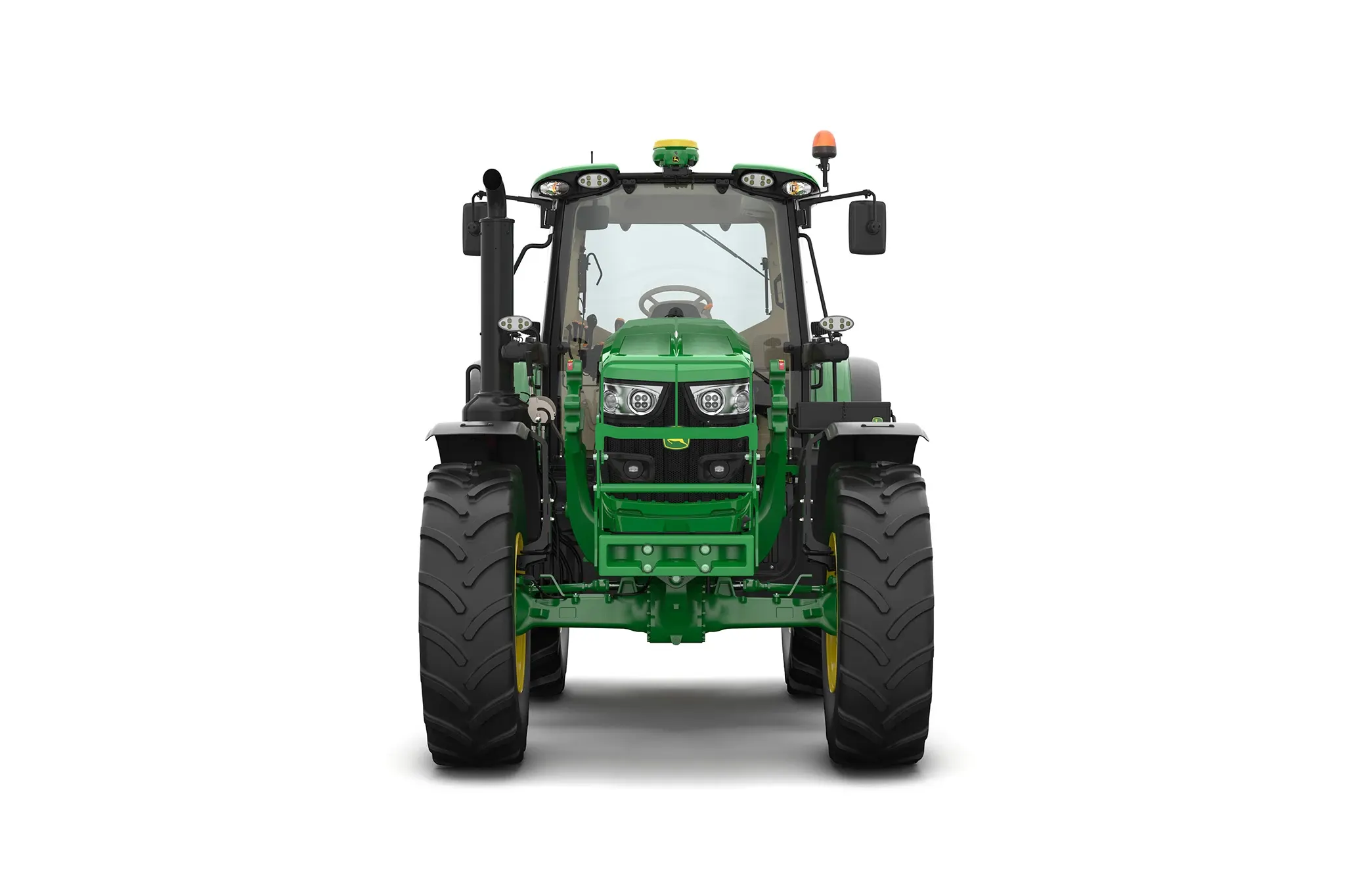

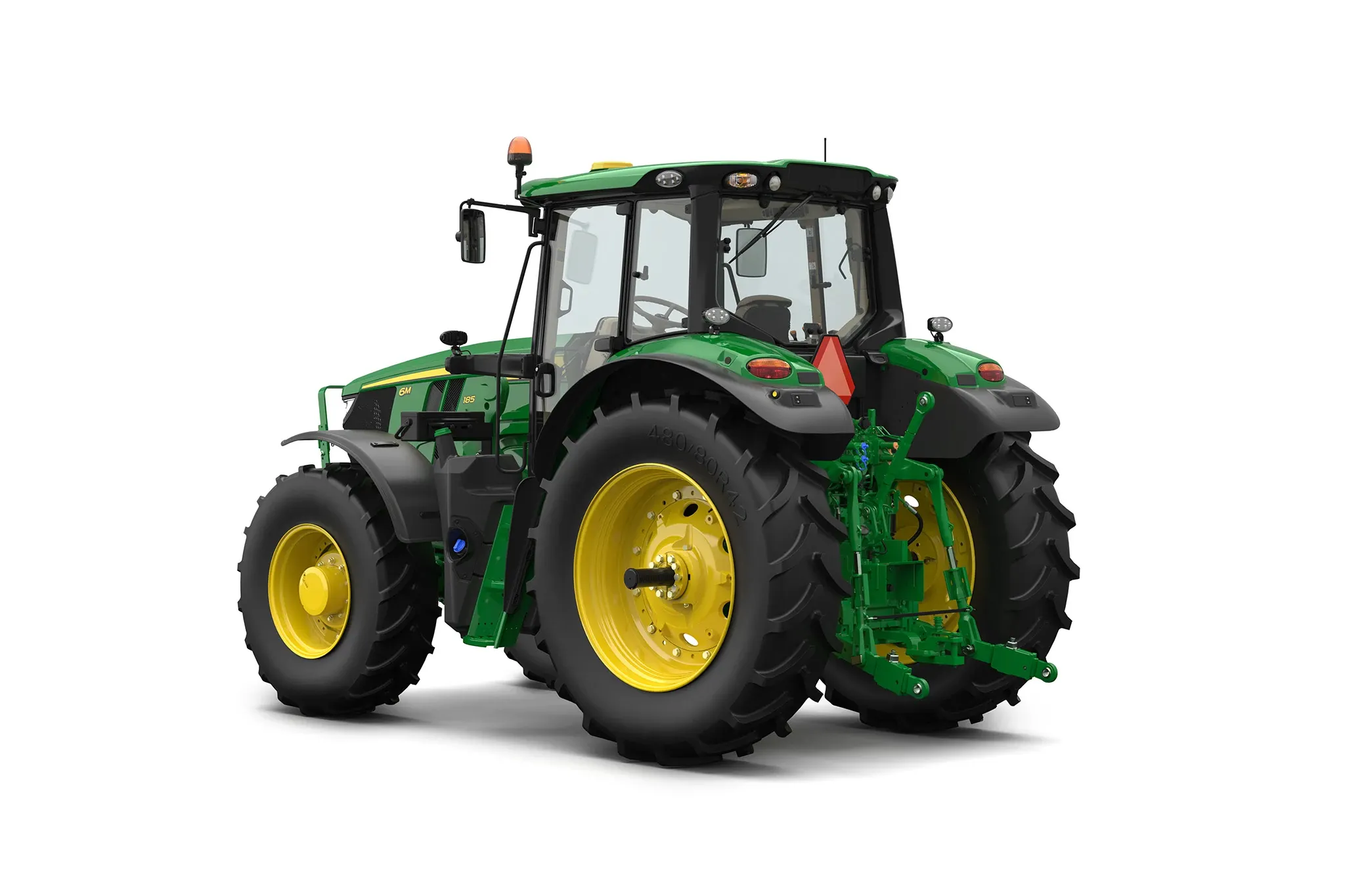

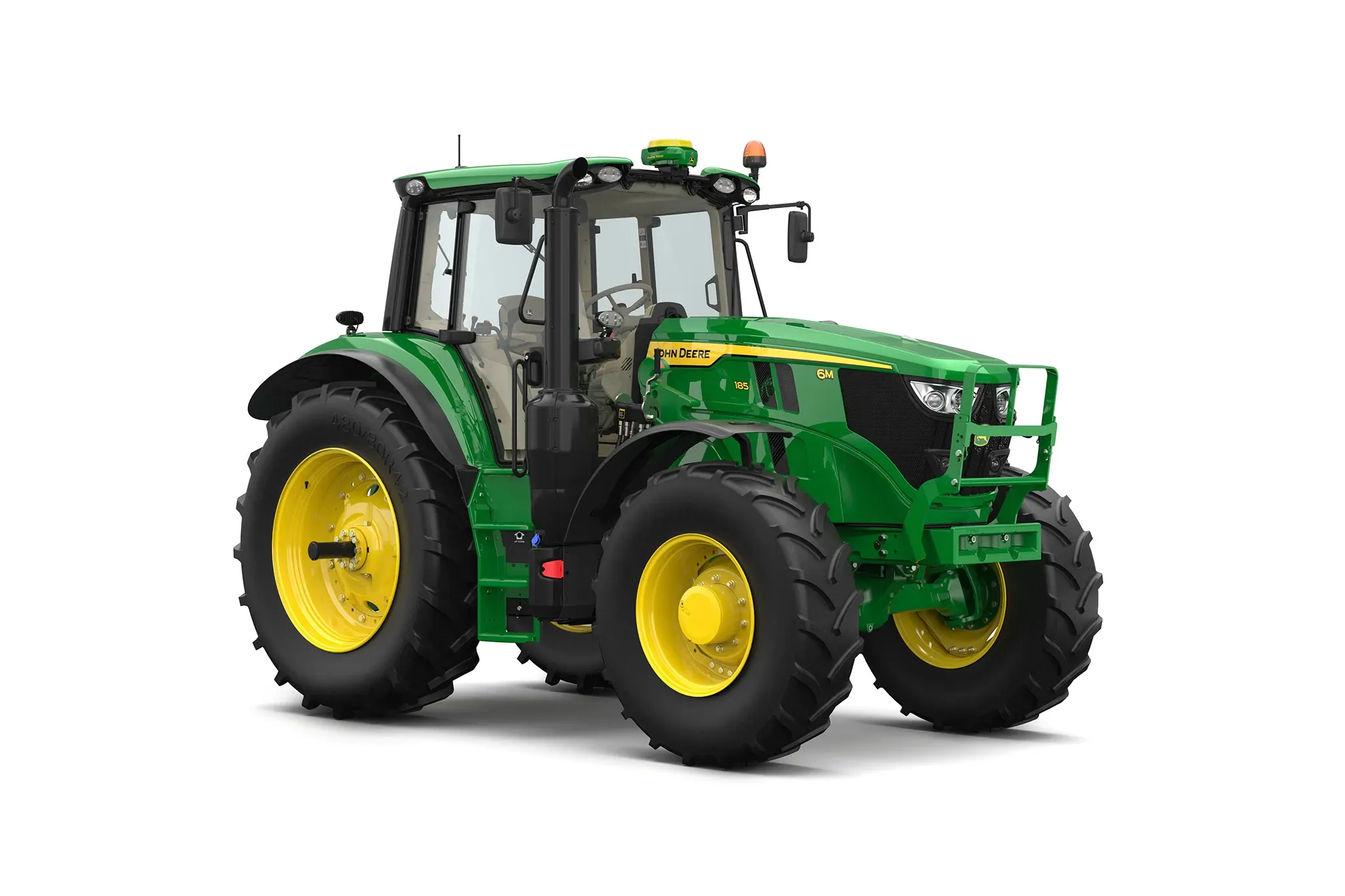

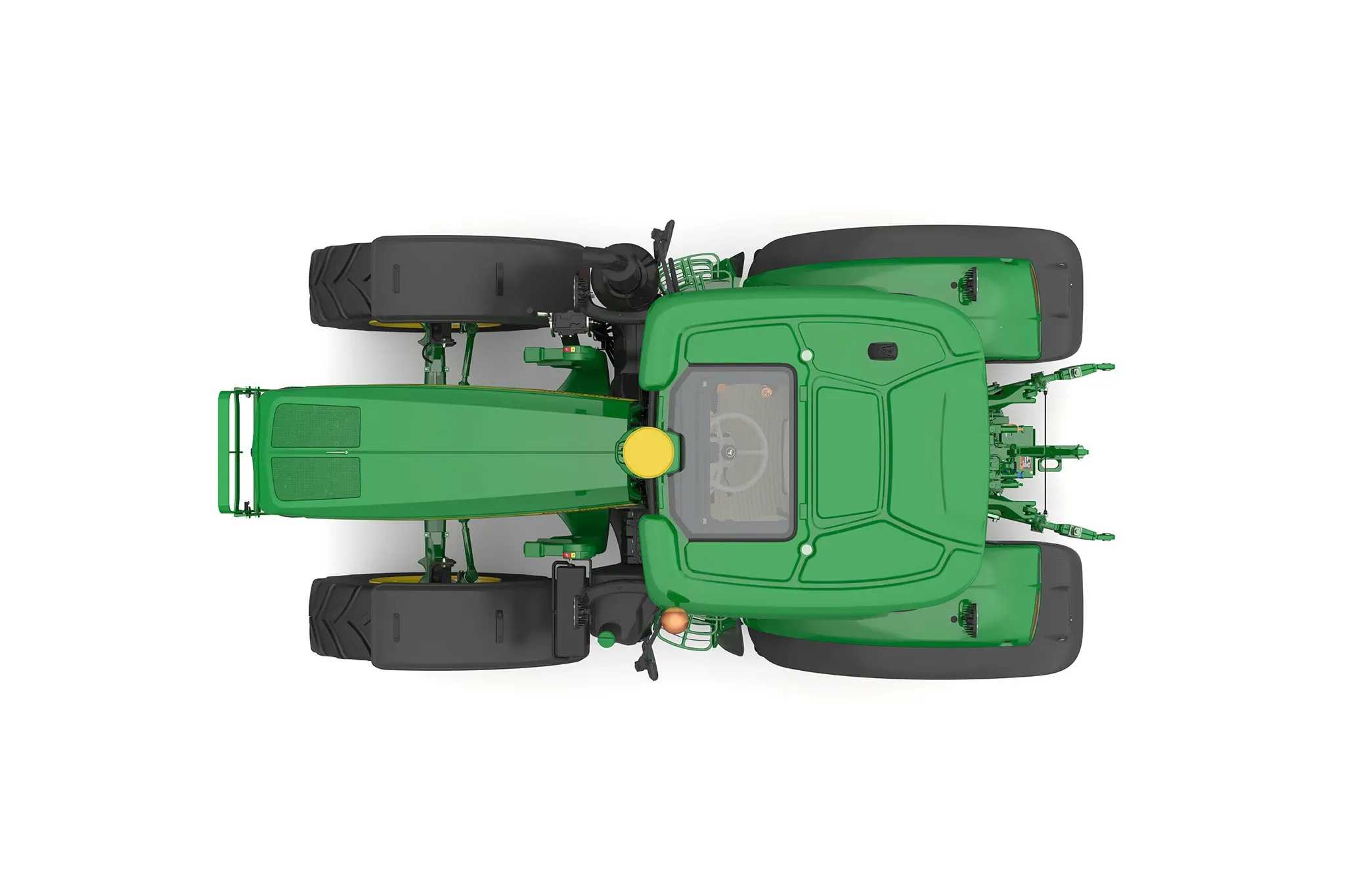

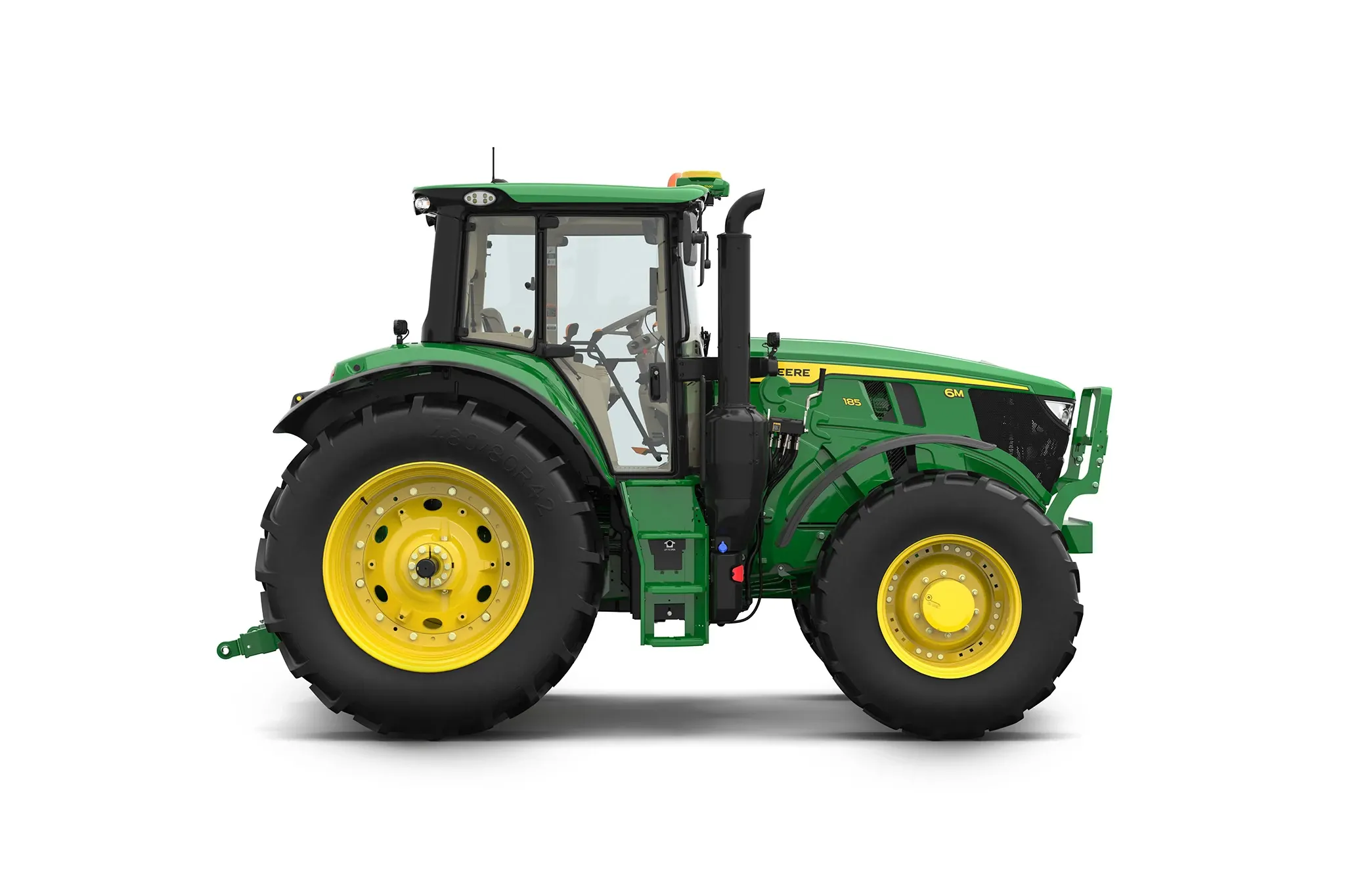

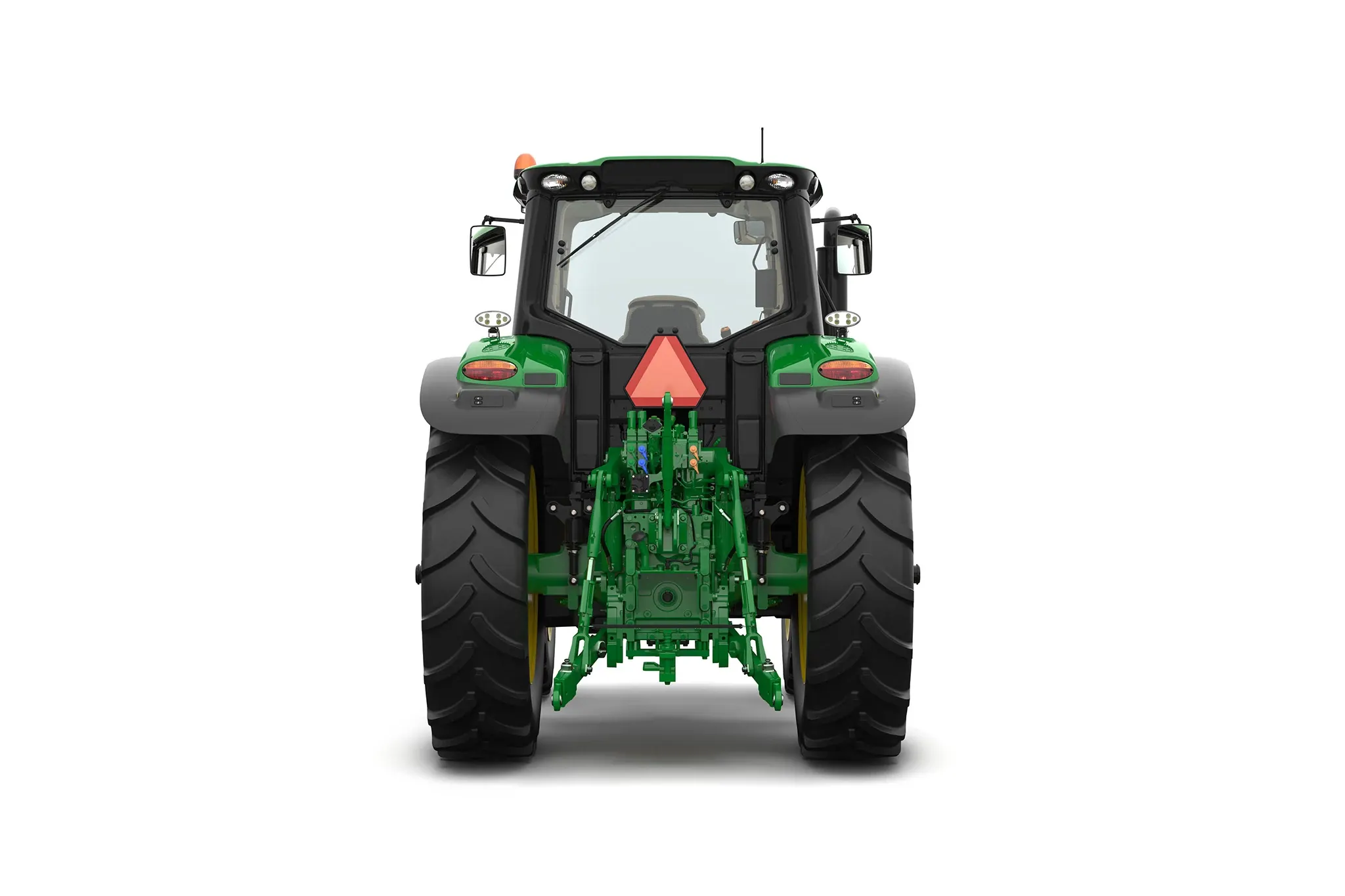

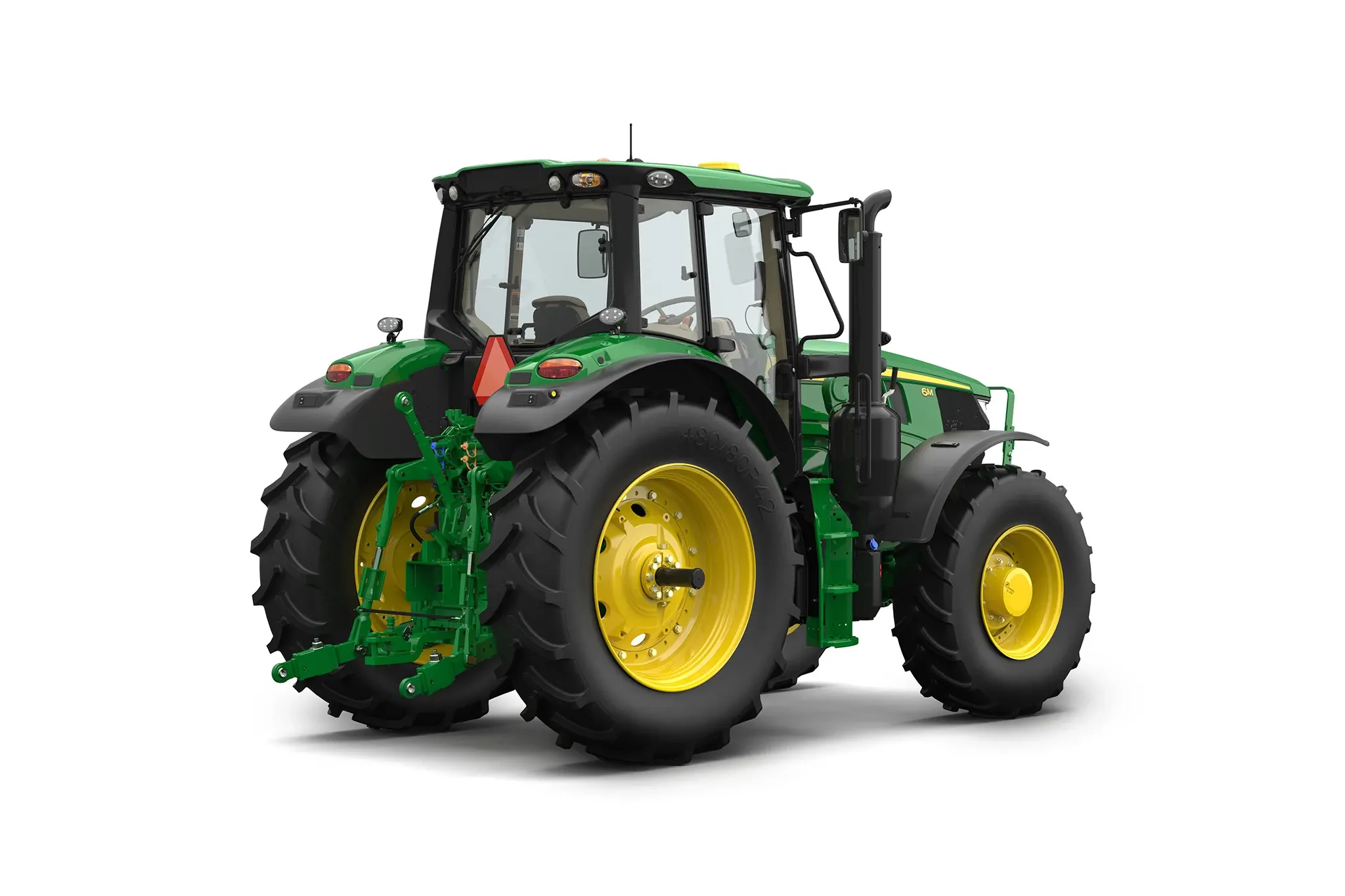

John Deere 6M 185
Tractor
With plenty of power and the ability to handle more rugged terrain, the 6M 185 can manage the heavier side of field work. Optional precision technology lets you add as much in-cab intelligence as you want.
Product Features:
- Engine hp: 204 Max / 185 Rated
ⓘ - 6.8 L Engine with 6 Cylinders
- Transmission Options: Infinitely Variable Transmission™ (IVT): 25 mph (40 km/h) or 31 mph (50 km/h)
- Up to 20 hp Boost With Intelligent Power Management (IPM) in Non-Stationary Power Take-Off (PTO) and Transport Applications
Features
With plenty of power and the ability to handle more rugged terrain, the 6M 185 can manage the heavier side of field work. Optional precision technology lets you add as much in-cab intelligence as you want.
Engine hp: 204 Max / 185 Rated
6.8 L Engine with 6 Cylinders
Transmission Options: Infinitely Variable Transmission™ (IVT): 25 mph (40 km/h) or 31 mph (50 km/h)
Up to 20 hp Boost With Intelligent Power Management (IPM) in Non-Stationary Power Take-Off (PTO) and Transport Applications
Benefits
Efficient, More Comfortable 6M Cab
Your time in the cab can be comfortable and efficient with the 6M interior environment. Built with the operator in mind, we offer three cab customizations, allowing you to select the package that best meets your needs.
Precision Technology to Help Improve Efficiency
Precision ag technology availability includes AutoTrac™ guidance readiness, JDLink™ connectivity, and an intuitive corner post display to help operators improve accuracy, efficiency, and uptime.
Transmission Choices That Are Up To The Task
Choose from a versatile lineup of transmission options, including PowrQuad™, AutoQuad™, CommandQuad™, and available Infinitely Variable Transmission (IVT™). This broad selection allows operators to match shifting control, automation, and efficiency to the demands of their day.
Specifications
| Rated PTO Power | 146 hp |
| Rated PTO Power | 89 kW |
| PTO Clutch | Multi-disk |
| Rated PTO Power with IPM | 164 hp |
| Rated PTO Power with IPM | 102 kW |
| Engine rpm at Rated PTO Speeds (540/1.000) | 1977 / 1972 |
| Rated PTO Power | 148 PS |
| Economy PTO Speeds | 540 rpm |
| Engagement Method | Electrohydraulic switch |
| Number of Splines | 6 and 21 |
| Rated PTO Power with IPM | 166 PS |
| Number of Mid Selective Control Valves (SCVs) | 3 |
| Number of Rear Selective Control Valves (SCVs) | 4 |
| SCV Control | Mechanical or Electrohydraulic |
| Pump Rated Output | Standard: 114 L/min 30 gpm Optional: 155 L/min 41 gpm |
| Maximum Operating Pressure | 205 bar |
| Maximum Operating Pressure | 2973 psi |
| Hydraulic System Type | Closed-Center System with Low Stand-By Pressure and Load-Sensing Control |
| Maximum Engine Power | 204 PS |
| Engine Make | John Deere |
| Engine Torque at Rated Speed | 445 Nm |
| Bore and Stroke | 106.5 x 127 mm |
| Rated Engine Power with IPM | 204 PS |
| Torque Rise | 40 % |
| Engine Family | VJDXL06.8316 |
| Rated Engine Power | 136 kW |
| Lubrication | Pressure lubrication / greased outer axle bearing |
| Maximum Engine Power with IPM | 210 hp |
| Displacement | 6.8 L |
| Rated Engine Speed | 2100 rpm |
| Aftertreatment Type | Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF |
| Maximum Engine Speed | 1900 rpm |
| Rated Engine Power | 183 hp |
| Maximum Engine Power with IPM | 130 kW |
| Power Bulge | 10 % |
| Engine Model | John Deere PowerTech™ PVS |
| Air Cleaner Type | PowerCore ® G2 Air Filter with pre-cleaning |
| Maximum Engine Power | 201 hp |
| Rated Engine Power with IPM | 201 hp |
| Cylinder Liners | Wet-sleeve |
| Compression Ratio | 16.7:1 |
| Maximum Engine Torque | 866 Nm 639 lb-ft |
| Maximum Engine Power with IPM | 213 PS |
| Bore and Stroke | 4.2 x 5.0 in. |
| Fuel Type | Ultra-low sulfur diesel |
| Rated Engine Power | 185 PS |
| Displacement | 418 cu in. |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
| Maximum Engine Power | 150 kW |
| Constant Power Range | 1,550 - 2,100 rpm |
| Rated Engine Power with IPM | 121 kW |
| Cooling System Type | Liquid |
| Number of Cylinders | 6 |
| Intelligent Power Management (IPM) | 20 |
| Inner Cab Volume | 3 m³ |
| Db(A) Rating | 70 dBA |
| Gearshift Location | CommandArm |
| Cab Glass Area | 4.85 m² |
| Degree of Seat Swivel, Right Hand | 15 degree (angle) |
| Radio | Standard |
| Inner Cab Volume | 106 cu ft |
| Instructional Seat | Yes |
| Primary Display | Cornerpost Display |
| Cab Glass Area | 52.2 sq ft |
| Seat Suspension | suspension with automatic weight adjustment |
| Degree of Seat Swivel, Left Hand | 7 degree (angle) |
| Cab Suspension | Yes |
| Transport Height | 117.3 in. |
| Overall Height | 117.3 in. |
| Wheelbase | 108.8 in. |
| Maximum Permissible Weight | 20944 lb. |
| Overall Length | 4470 mm |
| Front Axle Ground Clearance | 462 mm |
| Base Machine Weight | 8000 kg |
| Overall Width | 100.3 in. |
| Transport Height | 2840 mm |
| Wheelbase | 2580 mm |
| Overall Height | 2840 mm |
| Maximum Permissible Weight | 9500 kg |
| Overall Length | 186.3 in. |
| Front Axle Ground Clearance | 21.1 in. |
| Base Machine Weight | 17637 lb. |
| Overall Width | 2460 mm |
| Battery Cold Cranking Amps | 1150 CCA |
| Alternator Capacity | 125 A/250A |
| Battery Voltage | 12 V |
| Electrical System Voltage | 12 V |
| Driving Lights | No |
| Battery Capacity | 154 Ah/174 Ah |
| Working Lights | Yes |
| Lift Capacity Through Full Lift Range Directly at Coupling Points | Standard: 4,000 kg 8,810 lb Optional: 4,500 kg 9,920 lb |
| Rear Hitch Category (SAE Designation) | Category 3/3N |
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point | Standard: 3,500 kg 7,710 lb Optional: 3,950 kg 8,700 lb |
| Maximum Lift Capacity Directly at Coupling Points | Standard: 6,800 kg 14,990 lb Optional: 7,650 kg 16,860 lb |
| Lift Capacity Through Full Lift Range at Coupling Points | 2750 kg (6057 lb) / 3600 kg (7930 lb) |
| Sensing Type | Electrohydraulic sensing |
| Draft Control Sensing | Electronic Stepper Motor |
| Maximum Speed Forward | 50 km/h 31 mph |
| Cruise Control | Yes |
| Transmission Type | Standard: John Deere AutoPowr™/IVT™ 40 km/h Optional: John Deere AutoPowr™/IVT™ 50 km/h |
| Minimum Speed Forward | 0.03 km/h 0.02 mph |
| Reverser | Electronic left-hand reverser |
| Creeper | Optional |
| Parking Brake | Intergrated parking brake |
| Primary Brakes | Oil-cooled, self-equalizing, self-adjusting, hydraulically actuated |
| Secondary Brake | Lever right hand side at console, hydraulically actuated, integrated into rear axle service brake |
| Trailer Brakes | Optional: Air and/or hydraulic |
| Steering Type | Dynamic Load Sensing, Hydrostatic, Flow Metering |
| Lift Capacity Through Full Lift Range at Coupling Points | 7275 lb. |
| Lift Capacity Through Full Lift Range at Coupling Points | 3300 kg |
| Maximum Lift Capacity at Coupling Points | 9700 lb. |
| Maximum Lift Capacity at Coupling Points | 4400 kg |
| Number of Front Selective Control Valves (SCVs) | 1 |
| Electric Power | ISOBUS Connector |
| Front Hitch Category | 3N |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 4.2 gal. |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 13.5 L |
| Transmission - Hydraulic System | 60 L |
| Transmission - Hydraulic System | 16.4 gal. |
| Fuel Tank Capacity | 205 L |
| Fuel Tank Capacity | 75.3 gal. |
| Crankcase Oil Volume | 17.1 L |
| Crankcase Oil Volume | 6.2 gal. |
| Cooling System Capacity | 22 L |
| Cooling System Capacity | 7.2 gal. |
| Drawbar Category | Cat 3 |
| Maximum Vertical Load | 2000 |
| Remote Diagnostics | Yes |
| Connectivity | JDLink™ Modem |
| Receiver | Universal StarFire™ 7500 |
| Guidance | SF-RTK |
| ISOBUS Ready | Yes |
| Secondary Display | 10,1 / 12.8 inch Command Center Display |
| Date Collected | 8-Jun-26 |
| Country of Manufacture | Germany |
| Wheel or Track Configuration | Wheel |
| Drive Type | MFWD |
| Front Tires Size | 380/85R24 |
| Rear Tires Size | 460/85R34 |
| Engine rpm (at Rated PTO Speeds) | 1969 rpm |
| Maximum PTO Power | 90 PS |
| Front PTO Rotation | clockwise rotation (viewed in direction of travel) |
| Front Number of Splines | 21 |
| Maximum PTO Power | 66 kW |
| Maximum PTO Power | 88 hp |
| PTO Speed | 1000 |
| Rear Axle Type | Inboard planetary three pinion |
| Rear Differential Lock | Yes |
| Final Drive | Three planetary gear reduction |
| Differential Controls | Yes |
| Front Axle Differential Lock | Yes |
| Front Axle Type | Standard: Mechanical Front Wheel Drive axle Optional: Triple Link Suspension (TLS™) |
