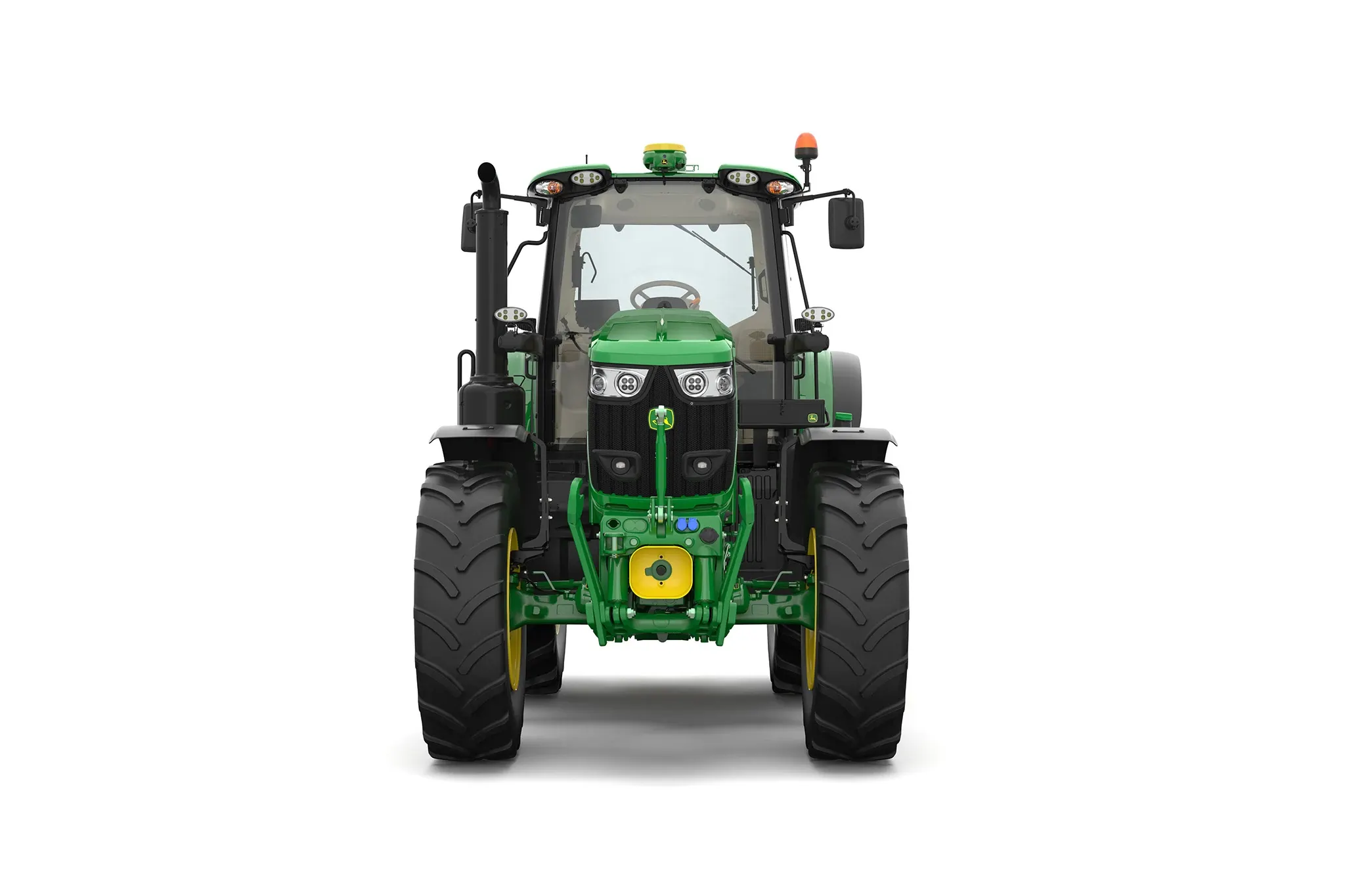

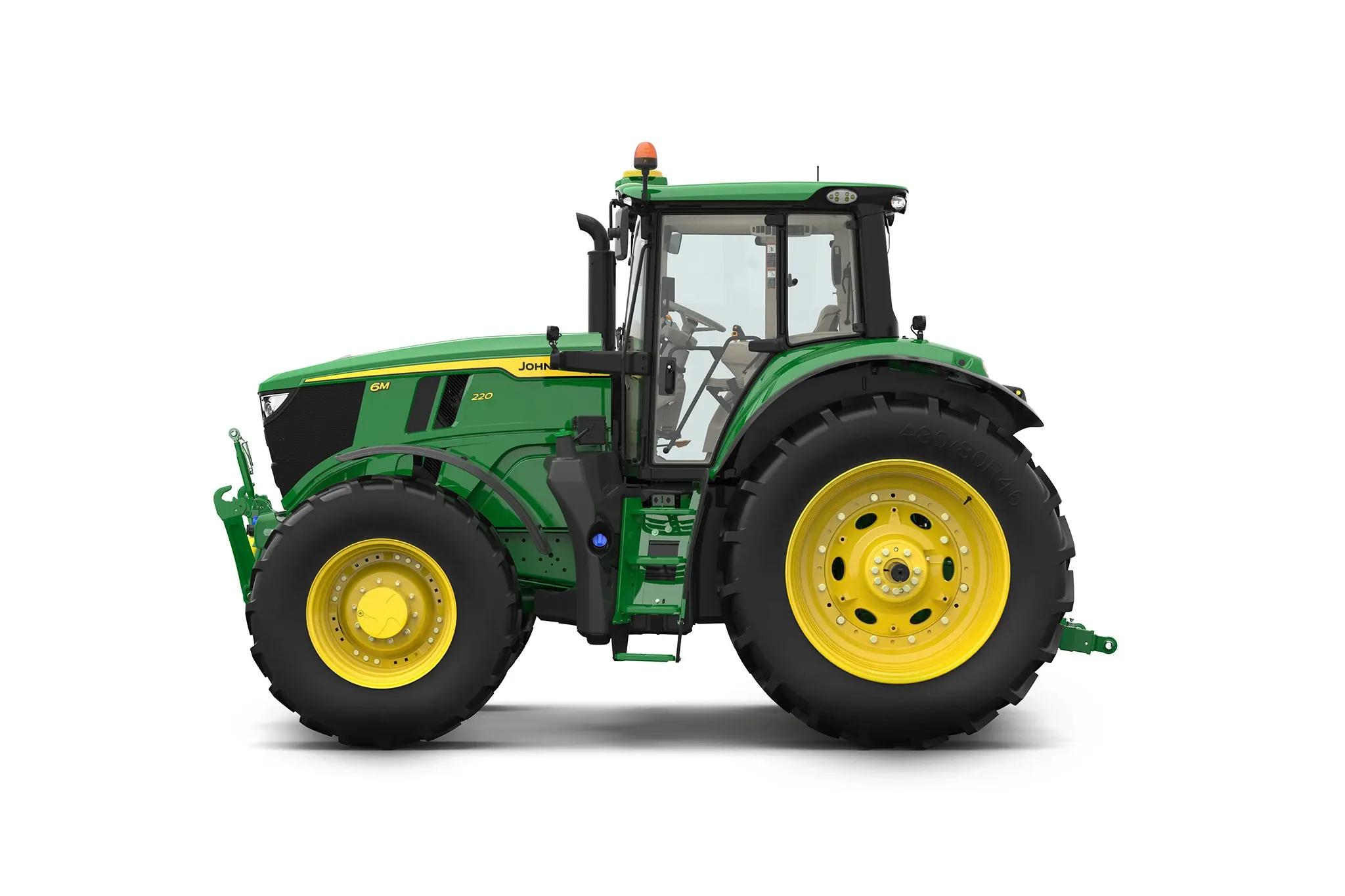

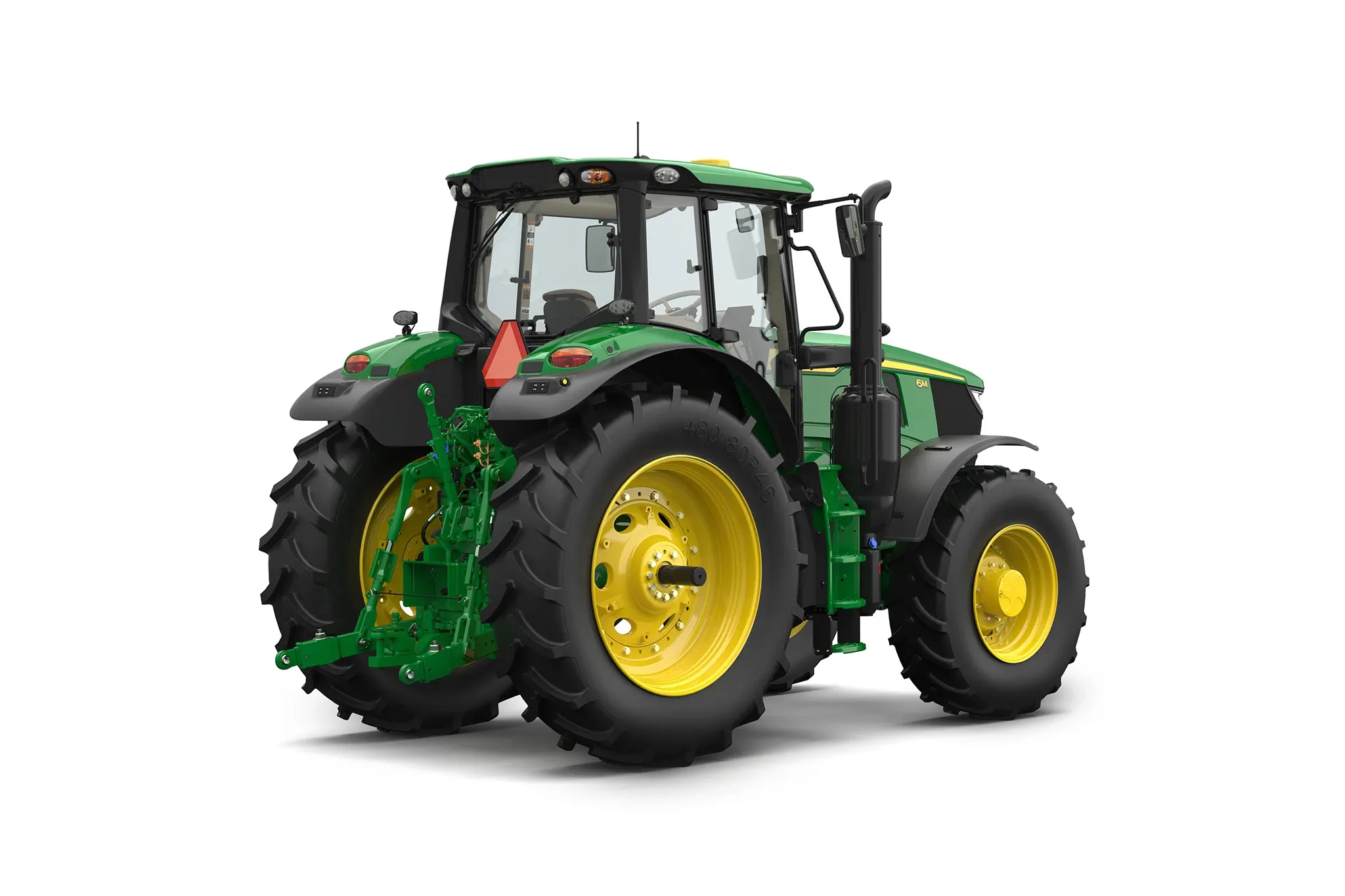

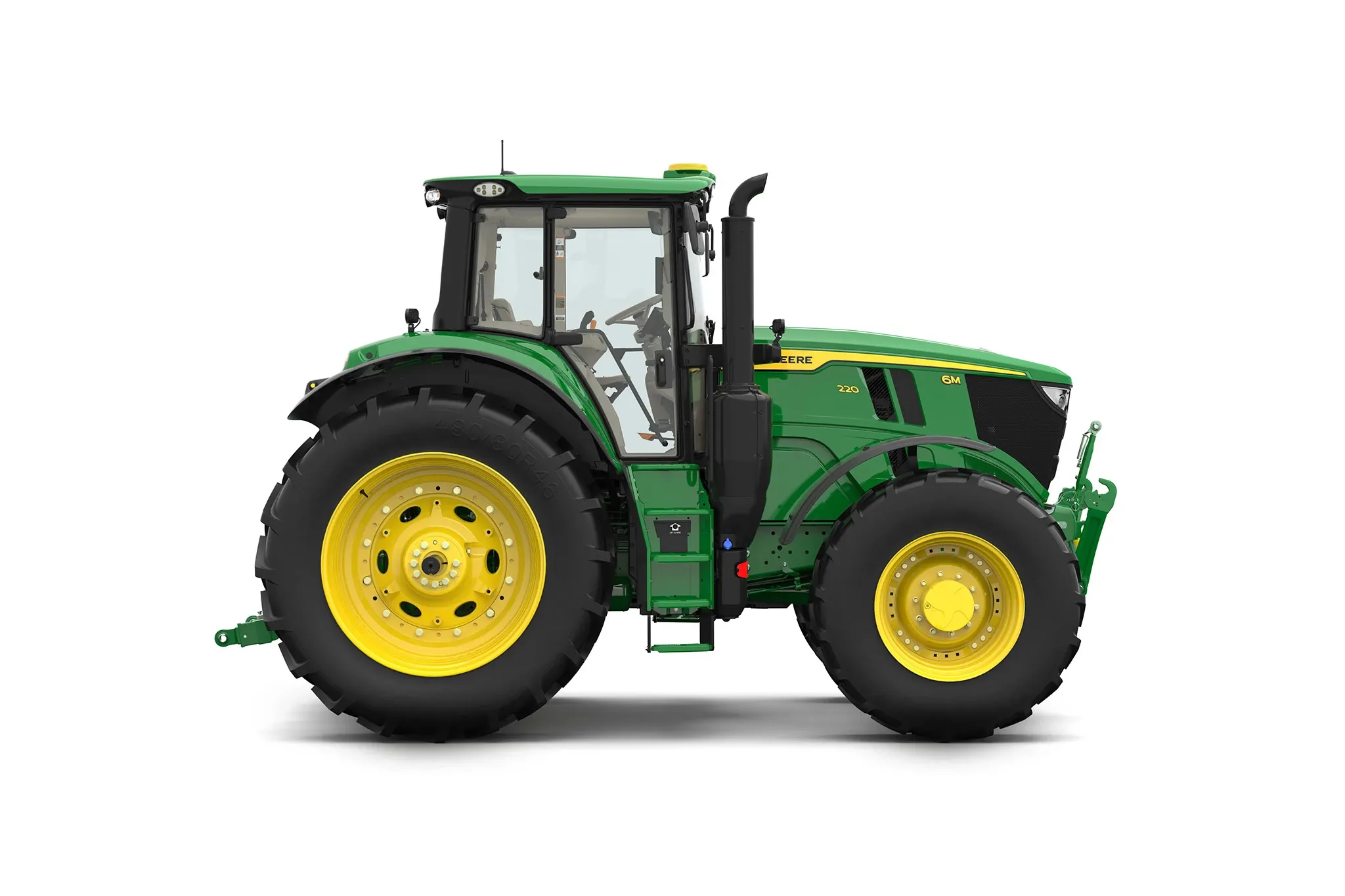

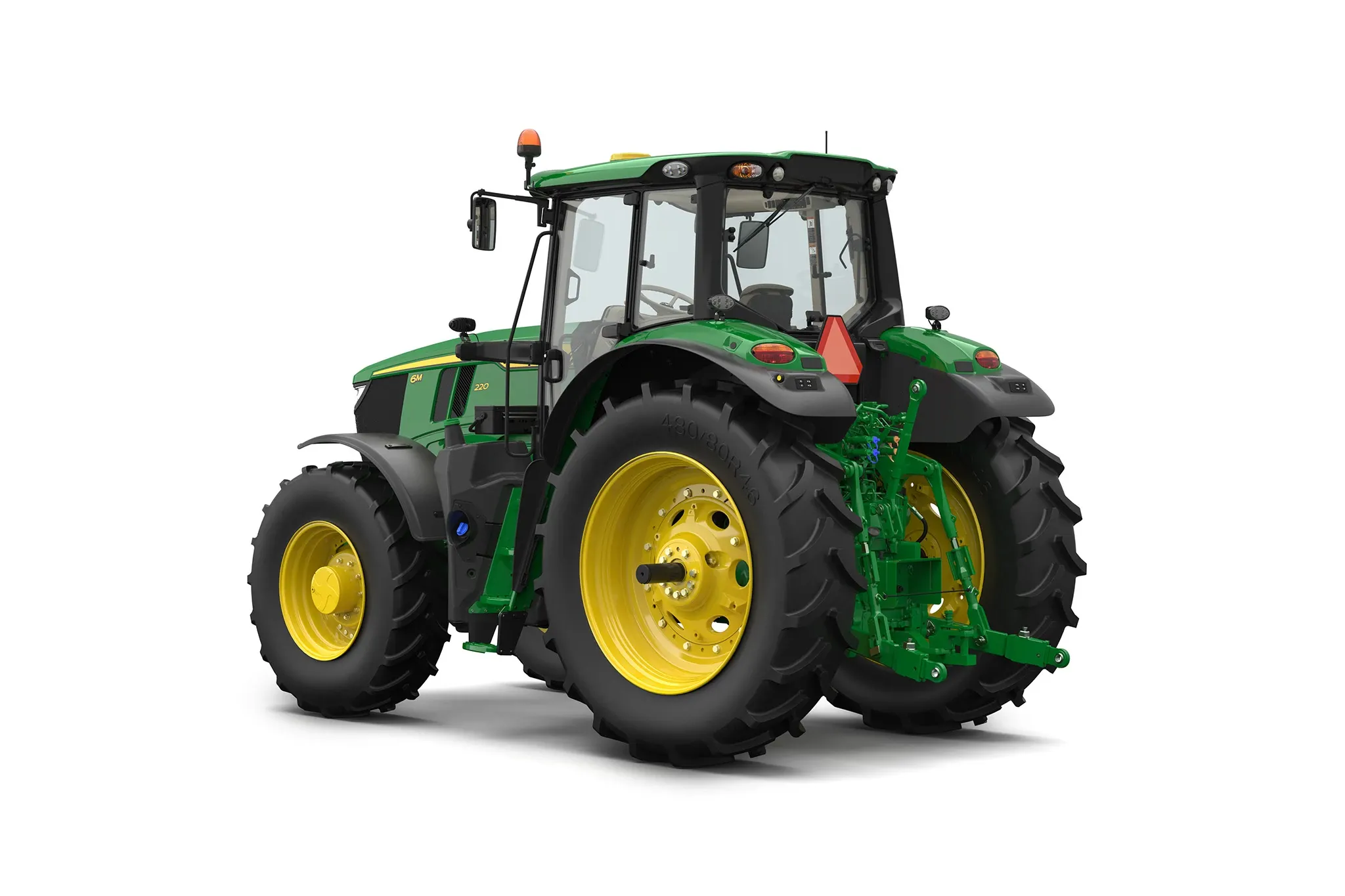

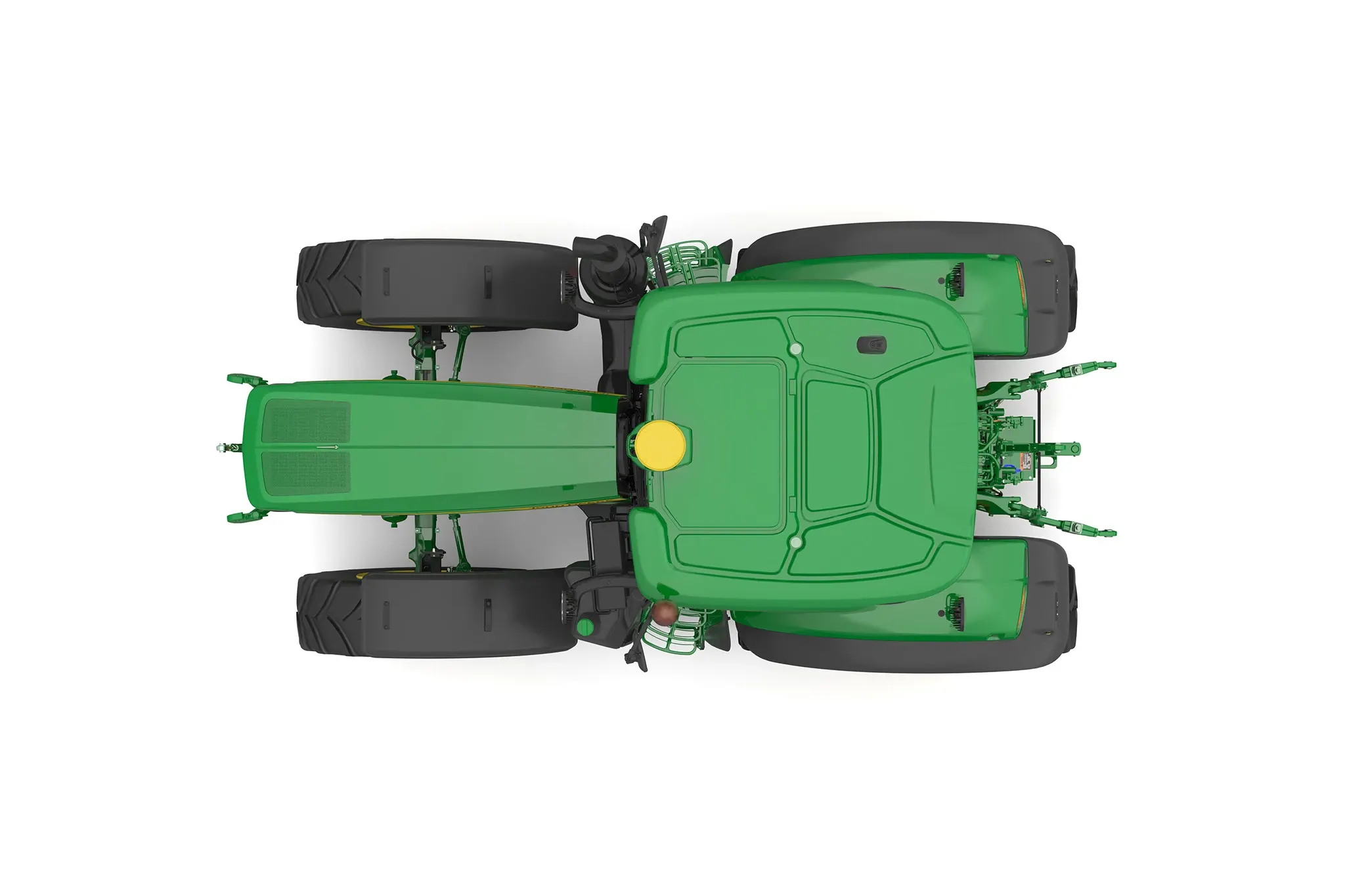

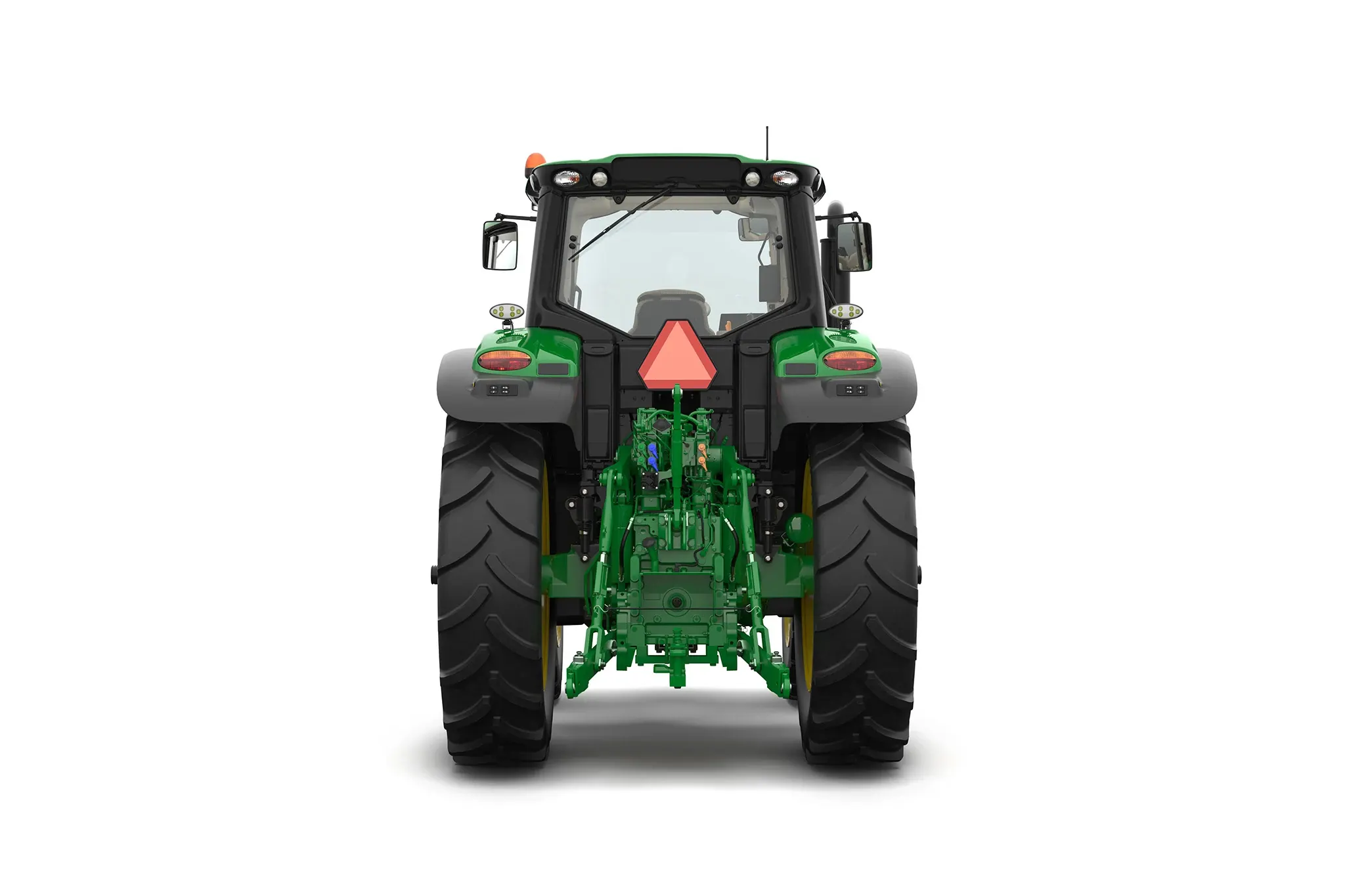

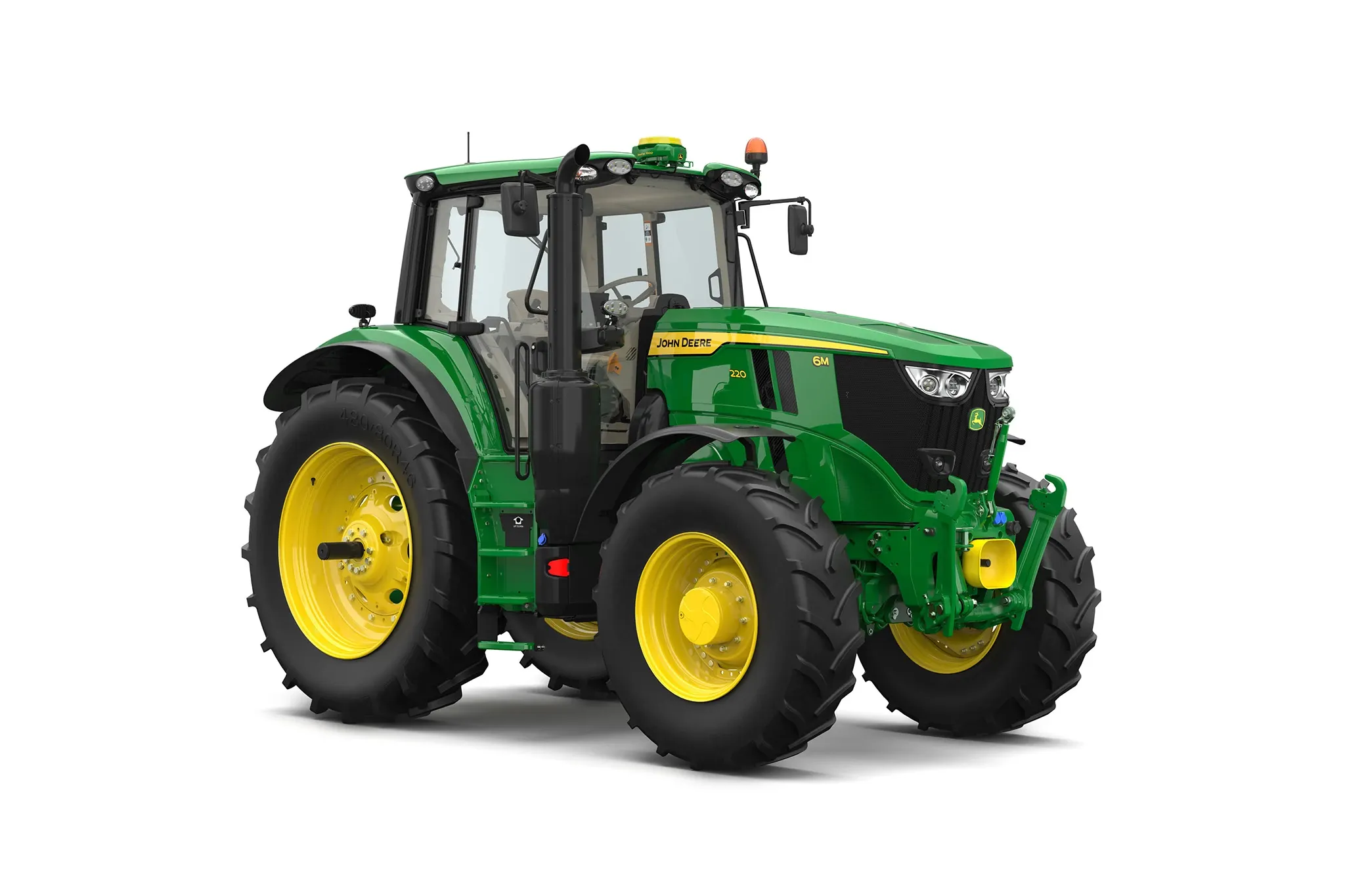

John Deere 6M 220
Tractor
The larger frame 6M 220 provides the power and torque you need to take care of your toughest chores. Optional precision technology lets you add as much in-cab intelligence as you want.
Product Features:
- Engine hp: 242 Max / 220 Rated
ⓘ - John Deere PowerTech™ PVS Engine
- Transmission Options: PowrQuad™ Plus, AutoQuad™ Plus, CommandQuad™ Plus, or Infinitely Variable Transmission™
- Up to 20 hp Boost With Intelligent Power Management (IPM) in Non-Stationary Power Take-Off (PTO) and Transport Applications
Features
The larger frame 6M 220 provides the power and torque you need to take care of your toughest chores. Optional precision technology lets you add as much in-cab intelligence as you want.
Engine hp: 242 Max / 220 Rated
John Deere PowerTech™ PVS Engine
Transmission Options: PowrQuad™ Plus, AutoQuad™ Plus, CommandQuad™ Plus, or Infinitely Variable Transmission™
Up to 20 hp Boost With Intelligent Power Management (IPM) in Non-Stationary Power Take-Off (PTO) and Transport Applications
Benefits
Precision Technology to Help Improve Efficiency
Precision ag technology availability includes AutoTrac™ guidance readiness, JDLink™ connectivity, and an intuitive corner post display to help operators improve accuracy, efficiency, and uptime.

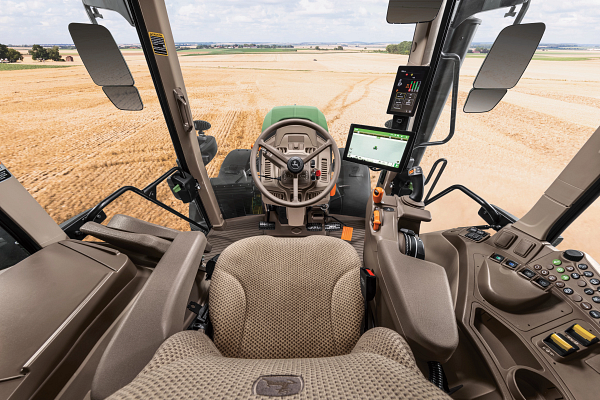

Efficient, More Comfortable 6M Cab
Your time in the cab can be comfortable and efficient with the 6M interior environment. Built with the operator in mind, we offer three cab customizations, allowing you to select the package that best meets your needs.
Transmission Choices That Are Up To The Task
Choose from a versatile lineup of transmission options, including PowrQuad™, AutoQuad™, CommandQuad™, and available Infinitely Variable Transmission (IVT™). This broad selection allows operators to match shifting control, automation, and efficiency to the demands of their day.
Specifications
| Rated PTO Power | 177 hp |
| Rated PTO Power | 89 kW |
| PTO Clutch | Multi-disk |
| Rated PTO Power with IPM | 196 hp |
| Rated PTO Power with IPM | 102 kW |
| Engine rpm at Rated PTO Speeds (540/1.000) | 1977 / 1972 |
| Rated PTO Power | 180 PS |
| Economy PTO Speeds | 540 rpm |
| Engagement Method | Electrohydraulic switch |
| Number of Splines | 6 and 21 |
| Rated PTO Power with IPM | 198 PS |
| Number of Mid Selective Control Valves (SCVs) | 3 |
| Number of Rear Selective Control Valves (SCVs) | 4 |
| SCV Control | Mechanical or Electrohydraulic |
| Pump Rated Output | Standard: 114 L/min 30 gpm Optional: 155 L/min 41 gpm |
| Maximum Operating Pressure | 205 bar |
| Maximum Operating Pressure | 2973 psi |
| Hydraulic System Type | Closed-Center System with Low Stand-By Pressure and Load-Sensing Control |
| Maximum Engine Power | 242 PS |
| Engine Make | John Deere |
| Engine Torque at Rated Speed | 445 Nm |
| Bore and Stroke | 106.5 x 127 mm |
| Rated Engine Power with IPM | 242 PS |
| Torque Rise | 40 % |
| Engine Family | VJDXL06.8319 |
| Rated Engine Power | 162 kW |
| Lubrication | Pressure lubrication / greased outer axle bearing |
| Maximum Engine Power with IPM | 246 hp |
| Displacement | 6.8 L |
| Rated Engine Speed | 2100 rpm |
| Aftertreatment Type | Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF |
| Maximum Engine Speed | 1900 rpm |
| Rated Engine Power | 217 hp |
| Maximum Engine Power with IPM | 130 kW |
| Power Bulge | 10 % |
| Engine Model | John Deere PowerTech™ PVS |
| Air Cleaner Type | PowerCore ® G2 Air Filter with pre-cleaning |
| Maximum Engine Power | 239 hp |
| Rated Engine Power with IPM | 239 hp |
| Cylinder Liners | Wet-sleeve |
| Compression Ratio | 16.7:1 |
| Maximum Engine Torque | 1,025 Nm 756 ft-lb |
| Maximum Engine Power with IPM | 249 PS |
| Bore and Stroke | 4.2 x 5.0 in. |
| Fuel Type | Ultra-low sulfur diesel |
| Rated Engine Power | 220 PS |
| Displacement | 418 cu in. |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
| Maximum Engine Power | 178 kW |
| Constant Power Range | 1,550 - 2,100 rpm |
| Rated Engine Power with IPM | 121 kW |
| Cooling System Type | Liquid |
| Number of Cylinders | 6 |
| Intelligent Power Management (IPM) | 20 |
| Inner Cab Volume | 3 m³ |
| Db(A) Rating | 70 dBA |
| Gearshift Location | Standard: Right Hand Console Optional: CommandArm |
| Cab Glass Area | 4.85 m² |
| Degree of Seat Swivel, Right Hand | 15 degree (angle) |
| Radio | Standard |
| Inner Cab Volume | 106 cu ft |
| Instructional Seat | Yes |
| Primary Display | Cornerpost Display |
| Cab Glass Area | 52.2 sq ft |
| Seat Suspension | suspension with automatic weight adjustment |
| Degree of Seat Swivel, Left Hand | 7 degree (angle) |
| Cab Suspension | Yes |
| Transport Height | 120.5 in. |
| Overall Height | 120.5 in. |
| Wheelbase | 110.2 in. |
| Maximum Permissible Weight | 20944 lb. |
| Overall Length | 4470 mm |
| Front Axle Ground Clearance | 462 mm |
| Base Machine Weight | 8000 kg |
| Overall Width | 100.3 in. |
| Transport Height | 2840 mm |
| Wheelbase | 2580 mm |
| Overall Height | 2840 mm |
| Maximum Permissible Weight | 9500 kg |
| Overall Length | 196.2 in. |
| Front Axle Ground Clearance | 21.1 in. |
| Base Machine Weight | 19180 lb. |
| Overall Width | 2460 mm |
| Battery Cold Cranking Amps | 1150 CCA |
| Alternator Capacity | 125 A/250A |
| Battery Voltage | 12 V |
| Electrical System Voltage | 12 V |
| Driving Lights | No |
| Battery Capacity | 154 Ah/174 Ah |
| Working Lights | Yes |
| Lift Capacity Through Full Lift Range Directly at Coupling Points | Standard: 5,050 kg 11,130 lb Optional: 5,700 kg 12,560 lb |
| Rear Hitch Category (SAE Designation) | Category 3/3N |
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point | Standard: 4,600 kg 10,140 lb Optional: 5,150 kg 11,350 lb |
| Maximum Lift Capacity Directly at Coupling Points | Standard: 8,050 kg 17,740 lb Optional: 9,050 kg 19,950 lb |
| Lift Capacity Through Full Lift Range at Coupling Points | 2750 kg (6057 lb) / 3600 kg (7930 lb) |
| Sensing Type | Electrohydraulic sensing |
| Draft Control Sensing | Electronic Stepper Motor |
| Maximum Speed Forward | 50 km/h 31 mph |
| Cruise Control | Yes |
| Transmission Type | Standard: John Deere 20-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 20-speed AutoQuad Plus 40 km/h & 50 km/h John Deere e19™ PowerShift 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h |
| Minimum Speed Forward | 0.03 km/h 0.02 mph |
| Reverser | Electronic left-hand reverser |
| Creeper | Optional |
| Parking Brake | Intergrated parking brake |
| Primary Brakes | Oil-cooled, self-equalizing, self-adjusting, hydraulically actuated |
| Secondary Brake | Lever right hand side at console, hydraulically actuated, integrated into rear axle service brake |
| Trailer Brakes | Optional: Air and/or hydraulic |
| Steering Type | Dynamic Load Sensing, Hydrostatic, Flow Metering |
| Lift Capacity Through Full Lift Range at Coupling Points | 7275 lb. |
| Lift Capacity Through Full Lift Range at Coupling Points | 3300 kg |
| Maximum Lift Capacity at Coupling Points | 9700 lb. |
| Maximum Lift Capacity at Coupling Points | 4400 kg |
| Number of Front Selective Control Valves (SCVs) | 1 |
| Electric Power | ISOBUS Connector |
| Front Hitch Category | 3N |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 5.3 gal. |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 13.5 L |
| Transmission - Hydraulic System | 60 L |
| Transmission - Hydraulic System | 19.8 gal. |
| Fuel Tank Capacity | 205 L |
| Fuel Tank Capacity | 85.9 gal. |
| Crankcase Oil Volume | 17.1 L |
| Crankcase Oil Volume | 6.2 gal. |
| Cooling System Capacity | 22 L |
| Cooling System Capacity | 7.4 gal. |
| Drawbar Category | Cat 3 |
| Maximum Vertical Load | 3000 |
| Remote Diagnostics | Yes |
| Connectivity | JDLink™ Modem |
| Receiver | Universal StarFire™ 7500 |
| Guidance | SF-RTK |
| ISOBUS Ready | Yes |
| Secondary Display | 10,1 / 12.8 inch Command Center Display |
| Date Collected | 8-Jun-26 |
| Country of Manufacture | Germany |
| Wheel or Track Configuration | Wheel |
| Drive Type | MFWD |
| Front Tires Size | 380/85R24 |
| Rear Tires Size | 460/85R34 |
| Engine rpm (at Rated PTO Speeds) | 1969 rpm |
| Maximum PTO Power | 90 PS |
| Front PTO Rotation | clockwise rotation (viewed in direction of travel) |
| Front Number of Splines | 21 |
| Maximum PTO Power | 66 kW |
| Maximum PTO Power | 88 hp |
| PTO Speed | 1000 |
| Rear Axle Type | Inboard planetary three pinion |
| Rear Differential Lock | Yes |
| Final Drive | Three planetary gear reduction |
| Differential Controls | Yes |
| Front Axle Differential Lock | Yes |
| Front Axle Type | Standard: Mechanical Front Wheel Drive axle Optional: Triple Link Suspension (TLS™) |
