John Deere S110
Lawn Tractor
The S110 Lawn Tractor delivers dependable performance with an upgraded cut-and-sewn seat for added comfort. Simple to operate and easy to maintain.
Product Features:
- 19-hp (14.2-kW) Engine
- 42-in. Edge™ Mower Deck
- Durable Hydrostatic Transaxle
- Operator Station is Wide and Comfortable
ⓘ
Features
The S110 Lawn Tractor delivers dependable performance with an upgraded cut-and-sewn seat for added comfort. Simple to operate and easy to maintain.
19-hp (14.2-kW) Engine
42-in. Edge™ Mower Deck
Durable Hydrostatic Transaxle
Operator Station is Wide and Comfortable
Benefits
Easy Speed and Direction Control
The Kanzaki® Tuff Torq® hydrostatic transmission offers an infinite choice of speeds, making direction changes seamless. Side-by-side foot pedals control speed and direction, enhancing operator comfort and ease of use, ensuring reliability across varied conditions.
Do More Than Mow
A 100-Series Lawn Tractor is the perfect companion for property care tasks. Use a bagger to collect clippings and leaves. Transport mulch using a cart. A snow blower removes snow while a weather enclosure protects you from the elements. All John Deere attachments are tested to ensure compatibility.

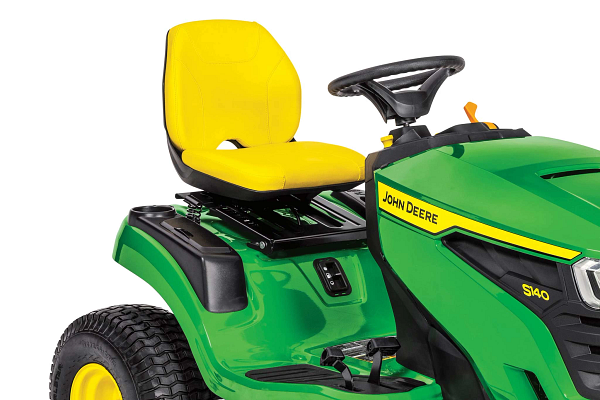

Convenient and Comfortable
A 15-in. (38 cm) cut-and-sewn seat looks as good as it feels with 5-1/2-in. of fore and aft travel adjusting for multiple operators. Controls are positioned where they are easy to reach, and the standard LED headlights look great and provide natural light quality.
Specifications
| Mower Wash Port | Yes |
| Mower Deck Material | 2.3 mm |
| Mower Deck Material | 0.09 in. |
| Cutting Width | 42 in. |
| Cutting Width | 107 cm |
| Mower Deck Material | 13 gauge |
| Construction | Stamped steel deck shell |
| Mower Wheels | Two |
| Mower Level Adjustment | Easy-level deck |
| Mower Wheel Adjustment | One bolt |
| Type | Side discharge |
| Mower Drive System | Manual power take-off (PTO) |
| Seat Back Height | 38 cm |
| Seat Back Height | 15 in. |
| Seat Suspension | Tilt, two coil springs |
| Type | Two piece with open-back |
| Armrests | No |
| Fore-Aft Adjustment | 5.5 in. |
| Fore-Aft Adjustment | 14 cm |
| Four-Wheel Steer | Not available on this model |
| Uncut Circle Radius | 63.5 cm |
| Tilt Steering Wheel | No |
| Uncut Circle Radius | 25 in. |
| Turning Radius | 45.7 cm |
| Turning Radius | 18 in. |
| Steering Wheel | 12 in. |
| Type | Sector and pinion with single drag link and tie rod |
| Steering Wheel | 30.5 cm |
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame |
| Warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Fender Handles/Grips | No |
| Maximum Towing Capacity | 227 kg |
| Front Tires | 15x6-6 |
| Weight Bracket | Optional rear |
| Fender Deck Material | Stamped steel |
| Storage | Storage tray with optional cover |
| Cup Holder | Yes |
| Primer/Paint | E-coat/powder |
| Front Axle | Cast-iron front axle, powdered-metal front wheel bushings |
| Service Interval Decal | Yes |
| Maximum Towing Capacity | 500 lb. |
| Floor Mats | Yes, with debris removing channels |
| Receiver Hitch | No |
| Equipment Mounting | CargO Mount™ system |
| Hood Material | Molded-in color material reduces sound, will not rust or dent |
| Rear Tires | 20x8-8 |
| Spindle Bushings | No |
| Frame | Full-length welded steel |
| Sun Canopy | Sun canopy |
| Snow Blower | 44 in. |
| Front Blade | 116.8 cm |
| Tow-Behind Tools | 16 |
| Spreader - Tow-Behind | 175 lb. |
| Rear Bagger | 229 L |
| Sprayer - Tow-Behind | 25 U.S. gal. |
| Sprayer - Mounted | 15 U.S. gal. |
| Bucket Holder | Yes, single bucket |
| Grass Striping | Lawn striping kit |
| Snow Blower | 111.8 cm |
| Front Blade | 46 in. |
| Mulching System | Mulch cover or high-performance plug |
| Rear Bagger | 6.5 bu |
| Spreader - Tow-Behind | 80 kg |
| Sprayer - Tow-Behind | 94.6 L |
| Sprayer - Mounted | 56.8 L |
| Front Bumper | Styled front bumper |
| Weather Protection | Weather enclosure |
| Mower Cut Height - Maximum | 10.2 cm |
| Hydraulic Outlets | No |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Mower Cut Height - Minimum | 1 in. |
| Lift System Type | Spring-assisted hand-grip lever |
| Mower Cut Height - Minimum | 2.5 cm |
| Preset Cut Height | No |
| Height | 44 in. |
| Wheelbase | 1242 mm |
| Height | 1120 mm |
| Wheelbase | 48.9 in. |
| Weight | 414 lb. |
| Weight | 188 kg |
| Overall Length | 69.7 in. |
| Overall Length | 1770 mm |
| Width With Mower | 55.2 in. |
| Width With Mower | 1402 mm |
| Width With Mower (Deflector Raised For Storage) | 46.5 in. |
| Width With Mower (Deflector Raised For Storage) | 1181 mm |
| Engine Starter | Bendix type |
| Battery Voltage | 12 V |
| Charging System | 8 amp |
| Rear Work Lights | No |
| Battery Cold Crank Amps | 300 CCA |
| Headlights | Two standard, incandescent |
| Hour Meter | Yes |
| 12-V Outlet | No |
| Taillights Or Reflector | No |
| Charging System | Regulated |
| Backup Lights | No |
| Fuel Fill Opening | 1.75 in. |
| Fuel Fill Opening | 4.45 cm |
| Fuel Tank Capacity | 9.1 L |
| Fuel Tank Capacity | 2.4 U.S. gal. |
| Fuel Gauge | Mechanical, viewable from seat |
| Fuel Tank Location | Rear |
| Type | Gasoline |
| Fuel Fill Opening | Center |
| Fuel Delivery | Pulse pump and carburetor |
| Meets OPEI Standard | Yes |
| Meets ANSI Standard | Yes |
| Safety Video | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Oil Cooler | Fins and fan on transaxle |
| Brakes | Internal wet disk |
| Forward Speed | 5.5 mph |
| Forward Speed | 8.9 km/h |
| Cruise Control | No |
| Differential Lock | No |
| Oil Filter | Yes, not serviceable |
| Transaxle Type | Hydrostatic, 2-wheel drive |
| Transaxle Control | Side-by-side pedals |
| Reverse Speed | 5.2 km/h |
| Reverse Speed | 3.2 mph |
| Date Collected | 2022-03-26T00:00:00 |
| Manufacturing Location | Greeneville, Tennessee, USA |
| Displacement | 33 cu in. |
| Oil Change | No-tools oil drain with replaceable filter |
| Displacement | 540 cc |
| Air Cleaner | Cartridge |
| Choke/Speed Control | Single lever with spring-return on choke |
| Engine Power | 19 hp |
| Engine Power | 14.2 kW |
| Governor | Mechanical |
| Cooling Method | Air |
| Engine Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | One |
| Engine Manufacturer/Model | 33R877 (M33) |
| Mower Wheels Rotate | No |
| Drive System | Single belt |
| Front Draft Arms | One spring clip |
| Type | Slide under tractor |
| Rear Draft Arms | Two spring clips |
