John Deere X350R
Lawn Tractor
The X350R Lawn Tractor with a 42-in. Edge Rear-discharge Deck provides a large capacity rear hopper for excellent material collection that can be easily emptied from the operator seat. Perfect for homeowners seeking a beautifully manicured lawn with convenient cleanup.
Product Features:
- 21.5-hp (16.0-kW) iTorque™ Power System
- 42-in. (107 cm) Edge™ Rear-Discharge Deck
- Large Capacity Rear Hopper Easily Emptied From Operator Seat
- 4 Year/300 Hour Bumper-to-Bumper Warranty
ⓘ
Features
The X350R Lawn Tractor with a 42-in. Edge™ Rear-discharge Deck provides a large capacity rear hopper for excellent material collection that can be easily emptied from the operator seat. Perfect for homeowners seeking a beautifully manicured lawn with convenient cleanup.
21.5-hp (16.0-kW) iTorque™ Power System
42-in. (107 cm) Edge™ Rear-Discharge Deck
Large Capacity Rear Hopper Easily Emptied From Operator Seat
4 Year/300 Hour Bumper-to-Bumper Warranty
Benefits

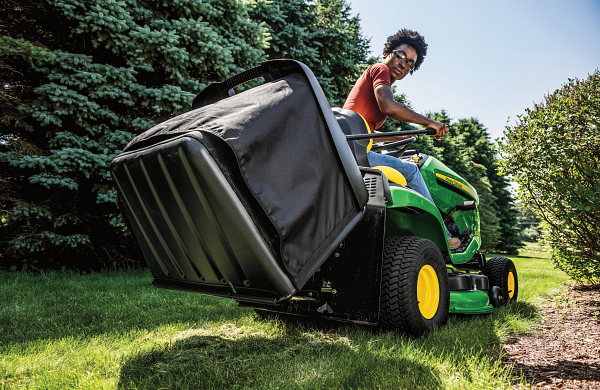

Rear Hopper with Large Capacity
The rear hopper has an 8.5-bushel (300-liter) capacity, allowing for high-volume collection of grass clippings. The hopper is made from durable materials and is easy to empty from the operator's seat. It's designed to seal effectively, minimizing dust and debris escaping.
Snow Removal Capability
The exclusive four‑wheel‑steer system delivers tight turns and precise control, making it easier to clear around driveways, sidewalks, and obstacles. A front‑mounted snow blower moves snow efficiently, helping you finish faster and comfortably.
Automotive Style Instrument Panel
Easy-to-read instrument panel keeps all of the information you need to mow at your best. Easy-to-read fuel gauge and battery voltage level indicator ensure you won’t get stuck far from home while a tachometer makes sure the engine RPMs are optimal for the best mowing performance. And always keep your tractor in top shape by help of the hour meter to tell you when maintenance is required.
Specifications
| Mower Wash Port | Yes |
| Mower Deck Material | 3 mm |
| Mower Deck Material | 0.12 in. |
| Cutting Width | 42 in. |
| Cutting Width | 107 cm |
| Mower Deck Material | 11 gauge |
| Construction | Stamped steel deck shell |
| Mower Wheels | Three |
| Mower Level Adjustment | Exact Adjust ports and onboard deck-leveling gauge |
| Mower Wheel Adjustment | Four-position, tool required |
| Type | Rear discharge, rear collect, mulch |
| Mower Drive System | Electric power take-off (PTO) clutch, in-line belt |
| Seat Back Height | 38 cm |
| Seat Back Height | 15 in. |
| Seat Suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
| Type | Open-back design with grasp |
| Armrests | No |
| Fore-Aft Adjustment | 6.6 in. |
| Fore-Aft Adjustment | 17 cm |
| Four-Wheel Steer | Not available on this model |
| Uncut Circle Radius | 71.1 cm |
| Tilt Steering Wheel | No |
| Uncut Circle Radius | 28 in. |
| Turning Radius | 42 cm |
| Turning Radius | 16.5 in. |
| Steering Wheel | 14 in. |
| Type | Manual, sector and pinion |
| Steering Wheel | 35.6 cm |
| Notes | Includes rear hopper and mulch plug, optional rear deflector available Fully enclosed, molded-in color material reduces sound, will not rust or dent Durable E-coat primer and powder-paint finish |
| Warranty | 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Fender Handles/Grips | No |
| Maximum Towing Capacity | 272 kg |
| Front Tires | 15x6-6 |
| Weight Bracket | Optional front |
| Fender Deck Material | Stamped steel |
| Storage | Yes, under seat and covered toolbox |
| Cup Holder | Yes |
| Primer/Paint | E-coat/powder |
| Front Axle | Cast iron front axle, front wheel ball bearings |
| Service Interval Decal | Yes |
| Maximum Towing Capacity | 600 lb. |
| Floor Mats | Sure-grip rubber |
| Receiver Hitch | No |
| Equipment Mounting | Yes, front |
| Hood Material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Rear Tires | 20x10-8 |
| Spindle Bushings | No |
| Frame | Welded heavy-duty |
| Snow Blower | 44 in. |
| Front Blade | 111.8 cm |
| Tow-Behind Tools | 16 |
| Mowers | Rear discharge, rear collect (standard), 42 in. / 107 cm |
| Spreader - Tow-Behind | 175 lb. |
| Rear Bagger | 300 L |
| Tractor Shovel | 40 in. |
| Sprayer - Tow-Behind | 25 U.S. gal. |
| Brush Guard | Yes |
| Front Thatcher | 54 in. |
| Grass Striping | Lawn striping kit |
| Snow Blower | 111.8 cm |
| Front Blade | 44 in. |
| Mulching System | Standard mulch plug |
| Rear Bagger | 8.5 bu |
| Spreader - Tow-Behind | 79.4 kg |
| Tractor Shovel | 101.6 cm |
| Sprayer - Tow-Behind | 94.6 L |
| Front Bumper | Styled bumper option |
| Front Thatcher | 137.2 cm |
| Mower Cut Height - Maximum | 9.5 cm |
| Hydraulic Outlets | No |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Mower Cut Height - Minimum | 1 in. |
| Lift System Type | Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use) |
| Mower Cut Height - Minimum | 2.5 cm |
| Preset Cut Height | Yes |
| Height | 46.1 in. |
| Wheelbase | 1275 mm |
| Height | 1171 mm |
| Wheelbase | 50.2 in. |
| Weight | 646 lb. |
| Weight | 293 kg |
| Overall Length | 97.2 in. |
| Overall Length | 2468 mm |
| Width Without Mower | 37.9 in. |
| Width Without Mower | 962 mm |
| Width With Mower | 43.8 in. |
| Width With Mower | 1112 mm |
| Engine Starter | Bendix |
| Battery Voltage | 12 V |
| Charging System | 12 amp |
| Rear Work Lights | No |
| Battery Cold Crank Amps | 340 CCA |
| Headlights | Two standard, incandescent, 27 W |
| Hour Meter | Yes |
| 12-V Outlet | Optional |
| Taillights Or Reflector | No |
| Charging System | Flywheel alternator, regulated |
| Backup Lights | No |
| Fuel Fill Opening | 3 in. |
| Fuel Fill Opening | 7.6 cm |
| Fuel Tank Capacity | 7.6 L |
| Fuel Tank Capacity | 2 U.S. gal. |
| Fuel Gauge | Low fuel indicator |
| Fuel Tank Location | Rear |
| Type | Gasoline |
| Fuel Fill Opening | On left fender |
| Fuel Delivery | Pulse pump, carburetor |
| Meets OPEI Standard | Yes |
| Meets ANSI Standard | Yes |
| Safety Video | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Oil Cooler | Fins and fan on transaxle |
| Brakes | Internal wet disc |
| Forward Speed | 5.3 mph |
| Forward Speed | 8.5 km/h |
| Cruise Control | Yes, button on dash |
| Differential Lock | No |
| Oil Filter | Internal, not replaceable |
| Transaxle Type | K46 hydrostatic integrated with transaxle |
| Transaxle Control | Twin Touch™ pedals |
| Reverse Speed | 6.4 km/h |
| Reverse Speed | 4 mph |
| Date Collected | 2022-10-03T00:00:00 |
| Manufacturing Location | Horicon, Wisconsin, USA |
| Displacement | 44.3 cu in. |
| Oil Change | No-tools oil drain with replaceable filter |
| Displacement | 726 cc |
| Air Cleaner | Dry, replaceable |
| Choke/Speed Control | Separate levers, automatic choke return |
| Engine Power | 21.5 hp |
| Engine Power | 16 kW |
| Governor | Mechanical |
| Cooling Method | Air |
| Engine Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Engine Manufacturer/Model | FR651V |
| Mower Wheels Rotate | No |
| Drive System | Dual belt |
| Front Draft Arms | Attached with spring pins at two points |
| Type | Slide under tractor |
| Rear Draft Arms | Two pins and spring clips |
