John Deere X570
Lawn Tractor
Choose the X570 Select Series Riding Lawn Tractor when you want confidence to handle bigger jobs. A powerful engine and smooth transmission deliver steady performance, while traction control helps you keep moving when grass is wet or snow is on the ground. With a wide range of attachments, the X570 is ready to mow, haul, and clear your way through every season.
Product Features:
- 24-hp (17.9-kW) iTorque™ Power System
- 48-in. (122-cm) Accel Deep™ Mower Deck, Compatible With Optional Mulchcontrol™ Kit
- Powerful Transmission with Twin Touch™ Forward and Reverse Foot Pedals
- 4 Year/500 Hour Bumper-to-Bumper Warranty
ⓘ
Features
Choose the X570 Select Series™ Riding Lawn Tractor when you want confidence to handle bigger jobs. A powerful engine and smooth transmission deliver steady performance, while traction control helps you keep moving when grass is wet or snow is on the ground. With a wide range of attachments, the X570 is ready to mow, haul, and clear your way through every season.
24-hp (17.9-kW) iTorque™ Power System
48-in. (122-cm) Accel Deep™ Mower Deck, Compatible With Optional Mulchcontrol™ Kit
Powerful Transmission with Twin Touch™ Forward and Reverse Foot Pedals
4 Year/500 Hour Bumper-to-Bumper Warranty
Benefits
48-in. Accel Deep™ Mower Deck With Optional MulchControl™
The 48-in. Accel Deep Mower Deck offers a stamped-steel, deep flat-top design that ensures excellent cut quality, productivity, and versatility. With the optional one-touch technology MulchControl system, quickly transition from mulching performance, side discharge, or bagging modes. This system creates a beautiful lawn, reduces fertilizer needs, and prevents clippings from blowing onto operators or driveways.

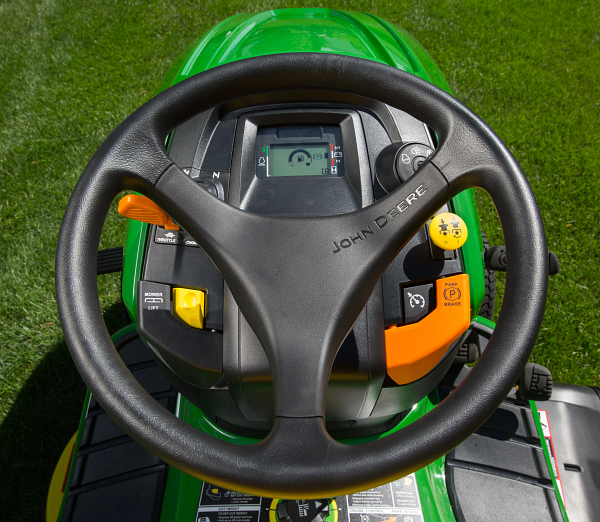

Easy-to-Use Controls
An intuitive dash with an electronic display puts key information right where you need it for simple, confident operation. Color-coded, ergonomic controls are easy to find and comfortable to use.
Snow Removal Capability
Equip your machine with a snow blower or front blade. Designed to handle challenging winter conditions, this tractor helps you clear deep snow, getting the job done more quickly and you out of the cold.
Specifications
| Mower Wash Port | Yes |
| Mower Deck Material | 3.4 mm |
| Mower Deck Material | 0.135 in. |
| Cutting Width | 48 in. |
| Cutting Width | 122 cm |
| Mower Deck Material | 10 gauge |
| Construction | Forged steel deck shell |
| Mower Wheels | Four |
| Mower Level Adjustment | Exact Adjust ports and onboard deck-leveling gauge |
| Mower Wheel Adjustment | Seven-position, spring-loaded pin |
| Type | Side discharge |
| Mower Drive System | Electric power take-off (PTO) clutch, in-line belt |
| Seat Back Height | 38 cm |
| Seat Back Height | 15 in. |
| Seat Suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
| Type | Open-back design with grasp |
| Armrests | No |
| Fore-Aft Adjustment | 6.6 in. |
| Fore-Aft Adjustment | 17 cm |
| Four-Wheel Steer | Not available on this model |
| Uncut Circle Radius | 58 cm |
| Tilt Steering Wheel | No |
| Uncut Circle Radius | 23 in. |
| Turning Radius | 40.6 cm |
| Turning Radius | 16 in. |
| Steering Wheel | 14 in. |
| Type | Manual, sector and pinion |
| Steering Wheel | 35.6 cm |
| Notes | Heavy-duty garden tractor transaxle Steering spindle bushings for long life Built-in rear weight bracket |
| Warranty | 4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Fender Handles/Grips | Handles |
| Maximum Towing Capacity | 363 kg |
| Front Tires | 15x6.5-8 |
| Weight Bracket | Standard rear, optional front - each holds up to four Quik-Tatch weights, 42 lb / 19 kg |
| Fender Deck Material | Stamped steel |
| Storage | Yes, under seat and covered toolbox |
| Cup Holder | Yes |
| Primer/Paint | E-coat/powder |
| Front Axle | Cast iron front axle, front wheel ball bearings |
| Service Interval Decal | Yes |
| Maximum Towing Capacity | 800 lb. |
| Floor Mats | Sure-grip rubber |
| Receiver Hitch | No |
| Equipment Mounting | Yes, heavy duty |
| Hood Material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Rear Tires | 24x12-12 turf |
| Spindle Bushings | Metal, replaceable |
| Frame | Welded heavy-duty |
| Front Blade | 121.9 cm |
| Rotary Tiller | 30 in. |
| Rear Bagger | 670 L |
| Tractor Shovel | 40 in. |
| Powered Material Collection | Power Flow™ blower |
| Spreader - Mounted | 57.7 kg |
| Brush Guard | Yes |
| Front Thatcher | 54 in. |
| Mulching System | Yes, MulchControl™ |
| Spreader - Tow-Behind | 79.4 kg |
| Sprayer - Tow-Behind | 170.3 L |
| Front Thatcher | 137.2 cm |
| Sleeve Hitch | Yes, implements include box scraper, rear blade, plow, disk, and cultivator |
| Weather Protection | Weather enclosure |
| Sun Canopy | Yes |
| Snow Blower | 44 in. |
| Tow-Behind Tools | 19 |
| Mowers | 48A (standard) |
| Spreader - Tow-Behind | 175 lb. |
| Sprayer - Tow-Behind | 45 U.S. gal. |
| Sprayer - Mounted | 25 U.S. gal. |
| Bucket Holder | Yes, double bucket |
| Grass Striping | Lawn striping kit |
| Snow Blower | 111.8 cm |
| Front Blade | 48 in. |
| Rotary Tiller | 76.2 cm |
| Rear Bagger | 19 bu |
| Tractor Shovel | 101.6 cm |
| Sprayer - Mounted | 94.6 L |
| Front Bumper | Styled bumper option |
| Spreader - Mounted | 125 lb. |
| Mower Cut Height - Maximum | 10.2 cm |
| Hydraulic Outlets | No |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Mower Cut Height - Minimum | 1 in. |
| Lift System Type | Foot pedal with adjustable spring assist |
| Mower Cut Height - Minimum | 2.5 cm |
| Preset Cut Height | Yes |
| Height | 46.1 in. |
| Wheelbase | 51.2 in. |
| Weight | 334 kg |
| Overall Length | 1894 mm |
| Width Without Mower | 40.7 in. |
| Width With Mower | 62.6 in. |
| Width With Mower (Deflector Raised For Storage) | 52.6 in. |
| Wheelbase | 1300 mm |
| Height | 1171 mm |
| Weight | 737 lb. |
| Overall Length | 74.6 in. |
| Width Without Mower | 1034 mm |
| Width With Mower | 1590 mm |
| Width With Mower (Deflector Raised For Storage) | 1335 mm |
| Engine Starter | Bendix |
| Battery Voltage | 12 V |
| Charging System | 12 amp |
| Rear Work Lights | No |
| Battery Cold Crank Amps | 340 CCA |
| Headlights | Two standard, incandescent, 27 W |
| Hour Meter | Yes |
| 12-V Outlet | Yes |
| Taillights Or Reflector | Reflectors |
| Charging System | Flywheel alternator, regulated |
| Backup Lights | No |
| Fuel Fill Opening | 3 in. |
| Fuel Fill Opening | 7.6 cm |
| Fuel Tank Capacity | 16.7 L |
| Fuel Tank Capacity | 4.4 U.S. gal. |
| Fuel Gauge | Gauge on dash |
| Fuel Tank Location | Rear |
| Type | Gasoline |
| Fuel Fill Opening | On left fender |
| Fuel Delivery | Pulse pump and carburetor |
| Meets OPEI Standard | Yes |
| Meets ANSI Standard | Yes |
| Safety Video | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Oil Cooler | Fins and fan on transaxle |
| Brakes | Internal wet disc |
| Forward Speed | 7.2 mph |
| Forward Speed | 11.6 km/h |
| Cruise Control | Yes, button on dash |
| Differential Lock | Standard |
| Oil Filter | Yes |
| Transaxle Type | K72 hydrostatic integrated with transaxle |
| Transaxle Control | Twin Touch™ pedals |
| Reverse Speed | 8.4 km/h |
| Reverse Speed | 5.2 mph |
| Date Collected | 2022-10-03T00:00:00 |
| Manufacturing Location | Horicon, Wisconsin, USA |
| Displacement | 44.3 cu in. |
| Oil Change | No-tools oil drain with replaceable filter |
| Displacement | 726 cc |
| Air Cleaner | Dry, replaceable |
| Choke/Speed Control | Separate levers, automatic choke return |
| Engine Power | 24 hp |
| Engine Power | 17.9 kW |
| Governor | Mechanical |
| Cooling Method | Air |
| Engine Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Engine Manufacturer/Model | FR730V |
| Mower Wheels Rotate | Yes, 90 degrees for easy mower removal |
| Drive System | Dual belt |
| Front Draft Arms | Attached with spring pins at two points |
| Type | Roll under tractor |
| Rear Draft Arms | Quick-pull pins |
