John Deere X734
Signature Series Lawn Tractor
Choose the X734 Signature Series when you want precision and comfort for demanding jobs. Features like four-wheel steering, a liquid-cooled engine, and automotive-style controls deliver smooth, confident operation in every season. Built for serious mowing, hauling, and snow removal, the X734 is engineered to perform and built to last.
Product Features:
- 25.5-hp (19 kW) iTorque™ Power System
- Power Four-Wheel Steer, Power Lift System, Twin-Touch™ Forward and Reverse Foot Pedals
- 4-Year/700-Hour Bumper-to-Bumper Warranty
ⓘ - Available in 48-, 54-, and 60-in. Mower Deck Sizes
Features
Choose the X734 Signature Series when you want precision and comfort for demanding jobs. Features like four-wheel steering, a liquid-cooled engine, and automotive-style controls deliver smooth, confident operation in every season. Built for serious mowing, hauling, and snow removal, the X734 is engineered to perform and built to last.
25.5-hp (19 kW) iTorque™ Power System
Power Four-Wheel Steer, Power Lift System, Twin-Touch™ Forward and Reverse Foot Pedals
4-Year/700-Hour Bumper-to-Bumper Warranty
Available in 48-, 54-, and 60-in. Mower Deck Sizes
Benefits
Snow Removal and Yard Care Attachments
Snow removal and yard work are easy with support for a wide range of attachments. The front quick-hitch system allows fast, tool-free changes between a snow blower, front blade, or rotary broom, helping you adapt quickly to changing conditions. This versatility lets you handle seasonal tasks efficiently and keep your property looking its best year-round.

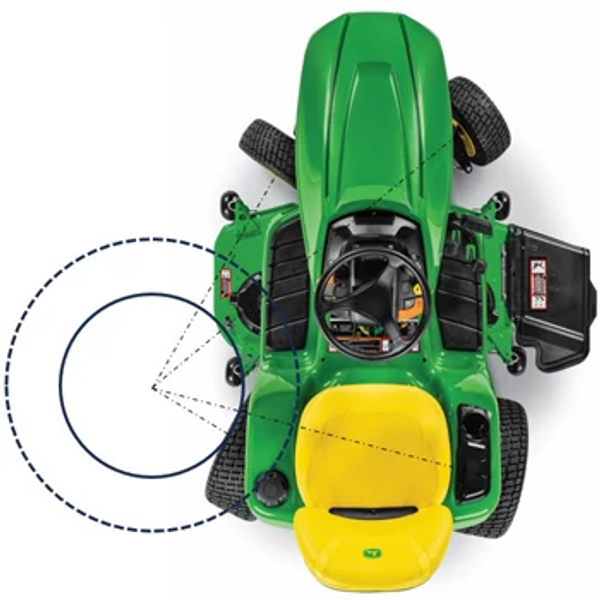

Four-Wheel Power Steering and Hydraulic Lift
Power steering and hydraulic lift provide effortless automotive-like control. Combined with four-wheel power steer, these systems reduce operator fatigue, enhancing productivity by enabling a tight turning radius, helping you finish the job faster.
Liquid Cooled V-Twin Engine with EFI and Electronic Throttle
The liquid-cooled V-twin engine with electronic fuel injection and electronic throttle delivers smooth, quiet, and reliable power for demanding mowing conditions. Consistent cooling and Intelligent Power Management help maintain performance under load while improving durability and efficiency. The result is confident operation, easier starting, and long-lasting performance you can rely on season after season.
Specifications
| Mower Wash Port | Yes |
| Cutting Width | 48/54/60 in. |
| Cutting Width | 122/137/152 cm |
| Construction | Forged steel deck shell |
| Mower Wheels | 48A, four and center front roller / 54 and 60 HC, four with optional center front roller |
| Mower Level Adjustment | Exact Adjust ports and onboard deck-leveling gauge |
| Mower Wheel Adjustment | Spring-loaded pin |
| Type | Side discharge |
| Mower Drive System | Hydraulic clutch, shaft |
| Seat Back Height | 53.3 cm |
| Seat Back Height | 21 in. |
| Seat Suspension | Six-position parallel arm |
| Type | Two-piece adjustable seat with brand embroidery |
| Armrests | Optional |
| Fore-Aft Adjustment | 7 in. |
| Fore-Aft Adjustment | 17.8 cm |
| Four-Wheel Steer | Yes |
| Tilt Steering Wheel | Standard, six position |
| Turning Radius | 53.3 cm |
| Turning Radius | 21 in. |
| Steering Wheel | 14 in. |
| Type | Hydraulic power |
| Steering Wheel | 35.6 cm |
| Notes | Styled alloy wheels are standard equipment One-piece hood for easy engine access Hydraulic modulated PTO clutch for smooth mower and implement engagement |
| Warranty | 4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Fender Handles/Grips | Handles |
| Maximum Towing Capacity | 454 kg |
| Front Tires | 18x7-8 turf |
| Weight Bracket | Standard front - holds up to four Quik-Tatch™ weights, 42 lb / 19 kg |
| Fender Deck Material | Stamped steel |
| Storage | Covered toolbox |
| Cup Holder | Yes |
| Primer/Paint | E-coat/powder |
| Front Axle | JDM BA8 nodular iron casting |
| Service Interval Decal | Yes |
| Maximum Towing Capacity | 1000 lb. |
| Floor Mats | Sure-grip rubber |
| Receiver Hitch | Yes, front |
| Equipment Mounting | Optional Category 1 3-point hitch |
| Hood Material | Noryl GTX902, painted |
| Rear Tires | 26x10.5-12 turf |
| Spindle Bushings | Metal, replaceable |
| Frame | Welded heavy-duty |
| Landscape Rake | 152.4 cm |
| Front Blade | 137.2 cm |
| Rear Power Take-Off | 540 rpm |
| Rotary Tiller | 48 in. |
| Rear Bagger | 670 L |
| Tractor Shovel | 54 in. |
| Powered Material Collection | Power Flow™, 7, 14, 19 bu / 250, 500, 670 L |
| Spreader - Mounted | 57.7 kg |
| Brush Guard | Yes |
| Front Thatcher | 54 in. |
| Rear Blade | 60 in. |
| Landscape Rake | 60 in. |
| Front Loader | Not available |
| Mulching System | Yes, MulchControl™ |
| Box Scraper | 48 in. |
| Spreader - Tow-Behind | 79.4 kg |
| Sprayer - Tow-Behind | 170.3 L |
| 3-Point Hitch | Category 1 |
| Front Thatcher | 137.2 cm |
| Weather Protection | Hard-side cab, weather enclosure |
| Snow Blower | 54 in. |
| Rear Blade | 152.4 cm |
| Plow, Moldboard | 14 in. |
| Disk Harrow | 52 in. |
| Rotary Broom | 152.4 cm |
| Tow-Behind Tools | 21 |
| Mowers | 48A, 54 HC, 60 HC |
| Cultivator | 116.8 cm |
| Box Scraper | 121.9 cm |
| Spreader - Tow-Behind | 175 lb. |
| Sprayer - Tow-Behind | 45 U.S. gal. |
| Sprayer - Mounted | 25 U.S. gal. |
| Bucket Holder | Yes, double bucket |
| Grass Striping | Grass groomer kit, 48-in. (122-cm) mower only |
| Snow Blower | 137.2 cm |
| Plow, Moldboard | 35.6 cm |
| Front Blade | 54 in. |
| Disk Harrow | 132.1 cm |
| Rotary Broom | 60 in. |
| Rotary Tiller | 121.9 cm |
| Cultivator | 46 in. |
| Rear Bagger | 19 bu |
| Tractor Shovel | 137.2 cm |
| Sprayer - Mounted | 94.6 L |
| Front Bumper | Standard bumper/weight bracket |
| Spreader - Mounted | 125 lb. |
| Mower Cut Height - Maximum | 13.3 cm |
| Hydraulic Outlets | Four, standard |
| Mower Cut Height - Maximum | 5.25 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Mower Cut Height - Minimum | 1 in. |
| Lift System Type | Two-function hydraulic |
| Mower Cut Height - Minimum | 2.5 cm |
| Preset Cut Height | Yes |
| Height | 54.5 in. |
| Wheelbase | 1384 mm |
| Height | 1384 mm |
| Wheelbase | 54.5 in. |
| Weight | 912 lb. |
| Weight | 414 kg |
| Overall Length | 75 in. |
| Overall Length | 1905 mm |
| Width Without Mower | 47 in. |
| Width Without Mower | 1195 mm |
| Engine Starter | Solenoid shift |
| Battery Voltage | 12 V |
| Charging System | 20 amp |
| Rear Work Lights | Yes |
| Battery Cold Crank Amps | 340 CCA |
| Headlights | Two standard, halogen, 37 W |
| Hour Meter | Yes |
| 12-V Outlet | Yes |
| Taillights Or Reflector | Taillights |
| Charging System | Flywheel alternator, regulated |
| Backup Lights | Yes |
| Fuel Fill Opening | 3 in. |
| Fuel Fill Opening | 7.6 cm |
| Fuel Tank Capacity | 19.7 L |
| Fuel Tank Capacity | 5.2 U.S. gal. |
| Fuel Gauge | Gauge on dash |
| Fuel Tank Location | Rear |
| Type | Gasoline |
| Fuel Fill Opening | On left fender |
| Fuel Delivery | Electronic fuel injection |
| Meets OPEI Standard | Yes |
| Meets ANSI Standard | Yes |
| Safety Video | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Oil Cooler | Yes |
| Brakes | Internal wet disc |
| Forward Speed | 8.5 mph |
| Forward Speed | 13.7 km/h |
| Cruise Control | Yes |
| Differential Lock | Standard |
| Oil Filter | Replaceable suction side 10 micron |
| Transaxle Type | K90 hydrostatic integrated with transaxle |
| Transaxle Control | Twin Touch™ pedals |
| Reverse Speed | 9.7 km/h |
| Reverse Speed | 6 mph |
| Date Collected | 2023-08-01T00:00:00 |
| Manufacturing Location | Horicon, Wisconsin, USA |
| Displacement | 45.5 cu in. |
| Oil Change | No tools |
| Displacement | 745 cc |
| Air Cleaner | Dry, replaceable with foam precleaner |
| Choke/Speed Control | No choke required |
| Engine Power | 25.5 hp |
| Engine Power | 19 kW |
| Governor | Mechanical |
| Cooling Method | Liquid |
| Engine Type | Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Engine Manufacturer/Model | FD750D EFI |
| Mower Wheels Rotate | Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC) |
| Drive System | Shaft or AutoConnect™ |
| Front Draft Arms | Overcenter |
| Type | Roll under tractor (48A) / Drive-over deck (54, 60 HC) |
| Rear Draft Arms | V-align |
