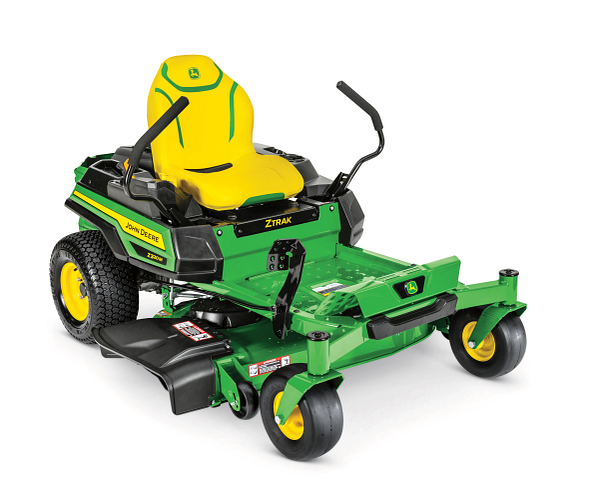

John Deere Z330M
ZTrak™ Mower with 48- or 54-in. Deck
The Z330M ZTrak Mower combines power and versatility with its choice of 48- or 54-in. decks, offering superior grass-cutting performance, ergonomic comfort, and low-maintenance durability for a seamless mowing experience.
Product Features:
- Mow Up to 2 Acres
- 23 hp (17 kW) V-Twin Engine
- 20-in. (50.8 cm) High-Back Custom-Tailored Seat and Standard Rear Hitch
- 3-Year/200-Hour Bumper-to-Bumper Warranty
ⓘ
Features
The Z330M ZTrak™ Mower combines power and versatility with its choice of 48- or 54-in. decks, offering superior grass-cutting performance, ergonomic comfort, and low-maintenance durability for a seamless mowing experience.
Mow Up to 2 Acres
23 hp (17 kW) V-Twin Engine
20-in. (50.8 cm) High-Back Custom-Tailored Seat and Standard Rear Hitch
3-Year/200-Hour Bumper-to-Bumper Warranty
Benefits
Get a Clean Cut with the Accel Deep™ Mower Deck
The Accel Deep™ Mower Deck gives an exceptional cut quality. Its flat-top and 4.5-in. deep design optimizes performance, cleanliness, and versatility, allowing excellent cut quality and even distribution of clippings. The deck is constructed from thick, 10-gauge steel and features a 5/8-in. thick steel round reinforcement bar for enhanced durability.
Versatile Mulching and Bagging Options
With the optional MulchControl™ system, the mower effortlessly shifts between side discharge and mulching with the flip of a lever. Also available is two-bag, 6.5 bushel, material collection system to efficiently bag grass clippings and leaves.
Comfort and Versatility
This mower comes with a standard rear hitch for added versatility. It also has an upgraded, 20-in. seat for a comfortable ride.
Specifications
| Service Interval Decal | Yes |
| Front Caster Tires | 11x6-5 |
| Maximum Towing Capacity | 113 kg |
| Maximum Towing Capacity | 250 lb. |
| Storage Compartment | Optional covered |
| Drive Tires | 20x10-8 |
| Front Caster Bearings | Sealed ball bearings |
| Hour Meter | Yes |
| Primer/Paint | E-coat/powder |
| Cup Holder | Yes |
| Frame | Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing |
| Mower Cut Height - Maximum | 11 cm |
| Mower Cut Height - Maximum | 4.5 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Type | Foot lift |
| Mower Cut Height - Minimum | 1.25 in. |
| Preset Cut Height | Yes |
| Mower Cut Height - Minimum | 3 cm |
| Slope 0perating Limit | Standard: 13 degrees; With Material Collection System: 10 degree (angle) |
| Operator Video | Yes, online |
| Operator Presence System | Yes |
| Rollover Protective Structure (ROPS) | No |
| Park Brake Interlock | Yes |
| Height | 44.2 in. |
| Wheelbase | 125.5 cm |
| Height | 112.3 cm |
| Wheelbase | 49.4 in. |
| Overall Length | 75.4 in. |
| Overall Length | 191.5 cm |
| Width Without Mower | 43.3 in. |
| Width Without Mower | 110 cm |
| Mower Deck Material | 3.4 mm |
| Mower Deck Material | 0.135 in. |
| Cutting Width | 48/54 in. |
| Cutting Width | 122/137 cm |
| Mower Deck Material | 10 gauge |
| Type | Side discharge |
| Mower Drive System | V-belt |
| Rubber Floor Mat | Optional |
| Protective Cover | Optional |
| Material Collection System | 229 L |
| Material Collection System | 6.5 bu |
| Sun Shade | Optional |
| Material Collection System | Two-bag Power Flow MCS |
| Mulching System | Optional MulchControl™ attachment |
| Mounted Sprayer | Not available L |
| Mounted Sprayer | Not available U.S. gal. |
| Light Kit | Optional |
| Seat Back Height | 51 cm |
| Seat Back Height | 20 in. |
| Seat Suspension | Two springs |
| Fore-Aft Adjustment | 7 cm |
| Fore-Aft Adjustment | 2.9 in. |
| Control Adjustment | 3 height, 11 positions |
| Speed And Direction Control | Twin levers |
| Forward Speed | 7 mph |
| Forward Speed | 11.3 km/h |
| Reverse Speed | 3.5 mph |
| Reverse Speed | 5.6 km/h |
| Displacement | 726 cc |
| Fuel Tank Capacity | 3 U.S. gal. |
| Fuel Gauge | Translucent tank |
| Battery Cold Crank Amps | 300 CCA |
| Lubrication | 2.2 U.S. qt |
| Battery Voltage | 12 V |
| Engine Power | 23 hp |
| Type | Overhead valve |
| Cooling Method | Air |
| Lubrication | Full pressure with replaceable filter |
| Cylinders | V-twin |
| Fuel Tank Capacity | 11.4 L |
| Displacement | 44.3 cu in. |
| Lubrication | 2.1 L |
| Engine Model Number | FR691V |
| Choke/Speed Control | Separate levers |
| Engine Power | 17.2 kW |
| Date Collected | 2022-10-03T00:00:00 |
| Manufacturing Location | Greeneville, Tennessee, USA |
| Type | 105 lb-ft |
| Type | 142 Nm |
| Type | Electric |
| Drive | V-belt |

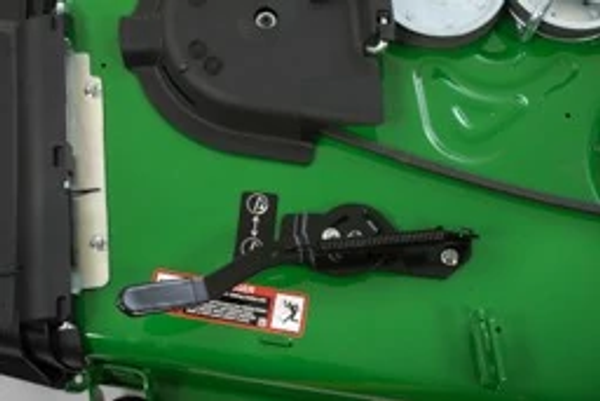

| Note 2 | Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial |
| Note 3 | Integrated park brake is automatically applied when steering levers are stowed outward |
| Warranty | 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Note 1 | Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels |
| Dual Hydros | Hydro-Gear EZT-D with 1-in. (2.5-cm) axles |
