Overview

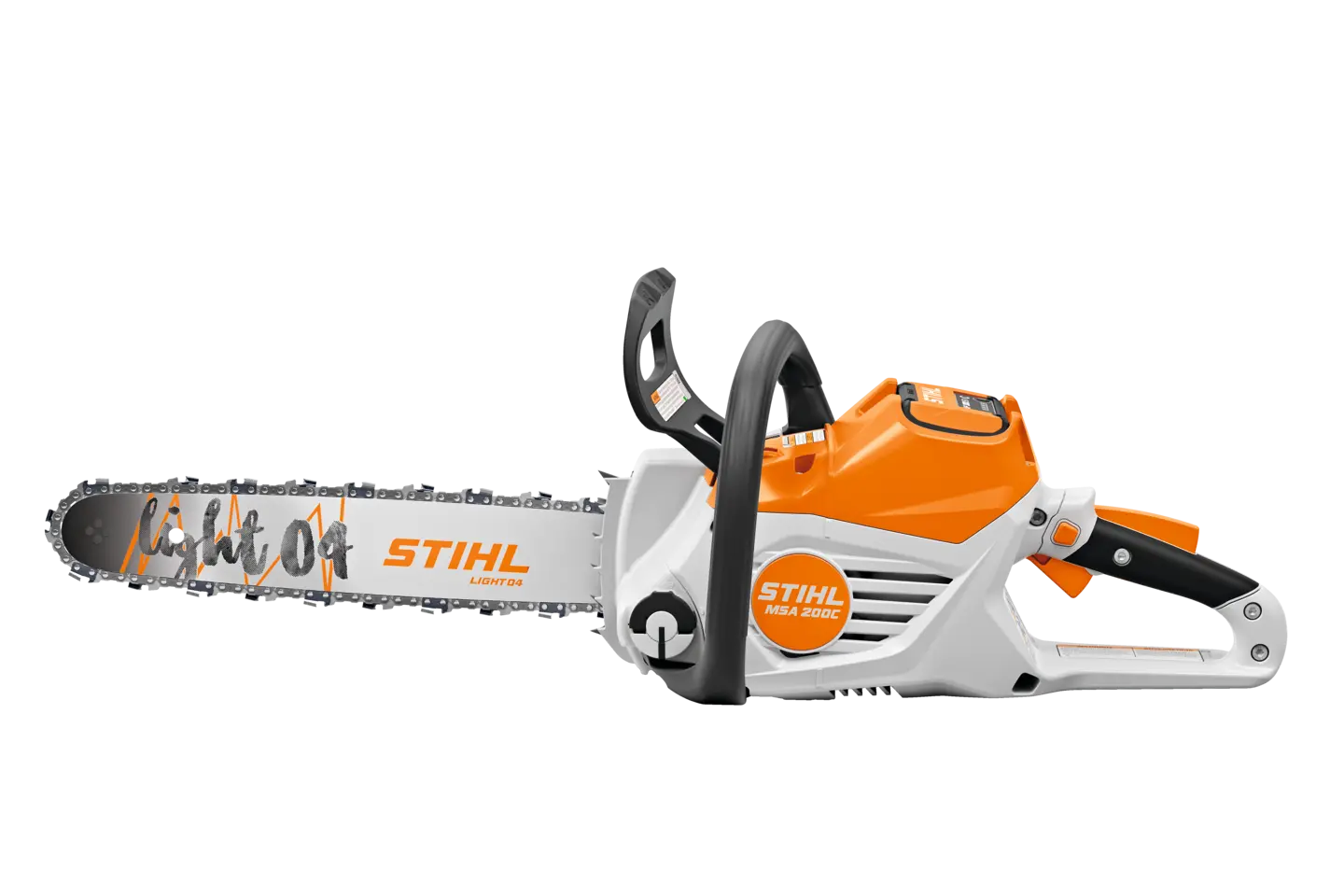

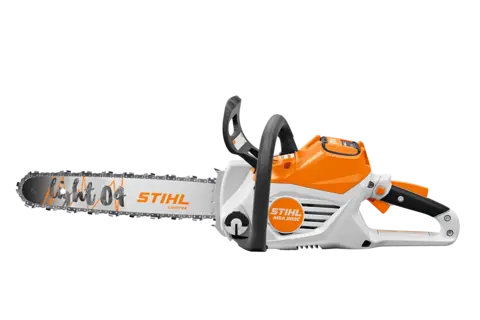

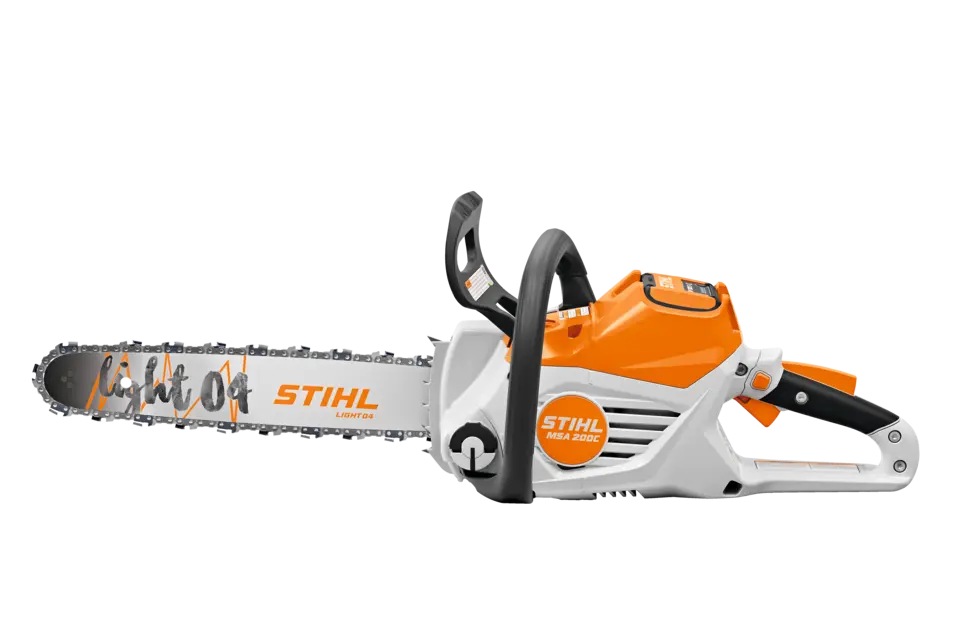

No pulling on cords, fuel mixing, or complicated startup procedures with the MSA 200 C-B chainsaw. Just squeeze the trigger and start cutting. In addition to easy starting, battery-powered tools in the STIHL AP System produce zero exhaust emissions and are quieter than their gas-powered counterparts, making them an ideal choice for areas with emission or noise restrictions. Powered by an interchangeable STIHL lithium-ion battery, this chainsaw delivers the speed, cutting capacity, and run time to take on just about any cutting job. The STIHL MSA 200 C-B is a battery-powered chainsaw tough enough to carry the name STIHL.Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Features
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
IPX4 RATING
This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Lightweight Portability - Universal
This product is lightweight for easy portability, great maneuverability, and extended use.
Quick Chain Adjuster (QCA) (B)
The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
Reduced-Emission Engine Technology—Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Rubberized Soft-Touch Handle
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Toolless and Translucent Bar and Chain Oil Tank
The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
Variable-Speed Trigger
The variable-speed trigger allows precise control for each task.
Specifications
| Max. battery working time AP 200 | 42 min |
| Max. battery working time AP 200 S | 42 min |
| Max. battery working time AP 300 | 40 min |
| Max. battery working time AP 300 S | 50 min |
| Max. battery working time AP 500 S | 60 min |
| Bar length | 14 " |
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Power consumption | 1.80 kW |
| Power | 1.50 kW |
| Recommended battery | AP 300 S |
| Device weight without battery | 6.9 lb |
| System weight without battery | 3.68 kg |
| Groove width | 43 " |
| Saw chain pitch | 3/8"P |
| Device length with bumper spike | 437 mm |
| Cordless power system | AP |
