Overview

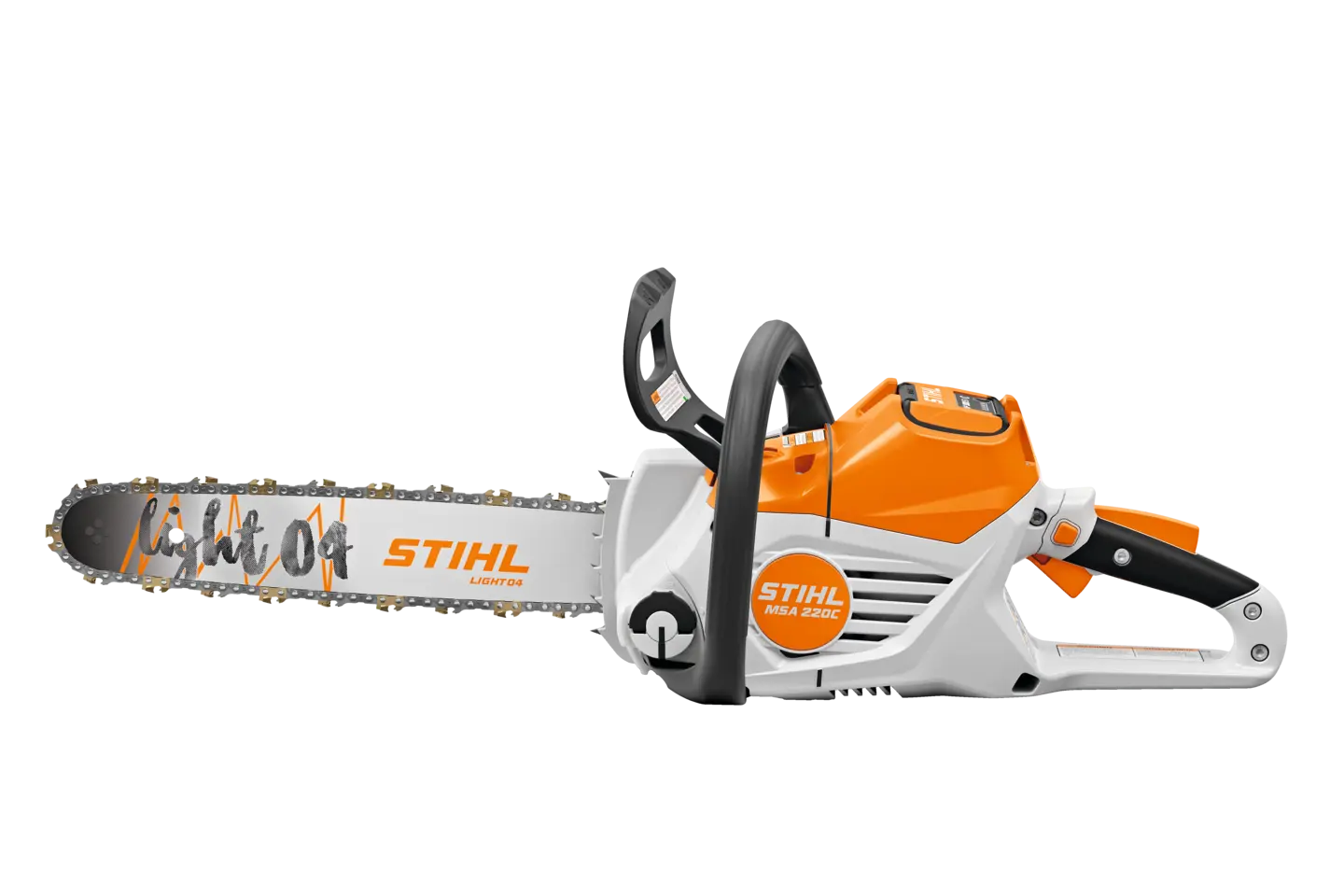

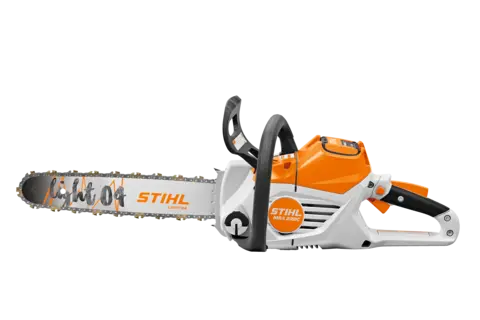

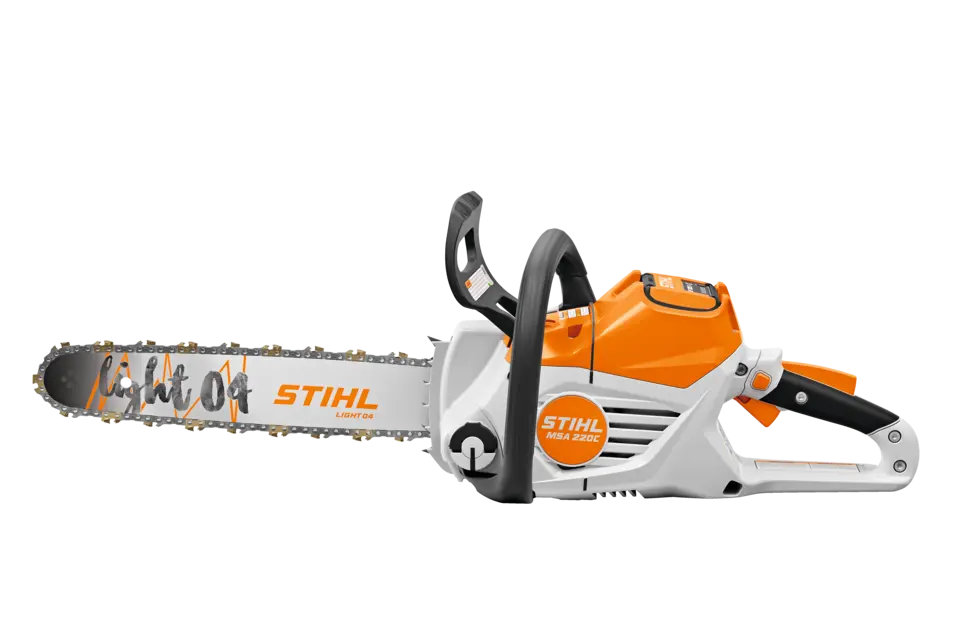

Accomplish everything from felling to limbing with the MSA 220 C-B, featuring 250 watts more power than the previous model. Plus, experience increased maneuverability with the Light 04 guide bar and smooth-cutting performance with the 3/8 STIHL PICCO PM3 saw chain. Lightweight with zero exhaust emissions, this AP Professional System chainsaw offers up to 40 minutes of run time when paired with the AP 300 S battery. The brushless motor allows for fast acceleration and low maintenance, so you can enjoy powerful performance and maximum efficiency.Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Features
Brushless Motor
The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.
Captive Bar Nut
The captive bar nut is held securely in place, which eliminates the risk of dropping or losing the bar nut during saw chain maintenance.
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
IPX4 RATING
This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Lightweight Portability - Universal
This product is lightweight for easy portability, great maneuverability, and extended use.
Low Oil Sensor
The low oil sensor allows the operator to see when the oil is low so they can keep the bar and chain properly lubricated.
Magnesium Motor Housing
The magnesium motor housing provides added durability to this powerful chainsaw.
Quick Chain Adjuster (QCA) (B)
The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
Raised and Printed Felling Stripe
The raised and printed felling stripe allows for precise aiming of felling direction.
Reduced-Emission Engine Technology—Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Rubberized Soft-Touch Handle
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
STIHL Quickstop®
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Variable-Speed Trigger
The variable-speed trigger allows precise control for each task.
Specifications
| Max. battery working time AP 200 | 32 min |
| Max. battery working time AP 200 S | 32 min |
| Max. battery working time AP 300 | 35 min |
| Max. battery working time AP 300 S | 37 min |
| Max. battery working time AP 500 S | 44 min |
| Bar length | 16 " |
| Device length with bumper spike | 437 mm |
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Power consumption | 2.10 kW |
| Power | 1.70 kW |
| Recommended battery | AP 300 S |
| Device weight without battery | 6.9 lb |
| System weight without battery | 3.76 kg |
| Groove width | 43 " |
| Saw chain pitch | 3/8"P |
| Cordless power system | AP |
