Overview

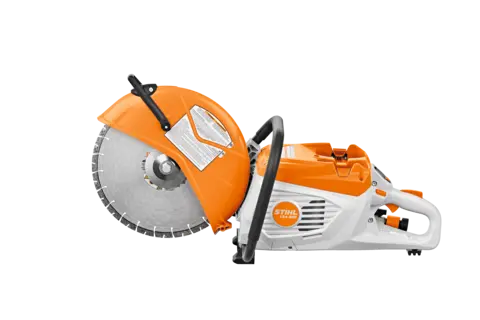

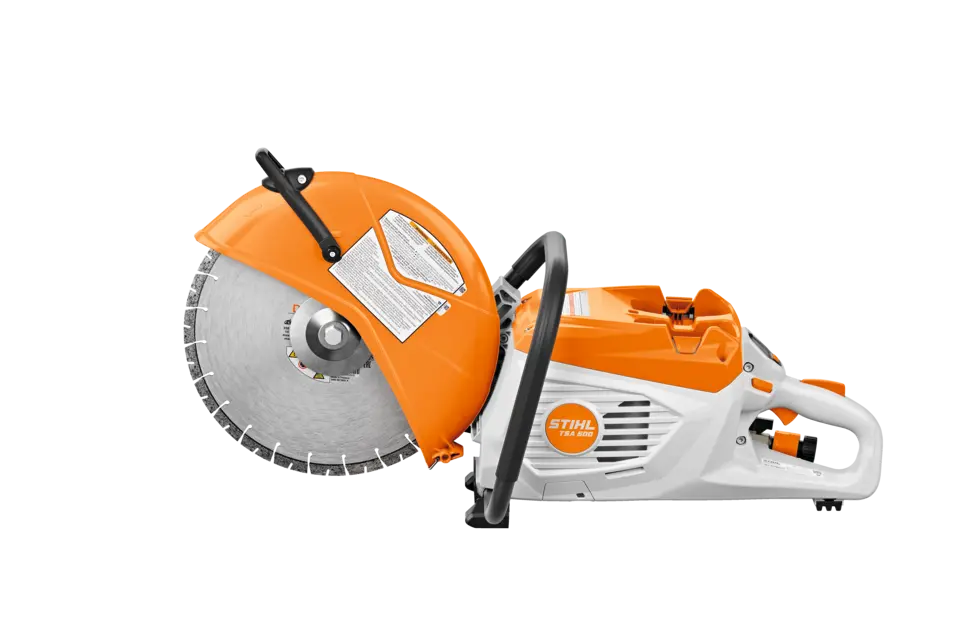

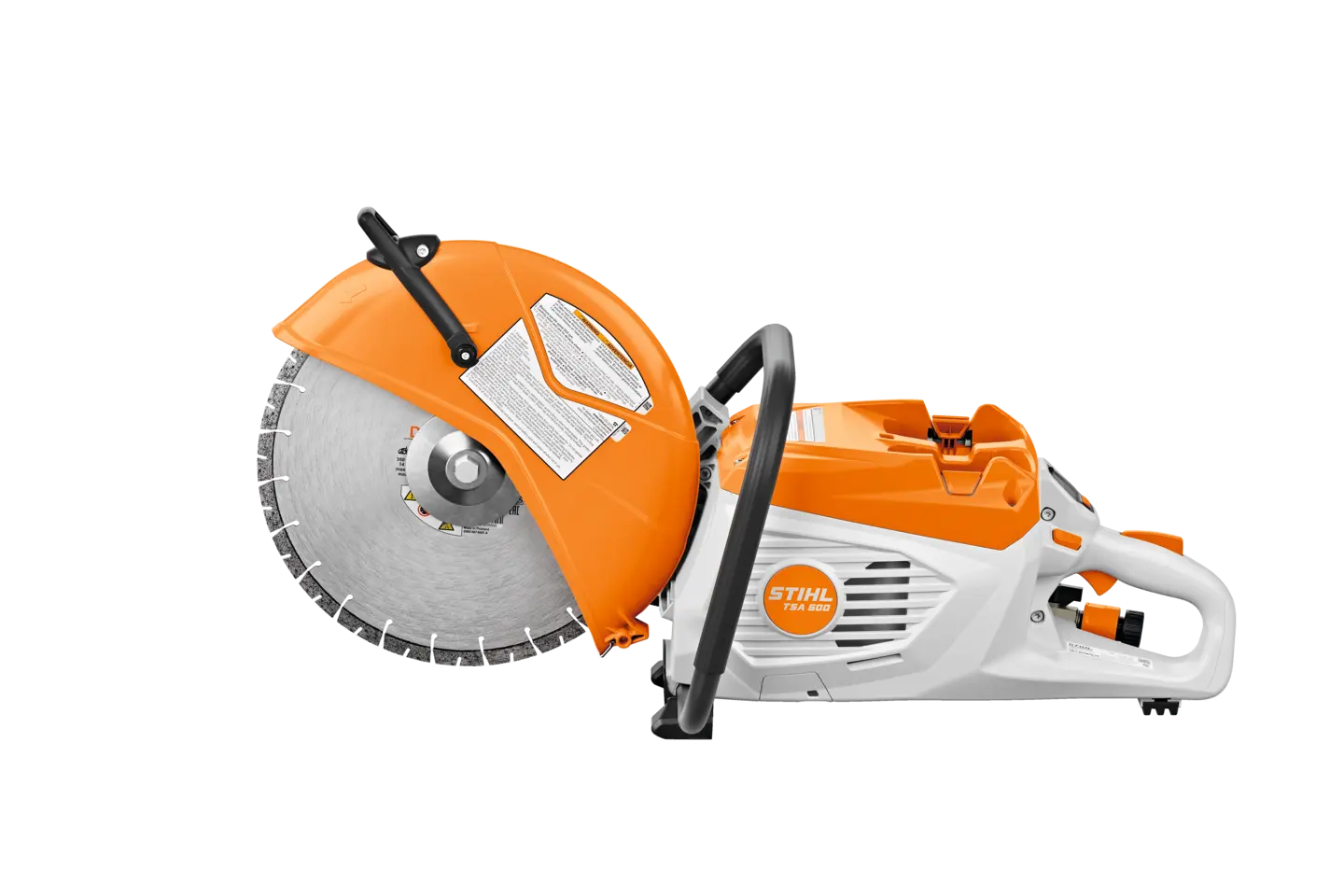

Meet the STIHL TSA 500your new go-to for high-performance cutting without the drawbacks of gas. This 14 battery-powered cut-off machine delivers a massive 5 kW of engine power, rivaling the TS 500i gas model. Designed for professionals, it features a brushless motor protected by STIHLs Magnetic Filter system, an ergonomic handle for precision cuts, and a magnesium guard with integrated water flow for safety and visibility. The Advance Plus control system offers intuitive operation and smart connectivity, while the IPX4 waterproof rating ensures durability in tough conditions. Atjust28.8lbs.with two AP 500 S batteries, the TSA 500 is powerful, portable, and ready toquickly and efficiently cut through concrete, steel, and more.
Features
BRUSHLESS MOTOR
LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the brushless motor enables you to work in an energy efficient manner. This engine also has a long service life.
Power Boost
MAXIMUM PERFORMANCE INCREASE. Thanks to internal intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.
Constant Power
CONSTANT POWER, REGARDLESS OF BATTERY CHARGE STATUS. With other brands of battery tools, the performance usually decreases during work as the battery discharges. This is not the case with STIHL cordless power tools with CONSTANT POWER. Thanks to the intelligent electronics, your STIHL power tool works with consistently high power.
Specifications
| Max. battery working time AP 200 S | 16 min |
| Min. battery working time AP 200 S | 8 min |
| Max. battery working time AP 300 S | 30 min |
| Min. battery working time AP 300 S | 15 min |
| Max. battery working time AP 500 S | 40 min |
| Min. battery working time AP 500 S | 20 min |
| Device length with cutting disc | 82.1 cm |
| Rated voltage | 72 V |
| Max. voltage | 80 V |
| Power consumption | 5.00 kW |
| Power | 4.20 kW |
| Recommended battery | AP 500 S |
| Device weight without battery | 20.1 lb |
| Cutting disk diameter | 350 mm |
| Max. cutting depth | 125 mm |
| Cordless power system | AP |
