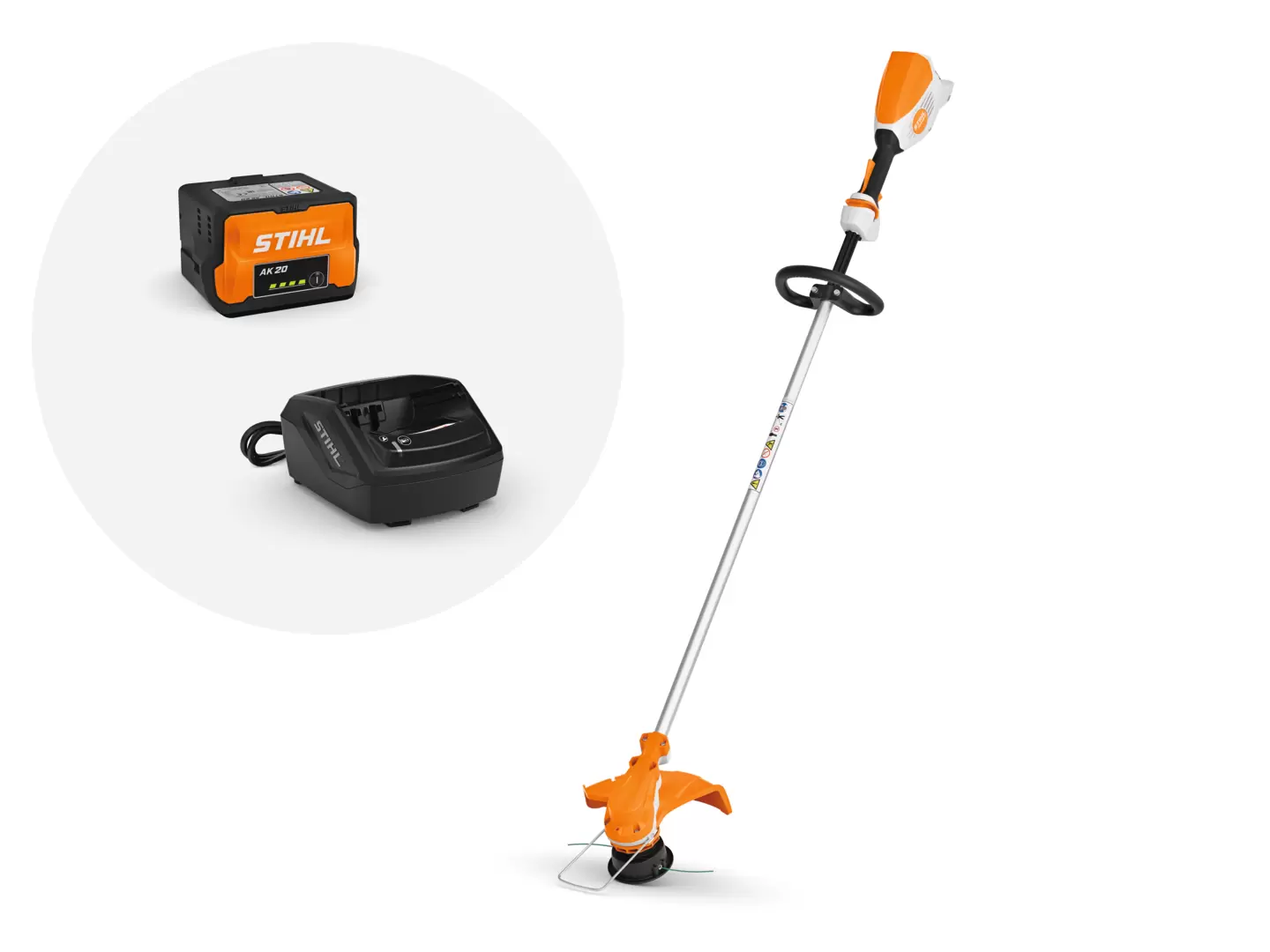

Overview
The FSA 60 R gives users exceptional performance in a lightweight design. Its brushless motor virtually eliminates the need for maintenance, so you can relax and enjoy the clean and quiet benefits of battery power. Optimally paired with the AK 20 battery, the FSA 60 R has a run time of up to 25 minutes* On A Single Charge. The trimmer comes standard with the AutoCut C 6-2 featuring EasySpool which allows the mowing head to be respooled without disassembling the mowing head. Alternatively, the trimmer may be equipped with optional STIHL PolyCut 6-2 or DuroCut 5-2 mowing heads. With a variable speed, this trimmer delivers an optimized performance and run time. The 13.8-inch cutting width clears a wide area in a single pass and the bump guard allows for careful trimming around obstacles like trees and shrubs. The FSA 60 R is available as a standalone unit or as part of a value-priced set with the recommended AK 20 battery and the AL 101 charger.*Run time per charge may vary depending on usage and application.
Features
Adjustable Front Handle
The front handle is easily adjustable (360-degree rotation) for comfort.
Bump Guard
The bump guard, which is standard equipment, helps when trimming around trees, shrubs and other obstacles by creating space between objects and trimmer head.
EasySpool™ Head
With the AutoCut® C EasySpool™, users can reload the line by simply inserting the line into the eyelets and twisting the bump knob.
Hanging Loop
Hang your cordless trimmer securely on a wall to save space using the loop in the handle housing.
High-Tech Polymer Housing
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
Lightweight Portability - Universal
This product is lightweight for easy portability, great maneuverability, and extended use.
Loop Handle
A thumb screw allows the ergonomic loop handle to be easily adjusted to the desired position without tools.
Reduced-Emission Engine Technology—Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Retaining Latch
All STIHL battery-powered products feature a retaining latch that is designed to prevent the unit from unintentional starts when the battery is inserted.
Start/Run/Stop Controls on Handle
Convenient start/run/stop controls are built into the handle for easy operation.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Variable-Speed Trigger
The variable-speed trigger allows precise control for each task.
Specifications
| Max. area per battery charge AK 10 | 100 m² |
| Max. lawn edge per battery charge AK 10 | 500 m |
| Max. battery working time AK 10 with line mowing head | 13 min |
| Max. battery working time AK 10 with plastic blade mowing head | 25 min |
| Max. area per battery charge AK 20 | 250 m² |
| Max. lawn edge per battery charge AK 20 | 1250 m |
| Max. battery working time AK 20 with line mowing head | 30 min |
| Max. battery working time AK 20 with plastic blade mowing head | 60 min |
| Max. area per battery charge AK 30 | 300 m² |
| Max. lawn edge per battery charge AK 30 | 1500 m |
| Max. battery working time AK 30 with line mowing head | 38 min |
| Max. battery working time AK 30 with plastic blade mowing head | 80 min |
| Max. area per battery charge AK 30 S | 300 m² |
| Max. lawn edge per battery charge AK 30 S | 1500 m |
| Device length without cutting tool | 168 cm |
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Power consumption | 0.65 kW |
| Power | 0.50 kW |
| Recommended battery | AK 20 |
| Device weight without battery | 6.9 lb |
| Cutting circle diameter | 350 mm |
| Max. battery working time AK 30 S with line mowing head | 38 min |
| Max. battery working time AK 30 S with plastic blade mowing head | 80 min |
| Cordless power system | AK |
