| Cab | Cab |
| Front Axle | MFWD w/ Suspension |
| Transmission | IVT |
| Guidance-ready | Yes |
| Rear PTO | 540/1000 |

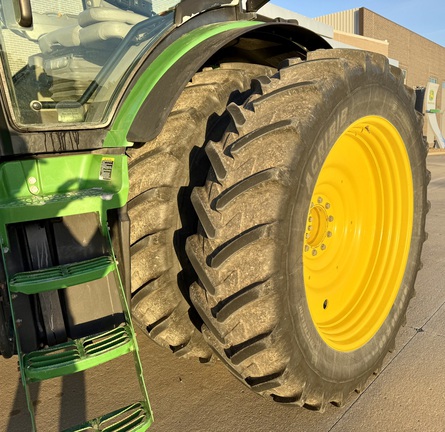

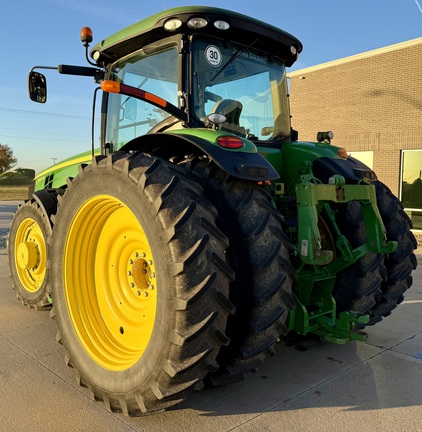

| Rear Tires | Duals |
| Tire Width | Mid |
| Options | 50K Transmission |
| AutoPowr IVT Transmission 50 km/h (31 mph) with Left Hand Reverser Controls |

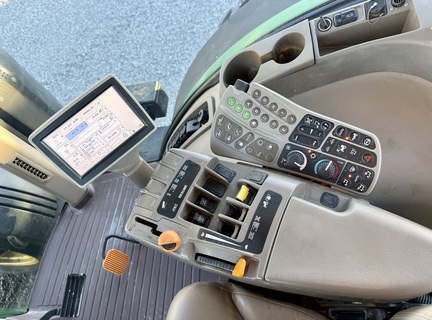

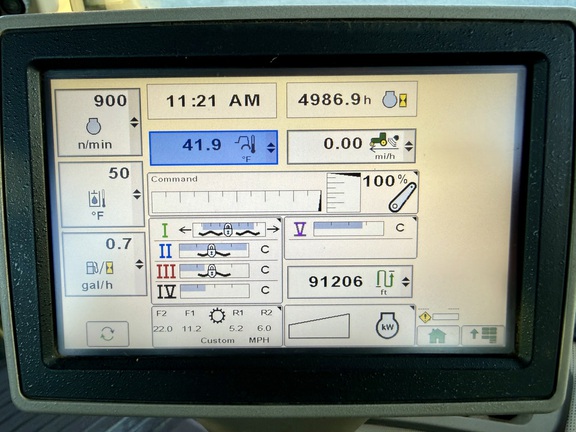

| Touchscreen GS3 CommandCenter 7" Color Display, Video Capable with GreenStar 3 2630 Display |
| John Deere ActiveCommand Steering (ACS) |
| StarFire 3000 Receiver - SF2 Ready with Deluxe Shroud |
| AutoTrac SF2 Activation - GS3 with iTEC Pro Activation - GS3 |
| Premium CommandView II Cab with Active Seat |
| Premium Radio Package with XM Radio |
| 227.1 lpm (60 gpm) 85 cc Hydraulic Pump Displacement |
| Five Remote Selective Control Valves with Push/Pull Breakaway Couplers and High Pressure Relief Levers |
| 45 mm (1-3/4 In.) 1000 rpm (20 Spline), Capable of 35 mm (1-3/8 In.) 540 (6 Spline) / 1000 (21 Spline) rpm PTO |

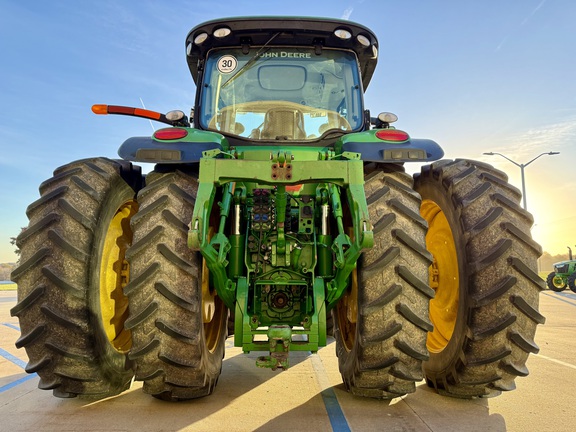

| 6,159 kg (13,600 Lb.) Capacity 3-Point Hitch (Cat 3/3N) with Sway Blocks and Quick Coupler |
| Cat. 4 Adjustable Swinging Drawbar with 50 mm (2 In.) Pin with Heavy Duty Support |
| 120 mm (4.72 In.) Diameter x 2438 mm (96 In.) Length with Double Taper Wheel Hubs |
| 710/70R42 In. 173B R1W Radial in Single Wheel Configuration |

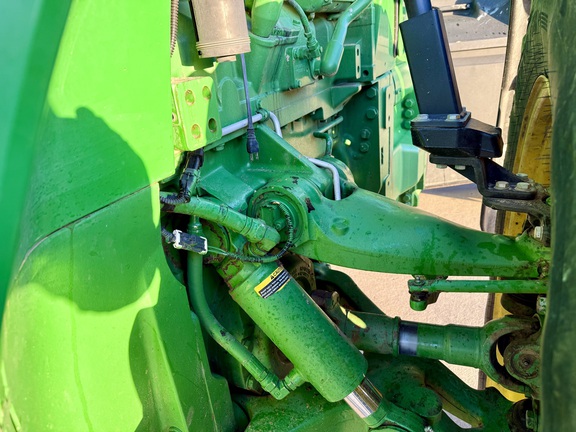

| John Deere Independent Link Suspension with Hydraulic Differential Lock, Wet Multi-Disk Brakes, Fully Enclosed Driveline |

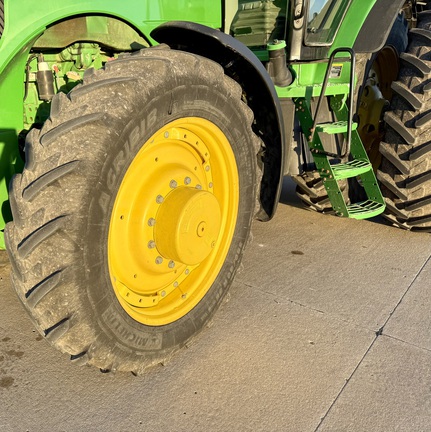

| 600/70R30 In. 152B R1W Radial In Single Tyre Configuration |
| Premium Lighting |
| Fenders, Deluxe Pivoting Front for MFWD or ILS - 620 mm (24.4 In.) Wide |
| Leather Trim Package |
| Outside Mirrors, Telescoping, Heated, Electrically Adjustable RH and LH |
| Radar, Dual Beam Sensor |
| Antenna Mount and Wiring for Business Band (2-Way) Radio |
| Foot Operated Speed Control |
| Cold Weather Start Kit |
| Auxiliary Hydraulic Connections |

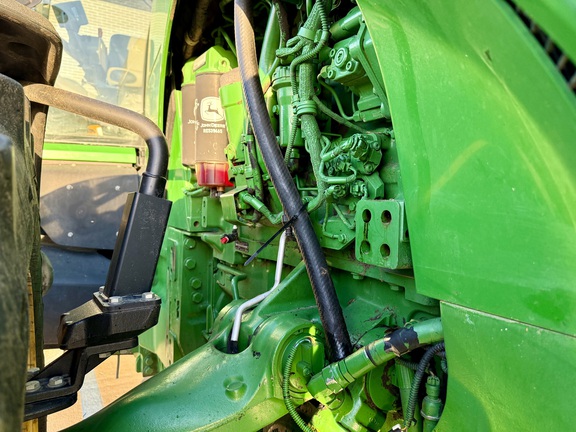

| John Deere PowerTech PSX 9.0 L (549 cu. In.) 6 Cyl IT4 / Stage 3b Compliant Diesel Engine |
| Trailer Brake, Hydraulic |
