John Deere W36M

Commercial Walk-Behind Mower

Designed with the operator in mind, the W36M Commercial Walk-Behind Mower helps you work efficiently and with confidence across a wide range of conditions. Its dependable performance and easytouse features support consistent results without adding complexity.

Product Features:

36-in. (91-cm) Floating Mower Deck
Smooth-Running, 14.5 hp (10.8 kW) V-Twin Engine
Self-Propelled Hydrostatic Drive System
Easy-to-Use Controls for Operator Comfort and Convenience

View Product Broshure

Features

Designed with the operator in mind, the W36M Commercial Walk‑Behind Mower helps you work efficiently and with confidence across a wide range of conditions. Its dependable performance and easy‑to‑use features support consistent results without adding complexity.

36-in. (91-cm) Floating Mower Deck

Smooth-Running, 14.5 hp (10.8 kW) V-Twin Engine

Self-Propelled Hydrostatic Drive System

Easy-to-Use Controls for Operator Comfort and Convenience

Benefits

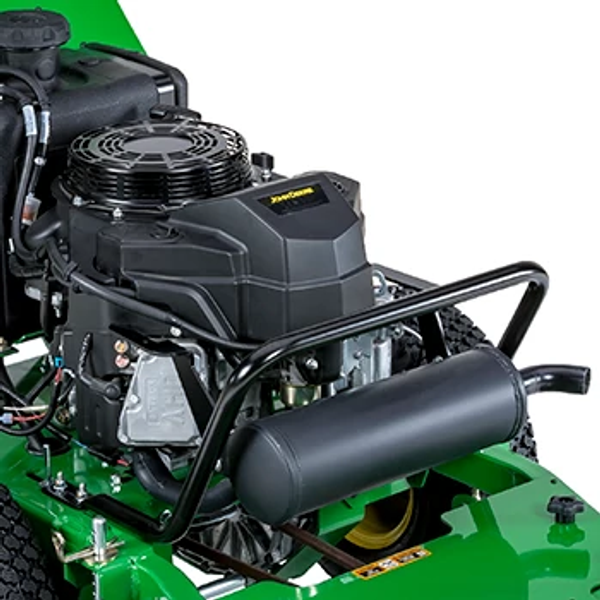

Angled close-up studio view of a W36M walk behind mower's uncovered engine

V-Twin Engine Delivers Smooth Operation and Plenty of Power

The 14.5 hp (10.81 kW) air cooled V twin engine delivers strong torque across a wide range of speeds, with full pressure lubrication for durability on uneven terrain. Its overhead valve design increases power and torque per cubic inch of displacement, improves fuel efficiency, and helps maintain cooler operating temperatures.

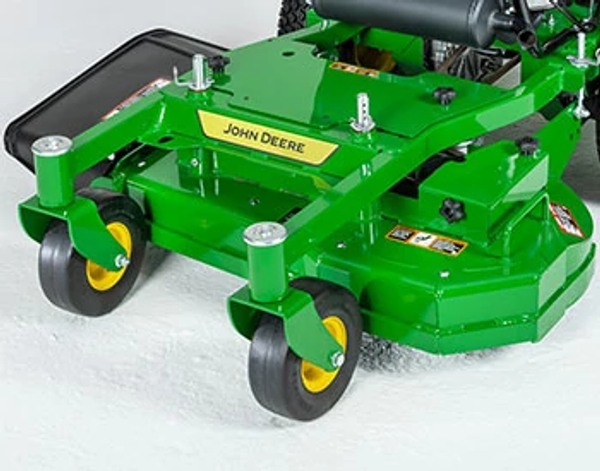

Front left view of the frame and mower deck of a W36M Commercial Walk-Behind mower

Floating Mower Deck Delivers High-Quality Cut

The fabricated floating deep deck provides a high-quality cut on diverse terrains. It features a durable construction with 10-gauge steel deck top, plus a 10-gauge spindle mounting plate, and 7-gauge side skirts with reinforcement bar.

Closeup of a commercial operator's hands while mowing lawn

Convenient Controls for Operator Comfort and Productivity

Intuitive, easy-to-reach controls keep operation simple and comfortable. Color coded, clearly marked controls enhance usability, while the ergonomic layout delivers confident handling and all day comfort. Recessed operator presence levers create a smooth, comfortable grip during operation.

Specifications

Speed Range - Reverse	4.8 km/h
Forward Speeds	Infinite
Speed Range - Forward	10.5 km/h
Speed Range - Forward	6.5 mph
Reverse Speeds	Infinite
Speed Range - Reverse	3 mph

Blades	Two high-lift
Blades - Thickness	0.25 in.
Mower Deck Size	91.4 cm
Cutting Height	1.5-4.5 in.
Blades - Length	45.7 cm
Blade Tip Speed	18000 fpm
Blades - Thickness	0.64 cm
Material	10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Mower Deck Size	36 in.
Blades - Length	18 in.
Cutting Height	3.8-11.4 cm
Blade Drive	V-Belt
Blade Tip Speed	5486 m/min

Height	44.8 in.
Height	114 cm
Width - Deflector Up For Storage	102 cm
Weight	590 lb.
Width - Deflector Down	127 cm
Width - Deflector Down	50 in.
Weight	268 kg
Length With Deck	76.4 in.
Length With Deck	194 cm
Width - Deflector Up For Storage	40 in.

Valving	Overhead valves
Cooling System	Air cooled
Displacement	603 cc
Muffler	Low tone
Lubrication	Full pressure
Cylinders	V-twin
Engine Manufacturer/Model	FS481V
Operating Speed	3600 rpm
Displacement	36.8 cu in.
Ignition/Starter	Electronic/recoil start
Hour Meter	Standard, digital
Air Cleaner	Paper element with foam precleaner
Engine Power	At 3600 rpm 14.5 hp* / 10.8 kW
Governor	Flyweight all speed governor
Oil Filter	Standard

Operator Presence Starting System	PTO off, park brake engaged, speed lever in neutral
Hourmeter	Standard, digital
Ignition	Electronic spark

Fuel Delivery System	Carburetor
Fuel Type	Gasoline
Fuel Tank Capacity	20.4 L
Fuel Tank Capacity	5.4 U.S. gal.
Fuel Pickup	Top draw
Fuel Tank Switch/Shut Off Valve	No
Fuel Pump	Vacuum-operated diaphragm

Shift Mechanism	Ergonomic handles with spring-loaded neutral lock
Transmission	Two Hydro-Gear ZT-2800 unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock

Caster Wheels	9x3.5-4 semi-pneumatic
Drive Wheels	18x6.5-8

Type	Dynamic braking with hand controls, hand lever to set parking brake

Warranty	24 month
