John Deere W61R

Commercial Walk-Behind Mower

The W61R Commercial Walk-Behind Mower is built for landscaping professionals who need confident control, efficient operation, and longlasting durability in demanding conditions. Reliable performance and consistent cut quality help you work productively across large areas, while an operatorfocused design supports comfort and confidence throughout the day.

Product Features:

61-in. (155-cm) Floating Mower Deck
Powerful 23.5 hp (17.5 kW) V-Twin Engine
Self-Propelled Hydrostatic Drive System
Easy-To-Use Controls for Operator Comfort and Convenience

View Product Broshure

Features

The W61R Commercial Walk‑Behind Mower is built for landscaping professionals who need confident control, efficient operation, and long‑lasting durability in demanding conditions. Reliable performance and consistent cut quality help you work productively across large areas, while an operator‑focused design supports comfort and confidence throughout the day.

61-in. (155-cm) Floating Mower Deck

Powerful 23.5 hp (17.5 kW) V-Twin Engine

Self-Propelled Hydrostatic Drive System

Easy-To-Use Controls for Operator Comfort and Convenience

Benefits

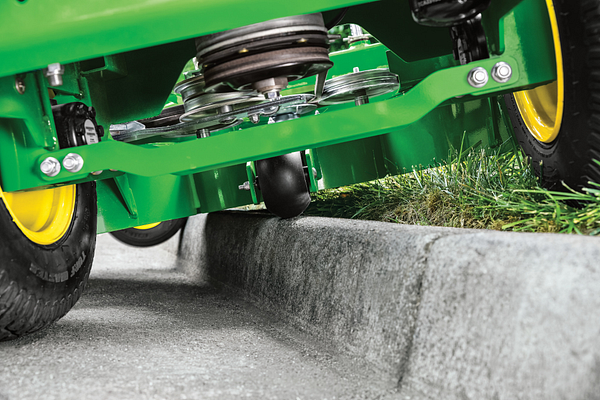

Ground-level close-up of a W36R Commercial Walk-Behind Mower's wheels, green frame, and underside belts as it straddles a curb, with half of the machine on grass and half on pavement

Ultimate Curb Climbing Ability

The machine is built with 8.5 inches (21.6 cm) of frame clearance, allowing operators to climb curbs without scuffing or chipping them.

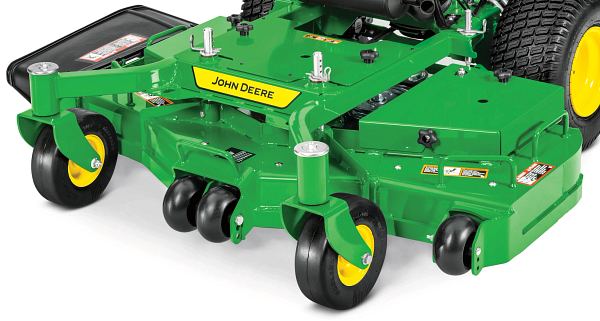

Studio image of R-Series commercial walk-behind mowing equipment deck

Fabricated Floating Mower Deck Delivers High-Quality Cut

The fabricated floating deep deck provides a high-quality cut on diverse terrains. It features a durable construction with 10-gauge steel deck top, plus a 10-gauge spindle mounting plate, and 7-gauge side skirts with reinforcement bar. Adjustable anti-scalp wheels allow for a smooth mow without damaging the turf.

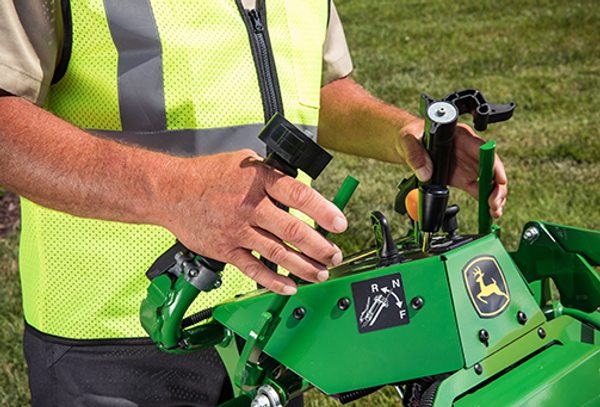

Closeup of a commercial operator's hands while mowing lawn

Convenient Controls for Operator Comfort and Productivity

Intuitive, easy-to-reach controls keep operation simple and comfortable. Color coded, clearly marked controls enhance usability, while the ergonomic layout delivers confident handling and all day comfort. Recessed operator presence levers create a smooth, comfortable grip during operation.

Specifications

Speed Range - Reverse	4.8 km/h
Forward Speeds	Infinite
Speed Range - Forward	12.1 km/h
Speed Range - Forward	7.5 mph
Reverse Speeds	Infinite
Speed Range - Reverse	3 mph

Blades	Three high-lift
Blades - Thickness	0.25 in.
Mower Deck Size	155 cm
Cutting Height	1.5-4.5 in.
Blades - Length	53.3 cm
Blade Tip Speed	18000 fpm
Blades - Thickness	0.64 cm
Material	10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Mower Deck Size	61 in.
Blades - Length	21 in.
Cutting Height	3.8-11.4 cm
Blade Drive	V-Belt
Blade Tip Speed	5486 m/min

Height	44.8 in.
Height	114 cm
Width - Deflector Up For Storage	165 cm
Weight	785 lb.
Width - Deflector Down	191 cm
Width - Deflector Down	75 in.
Weight	356 kg
Length With Deck	83 in.
Length With Deck	211 cm
Width - Deflector Up For Storage	65 in.

Valving	Overhead V-valve
Cooling System	Air cooled
Displacement	726 cc
Muffler	Low tone
Lubrication	Full pressure
Cylinders	V-twin
Engine Manufacturer/Model	FX730V
Operating Speed	3600 rpm
Displacement	44.3 cu in.
Ignition/Starter	Electronic/electric start
Crankcase Capacity	With filter, 2.2 U.S. qt
Hour Meter	Standard, digital
Air Cleaner	Heavy-duty canister type with safety element
Engine Power	At 3600 rpm 23.5 hp* / 17.5 kW
Governor	Flyweight all speed governor
Oil Filter	Standard

Operator Presence Starting System	PTO off, park brake engaged, speed lever in neutral
Hourmeter	Standard, digital
Ignition	Electronic spark

Fuel Delivery System	Carburetor
Fuel Type	Gasoline
Fuel Tank Capacity	20.4 L
Fuel Tank Capacity	5.4 U.S. gal.
Fuel Pickup	Top draw
Fuel Tank Switch/Shut Off Valve	No
Fuel Pump	Vacuum-operated diaphragm

Shift Mechanism	Ergonomic handles with spring-loaded neutral lock
Transmission	Two Hydro-Gear, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
Wheel Motors	Danfoss 12 cu in. / 197 cc

Date Collected	2022-07-11T00:00:00

Caster Wheels	9x3.5-4 semi-pneumatic
Drive Wheels	18x8.5-8

Type	Dynamic braking with hand controls, hand lever to set parking brake

Warranty	36 months or 1200 hours, whichever comes first: First 24 months, no hour limitation
