Front left studio view of a green, black, and yellow 1580 TerrainCutâ„¢ Front Mower

John Deere 1580

TerrainCut™ Front Mower

The John Deere 1580 TerrainCut Commercial Front Mower (Less Mower Deck) offers exceptional maneuverability, power, and versatility, ideal for professional landscapers who demand precision and efficiency across diverse terrains.

Product Features:

7Iron™ PRO Side Discharge or Fastback™ PRO Rear Discharge Deck
37.4-hp (27.5-kW), PS Direct Fuel Injection Diesel Engine
On-Demand Four-Wheel Drive
Hydrostatic Heavy-Duty Transaxle With Maximum Forward Speed of 15 mph (24.1 km/h)

View Product Broshure

Features

The John Deere 1580 TerrainCut™ Commercial Front Mower (Less Mower Deck) offers exceptional maneuverability, power, and versatility, ideal for professional landscapers who demand precision and efficiency across diverse terrains.

7Iron™ PRO Side Discharge or Fastback™ PRO Rear Discharge Deck

37.4-hp (27.5-kW), PS Direct Fuel Injection Diesel Engine

On-Demand Four-Wheel Drive

Hydrostatic Heavy-Duty Transaxle With Maximum Forward Speed of 15 mph (24.1 km/h)

Benefits

Studio view of a 1500 series TerrainCut™ Front Mower's diesel engine

Diesel Engine has High-Quality Features

The 1500 Series TerrainCut™ Front Mowers are powered by a 3-cylinder, liquid-cooled diesel engine known for low emissions, reduced noise, and exceptional fuel efficiency. This engine meets EPA Tier 4 emissions standards, making it both powerful and environmentally friendly.

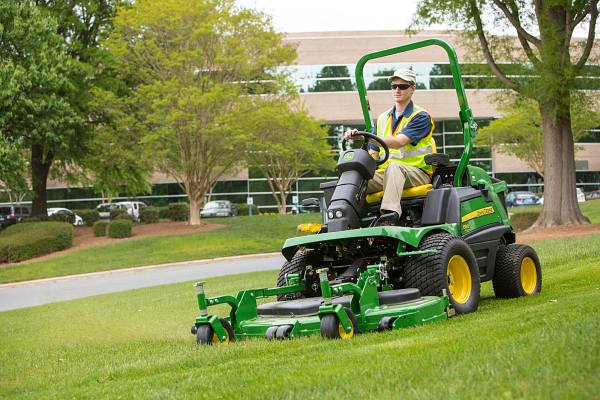

Front left view of a yellow-vested operator on a 1580 TerrainCut™ Front Mower mowing a lawn in front of a business

Versatile Mower Deck Compatibility

The TerrainCut™ models are compatible with a variety of John Deere 7Iron™ PRO side-discharge or FastBack PRO rear-discharge mower decks, providing flexibility in cutting widths across diverse conditions. The decks are known for durability and high-quality cutting performance.

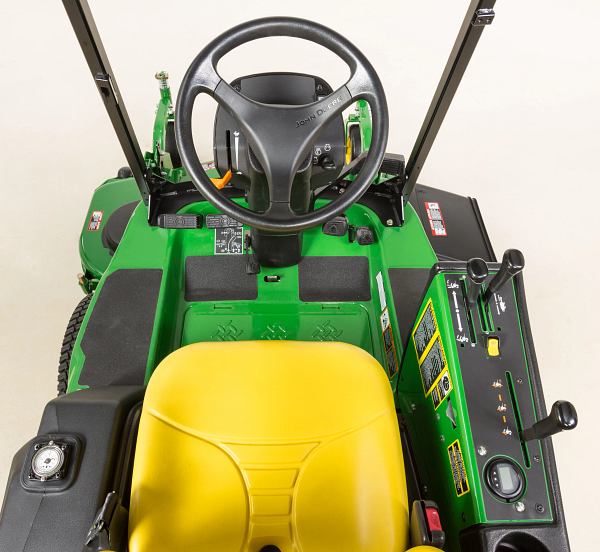

Top studio view of a 1570 TerrainCut™ Front Mower's operator controls

Easy-to-Operate Controls

Featuring hydraulic power steering and a compact control layout, the TerrainCut™ mower offers effortless handling to reduce operator fatigue. The two-pedal directional foot controls and turn-assist brakes allow operator to maneuver while keeping hands free for steering and console controls.

Specifications

Drive Wheels	26x12-12
Steering	20x10-10

High Reverse Speed	8 km/h
High Reverse Speed	5 mph
High Forward Speed	24 km/h
High Forward Speed	15 mph

Transmission	Hydrostatic full time 4WD, on-demand
Hi/Lo Range	Yes, dual speed transmission
Speed And Direction Control	Two-pedal foot
Cruise Control	Optional

Rear Anti-Scalp Rollers	Yes, gauge wheels in.
Cutting Height - Low	1 in.
Construction	One-piece forged: 7Iron PRO in.
Deck Offset	Yes
Mower Deck Size	60, 72 in.
Cutting Height - High	15.24 cm
Blade Tip Speed	18000 fpm
Deck Thickness	0.18 in.
Cutting Height - Low	2.54 cm
Caster Wheels	Flat free, 11x4-5
Deck Thickness	7 gauge
Belt Tensioning	Spring loaded
Mower Deck Size	152, 183 cm
Cutting Height - High	6 in.
Blade Tip Speed	5486 m/min
Deck Thickness	0.46 cm
Front Anti-Scalp Rollers	Yes, gauge wheels in.

Turns Lock-To-Lock	2 maximum, 1.5 minimum
Type	Hydraulic cylinder

Wheelbase	49.2 in.
Overall Height With ROPS	213 cm
Ground Clearance	7 in.
Rollover Protective Structure (ROPS)	Standard (folding)
Shipping Weight	962 kg
Overall Height With ROPS Folded	150 cm
Overall Width	4.617–5.027 ft
ROPS Certification	Two-post: OSHA 1928, Canadian Std.: CSA-352; Four-post: SAE J2194, EU Standard: 86/298/EEC, ISO 21299:2009
Length	2.202 m
Wheelbase	125 cm
Overall Height With ROPS	83.7 in.
Ground Clearance	17.8 cm
Shipping Weight	2120 lb.
Overall Width	1.407–1.532 m
Overall Height With ROPS Folded	59 in.
Length	7.225 ft

Pump Capacity	23.8 L/min
Pump Capacity	6.3 gpm
Spool Valve	Front lift, standard
Type	Open center
Lift Cylinders	2

Maximum Torque	109 Nm
Engine Power - Gross	37.4 hp
Displacement	1640 cc
Fuel Tank Capacity	16 U.S. gal.
Battery	12 V
Cooling Capacity	7.6 L
Cylinders	3
Air Restriction Indicator	Standard
Engine Manufacturer/Model	3TNV88C
Rated Engine RPM	3000 rpm
Alternator	75 amp
Maximum Torque	80.4 lb-ft
Engine Power - Gross	27.5 kW
Fuel Type	Diesel (B20 compatible)
Fuel Tank Capacity	60.6 L
Displacement	100.2 cu in.
Cooling	Liquid
Cooling Capacity	8 U.S. qt
Air Cleaner	Dual element dry type
Injection	Direct
Charging System	Automotive type

Cutting Height - Low	2.54 cm
Caster Wheels	Flat free, 11x4-5
Cutting Height - Low	1 in.
Cutting Width	62, 72 in.
Cutting Width	157, 183 cm
Cutting Height - High	15.24 cm
Cutting Height - High	6 in.

Date Collected	2022-10-01T00:00:00

Master Brake	Standard, locking
Type	Internal wet disk
Individual Turn Brakes	Standard

Type	Optional hydraulic

Warranty	24 months
